Side-By-Side Refrigerator

Model # WRS331FDDM00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRS331FDDM00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

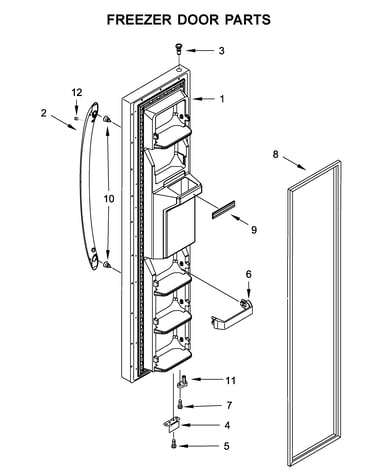

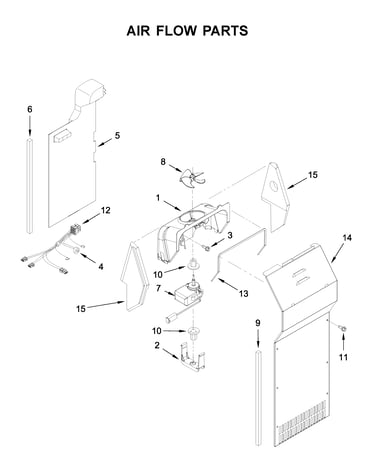

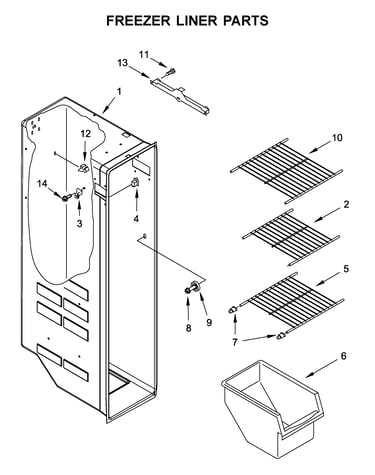

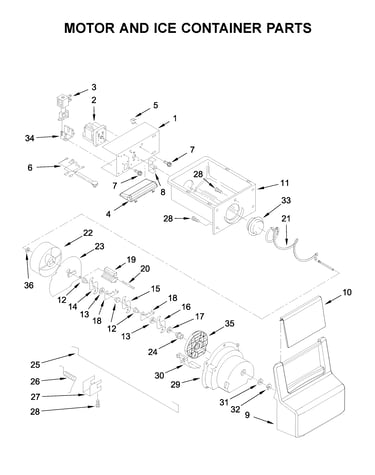

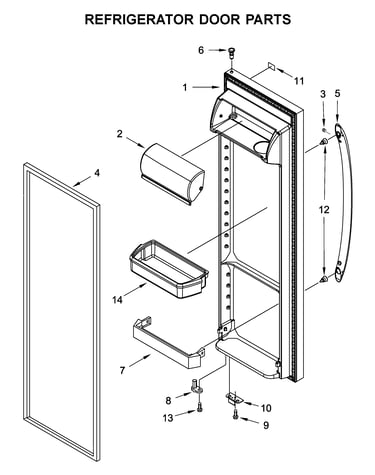

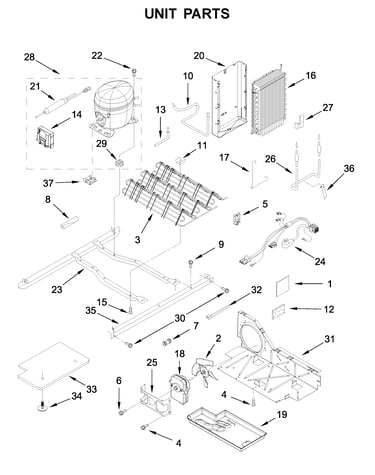

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 288 parts  |
Refrigerator Cartridge W10735398
#27

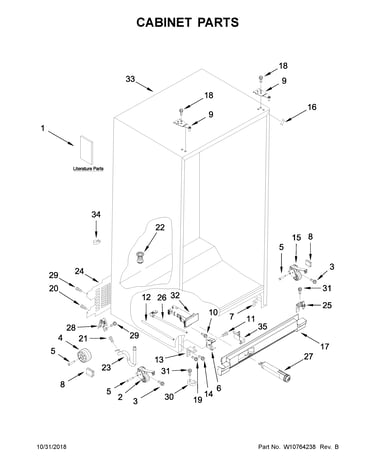

Cabinet parts diagram

Refrigerator cartridge

Part #W10735398

Replaced by #EDR1RXD1

?
Manufacturer substitution
This part replaces W10735398. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Ice Maker Assembly W10300022
#100

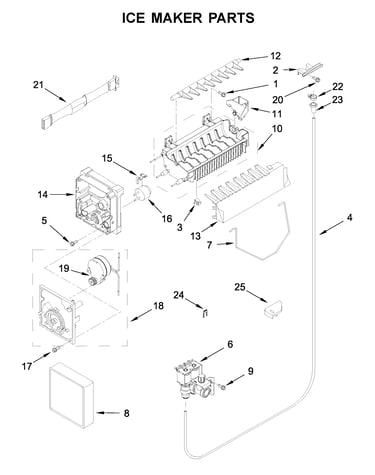

Ice maker parts diagram

Refrigerator ice maker assembly

Part #W10300022

Replaced by #WPW10300022

?
Manufacturer substitution
This part replaces W10300022. Substitute parts can look different from the original.
BEST SELLER
$128.27 |
9% OFF Phone Price : $140.27
In Stock
Refrigerator Crisper Pan 2188652
#4

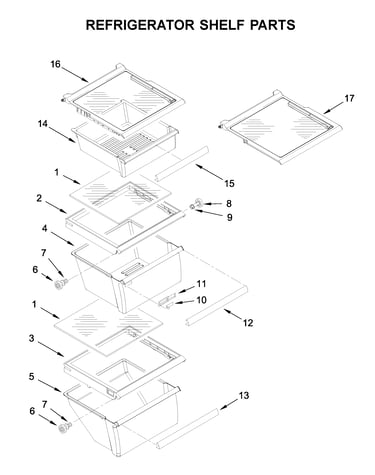

Refrigerator shelf parts diagram

Refrigerator crisper pan

Part #2188652

Replaced by #WP2188656

?
Manufacturer substitution
This part replaces 2188652. Substitute parts can look different from the original.
BEST SELLER
$73.14 |
8% OFF Phone Price : $79.14
In Stock
Refrigerator Light Board W10515058
#4

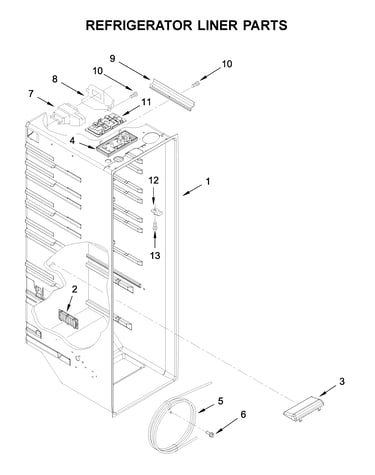

Refrigerator liner parts diagram

Refrigerator light board

Part #W10515058

Replaced by #WPW10515058

?
Manufacturer substitution
This part replaces W10515058. Substitute parts can look different from the original.
BEST SELLER
$145.00 |
8% OFF Phone Price : $157.00
In Stock
Refrigerator Light Board W10515057
Refrigerator light board

Part #W10515057

Replaced by #WPW10515057

?
Manufacturer substitution
This part replaces W10515057. Substitute parts can look different from the original.
BEST SELLER
$86.75 |
6% OFF Phone Price : $92.75
In Stock
Refrigerator Water Inlet Valve W10179146
#6

Ice maker parts diagram

Refrigerator water inlet valve

Part #W10179146

Replaced by #WPW10179146

?
Manufacturer substitution
This part replaces W10179146. Substitute parts can look different from the original.
BEST SELLER
$88.90 |
6% OFF Phone Price : $94.90
In Stock
Refrigerator Meat Pan 2188654
#5

Refrigerator shelf parts diagram

Refrigerator meat pan

Part #2188654

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2188654. Substitute parts can look different from the original.
BEST SELLER
$56.14 |
10% OFF Phone Price : $62.14
In Stock
Refrigerator Electronic Control Board W10366605
#6

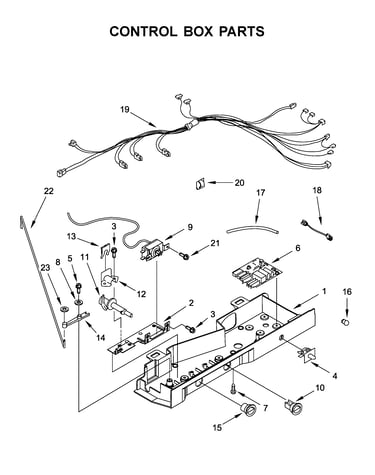

Control box parts diagram

Refrigerator electronic control board

Part #W10366605

Replaced by #WPW10366605

?
Manufacturer substitution
This part replaces W10366605. Substitute parts can look different from the original.
BEST SELLER
$212.82 |
5% OFF Phone Price : $224.82
In Stock
Refrigerator Water Tube W10357069
#4

Ice maker parts diagram

Refrigerator water tube

Part #W10357069

Replaced by #W10823511

?
Manufacturer substitution
This part replaces W10357069. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Refrigerator Housing Assembly W10778315
#32A

Cabinet parts diagram

Refrigerator housing assembly

Part #W10778315

Replaced by #W10862460

?
Manufacturer substitution
This part replaces W10778315. Substitute parts can look different from the original.
BEST SELLER
$74.82 |
7% OFF Phone Price : $80.82
In Stock
