Model # AJES09DCAM1 Official GE zoneline air conditioner
Here are the diagrams and repair parts for Official GE AJES09DCAM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
AJES09DCAM1 Zoneline Air Conditioner
#1169

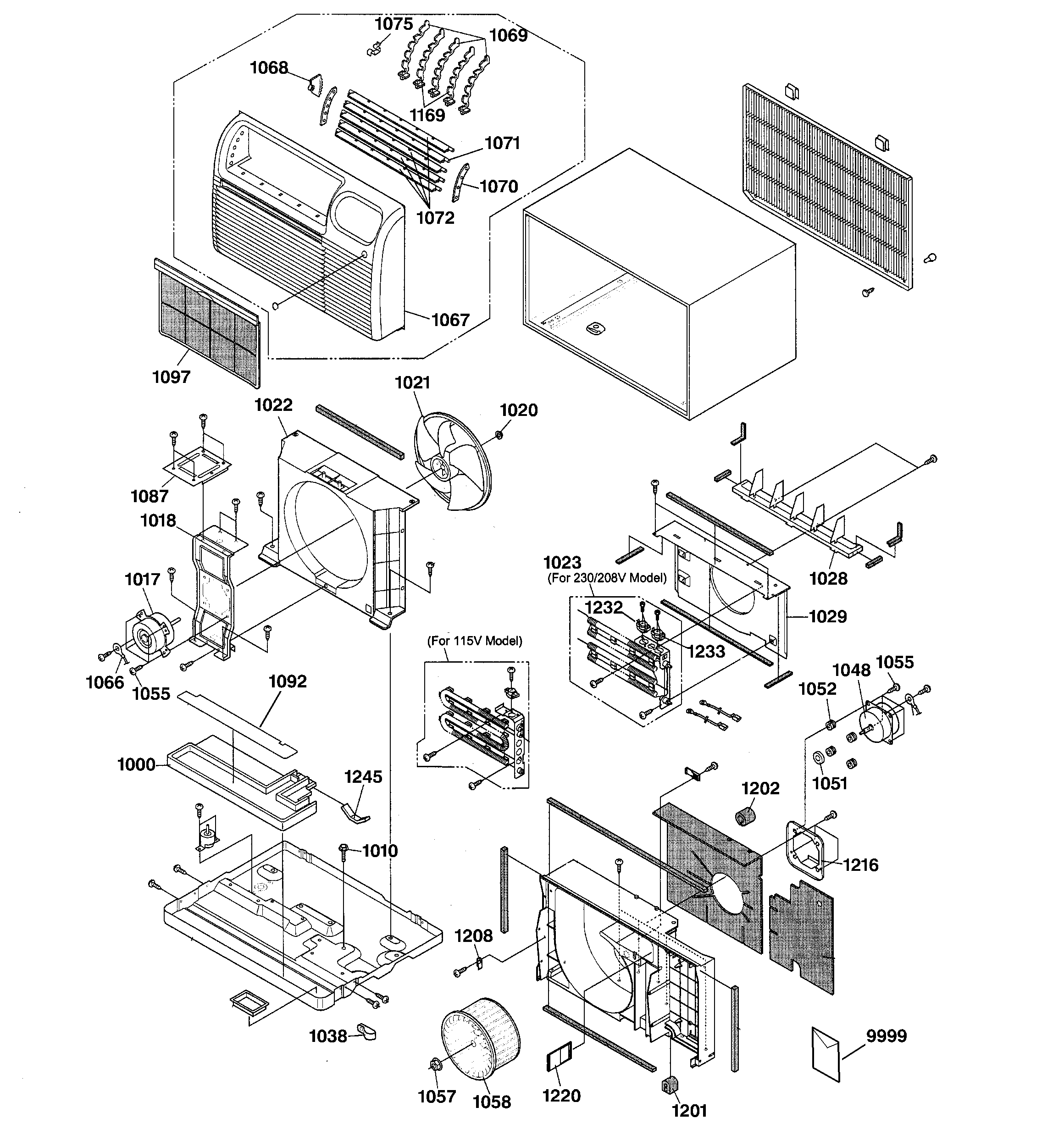

Cabinet & components diagram
Louver holder
Part #WJ01X10142
This item is not returnable
$5.00
In Stock
#9999
Cabinet & components diagram
J-line contr
Part #49-7397
$8.49
In Stock
#1020
Cabinet & components diagram
Room air conditioner fan blade nut
Part #WJ01X10041
This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
#1084

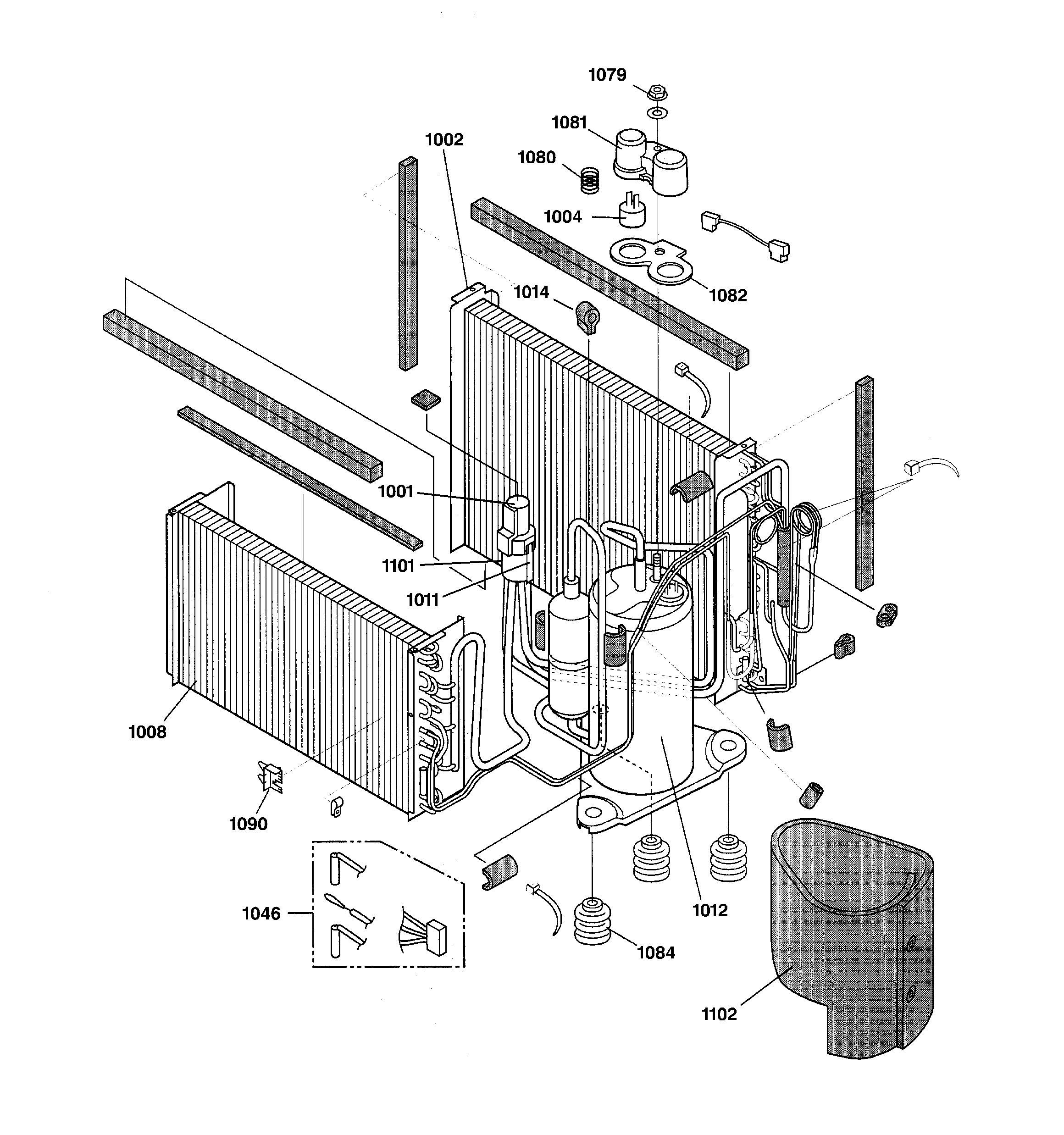

Sealed system components diagram
Complete cushion
Part #WJ01X10002
This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
#1232
Cabinet & components diagram
Room air conditioner heater high-limit thermostat
Part #WP28X10005
$35.76 |
14% OFF Phone Price : $41.76
In Stock
#1097
Cabinet & components diagram
Room air conditioner air filter
Part #WJ85X10041
$35.68 |
14% OFF Phone Price : $41.68
In Stock
#1233
Cabinet & components diagram
Room air conditioner heater high-limit thermostat
Part #WP28X10007
Replaced by #WP28X10013
?
Manufacturer substitution
This part replaces WP28X10007. Substitute parts can look different from the original.
$52.16 |
10% OFF Phone Price : $58.16
In Stock
#1042

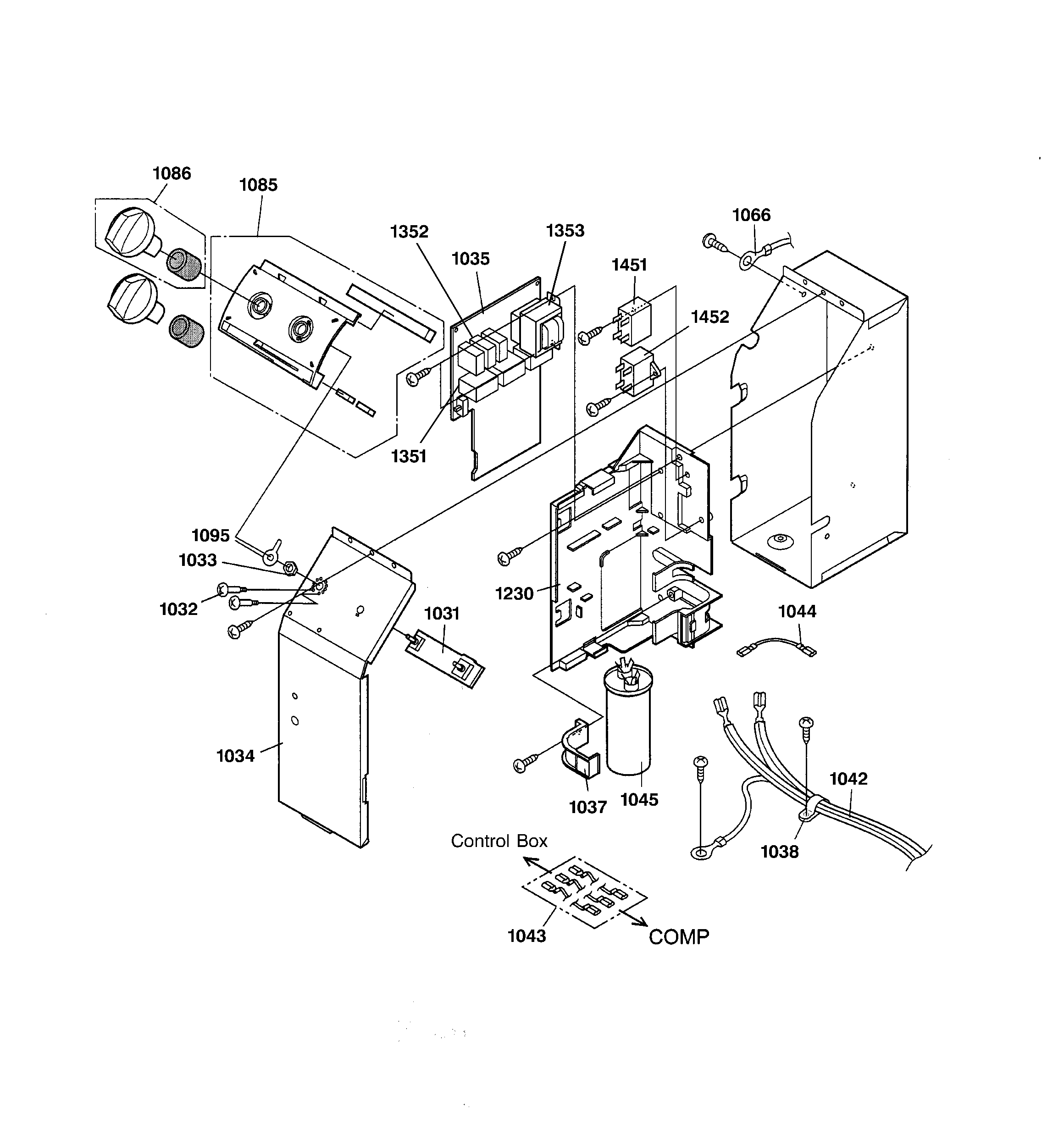

Control parts diagram
Power supply
Part #WJ35X10004
Replaced by #WJ35X10142
?
Manufacturer substitution
This part replaces WJ35X10004. Substitute parts can look different from the original.
$124.48 |
9% OFF Phone Price : $136.48
In Stock
#1079
Sealed system components diagram
Special nut
Part #WJ01X10010
The manufacturer no longer makes this part, and there's no substitute part
#1034
Control parts diagram
Control box
Part #WJ79X10063
The manufacturer no longer makes this part, and there's no substitute part
