Model # GU3200XTXB4 Official Whirlpool undercounter dishwasher
Here are the diagrams and repair parts for Official Whirlpool GU3200XTXB4 undercounter dishwasher, as well as links to manuals and error code tables, if available.
By Schematic
By Part

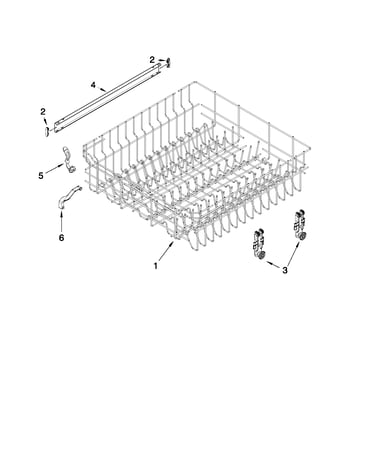

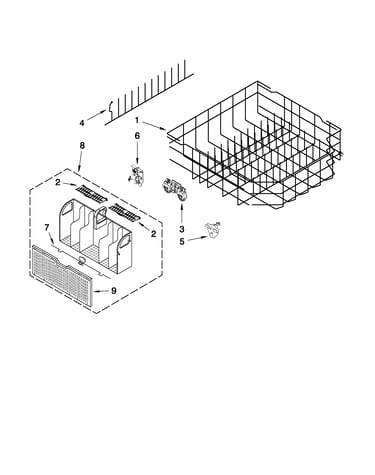

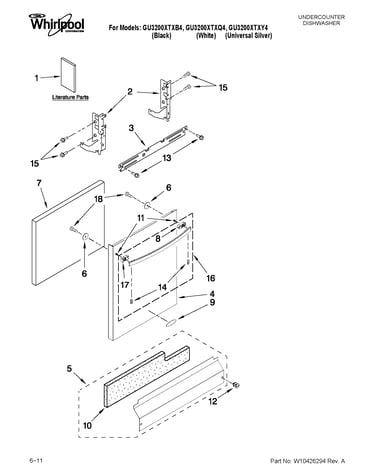

SELECT DIAGRAM
Browse Parts for
GU3200XTXB4 Undercounter Dishwasher
#15

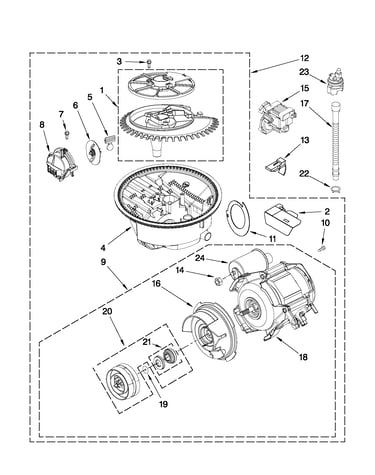

Pump and motor parts diagram
Dishwasher drain pump
Part #8558995
Replaced by #WPW10348269
?
Manufacturer substitution
This part replaces 8558995. Substitute parts can look different from the original.
$63.85 |
9% OFF Phone Price : $69.85
In Stock
#20

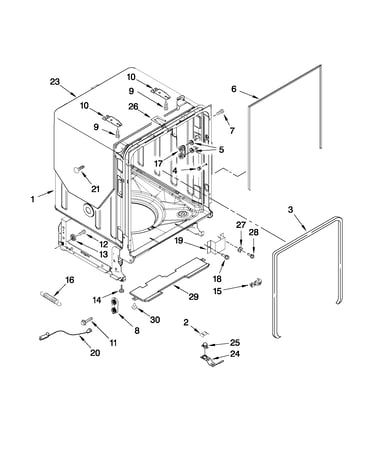

Tub and frame parts diagram
Dishwasher door balance link
Part #W10158291
Replaced by #8194001
?
Manufacturer substitution
This part replaces W10158291. Substitute parts can look different from the original.
$24.05 |
20% OFF Phone Price : $30.05
In Stock
#7

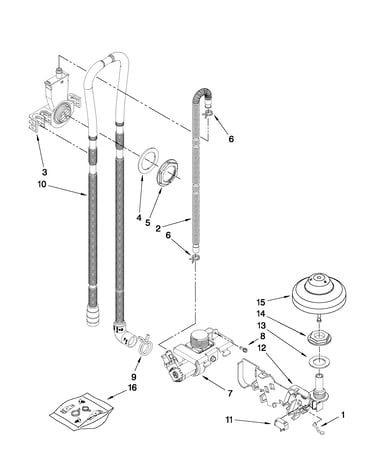

Fill, drain and overfill parts diagram
Dishwasher water inlet valve
Part #W10195047
Replaced by #W11175771
?
Manufacturer substitution
This part replaces W10195047. Substitute parts can look different from the original.
$45.25 |
12% OFF Phone Price : $51.25
In Stock
#17
Pump and motor parts diagram
Dishwasher drain hose
Part #8269144
Replaced by #8269144A
?
Manufacturer substitution
This part replaces 8269144. Substitute parts can look different from the original.
$19.45 |
9% OFF Phone Price : $21.45
In Stock
#10
Fill, drain and overfill parts diagram
Dishwasher drain hose
Part #W10195750
Replaced by #WPW10545278
?
Manufacturer substitution
This part replaces W10195750. Substitute parts can look different from the original.
$43.11 |
12% OFF Phone Price : $49.11
In Stock
#23
Pump and motor parts diagram
Dishwasher turbidity sensor
Part #W10134017
Replaced by #WPW10705575
?
Manufacturer substitution
This part replaces W10134017. Substitute parts can look different from the original.
$22.47 |
21% OFF Phone Price : $28.47
In Stock
#25
Tub and frame parts diagram
Dishwasher thermostat
Part #661566
Replaced by #WP661566
?
Manufacturer substitution
This part replaces 661566. Substitute parts can look different from the original.
$26.17 |
19% OFF Phone Price : $32.17
In Stock
#6
Tub and frame parts diagram
Seal
Part #8269110
Replaced by #W10864081
?
Manufacturer substitution
This part replaces 8269110. Substitute parts can look different from the original.
$51.37 |
10% OFF Phone Price : $57.37
In Stock
#8

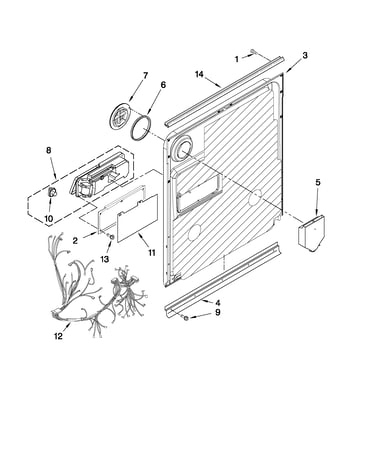

Inner door parts diagram
Dishwasher detergent dispenser assembly
Part #W10224429
Replaced by #WPW10199696
?
Manufacturer substitution
This part replaces W10224429. Substitute parts can look different from the original.
$130.70 |
8% OFF Phone Price : $142.70
In Stock
#6
Inner door parts diagram
Dishwasher vent gasket
Part #8269259
Replaced by #WP8269259
?
Manufacturer substitution
This part replaces 8269259. Substitute parts can look different from the original.
$32.68 |
16% OFF Phone Price : $38.68
In Stock
