Model # GFE28HMKLES Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for Official GE GFE28HMKLES bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

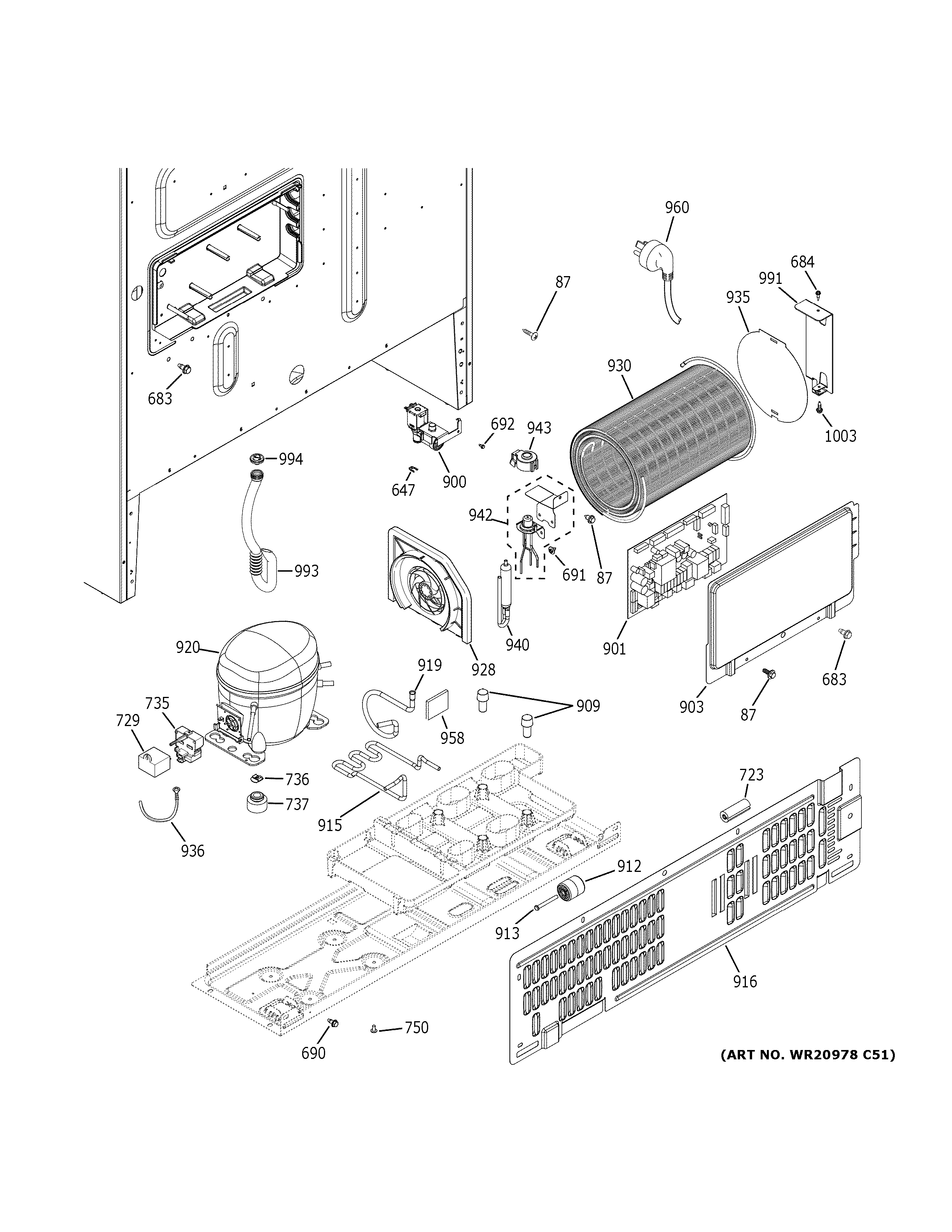

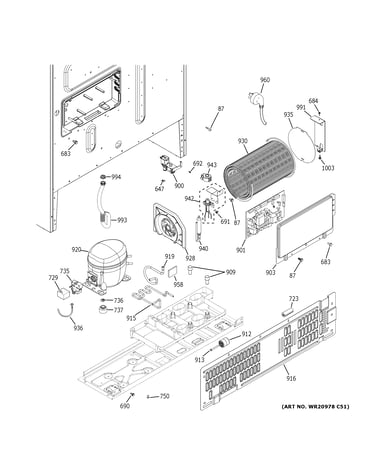

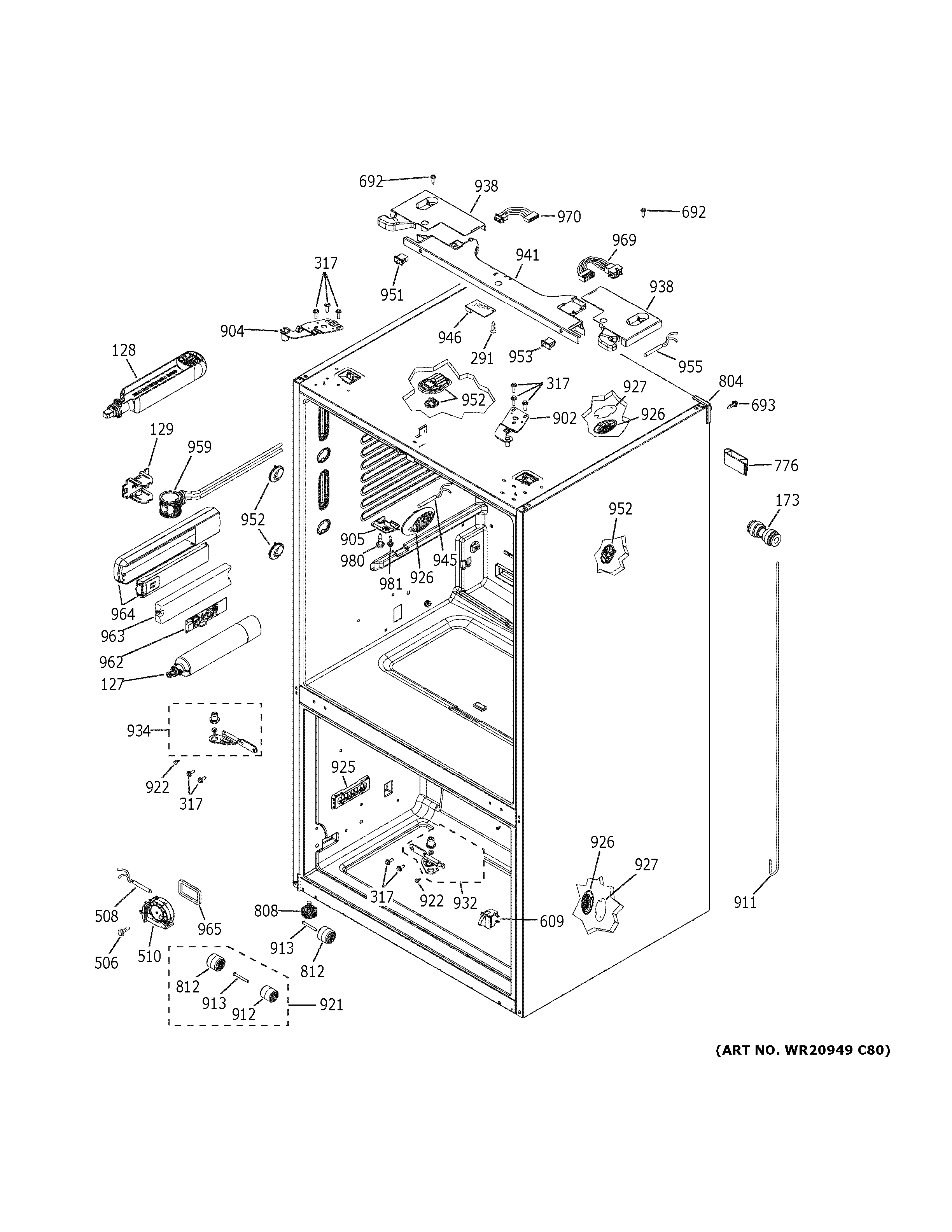

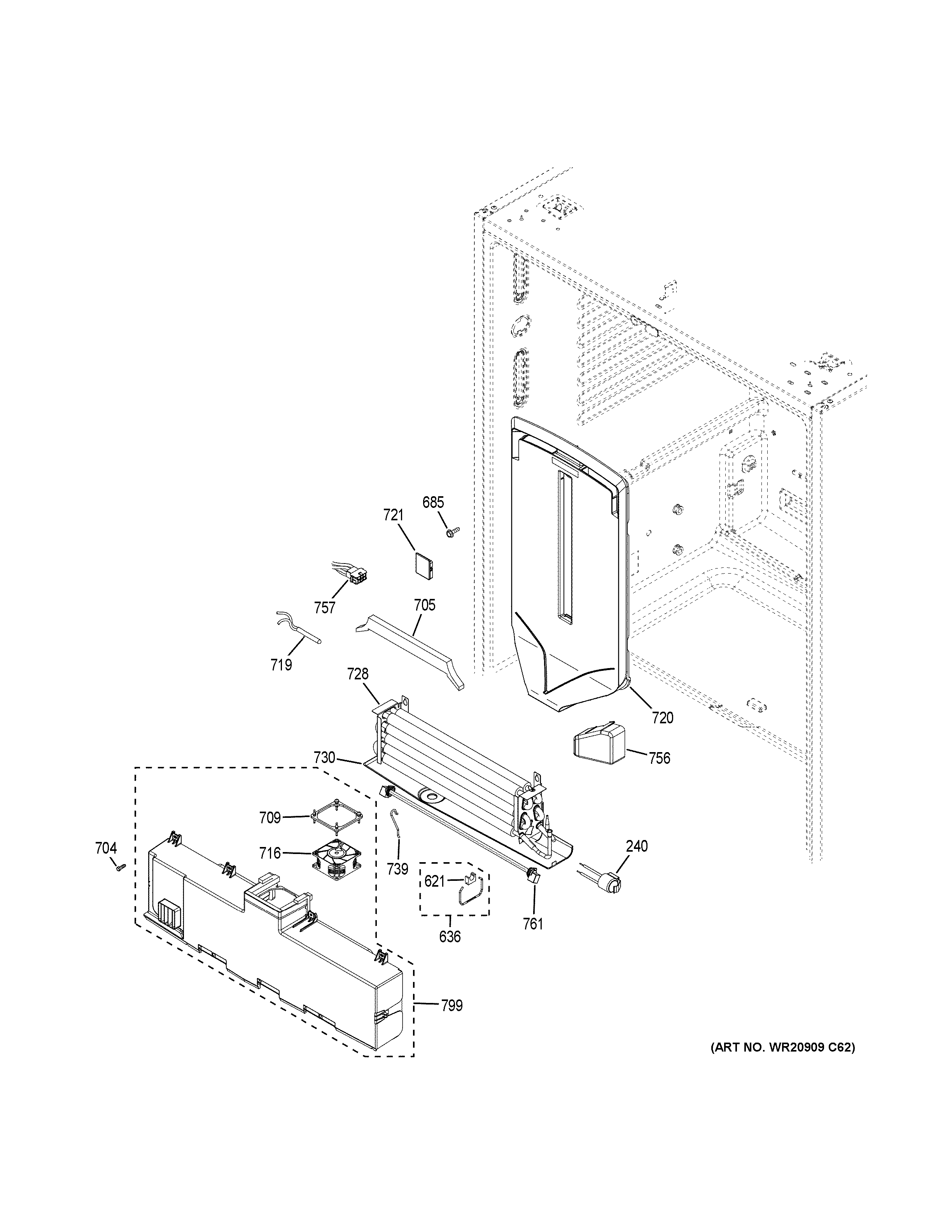

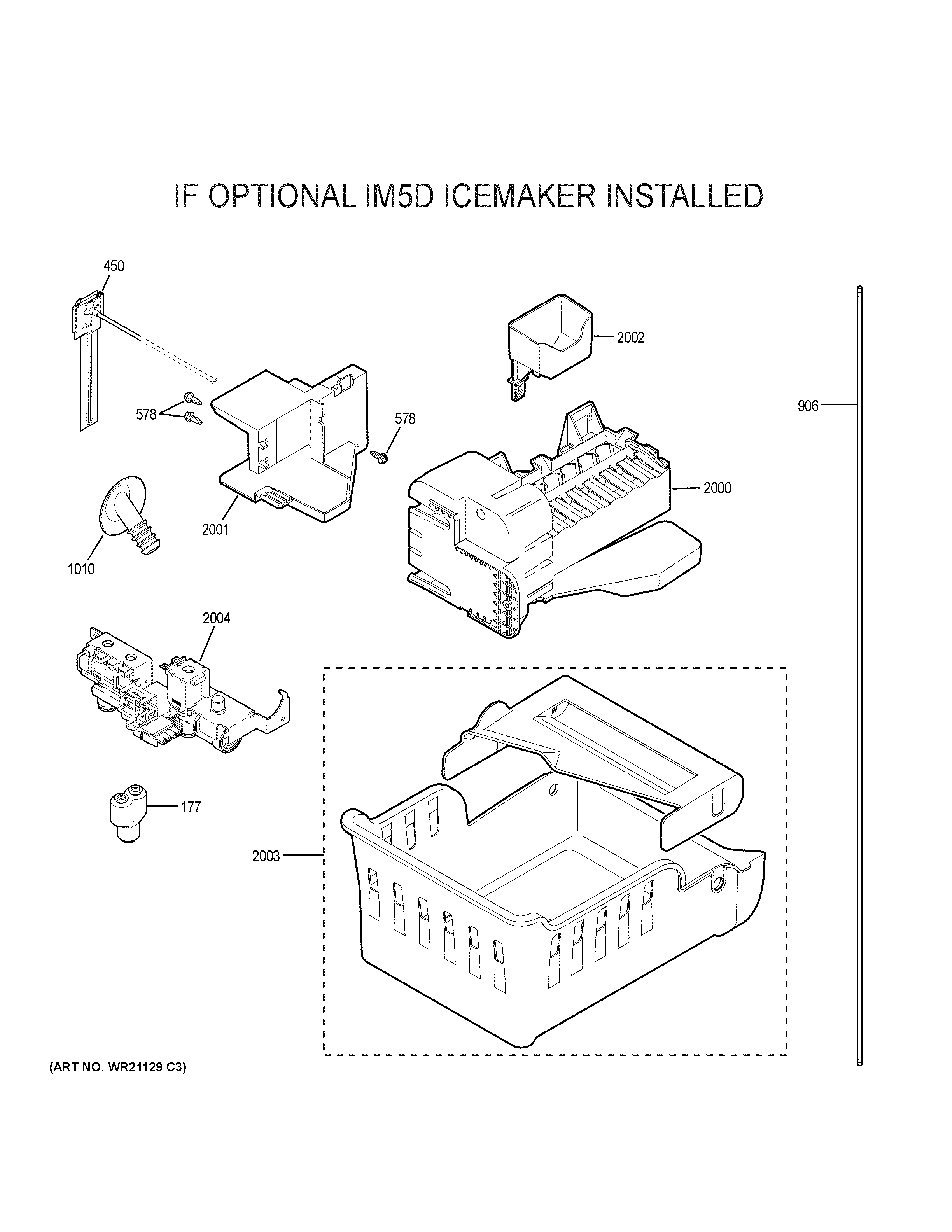

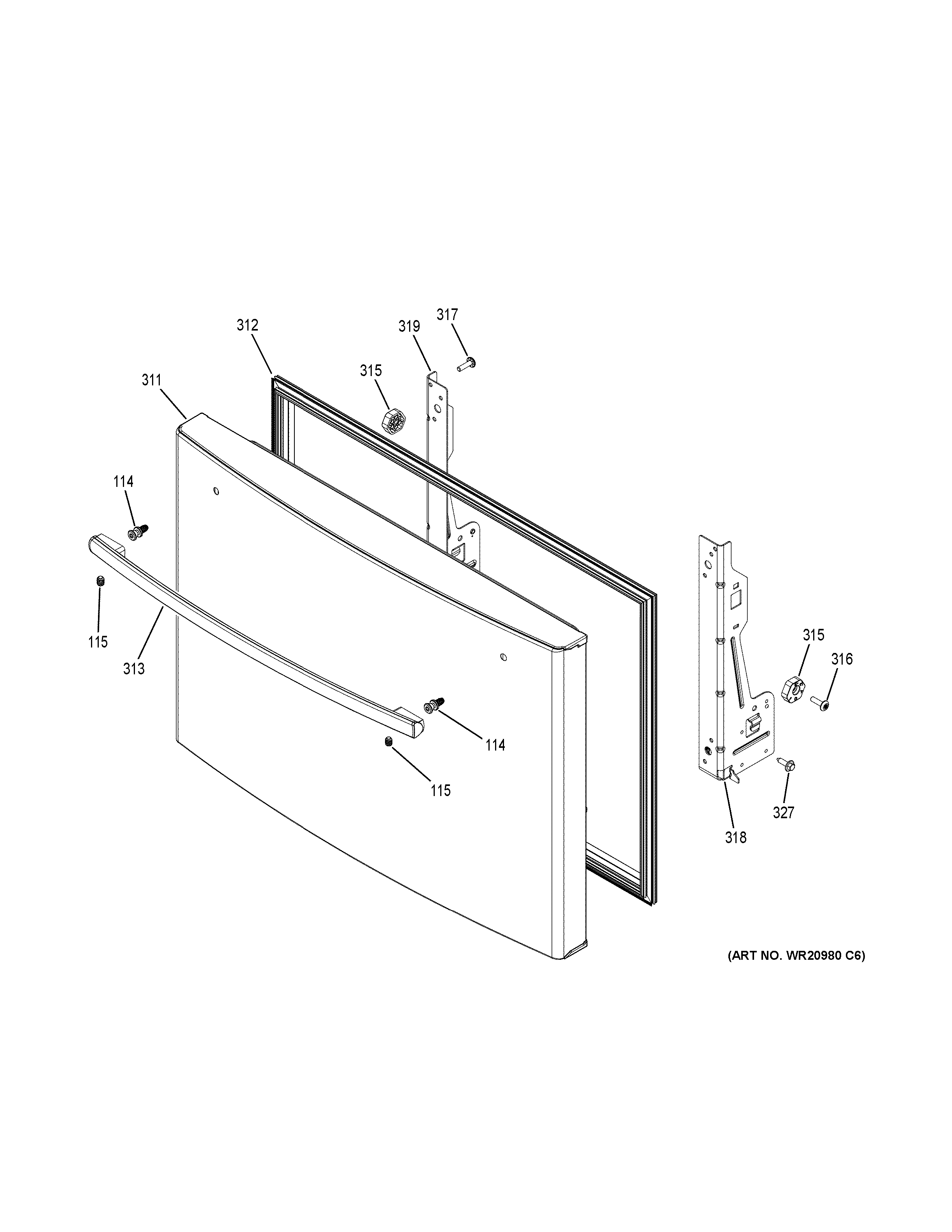

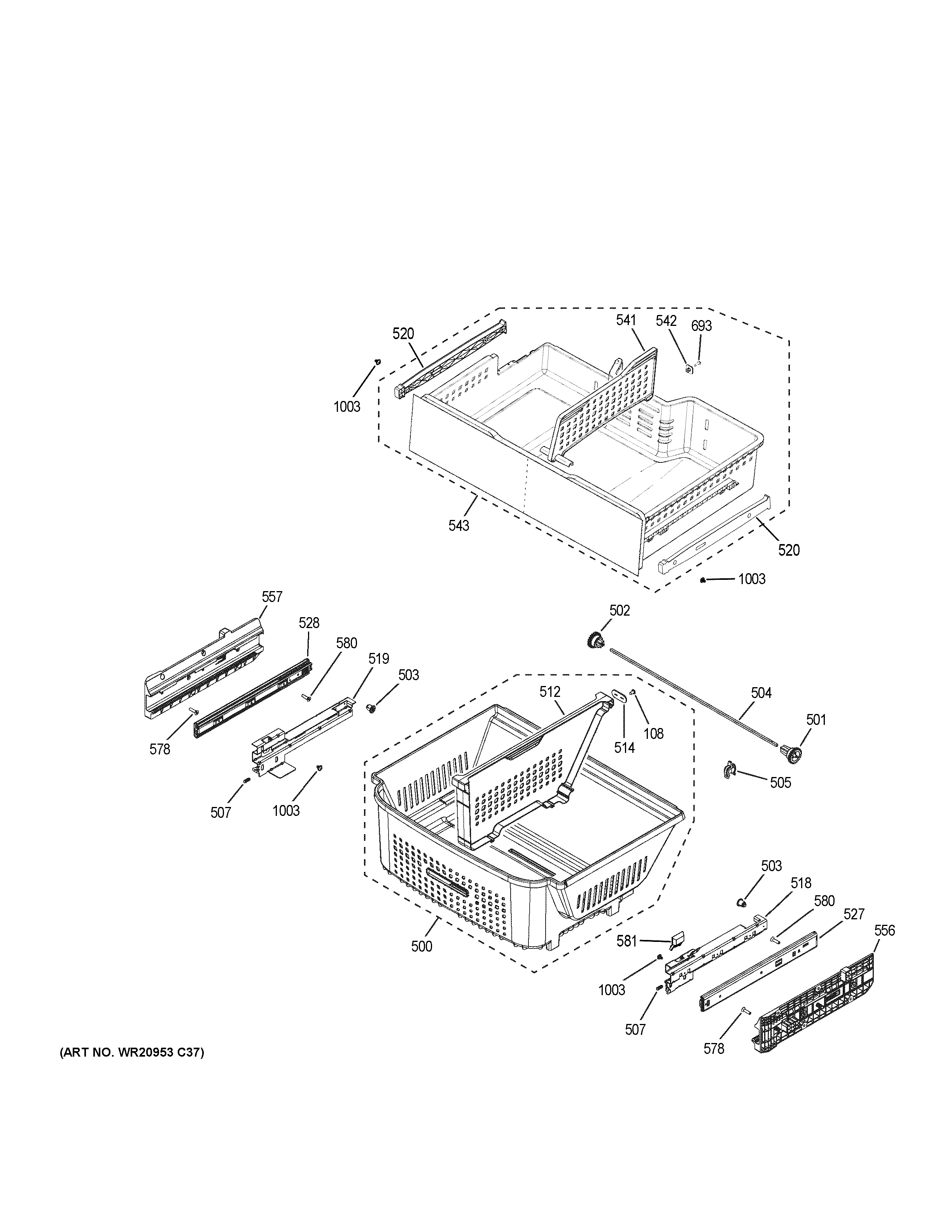

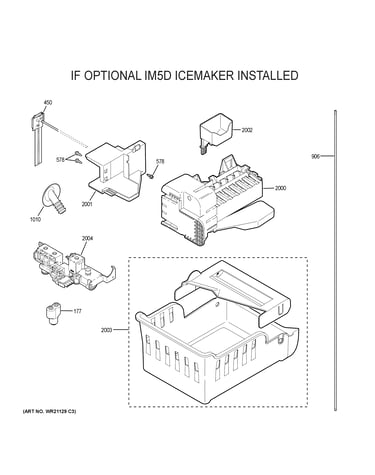

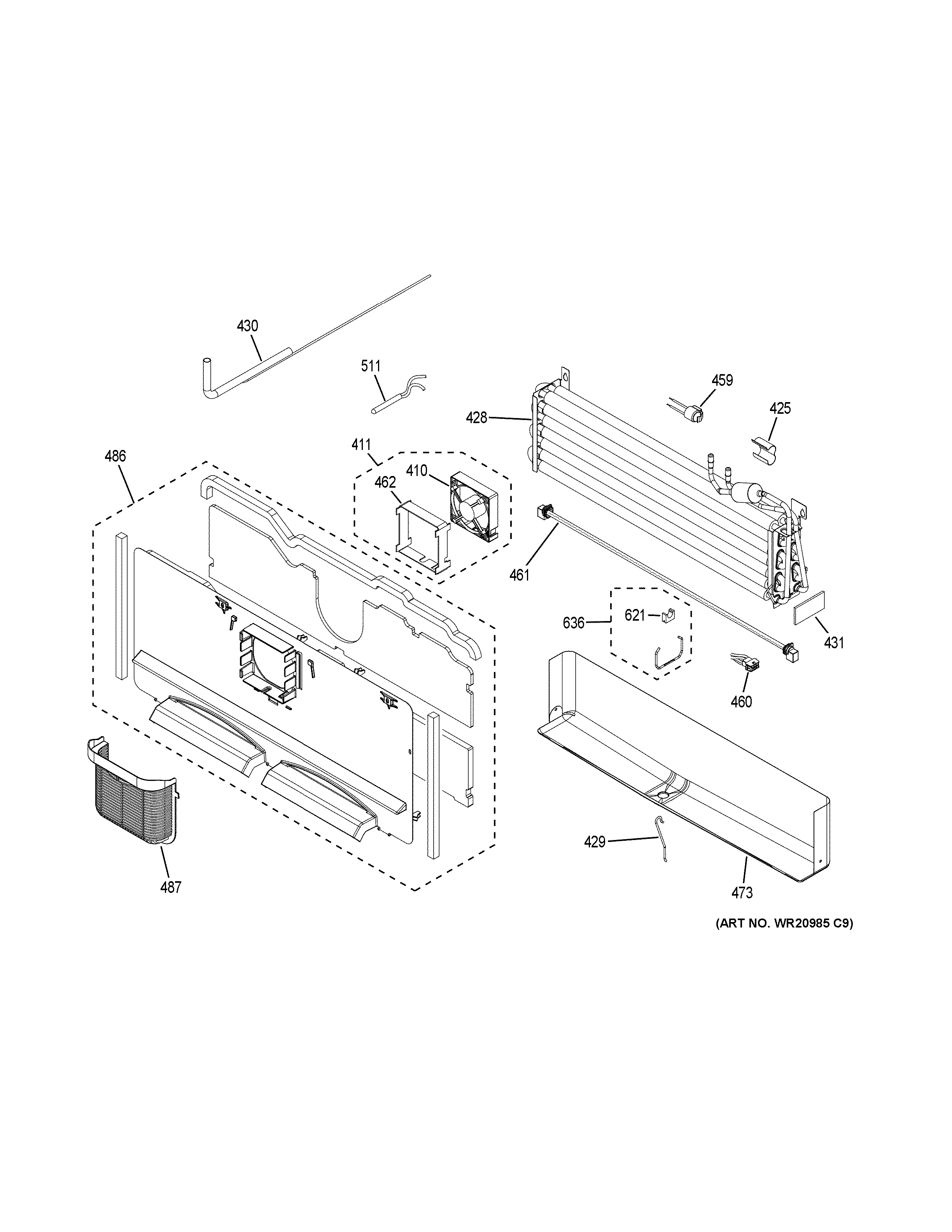

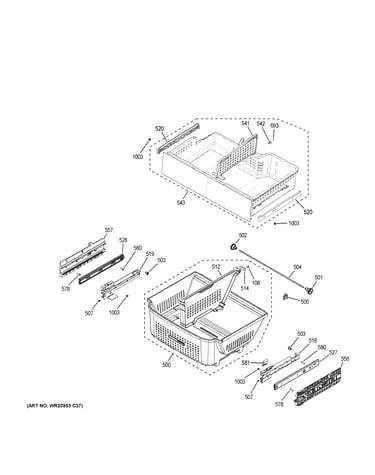

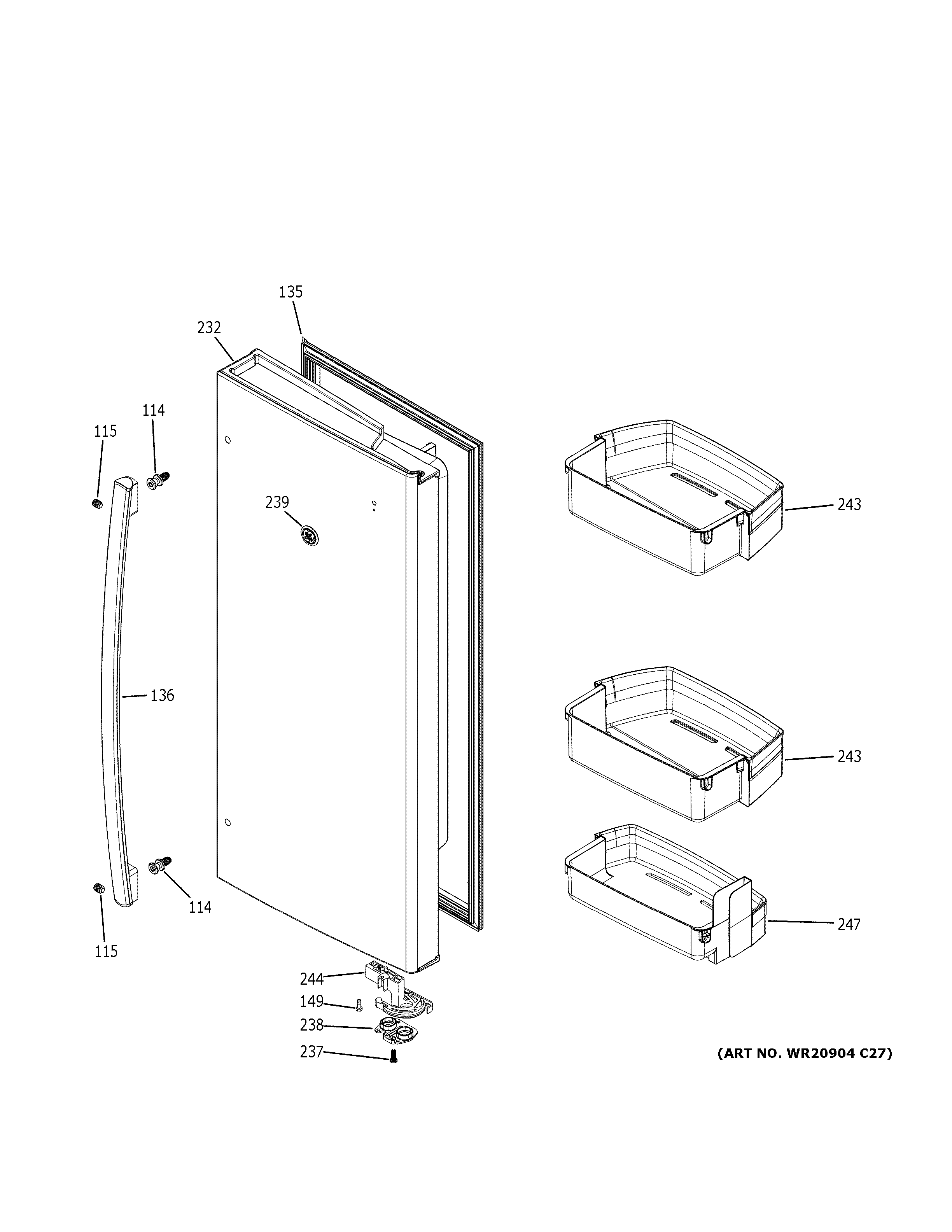

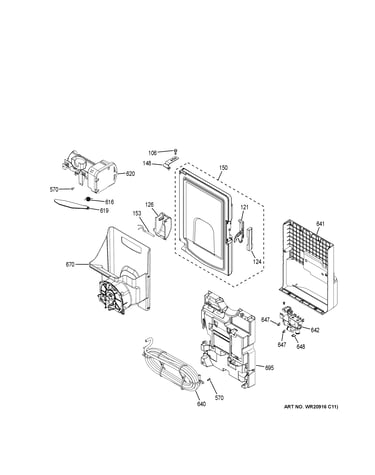

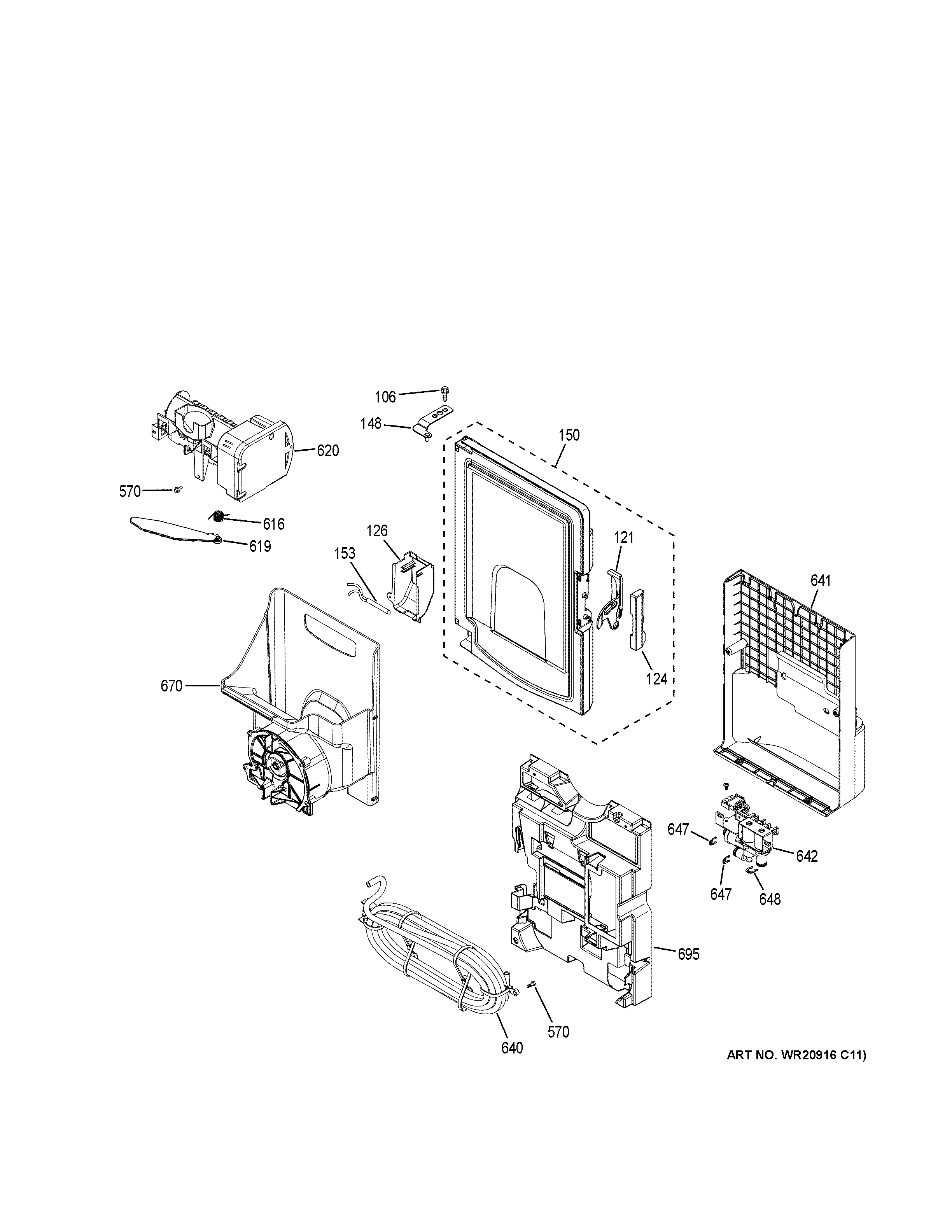

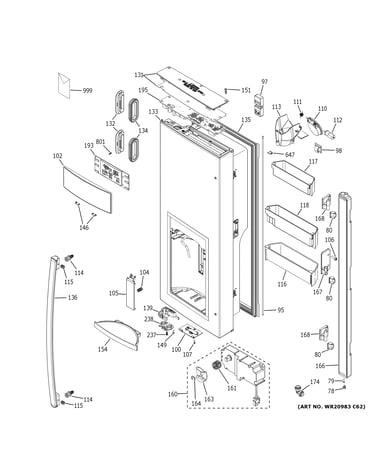

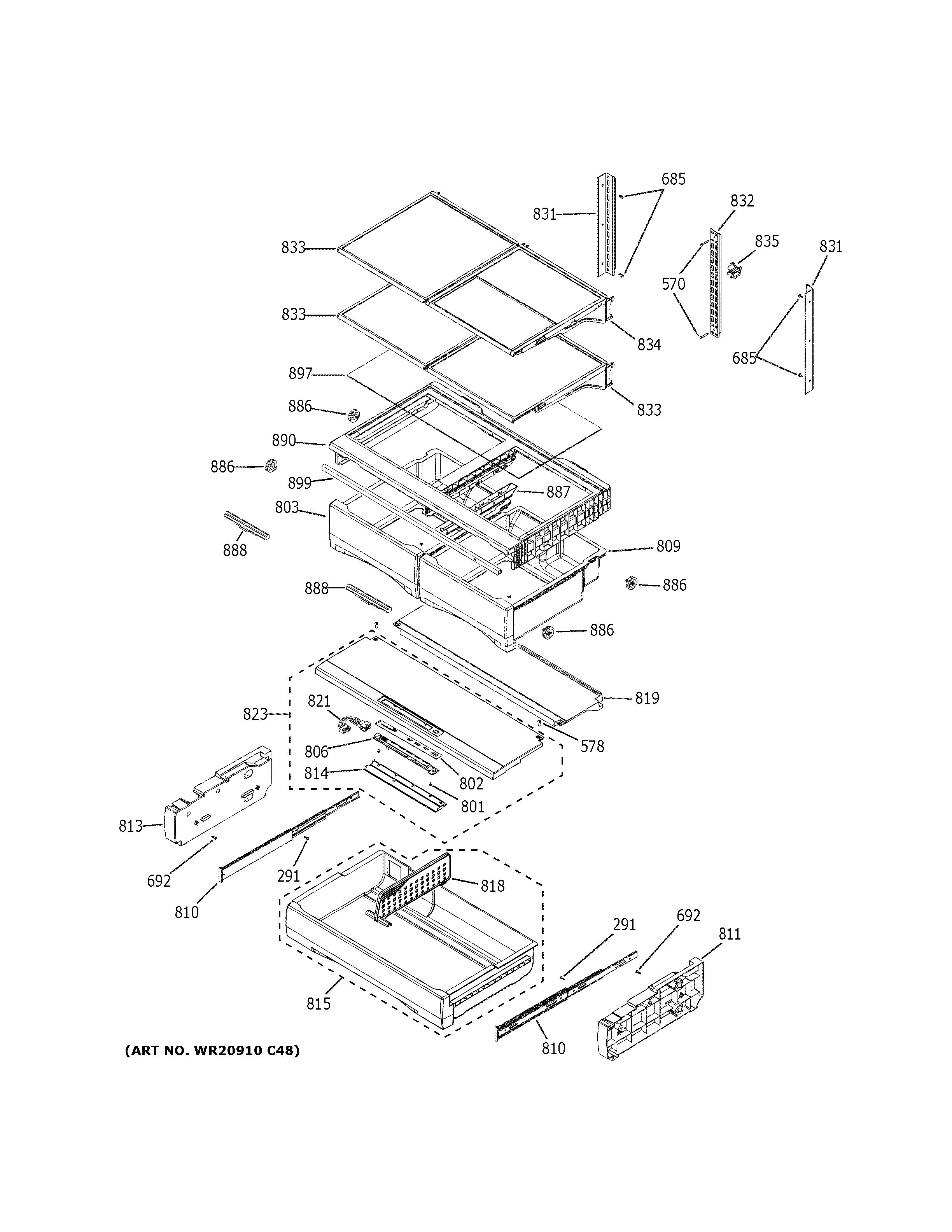

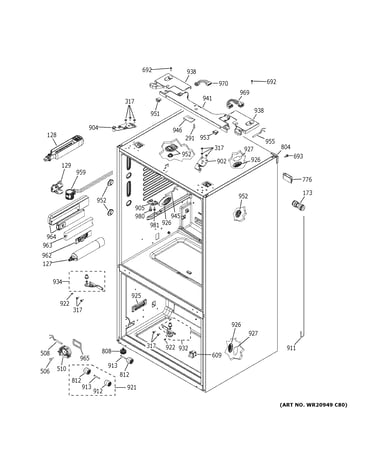

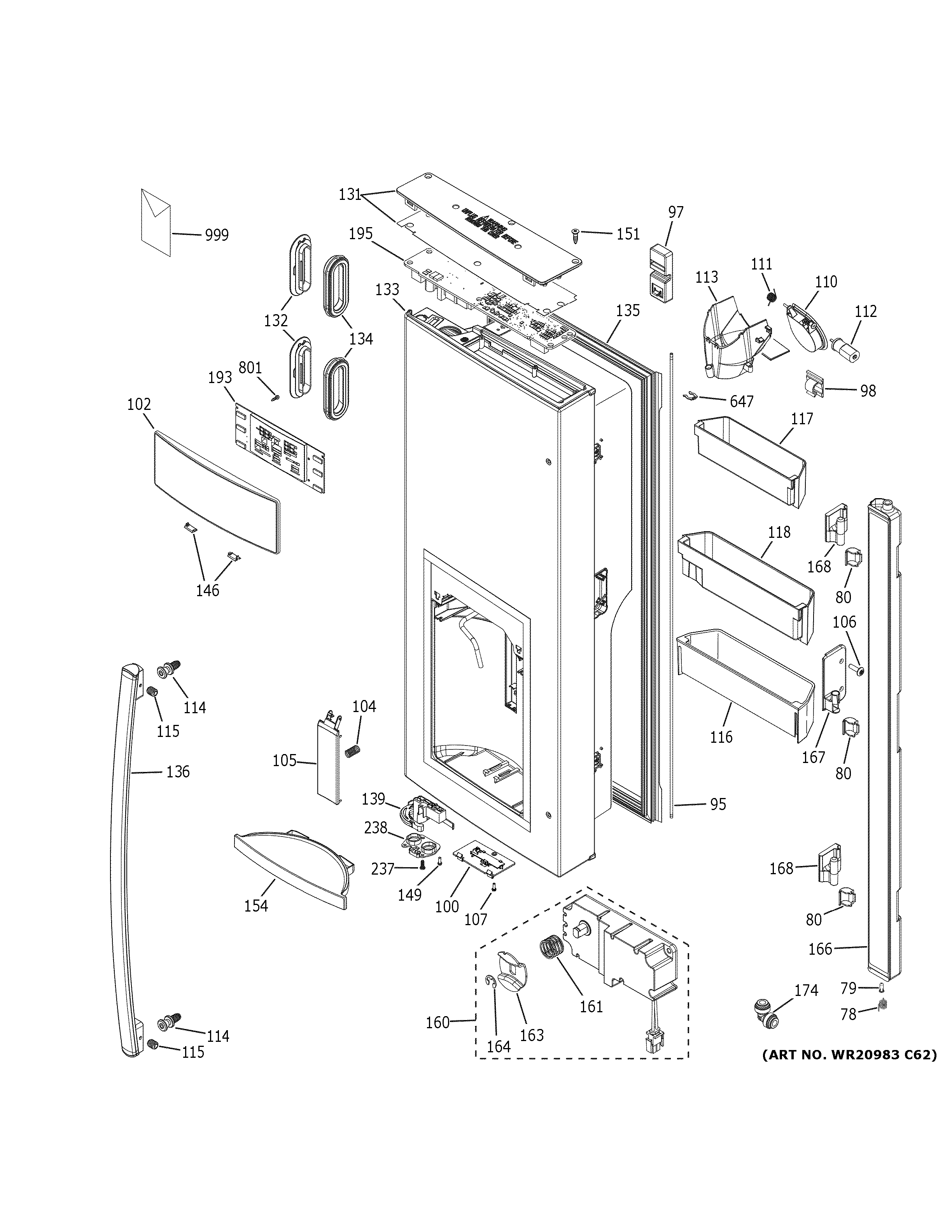

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 245 parts  |
Refrigerator Temperature Sensor WR55X11121
Refrigerator temperature sensor

Part #WR55X11121

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11121. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11152
Refrigerator temperature sensor

Part #WR55X11152

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11152. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11151
Refrigerator temperature sensor

Part #WR55X11151

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11151. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11150
Refrigerator temperature sensor

Part #WR55X11150

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11150. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11142
Refrigerator temperature sensor

Part #WR55X11142

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11142. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11153
Refrigerator temperature sensor

Part #WR55X11153

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11153. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Filter Dryer WR86X10089
Refrigerator filter dryer

Part #WR86X10089

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10089. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Electronic Control Board WR55X31877
Refrigerator electronic control board

Part #WR55X31877

Replaced by #WR55X38248

?
Manufacturer substitution
This part replaces WR55X31877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$206.37 |
5% OFF Phone Price : $218.37
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces Wr50x10109) WR50X10108
Refrigerator defrost bi-metal thermostat (replaces wr50x10109)

Part #WR50X10108

BEST SELLER
$20.38 |
23% OFF Phone Price : $26.38
In Stock
Thermostat WR50X10109
Thermostat

Part #WR50X10109

Replaced by #WR50X10108

?
Manufacturer substitution
This part replaces WR50X10109. Substitute parts can look different from the original.
BEST SELLER
$20.38 |
23% OFF Phone Price : $26.38
In Stock
