Model # FARE1011MW0 Official Frigidaire dryer

Here are the diagrams and repair parts for Official Frigidaire FARE1011MW0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

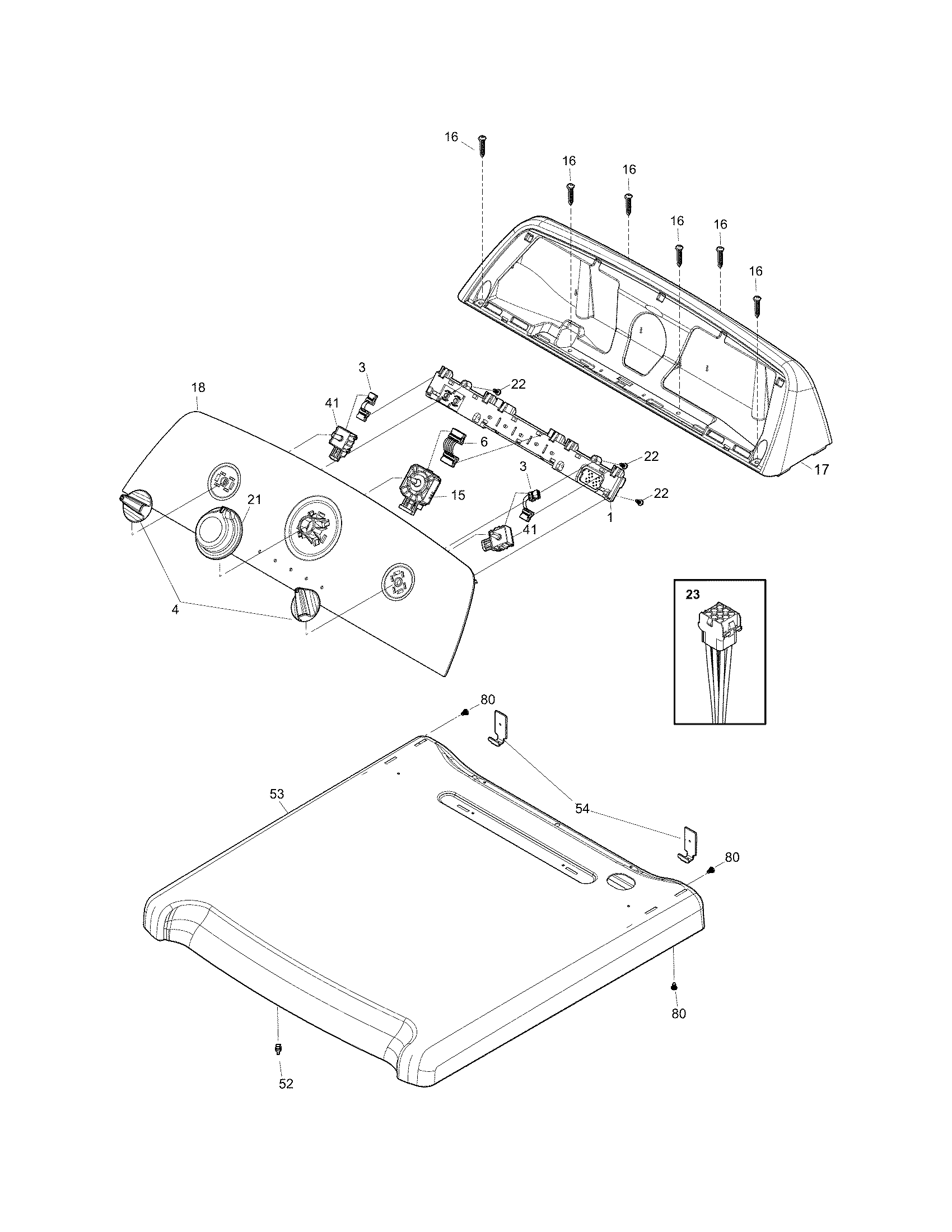

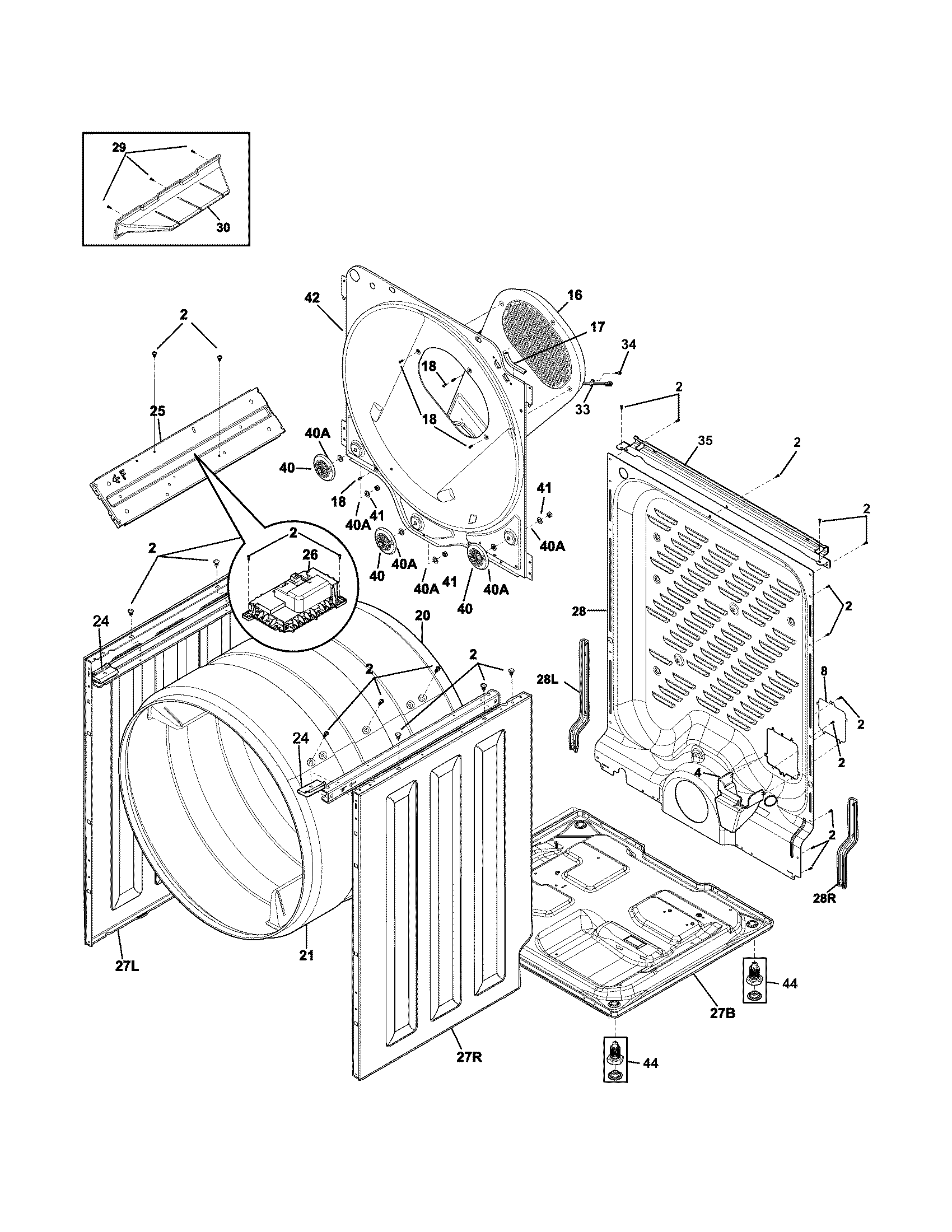

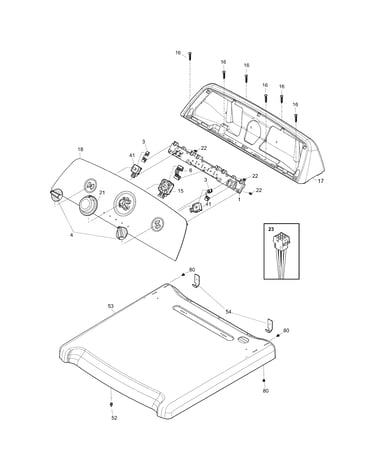

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

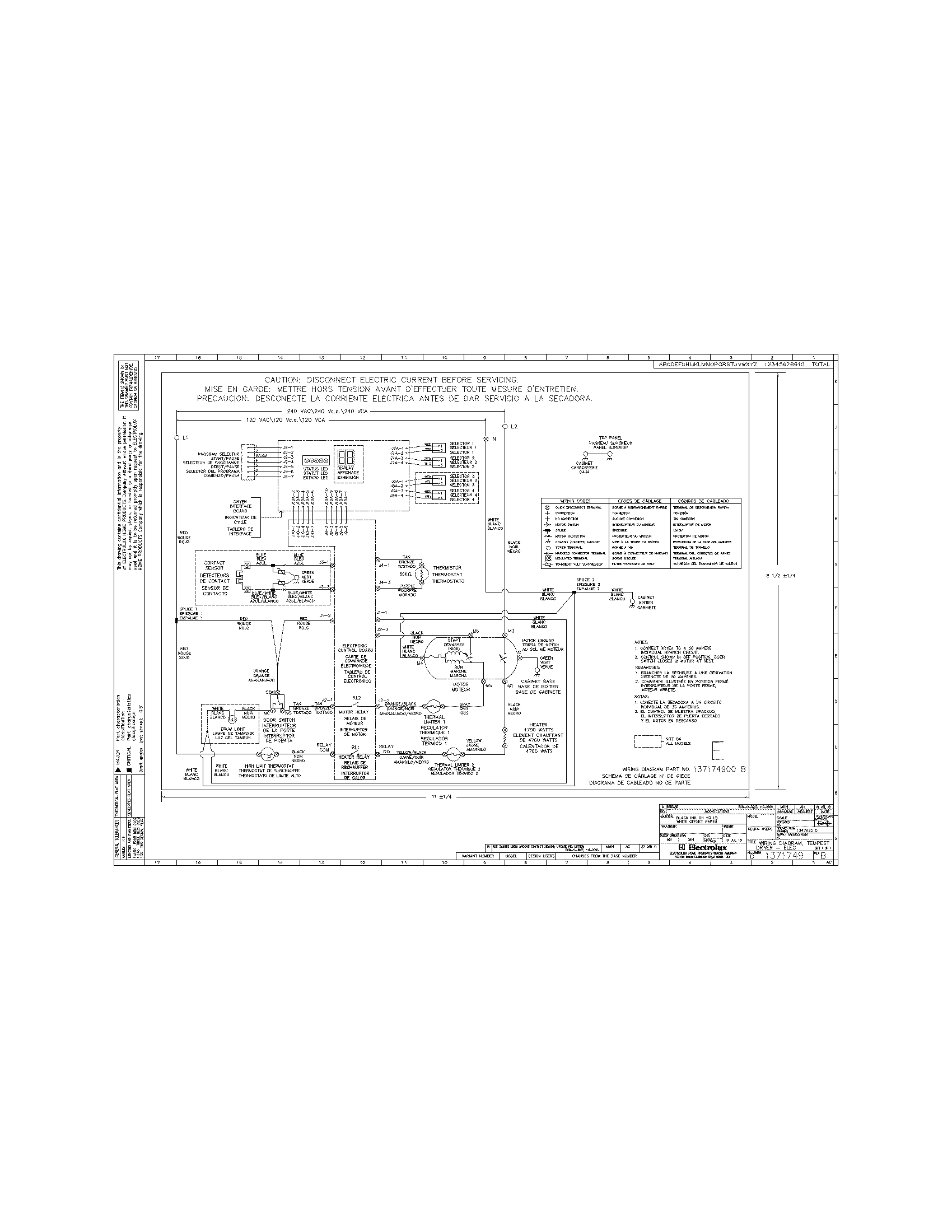

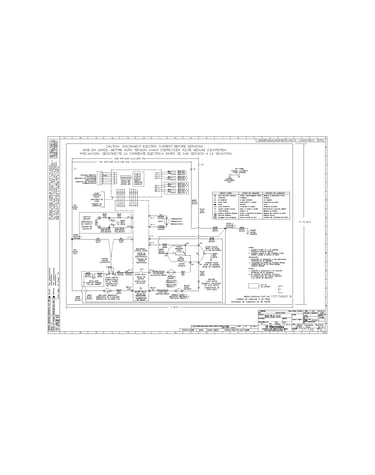

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Dryer Idler Assembly 134793500
#23

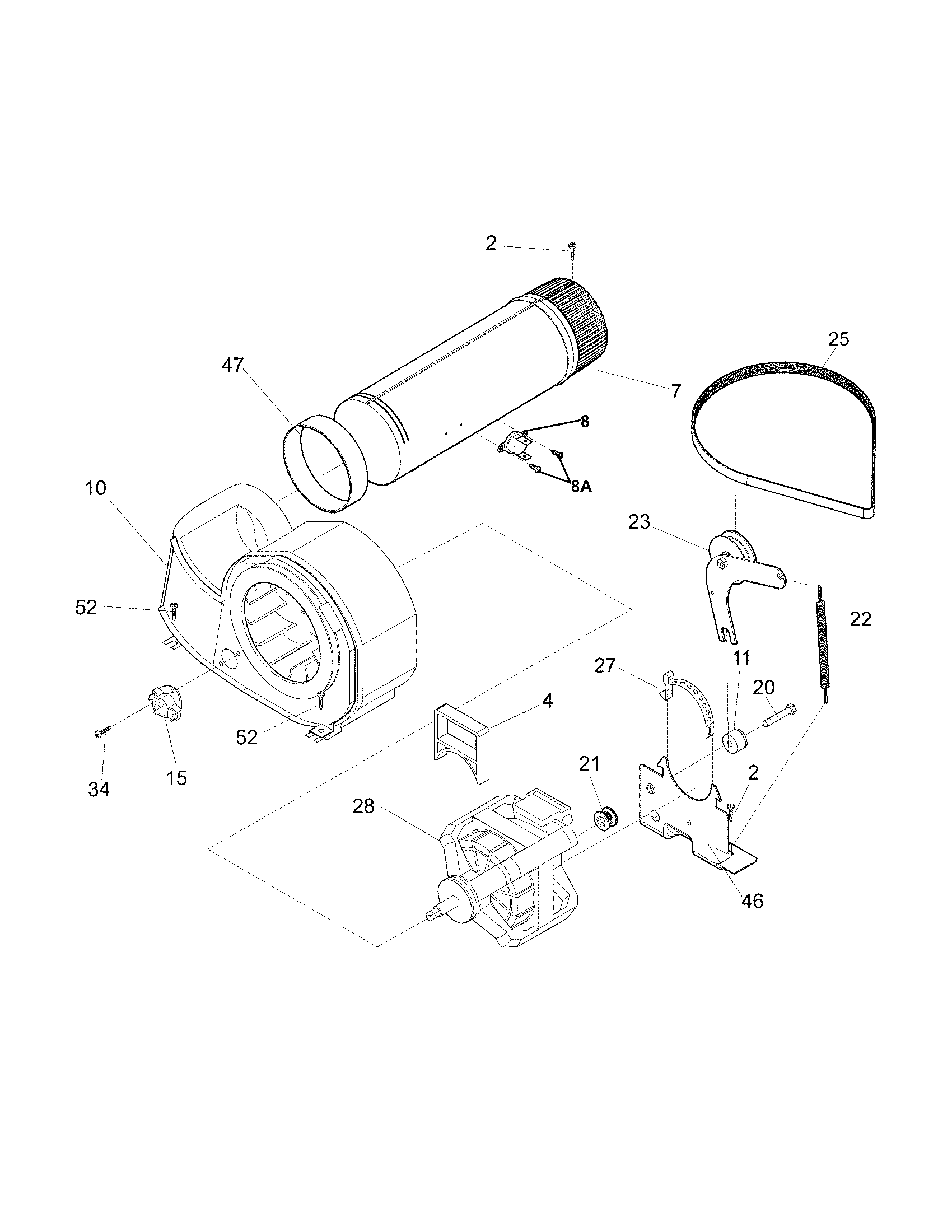

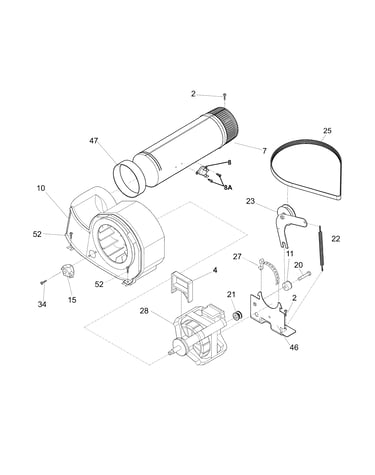

Motor diagram

Dryer idler assembly

Part #134793500

Replaced by #134793511

?
Manufacturer substitution
This part replaces 134793500. Substitute parts can look different from the original.
BEST SELLER
$39.35 |
13% OFF Phone Price : $45.35
In Stock
Kelvinator Dryer High-limit Thermostat (replaces 73204267) 3204267
Kelvinator dryer high-limit thermostat (replaces 73204267)

Part #3204267

BEST SELLER
$76.16 |
7% OFF Phone Price : $82.16
In Stock
Motor 134693300
#28

Motor diagram

Motor

Part #134693300

Replaced by #5304529782

?
Manufacturer substitution
This part replaces 134693300. Substitute parts can look different from the original.
BEST SELLER
$174.78 |
6% OFF Phone Price : $186.78
In Stock
Dryer Blower Assembly 131775610
#10

Motor diagram

Dryer blower assembly

Part #131775610

Replaced by #131775600

?
Manufacturer substitution
This part replaces 131775610. Substitute parts can look different from the original.
BEST SELLER
$96.23 |
11% OFF Phone Price : $108.23
In Stock
Dryer Door Catch (replaces 134548000, 5307521419, F141735000, F141735-000, F62661-4, K1300884, K1301594, K1308079, K1309301, Q000504551, Q000504553, Wq504551, Wq504553) 131658800
#25

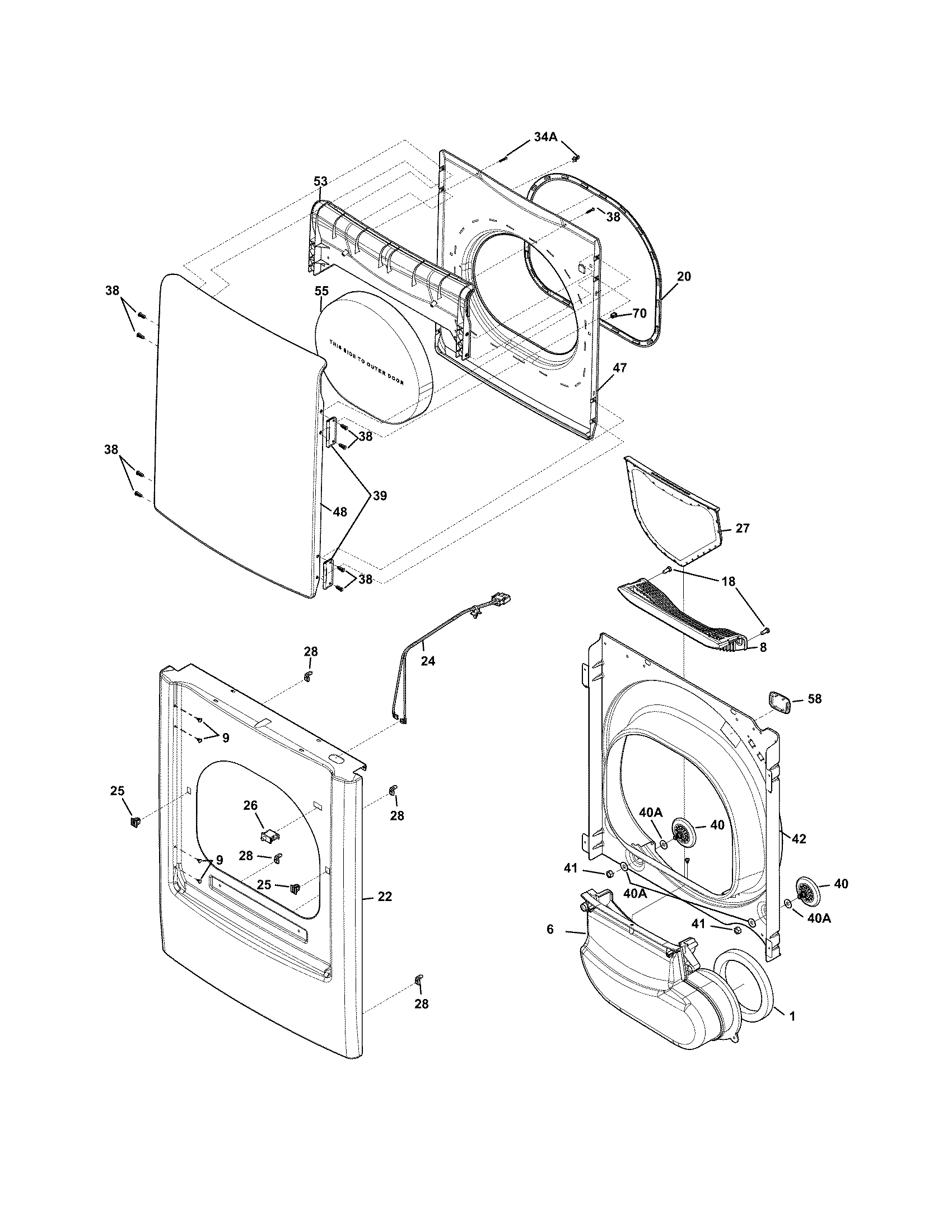

Front panel/lint filter diagram

Dryer door catch (replaces 134548000, 5307521419, f141735000, f141735-000, f62661-4, k1300884, k1301594, k1308079, k1309301, q000504551, q000504553, wq504551, wq504553)

Part #131658800

BEST SELLER
$49.04 |
11% OFF Phone Price : $55.04
In Stock
Dryer Exhaust Thermal Limiter (replaces 134711400) 134711401
#8

Motor diagram

Dryer exhaust thermal limiter (replaces 134711400)

Part #134711401

BEST SELLER
$23.51 |
20% OFF Phone Price : $29.51
In Stock
Dryer Heating Element 137114000
#1

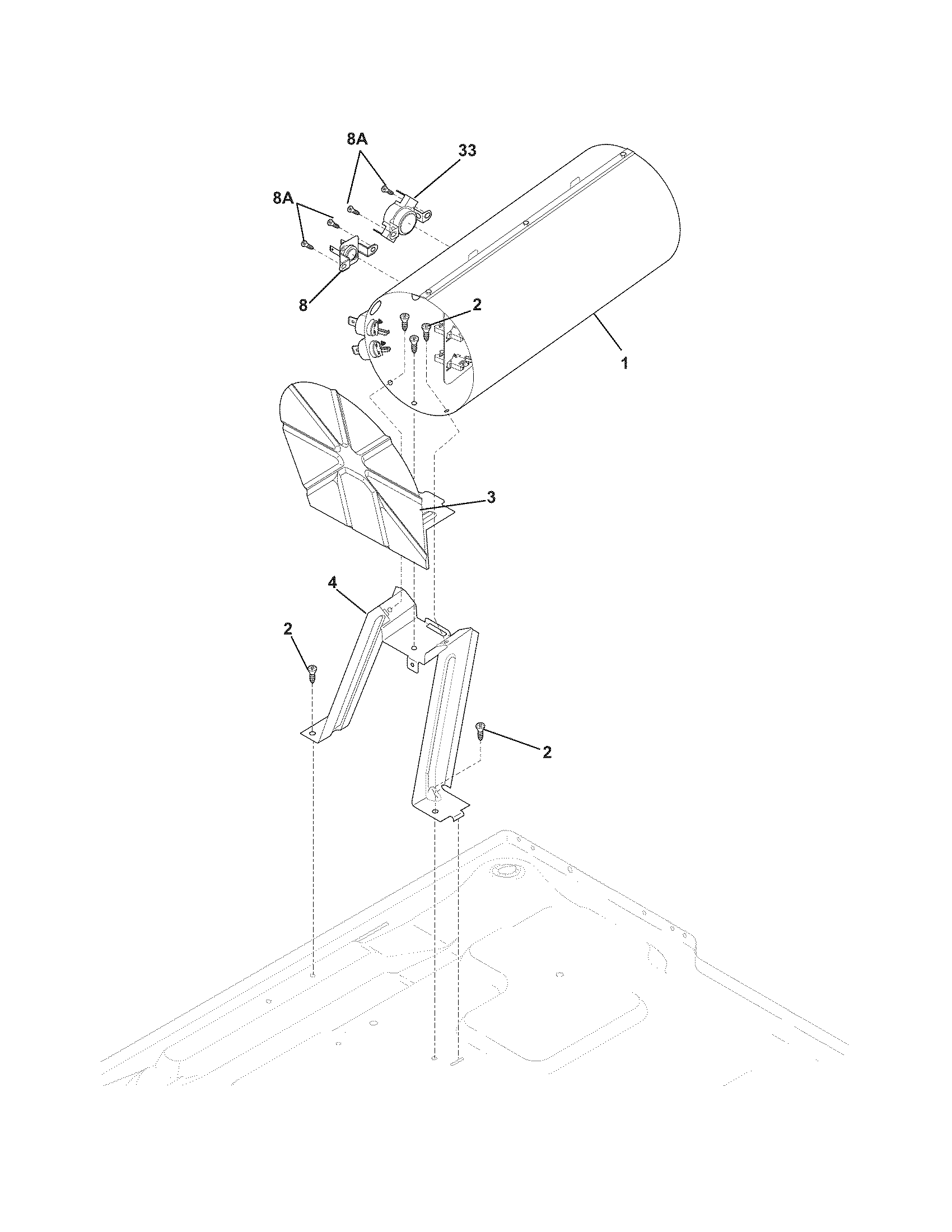

Burner diagram

Dryer heating element

Part #137114000

Replaced by #5304535760

?
Manufacturer substitution
This part replaces 137114000. Substitute parts can look different from the original.
BEST SELLER
$79.57 |
7% OFF Phone Price : $85.57
In Stock
Screw 3205239
Screw

Part #3205239

Replaced by #131302800

?
Manufacturer substitution
This part replaces 3205239. Substitute parts can look different from the original.
BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Screw 131243700
Screw

Part #131243700

This item is not returnable
$2.16
In Stock
Dryer Idler Spring (replaces 7131601000) 131601000
#22

Motor diagram

Dryer idler spring (replaces 7131601000)

Part #131601000

$42.09 |
12% OFF Phone Price : $48.09
In Stock
