White-Westinghouse
Upright Freezer

Model # FU196JRW3 Official White-Westinghouse upright freezer - lw30887080

Here are the diagrams and repair parts for Official White-Westinghouse FU196JRW3 upright freezer - lw30887080, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Filter Drier F114259
#30

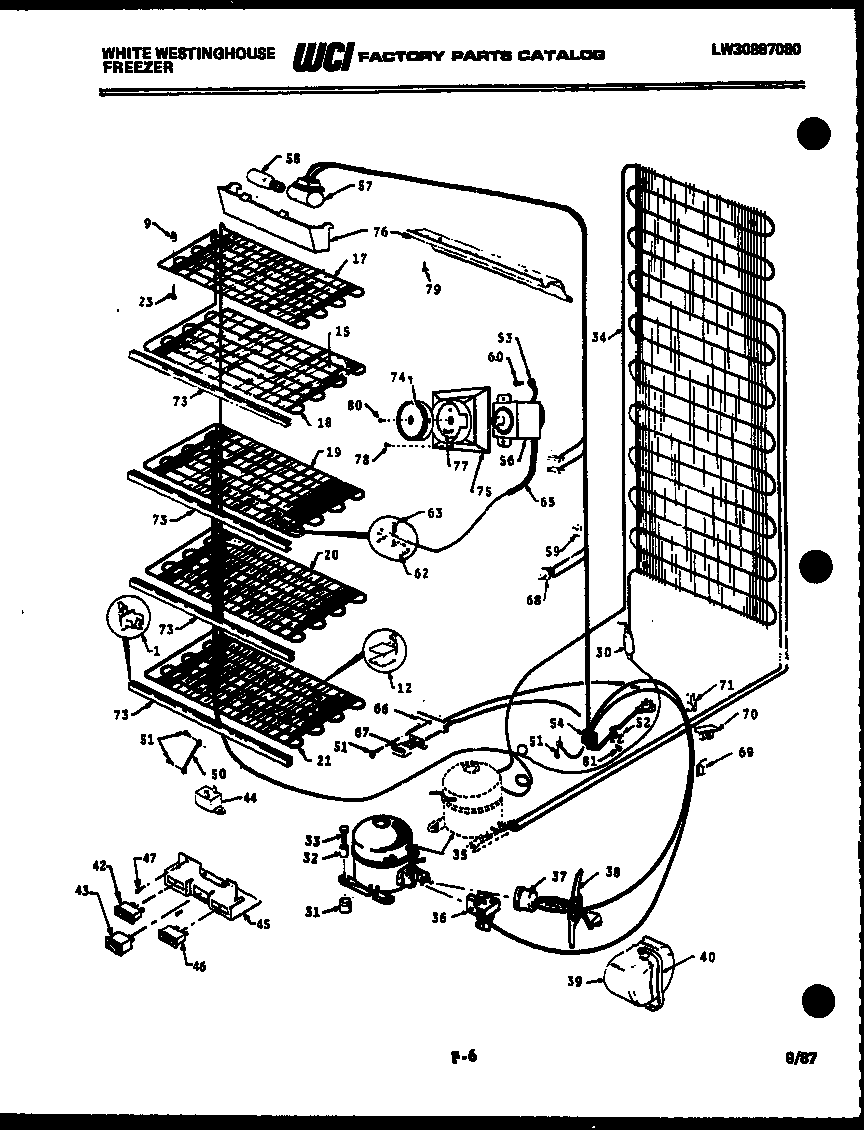

System and electrical parts diagram

Filter drier

Part #F114259

Replaced by #5303305677

?
Manufacturer substitution
This part replaces F114259. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key F115646
#47

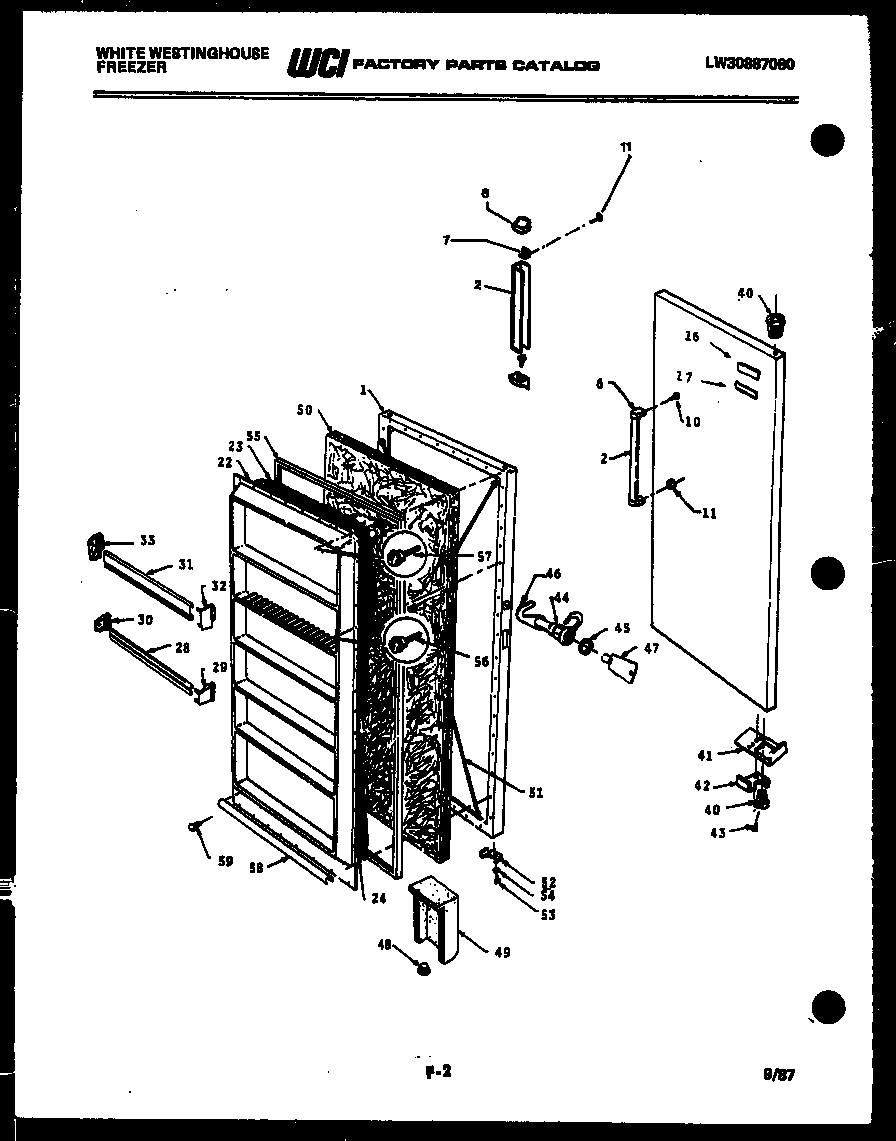

Door parts diagram

Key

Part #F115646

Replaced by #297147700

?
Manufacturer substitution
This part replaces F115646. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Fkl Clip F114681
#59

Door parts diagram

Fkl clip

Part #F114681

Replaced by #5304406520

?
Manufacturer substitution
This part replaces F114681. Substitute parts can look different from the original.
BEST SELLER
$33.42 |
15% OFF Phone Price : $39.42
In Stock
Drain Plug F89354
#12

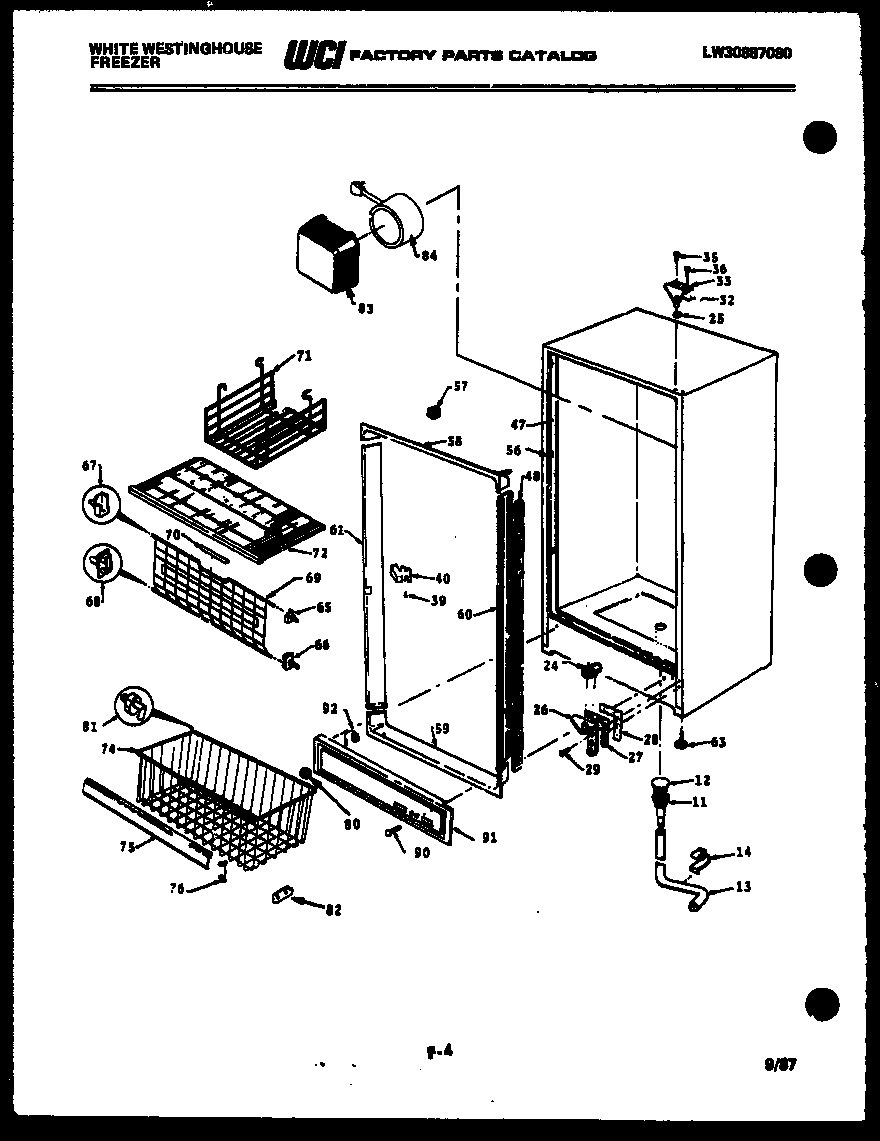

Cabinet parts diagram

Drain plug

Part #F89354

Replaced by #216502600

?
Manufacturer substitution
This part replaces F89354. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$13.04 |
13% OFF Phone Price : $15.04
In Stock
Bearing F126303
Bearing

Part #F126303

Replaced by #297006800

?
Manufacturer substitution
This part replaces F126303. Substitute parts can look different from the original.
This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Drain F121290
#11

Cabinet parts diagram

Drain

Part #F121290

Replaced by #5304511843

?
Manufacturer substitution
This part replaces F121290. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
End Cap Set F112629
#30

Door parts diagram

End cap set

Part #F112629

Replaced by #5303925377

?
Manufacturer substitution
This part replaces F112629. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
End Cap Set F112628
#29

Door parts diagram

End cap set

Part #F112628

Replaced by #5303925377

?
Manufacturer substitution
This part replaces F112628. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Shelf Support F300592
#1

System and electrical parts diagram

Shelf support

Part #F300592

Replaced by #297001600

?
Manufacturer substitution
This part replaces F300592. Substitute parts can look different from the original.
This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Shelf Support F300590
#2

System and electrical parts diagram

Shelf support

Part #F300590

Replaced by #297001500

?
Manufacturer substitution
This part replaces F300590. Substitute parts can look different from the original.
This item is not returnable
$18.32 |
10% OFF Phone Price : $20.32
In Stock
