Black & Decker
Electric Line Trimmer

Model # GH900 TYPE 1 Official Black & Decker trimmer

Here are the diagrams and repair parts for Official Black & Decker GH900-TYPE-1 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Black & Decker Line Trimmer Drive Gear And Spool Housing Assembly 90563050
#6

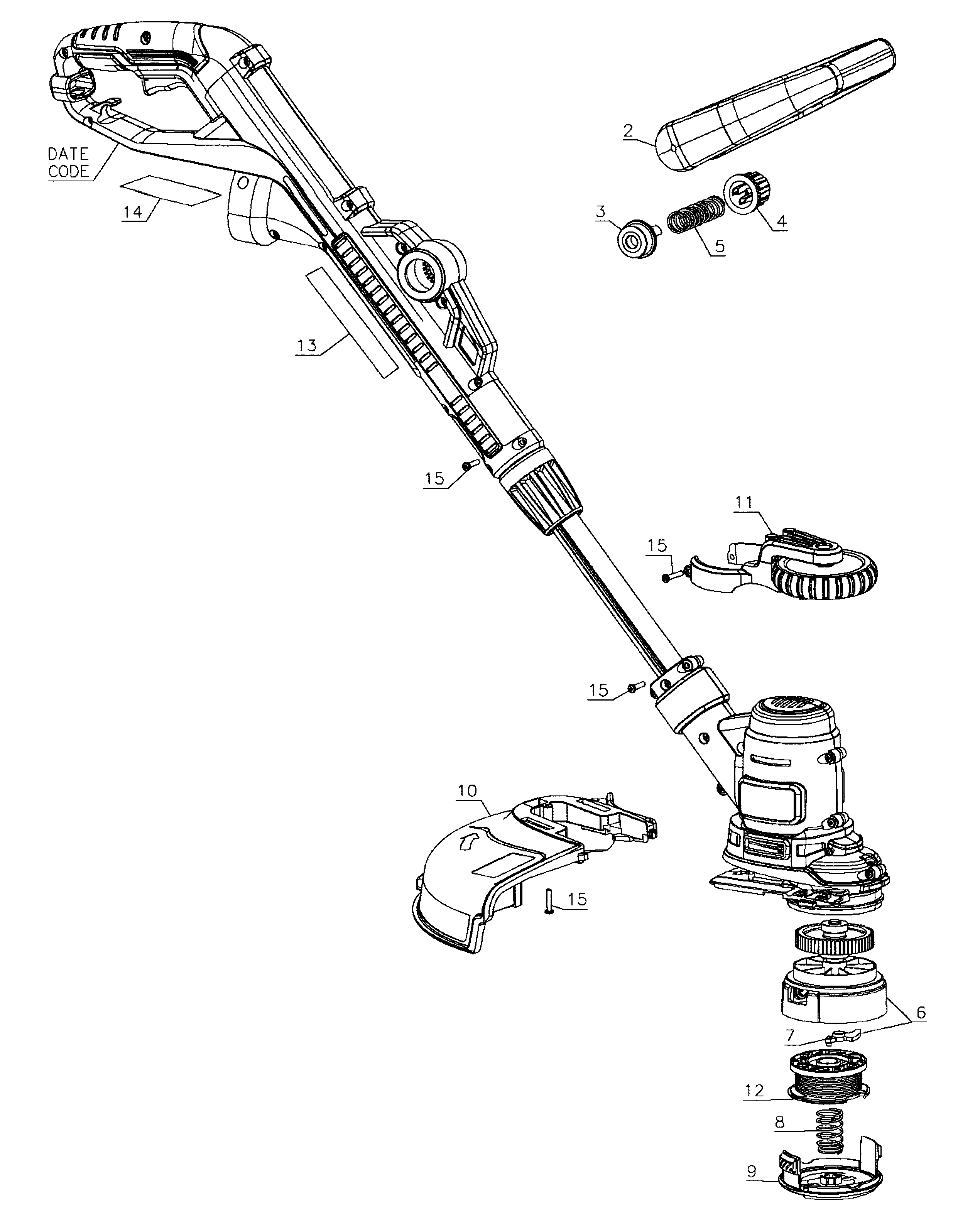

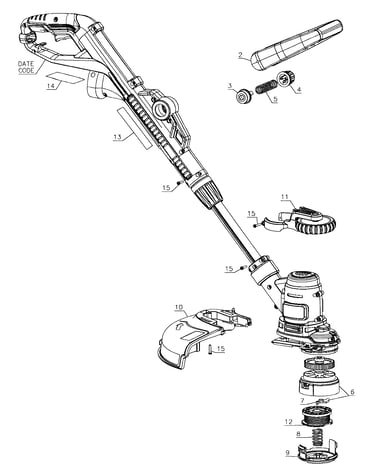

Trimmer assy diagram

Black & decker line trimmer drive gear and spool housing assembly

Part #90563050

The manufacturer no longer makes this part, and there's no substitute part

Button 90556608
#3

Trimmer assy diagram

Button

Part #90556608

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Label 90595823
#14

Trimmer assy diagram

Black & decker label

Part #90595823

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Guide 90598869
#11

Trimmer assy diagram

Black & decker guide

Part #90598869

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Line Feeder Lever 90567079
#7

Trimmer assy diagram

Line trimmer line feeder lever

Part #90567079

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Handle 90562062
#2

Trimmer assy diagram

Line trimmer handle

Part #90562062

The manufacturer no longer makes this part, and there's no substitute part

Spring 90559866
#5

Trimmer assy diagram

Spring

Part #90559866

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Label 90595821
#13

Trimmer assy diagram

Black & decker label

Part #90595821

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Line Trimmer Spool Spring 90566944
#8

Trimmer assy diagram

Craftsman line trimmer spool spring

Part #90566944

The manufacturer no longer makes this part, and there's no substitute part

Button 90554396-01
#4

Trimmer assy diagram

Button

Part #90554396-01

The manufacturer no longer makes this part, and there's no substitute part
