Frigidaire
Window Air Conditioner

Model # FFRE1233S1A0 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFRE1233S1A0 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

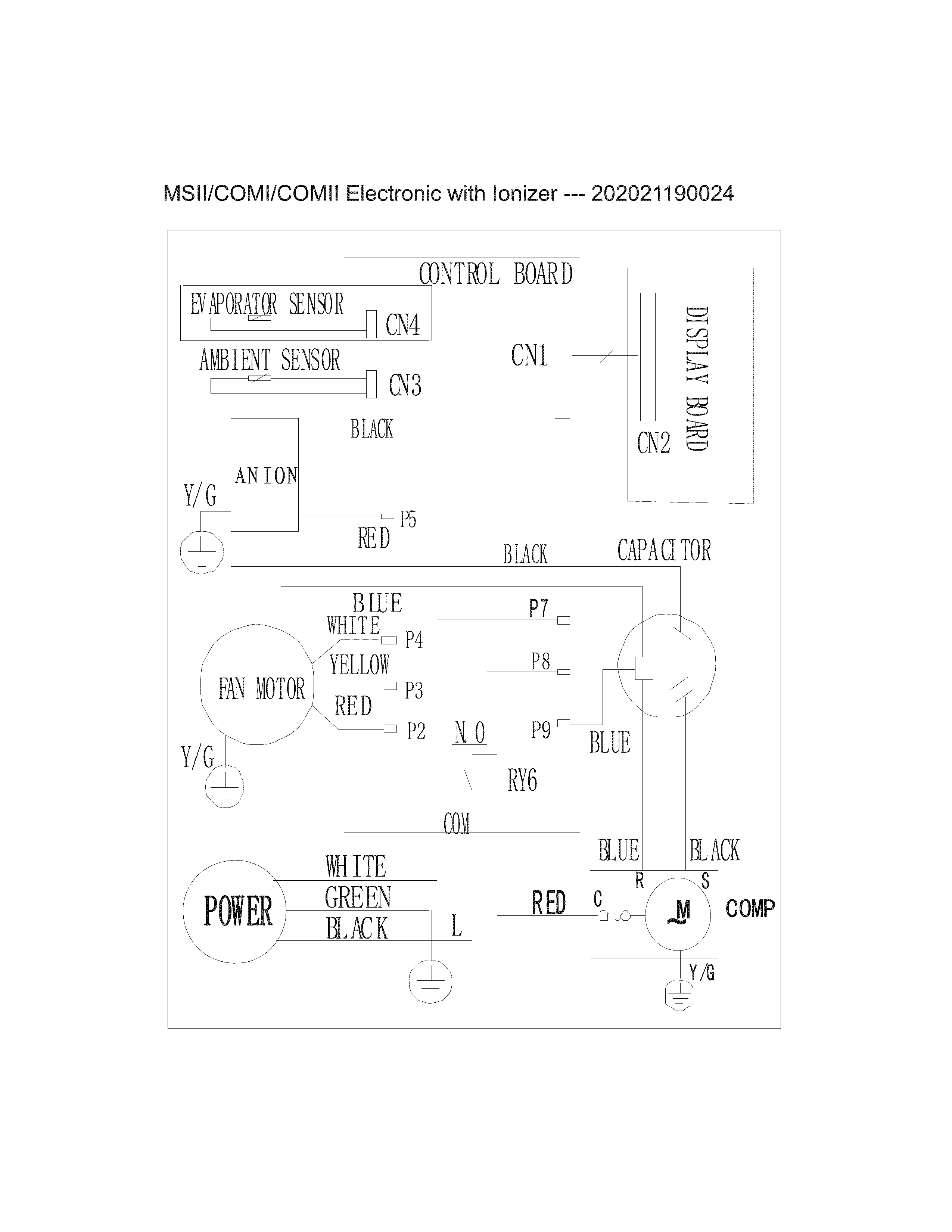

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Room Air Conditioner Front Grille 5304476793
#2

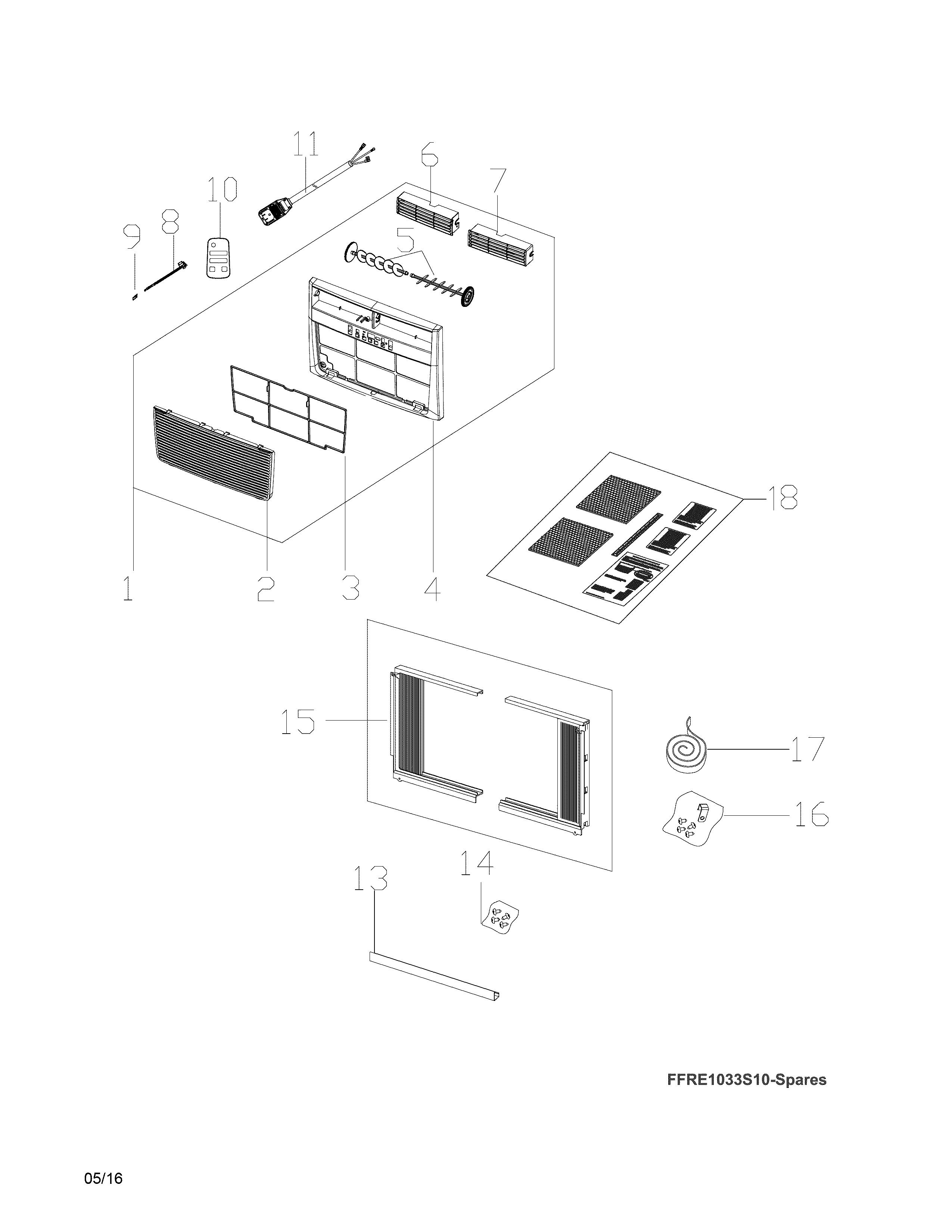

Recommended spare parts diagram

Room air conditioner front grille

Part #5304476793

$25.02
In Stock
Sleeve 5304476179
#9

Recommended spare parts diagram

Sleeve

Part #5304476179

$13.29
In Stock
Room Air Conditioner Installation Kit 5304491953
#16

Recommended spare parts diagram

Room air conditioner installation kit

Part #5304491953

This item is not returnable
$19.76 |
9% OFF Phone Price : $21.76
In Stock
Room Air Conditioner Accordion Insulation Panel 5304504884
#18

Recommended spare parts diagram

Room air conditioner accordion insulation panel

Part #5304504884

$80.00
In Stock
Door 5304476178
#8

Recommended spare parts diagram

Door

Part #5304476178

$22.40
In Stock
Room Air Conditioner Louver 5304476798
#7

Recommended spare parts diagram

Room air conditioner louver

Part #5304476798

$18.29
In Stock
Frame 5304476849
#4

Recommended spare parts diagram

Frame

Part #5304476849

$27.76
In Stock
Room Air Conditioner Remote Control 5304476851
#10

Recommended spare parts diagram

Room air conditioner remote control

Part #5304476851

$90.00 |
6% OFF Phone Price : $96.00
In Stock
Room Air Conditioner Power Cord 5304500884
#11

Recommended spare parts diagram

Room air conditioner power cord

Part #5304500884

Replaced by #5304536807

?
Manufacturer substitution
This part replaces 5304500884. Substitute parts can look different from the original.
$103.09
In Stock
Room Air Conditioner Air Filter 5304476794
#3

Recommended spare parts diagram

Room air conditioner air filter

Part #5304476794

Replaced by #5304535830

?
Manufacturer substitution
This part replaces 5304476794. Substitute parts can look different from the original.
This item is not returnable
$6.94
In Stock
