Model # SDEF07LJ Official Speed Queen dryer
Here are the diagrams and repair parts for Official Speed Queen SDEF07LJ dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

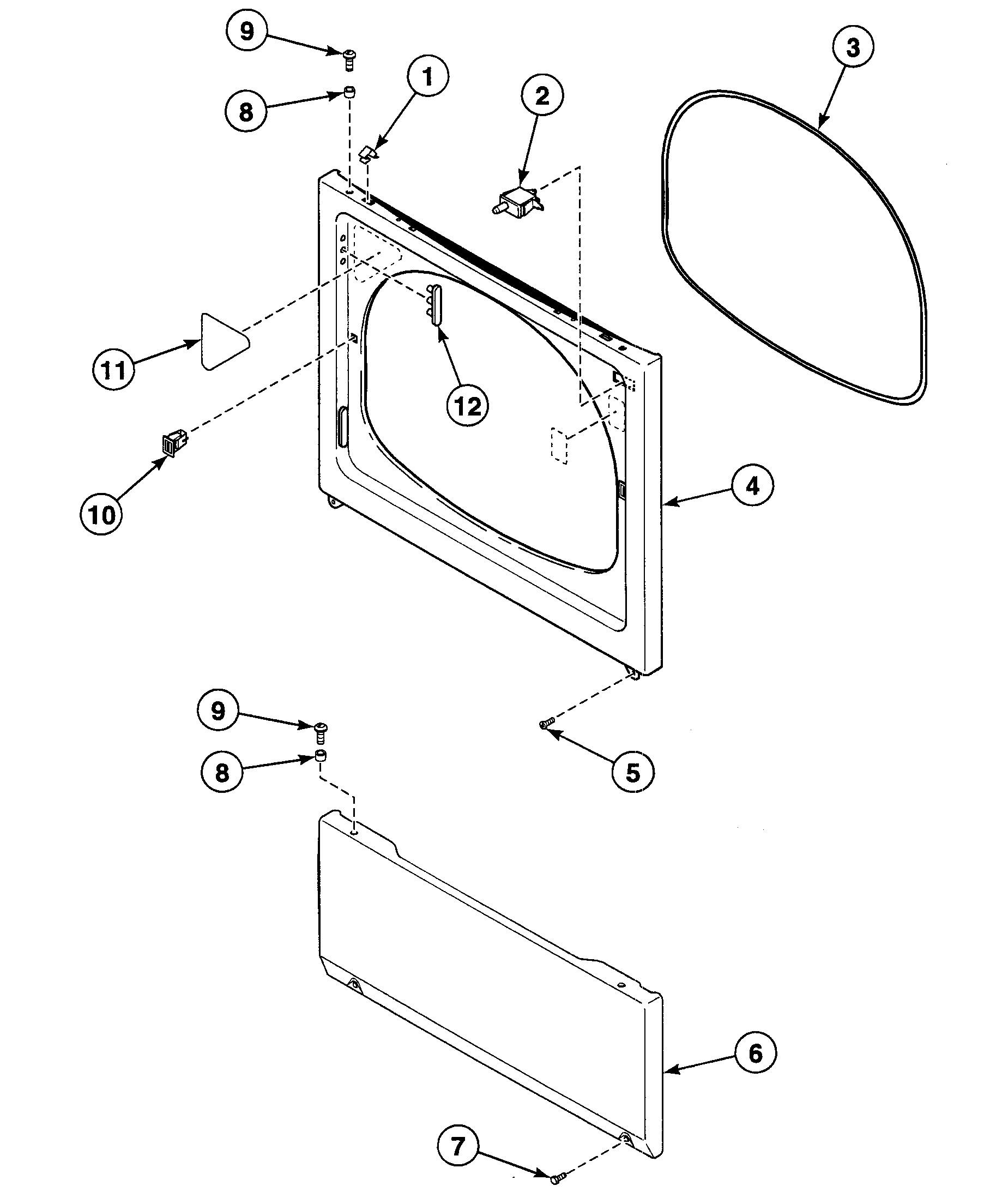

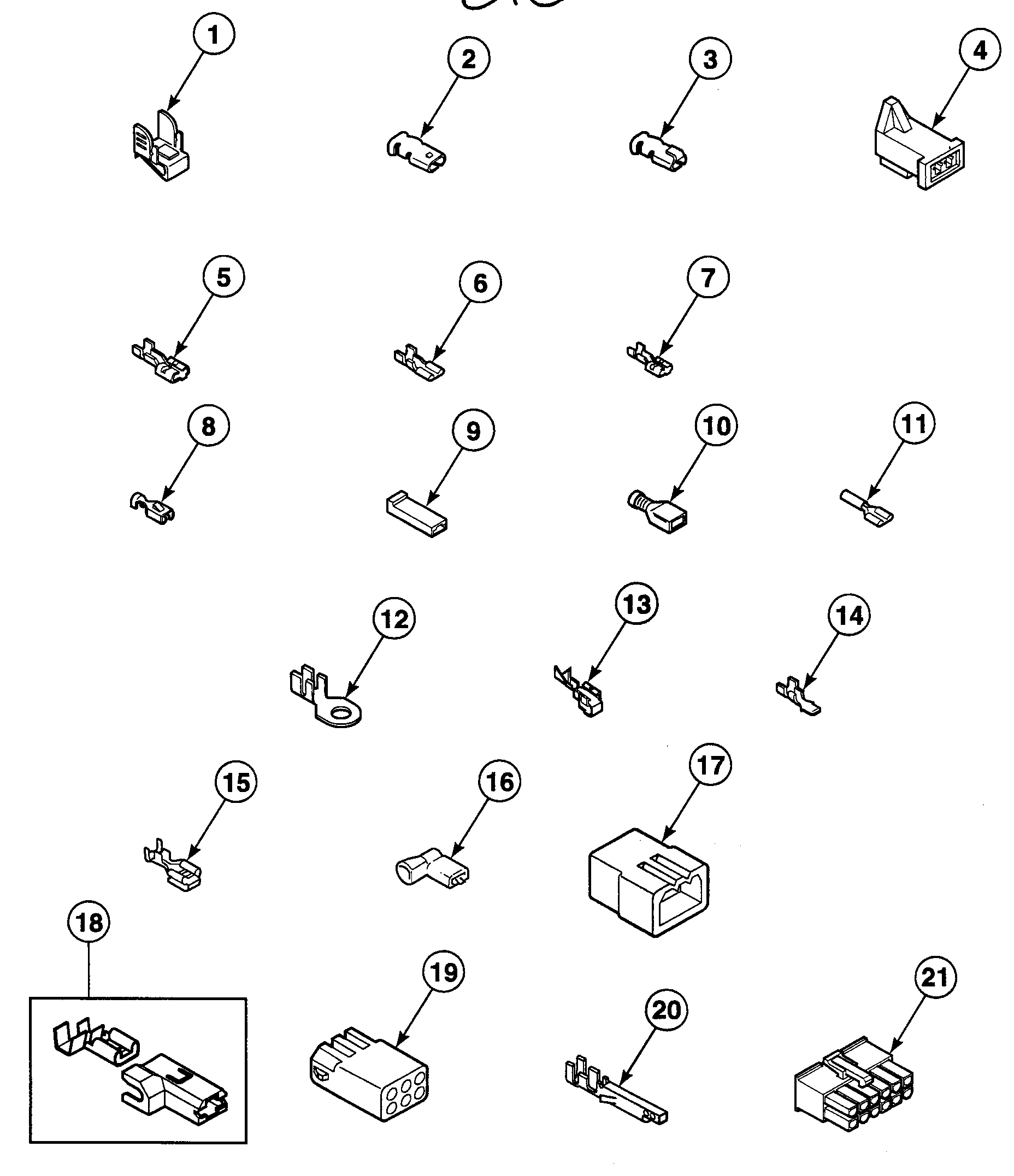

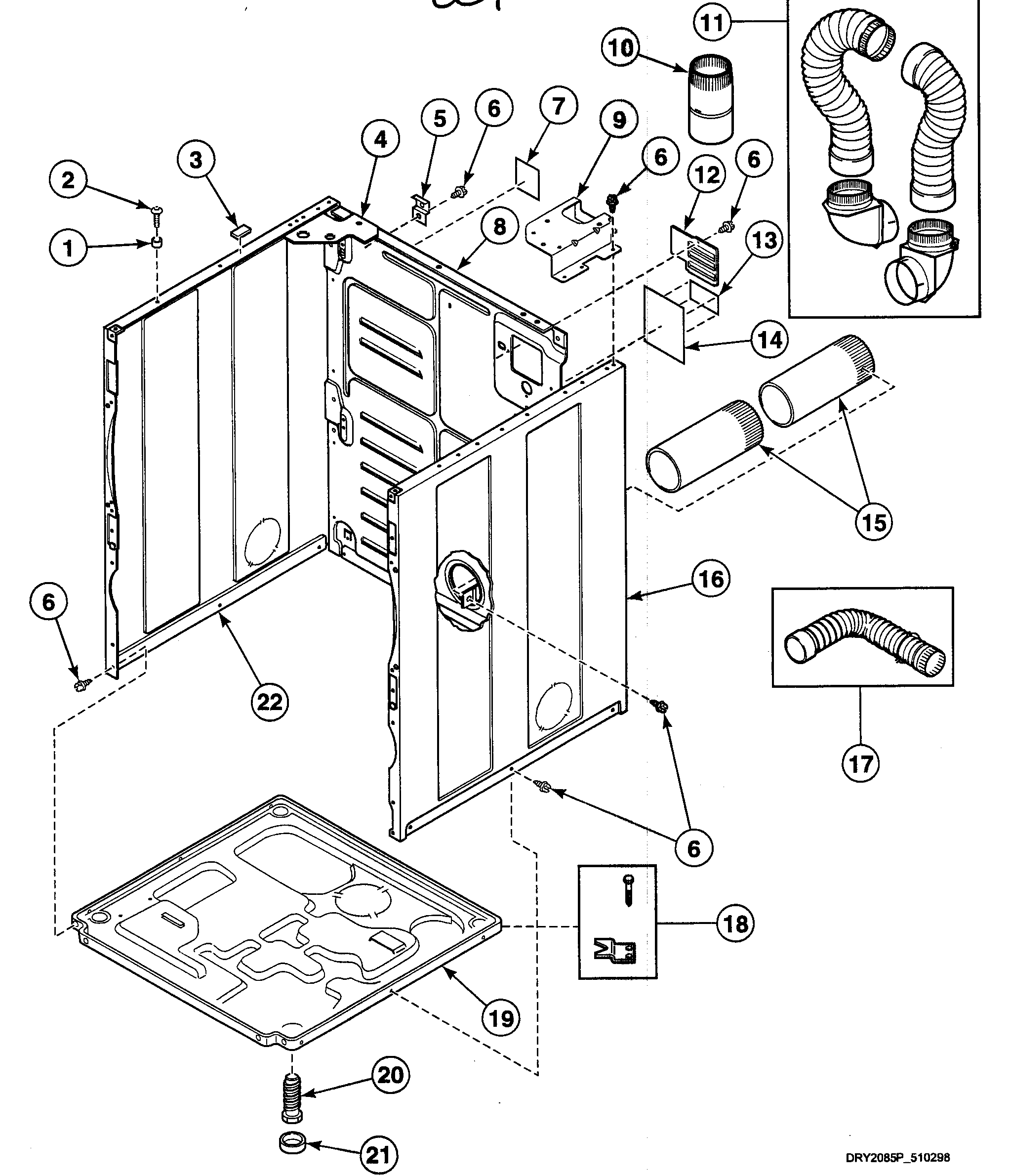

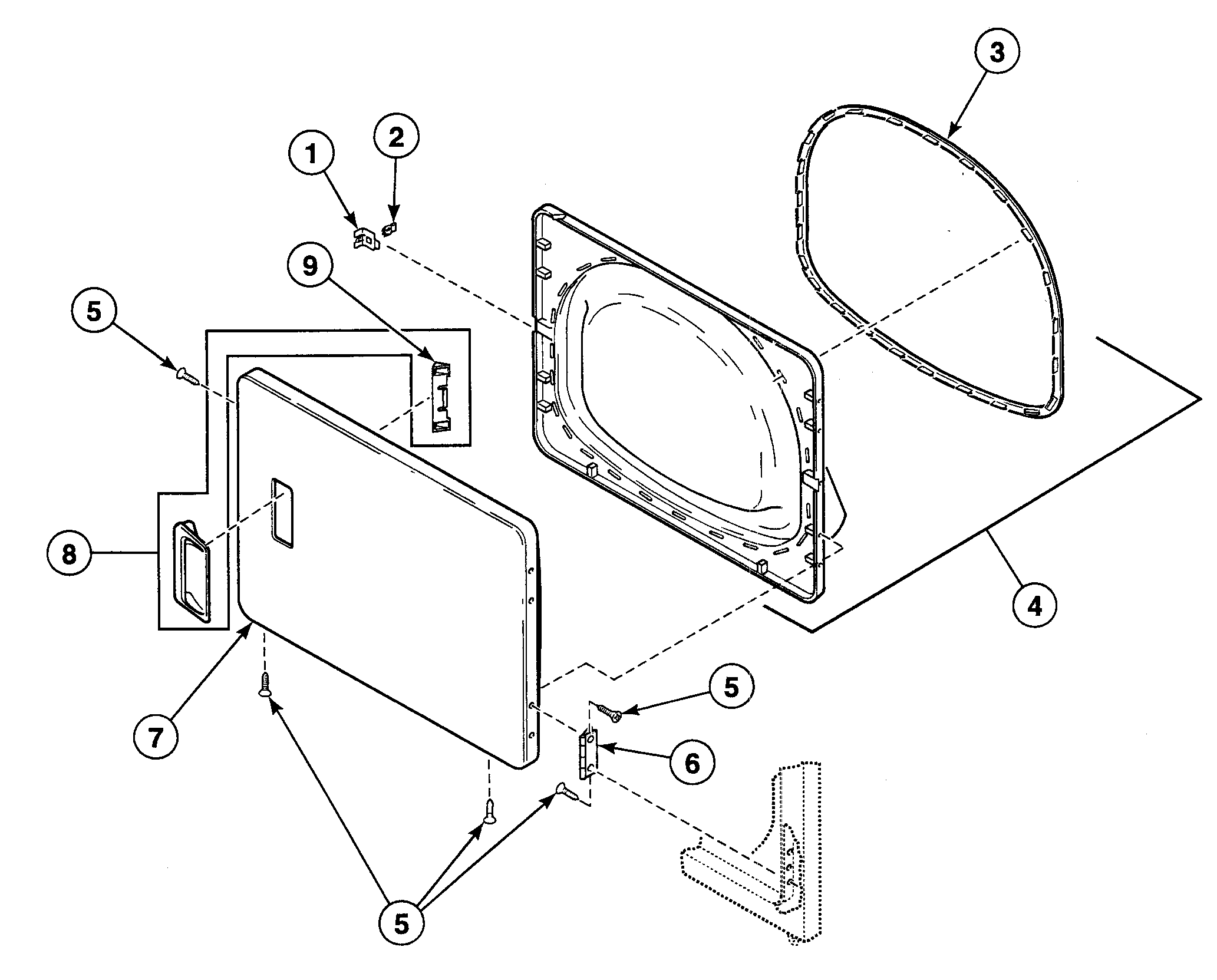

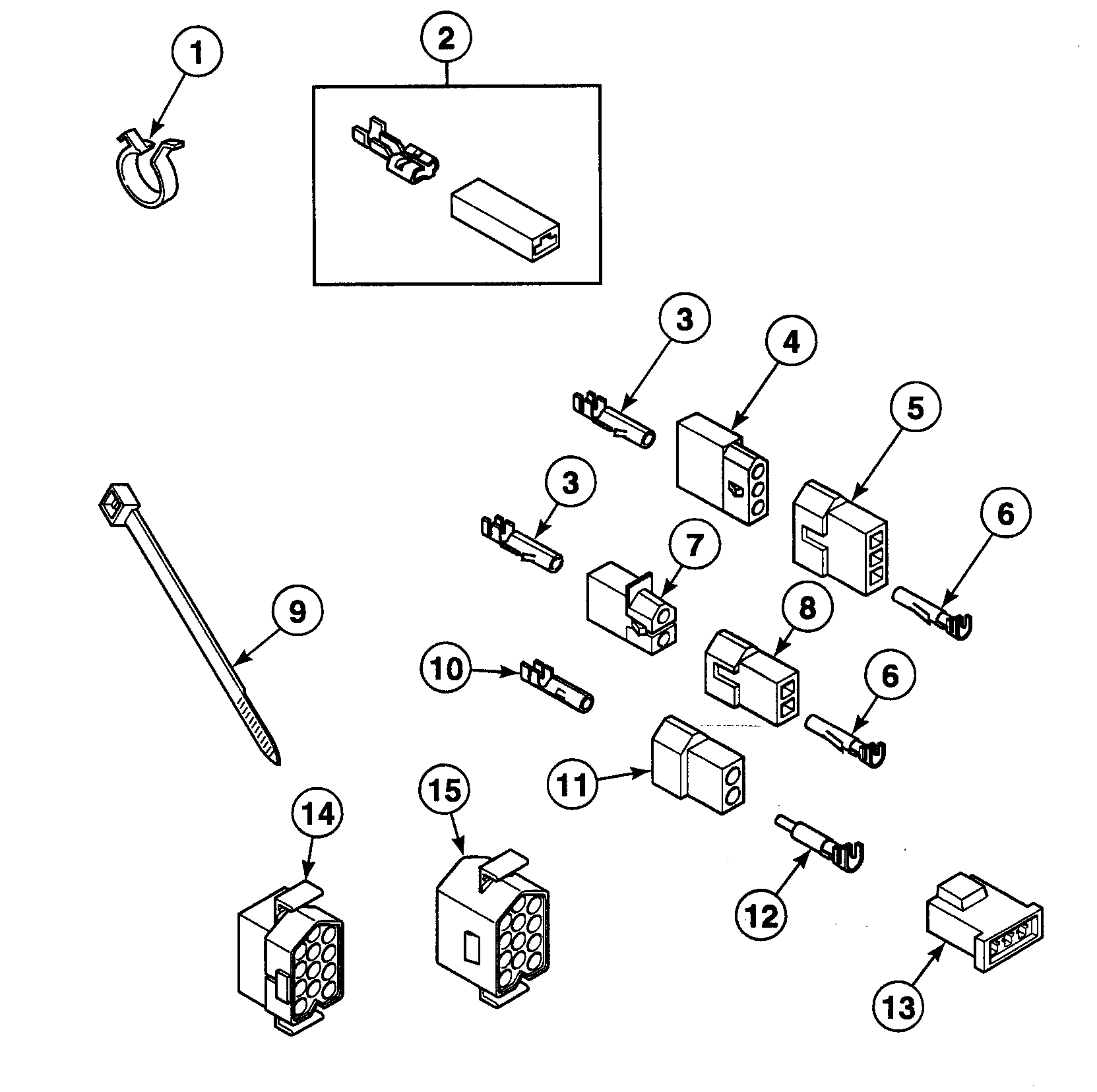

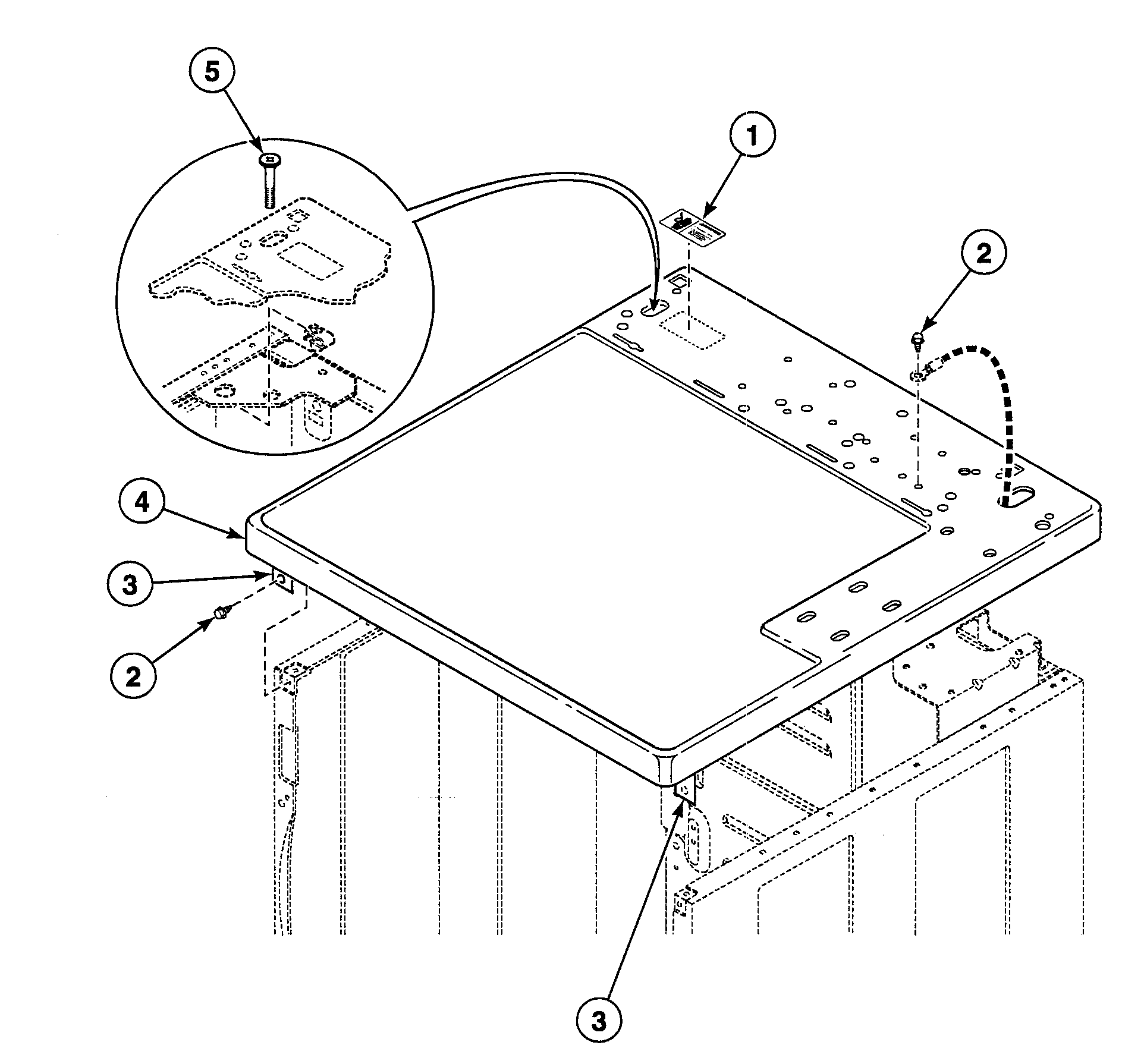

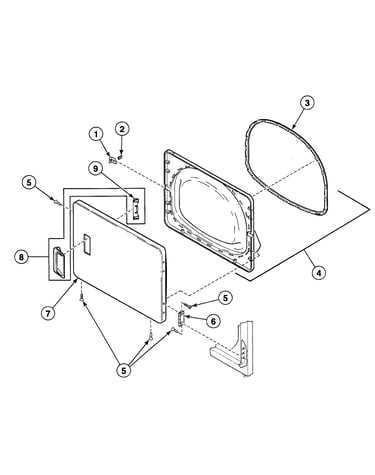

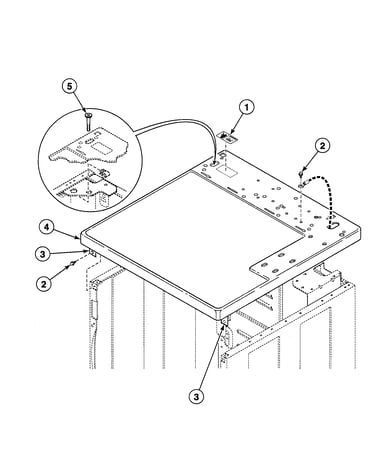

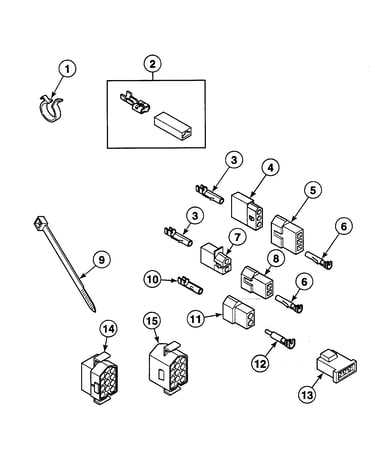

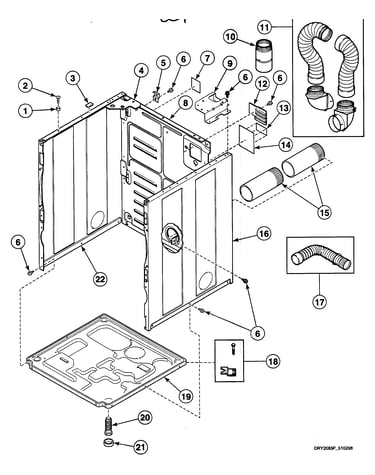

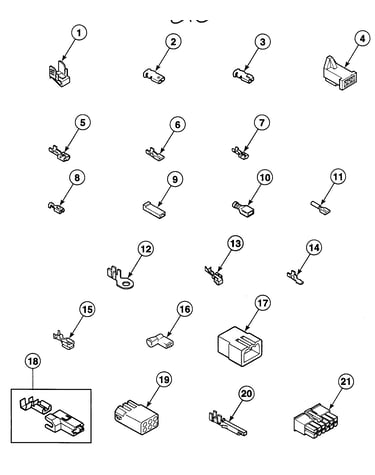

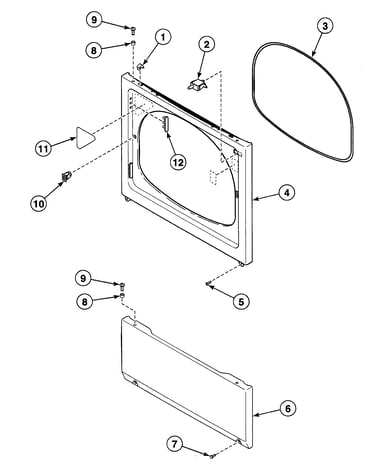

SELECT DIAGRAM
Browse Parts for
SDEF07LJ Dryer
#9A

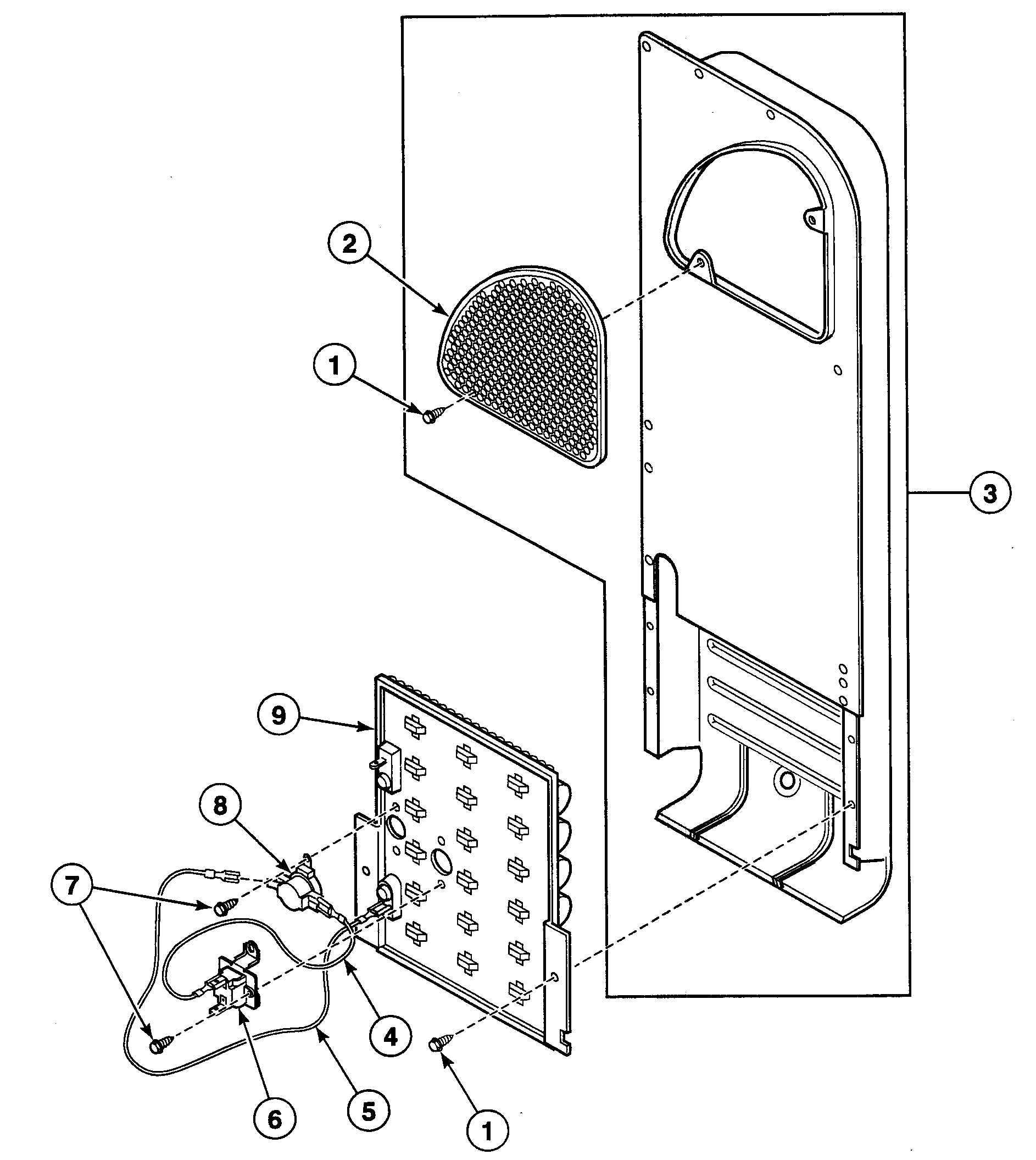

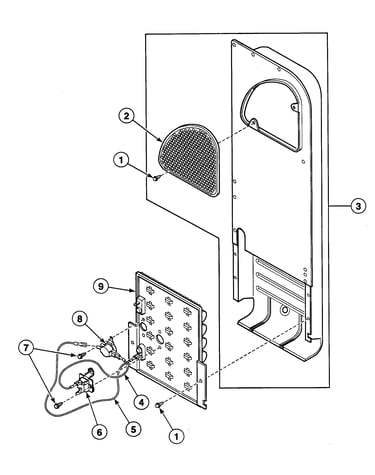

Heater assy diagram
Dryer heating element
Part #61928
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #503688
Replaced by #WP3390631
?
Manufacturer substitution
This part replaces 503688. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock

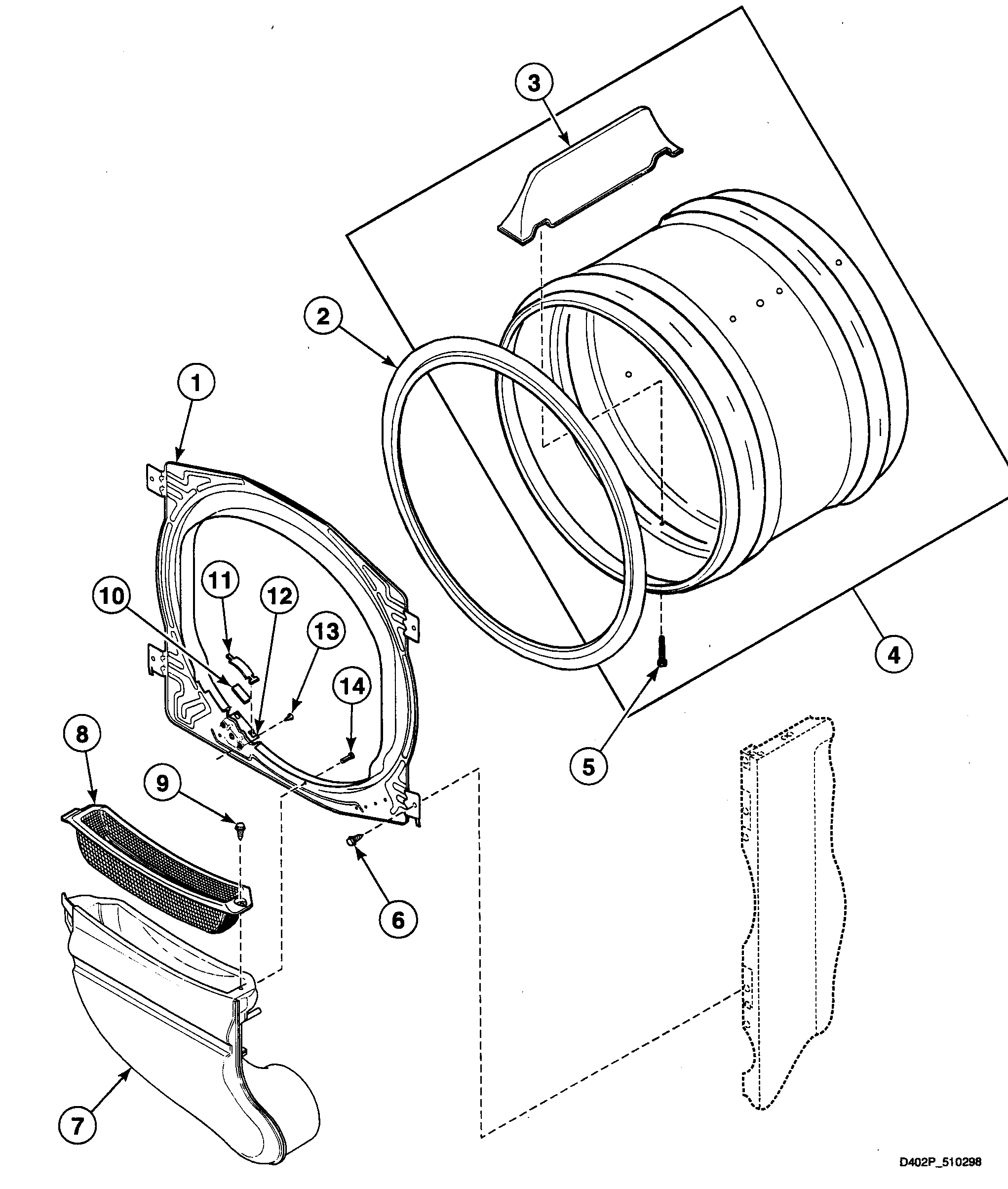

Dryer drum felt seal
Part #510207P
The manufacturer no longer makes this part, and there's no substitute part
#11

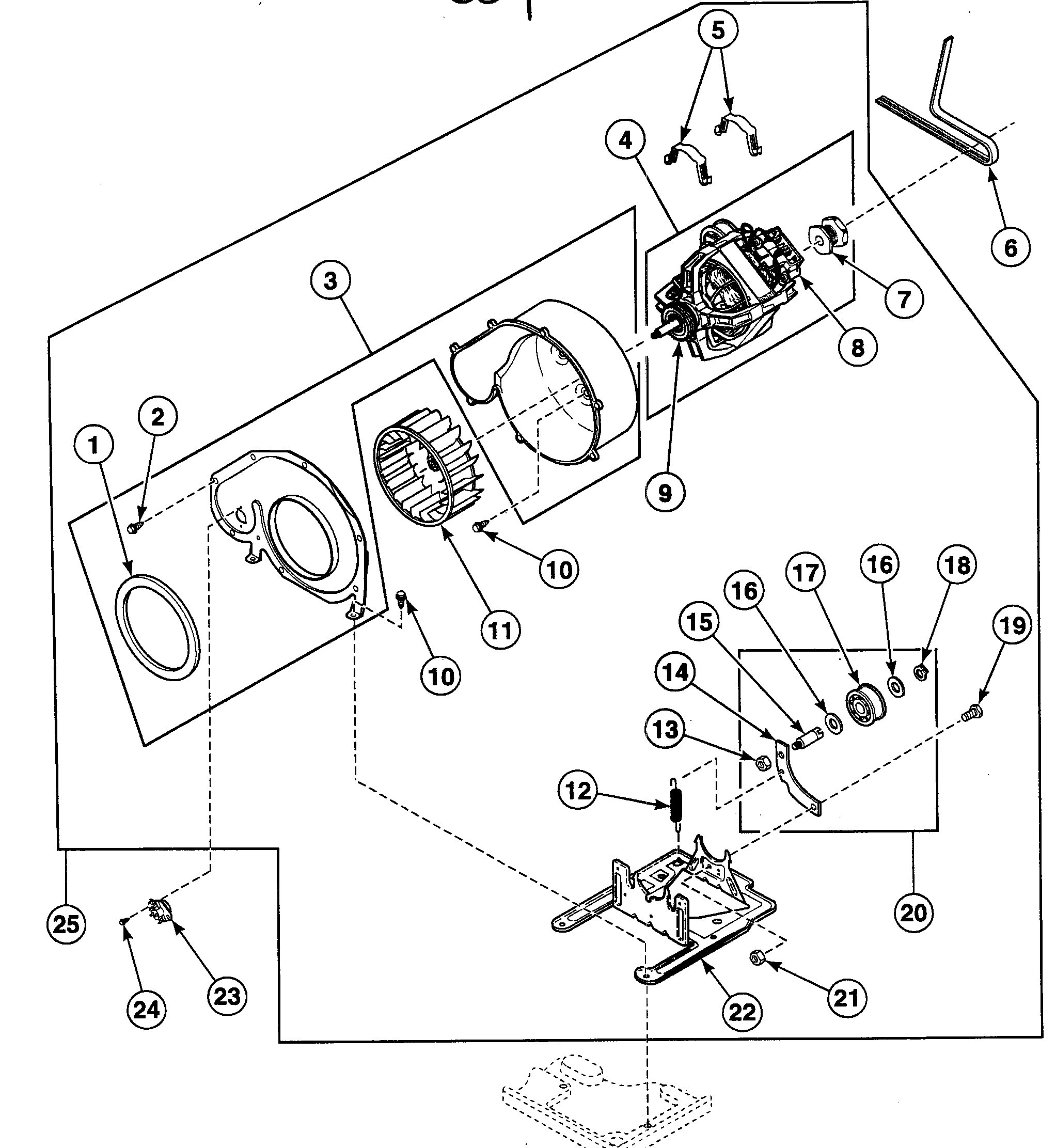

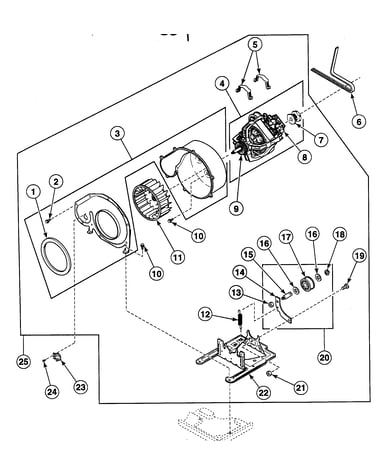

Motor assy diagram
Dryer blower fan
Part #510139P
The manufacturer no longer makes this part, and there's no substitute part
#12

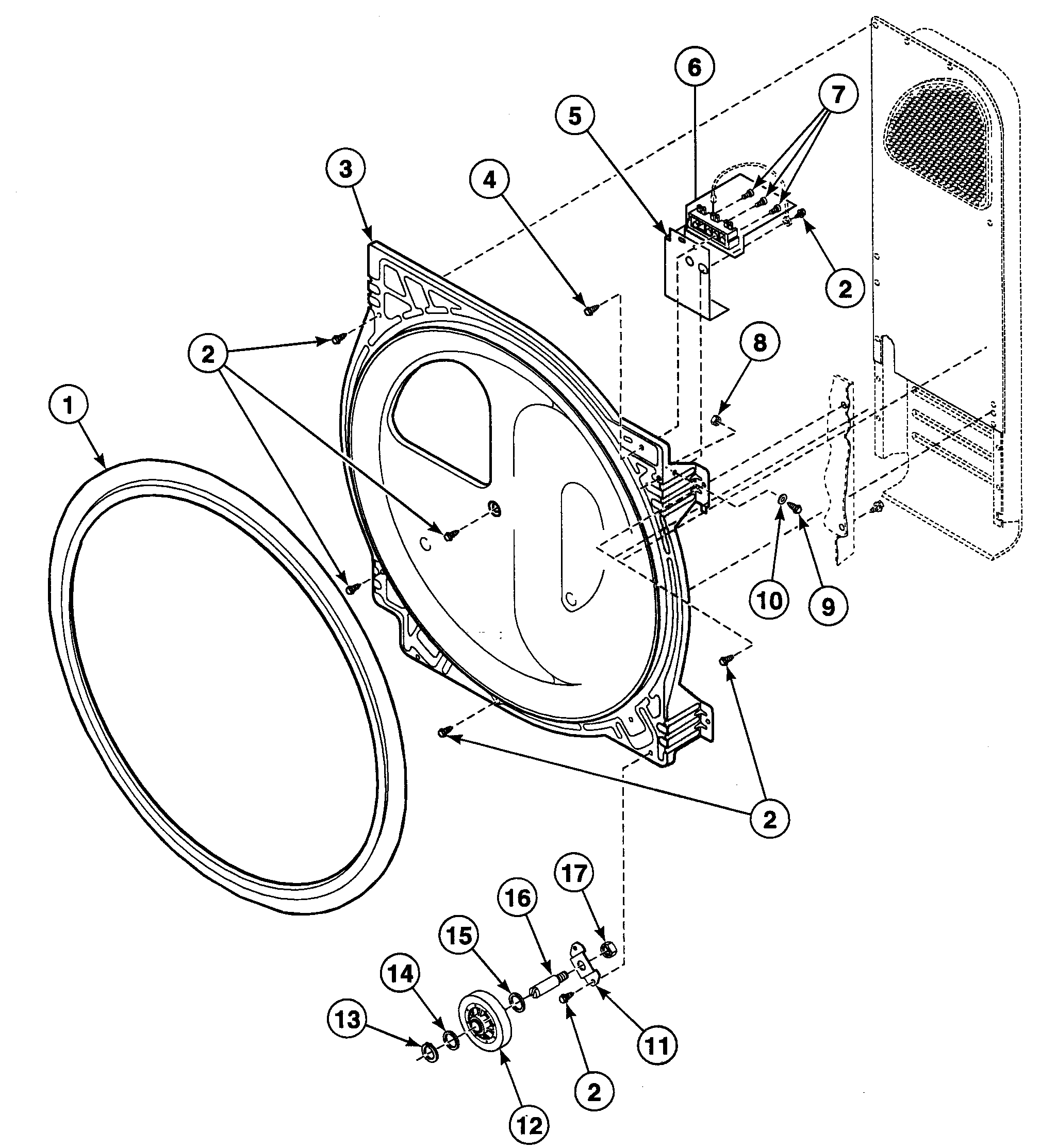

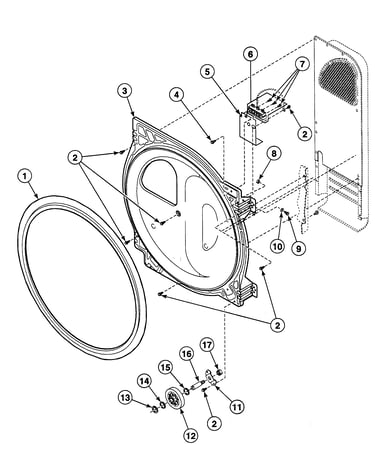

Roller assy diagram
Dryer drum support roller
Part #510708P
The manufacturer no longer makes this part, and there's no substitute part
#NI
Motor assy diagram
Anti-seize
Part #27604P
The manufacturer no longer makes this part, and there's no substitute part
#6
Roller assy diagram
Terminal block
Part #510190P
Replaced by #D510190P
?
Manufacturer substitution
This part replaces 510190P. Substitute parts can look different from the original.
$11.80
In Stock
#7
Roller assy diagram
Screw
Part #61199
Replaced by #WP3400094
?
Manufacturer substitution
This part replaces 61199. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
#8B

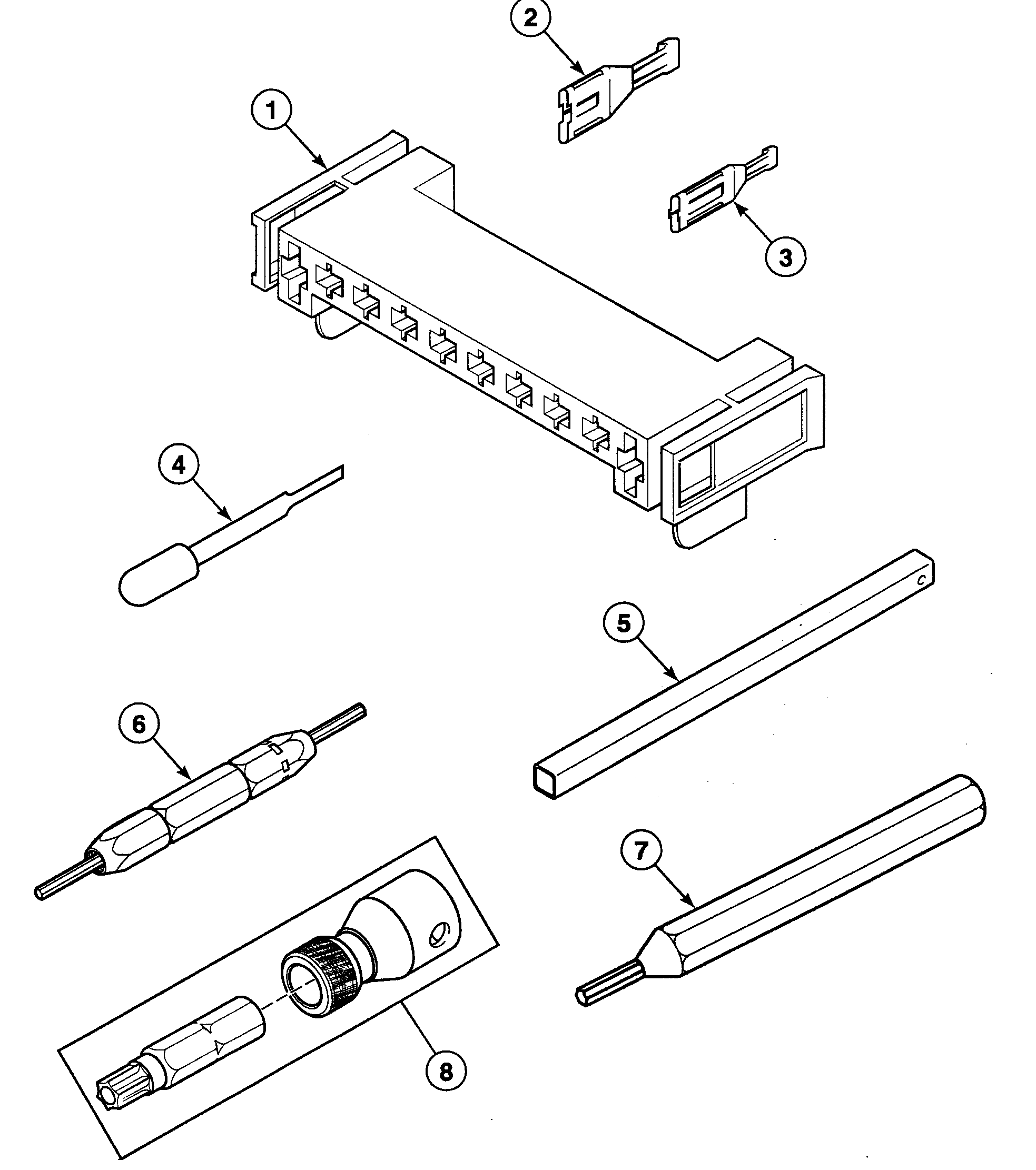

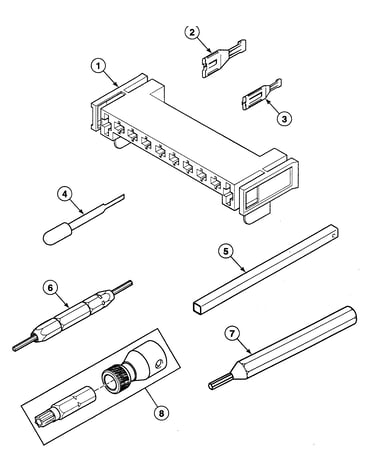

Tools diagram
Torx bit
Part #292P4
$25.14
In Stock
#6

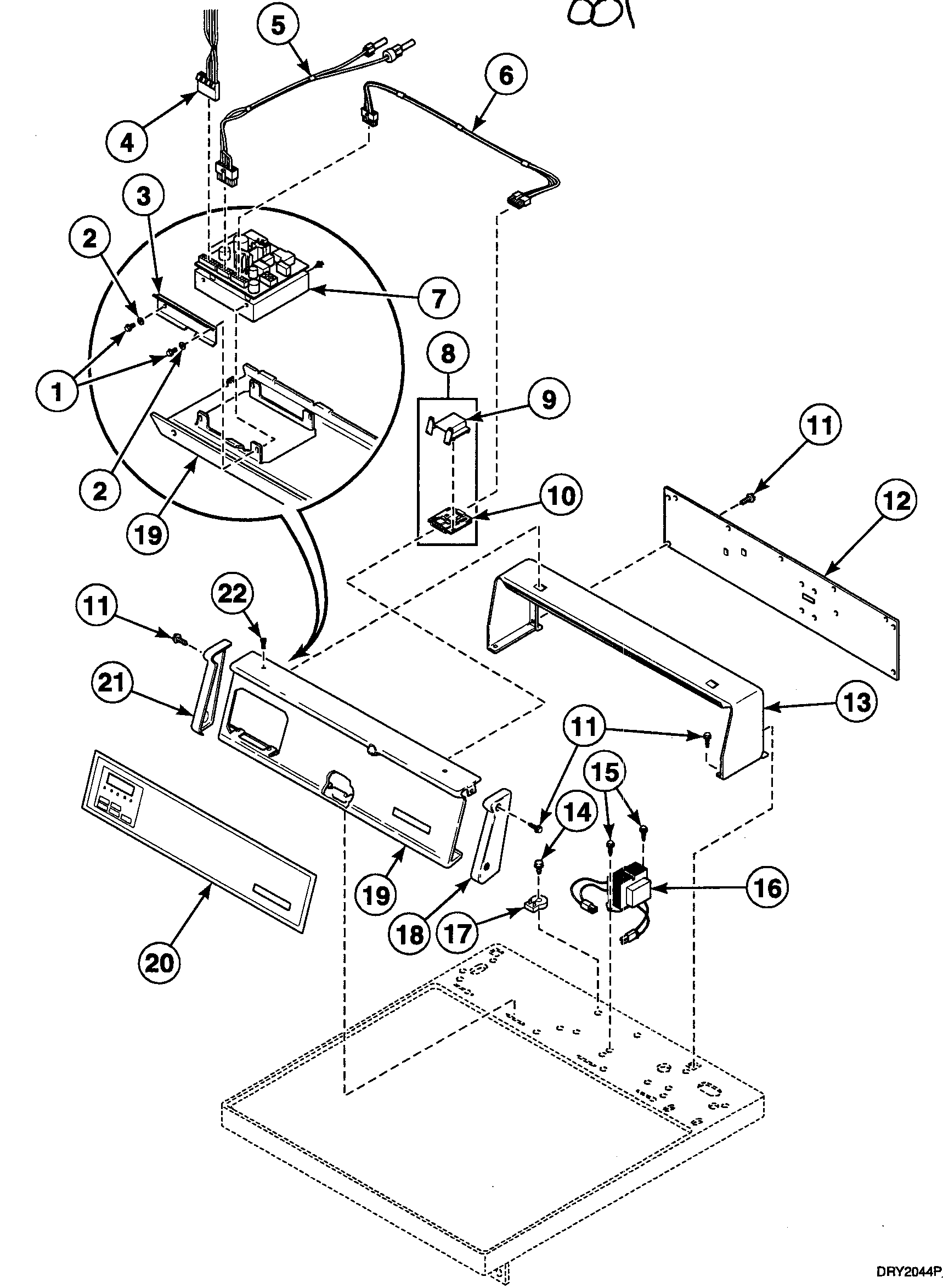

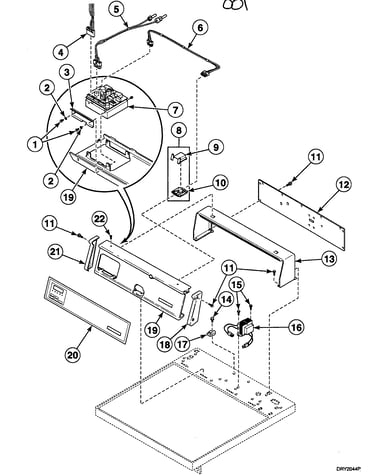

Control panel diagram

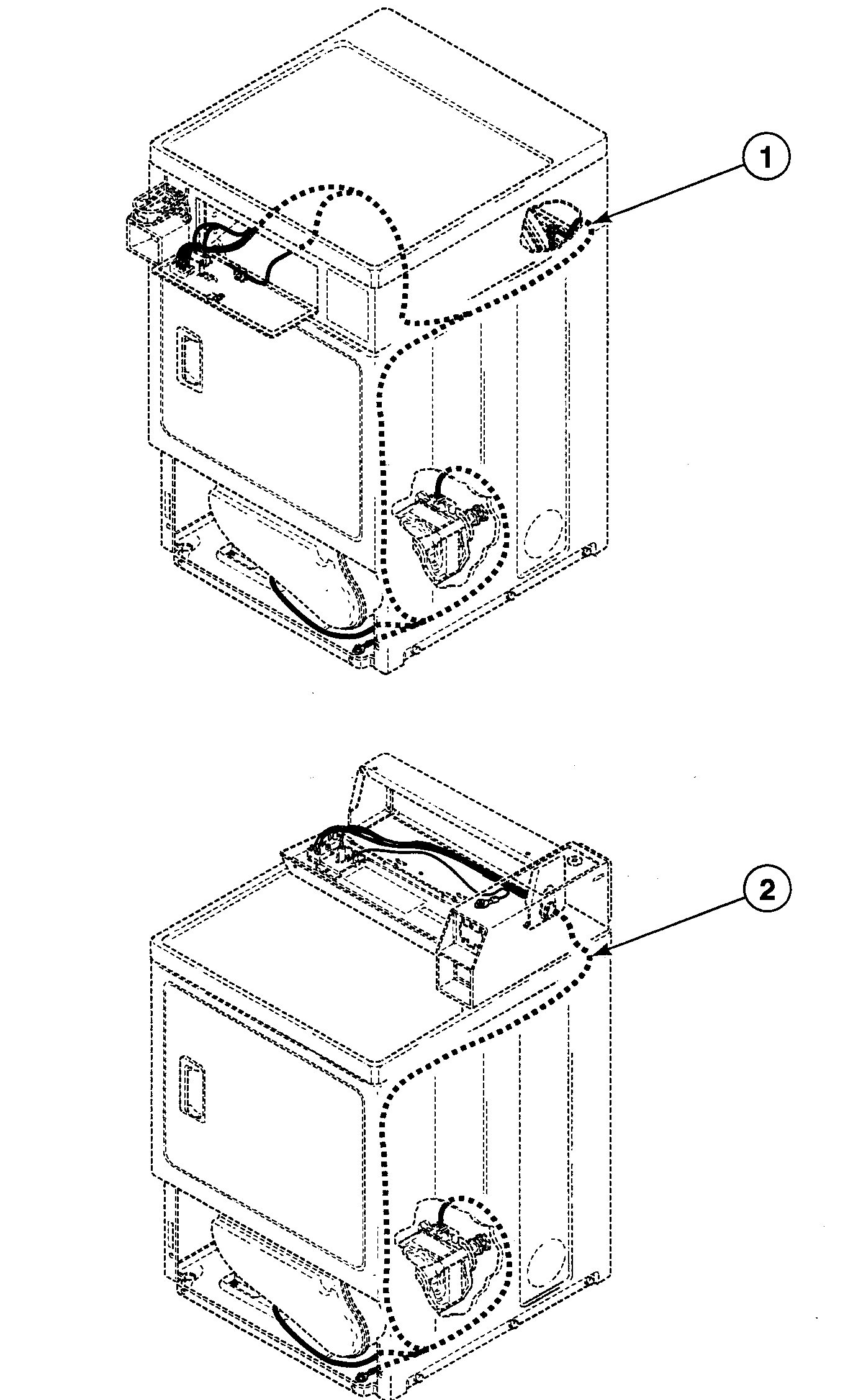

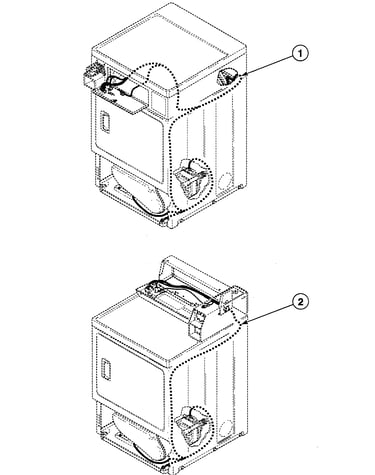

Harness
Part #800125P
$54.31
In Stock
