Model # WMH53521HV2 Official Whirlpool microwave/hood combo
Here are the diagrams and repair parts for Official Whirlpool WMH53521HV2 microwave/hood combo, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic

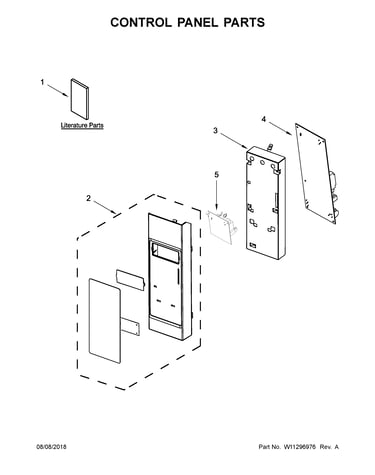

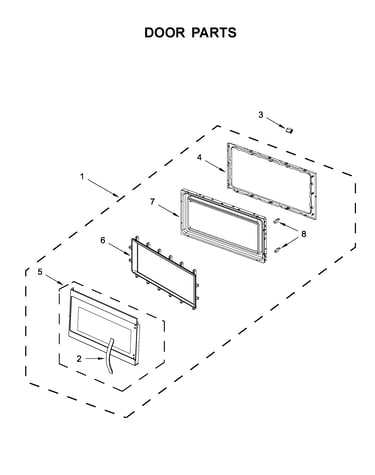

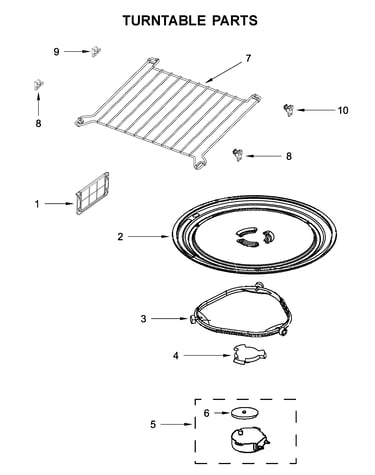

SELECT DIAGRAM
Browse Parts for
WMH53521HV2 Microwave/Hood Combo
#13

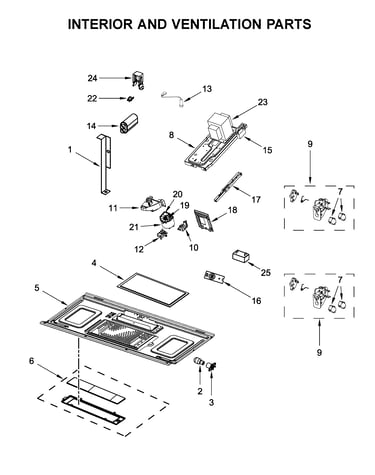

Interior and ventilation parts diagram
Diode
Part #W10575765
Replaced by #W11256462
?
Manufacturer substitution
This part replaces W10575765. Substitute parts can look different from the original.
$24.65 |
20% OFF Phone Price : $30.65
In Stock
#14
Interior and ventilation parts diagram
Capacitor
Part #W10343300
Replaced by #W10850446
?
Manufacturer substitution
This part replaces W10343300. Substitute parts can look different from the original.
$94.83 |
6% OFF Phone Price : $100.83
In Stock
#2
Interior and ventilation parts diagram
Microwave/hood light bulb
Part #8206232
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
$8.63 |
10% OFF Phone Price : $9.63
In Stock
#3

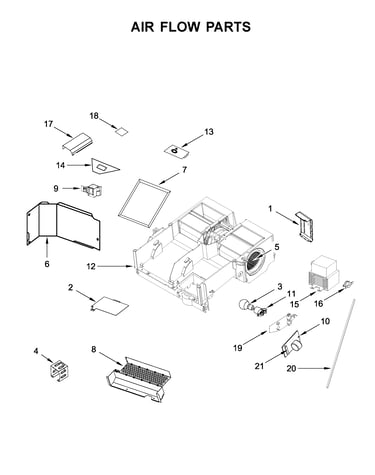

Air flow parts diagram
Lamp assembly
Part #4393681
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
$8.63 |
10% OFF Phone Price : $9.63
In Stock
#21
Air flow parts diagram
Microwave fuse (replaces w10422951)
Part #W10138793
Replaced by #W11707984
?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
$53.15
In Stock
#9
Interior and ventilation parts diagram
Assembly, interlock (includes switches)
Part #W11187757
Replaced by #W11197766
?
Manufacturer substitution
This part replaces W11187757. Substitute parts can look different from the original.
$19.97 |
9% OFF Phone Price : $21.97
In Stock
#15
Air flow parts diagram
Magnetron
Part #W10754514
The manufacturer no longer makes this part, and there's no substitute part
#4
Interior and ventilation parts diagram
Filter
Part #W10208631
Replaced by #W10208631A
?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
$24.81 |
19% OFF Phone Price : $30.81
In Stock
#7
Air flow parts diagram
Filter
Part #8206230
Replaced by #8206230A
?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
$11.14 |
15% OFF Phone Price : $13.14
In Stock
#1

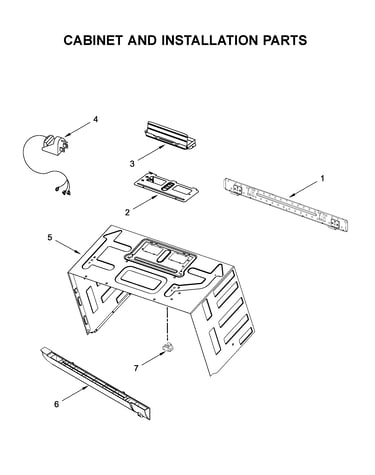

Cabinet and installation parts diagram
Microwave mounting plate (replaces w10440498)
Part #W11025649
$12.77 |
14% OFF Phone Price : $14.77
In Stock
