Model # MDB7750AWS Official Maytag tall tub dishwasher

Here are the diagrams and repair parts for Official Maytag MDB7750AWS tall tub dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

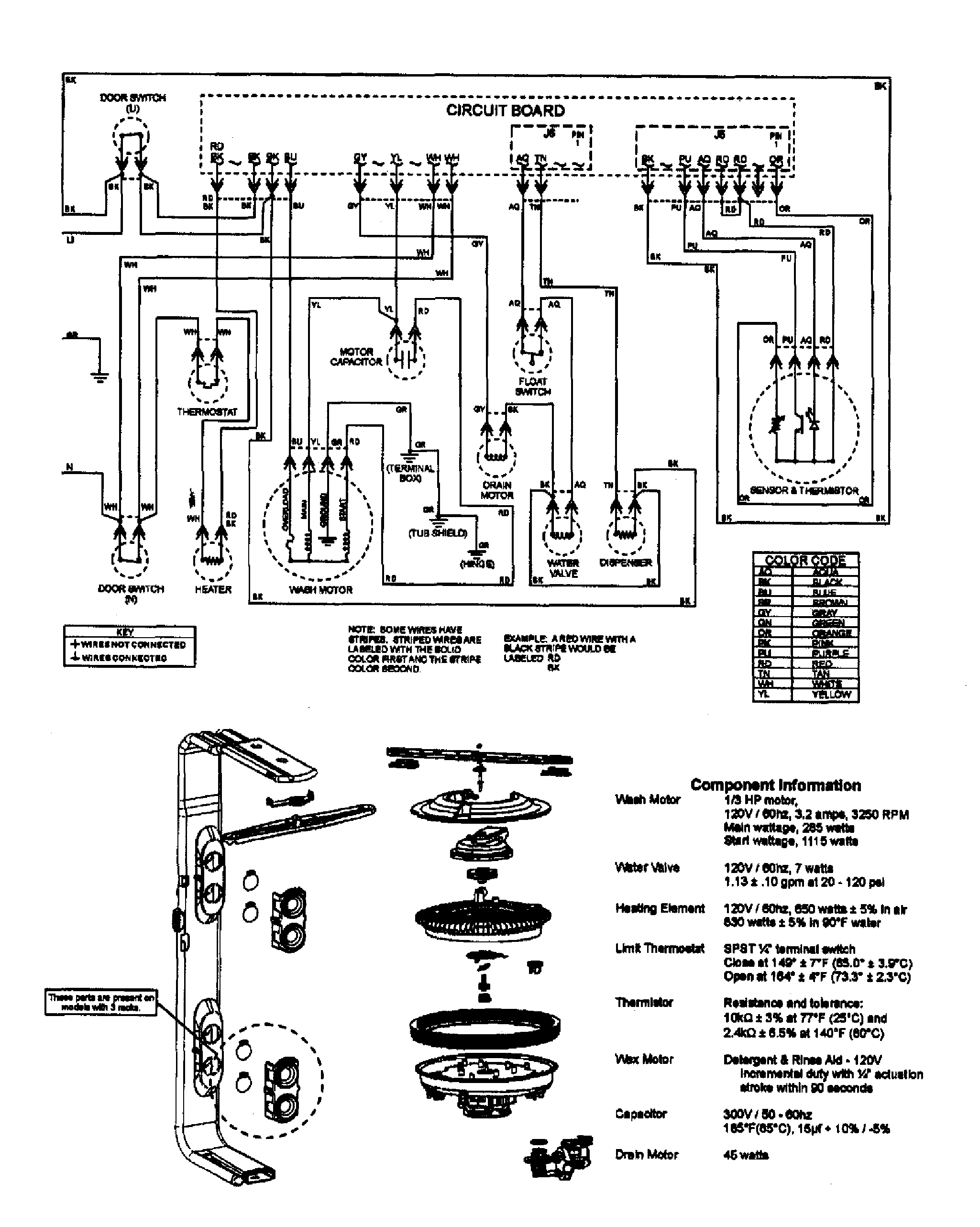

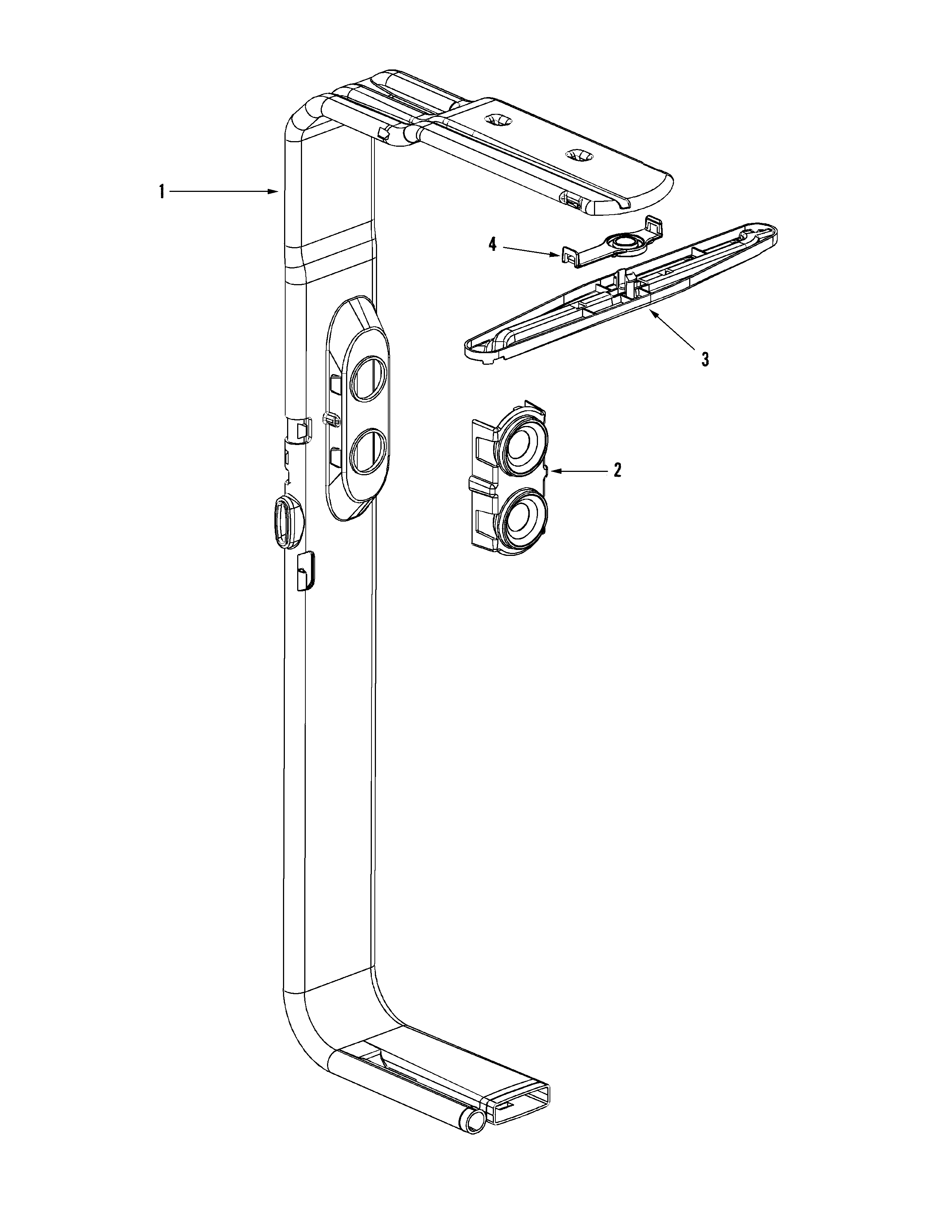

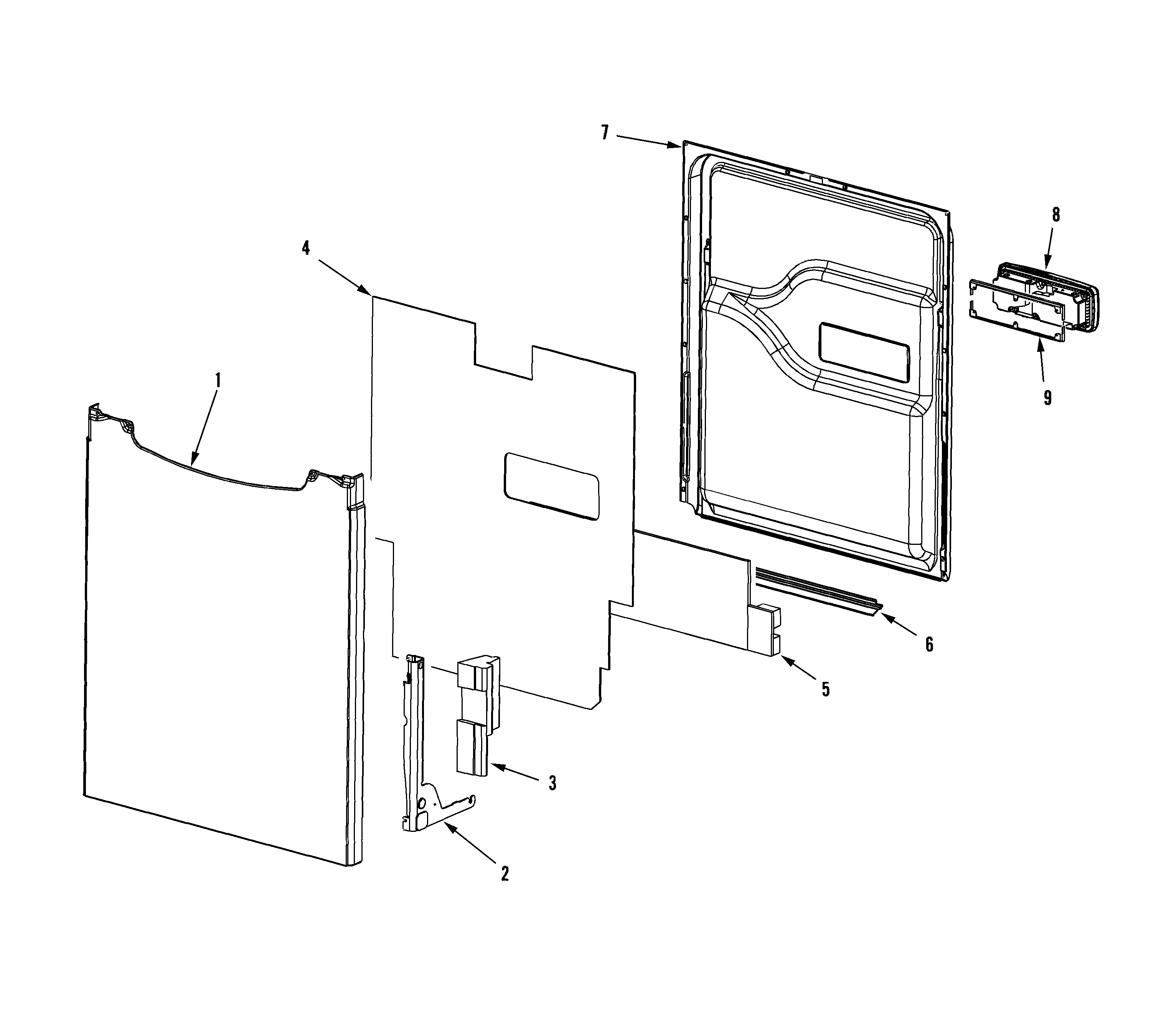

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Clamp Spring 911856
#3

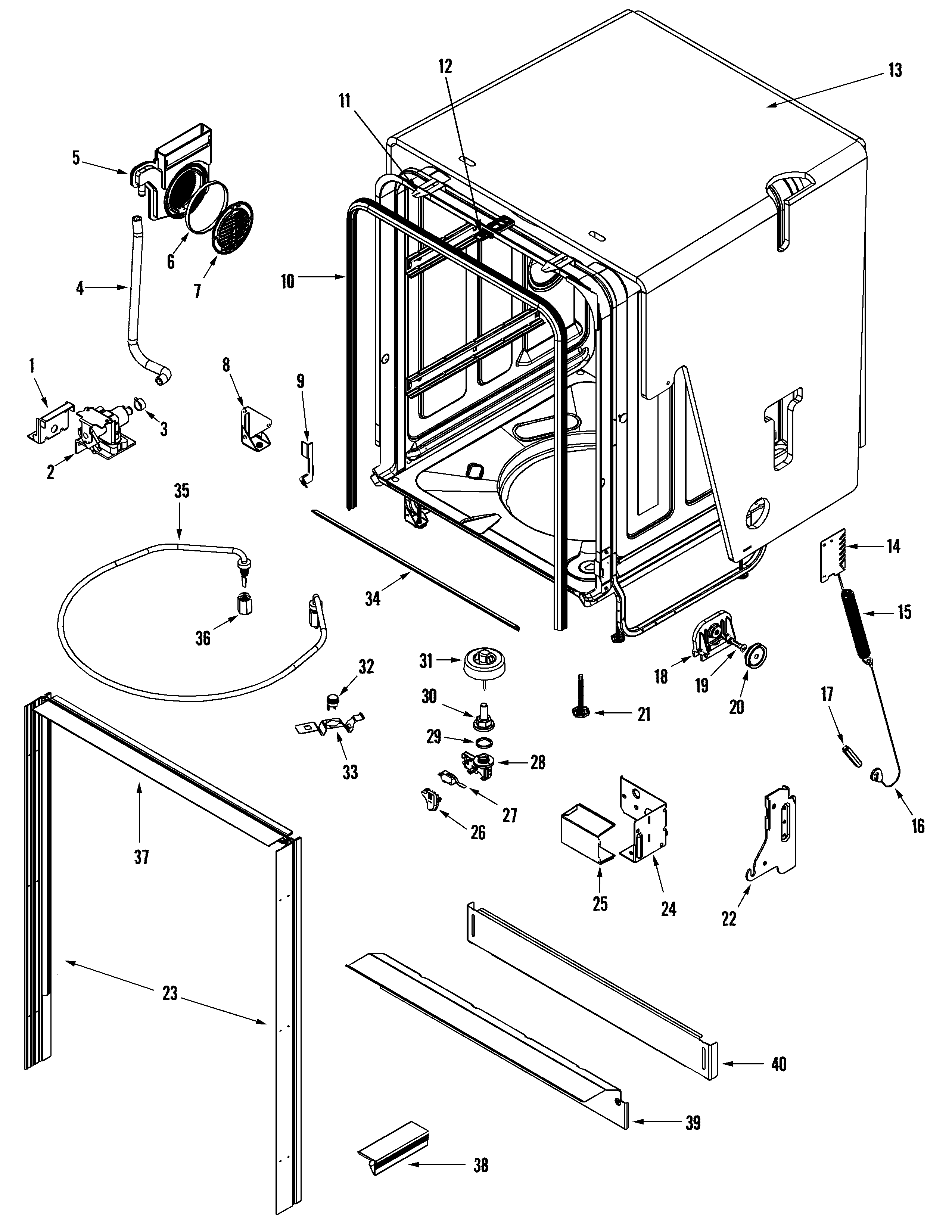

Tub diagram

Clamp spring

Part #911856

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 911856. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Latch Handle (black) 99002577
#2

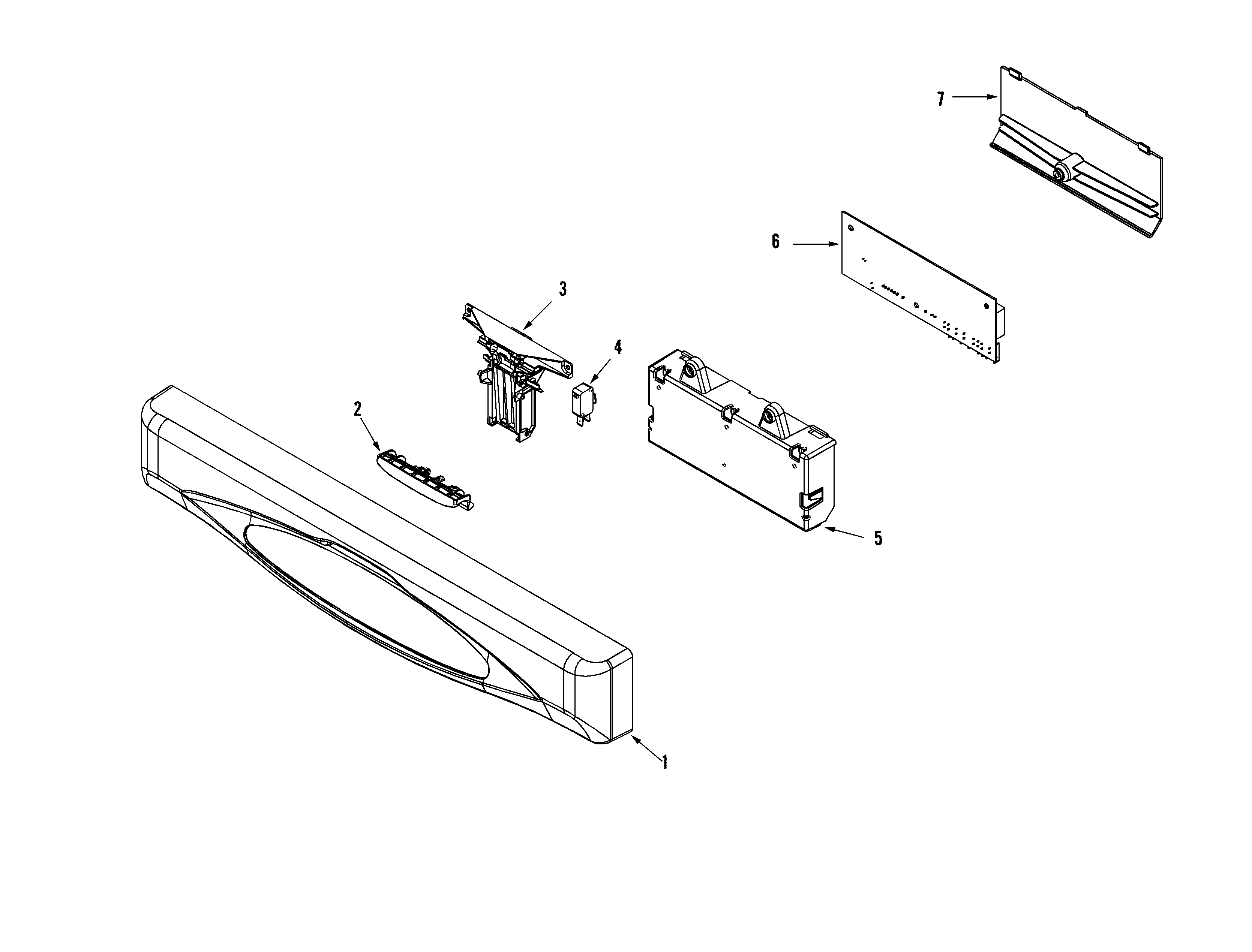

Control panel diagram

Latch handle (black)

Part #99002577

Replaced by #WPW10130695

?
Manufacturer substitution
This part replaces 99002577. Substitute parts can look different from the original.
BEST SELLER
$36.30 |
14% OFF Phone Price : $42.30
In Stock
Dishwasher Door Handle 99002579
#2B

Control panel diagram

Dishwasher door handle

Part #99002579

Replaced by #WPW10130695

?
Manufacturer substitution
This part replaces 99002579. Substitute parts can look different from the original.
BEST SELLER
$36.30 |
14% OFF Phone Price : $42.30
In Stock
Latch Handle (off-white) 99002578
#2A

Control panel diagram

Latch handle (off-white)

Part #99002578

Replaced by #WPW10130695

?
Manufacturer substitution
This part replaces 99002578. Substitute parts can look different from the original.
BEST SELLER
$36.30 |
14% OFF Phone Price : $42.30
In Stock
Latch 99002580
#3

Control panel diagram

Latch

Part #99002580

Replaced by #WPW10275768

?
Manufacturer substitution
This part replaces 99002580. Substitute parts can look different from the original.
BEST SELLER
$52.75 |
10% OFF Phone Price : $58.75
In Stock
Wash Motor A 99003146
#15

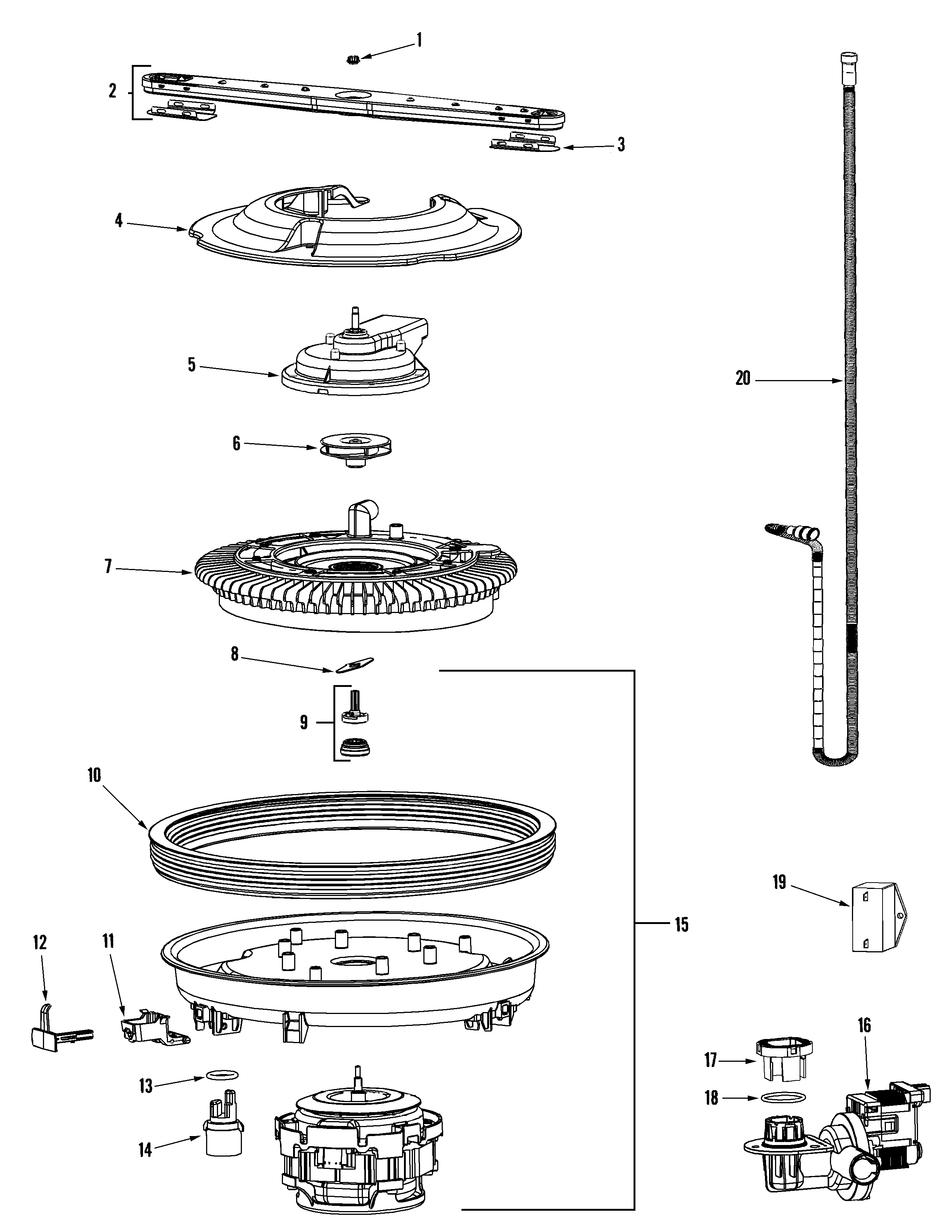

Pump & motor diagram

Wash motor a

Part #99003146

Replaced by #6-919963

?
Manufacturer substitution
This part replaces 99003146. Substitute parts can look different from the original.
$350.80 |
$12.00 OFF Phone Price : $362.80
In Stock
Silverware Basket 99002995
#16

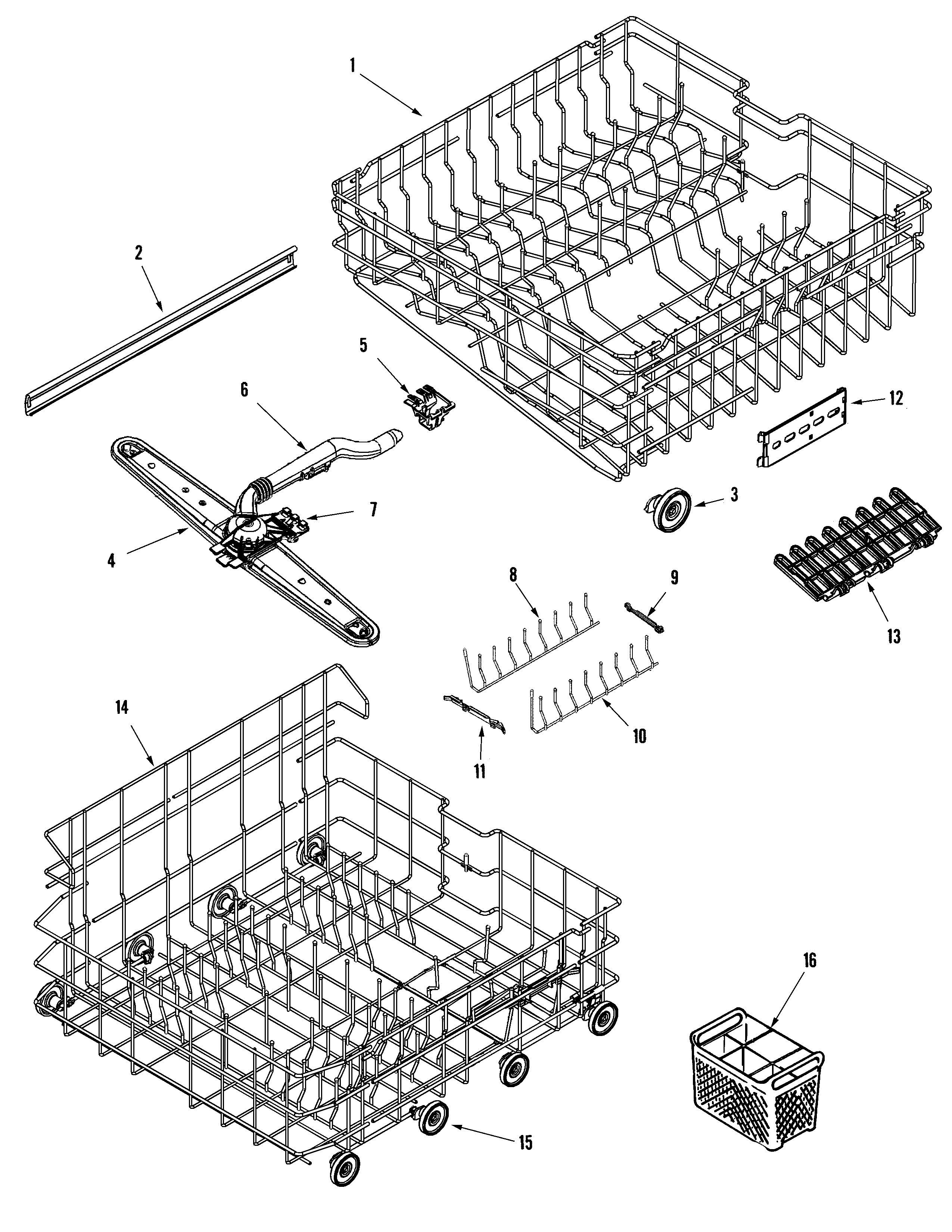

Rail & rack assembly diagram

Silverware basket

Part #99002995

Replaced by #WP6-918873

?
Manufacturer substitution
This part replaces 99002995. Substitute parts can look different from the original.
$20.61 |
23% OFF Phone Price : $26.61
In Stock
Dishwasher Pump Impeller 99002659
#6

Pump & motor diagram

Dishwasher pump impeller

Part #99002659

Replaced by #WP99002659

?
Manufacturer substitution
This part replaces 99002659. Substitute parts can look different from the original.
$32.71 |
15% OFF Phone Price : $38.71
In Stock
Heater Element 99002971
#35

Tub diagram

Heater element

Part #99002971

Replaced by #W10283681

?
Manufacturer substitution
This part replaces 99002971. Substitute parts can look different from the original.
$69.33 |
8% OFF Phone Price : $75.33
In Stock
Wash Motor S 99002981
#9

Pump & motor diagram

Wash motor s

Part #99002981

Replaced by #WP6-919539

?
Manufacturer substitution
This part replaces 99002981. Substitute parts can look different from the original.
$89.50 |
6% OFF Phone Price : $95.50
In Stock
