Model # D8320PW-L Official Maytag gas range

Here are the diagrams and repair parts for Official Maytag D8320PW-L gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Screw 7118P004-60
Screw

Part #7118P004-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7118P004-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Lock Nut 7103P085-60
#10

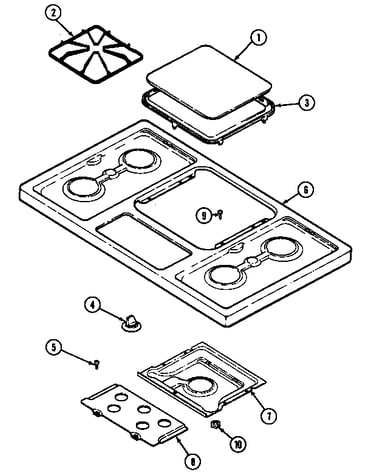

Top assembly diagram

Lock nut

Part #7103P085-60

Replaced by #WPW10131078

?
Manufacturer substitution
This part replaces 7103P085-60. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw 7101P356-60
#9A

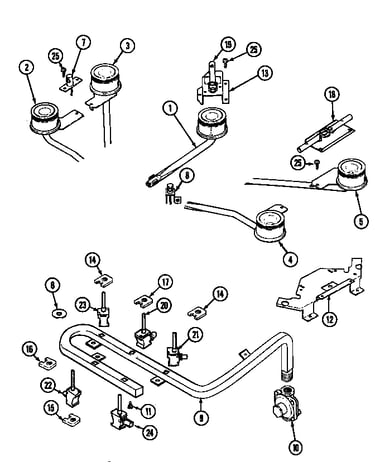

Gas controls diagram

Screw

Part #7101P356-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P356-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw 7101P060-60
Screw

Part #7101P060-60

Replaced by #W11684512

?
Manufacturer substitution
This part replaces 7101P060-60. Substitute parts can look different from the original.
$13.06
In Stock
Cooktop Igniter Switch 7403P368-60
#15

Gas controls diagram

Cooktop igniter switch

Part #7403P368-60

Replaced by #12002788

?
Manufacturer substitution
This part replaces 7403P368-60. Substitute parts can look different from the original.
$57.63 |
9% OFF Phone Price : $63.63
In Stock
Burner Valve 7502P256-60
Burner valve

Part #7502P256-60

The manufacturer no longer makes this part, and there's no substitute part

Burner Support 3807F321-51
#12

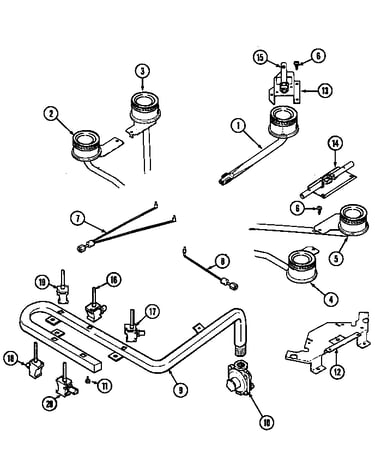

Gas controls (pilot) diagram

Burner support

Part #3807F321-51

The manufacturer no longer makes this part, and there's no substitute part

Screw 7101P073-60
#5A

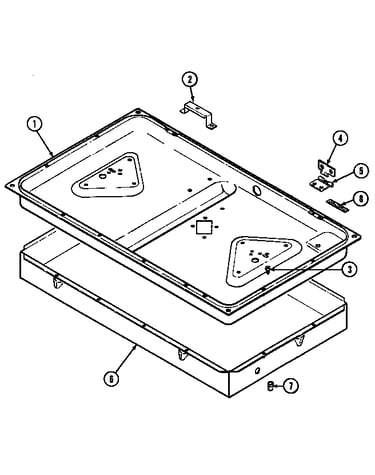

Body diagram

Screw

Part #7101P073-60

The manufacturer no longer makes this part, and there's no substitute part

Pilot Burner 7505P158-60
#7A

Gas controls (pilot) diagram

Pilot burner

Part #7505P158-60

The manufacturer no longer makes this part, and there's no substitute part

Twin Speed Nut 7103P028-60
#8

Body diagram

Twin speed nut

Part #7103P028-60

The manufacturer no longer makes this part, and there's no substitute part
