Kenmore
Electric Range

Model # 79046352401 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79046352401 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

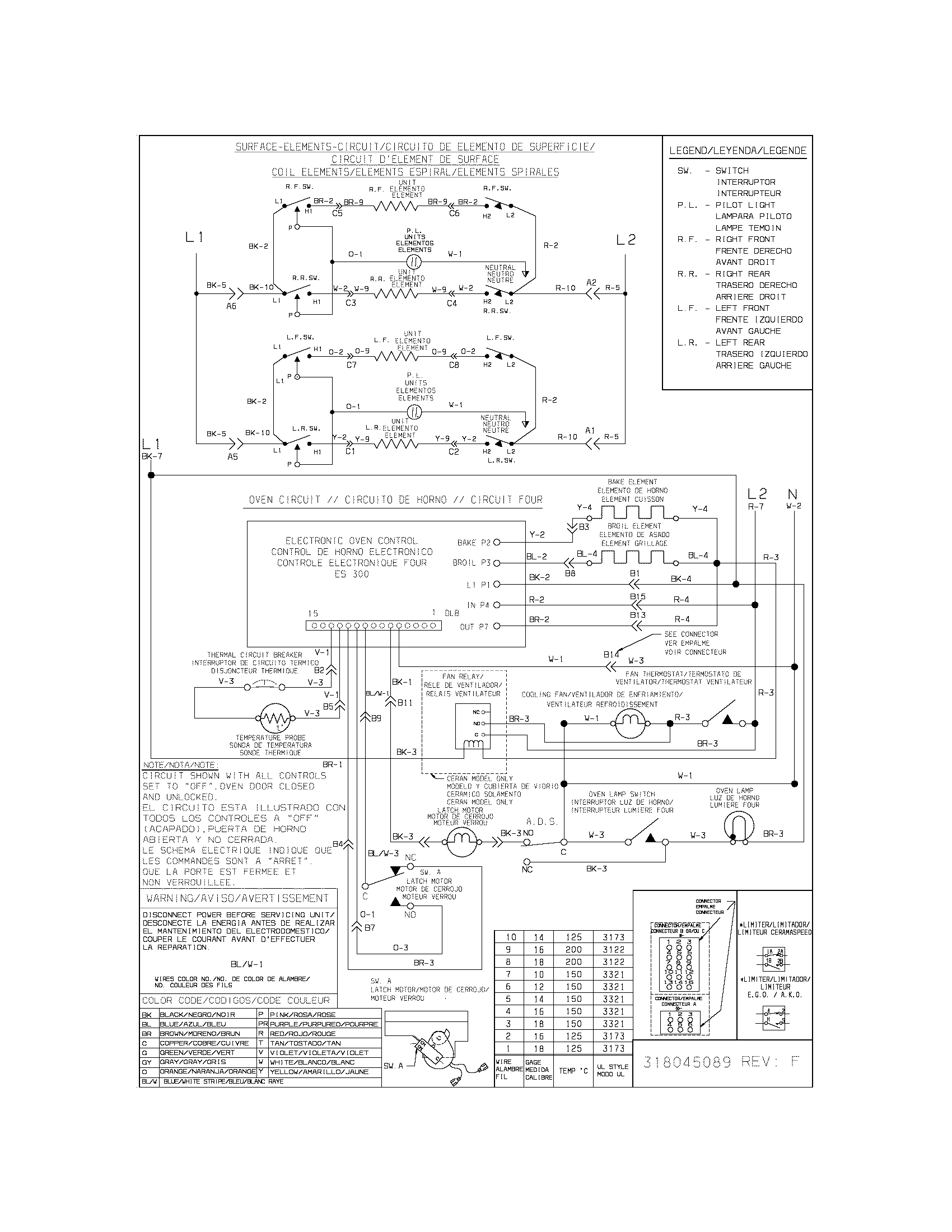

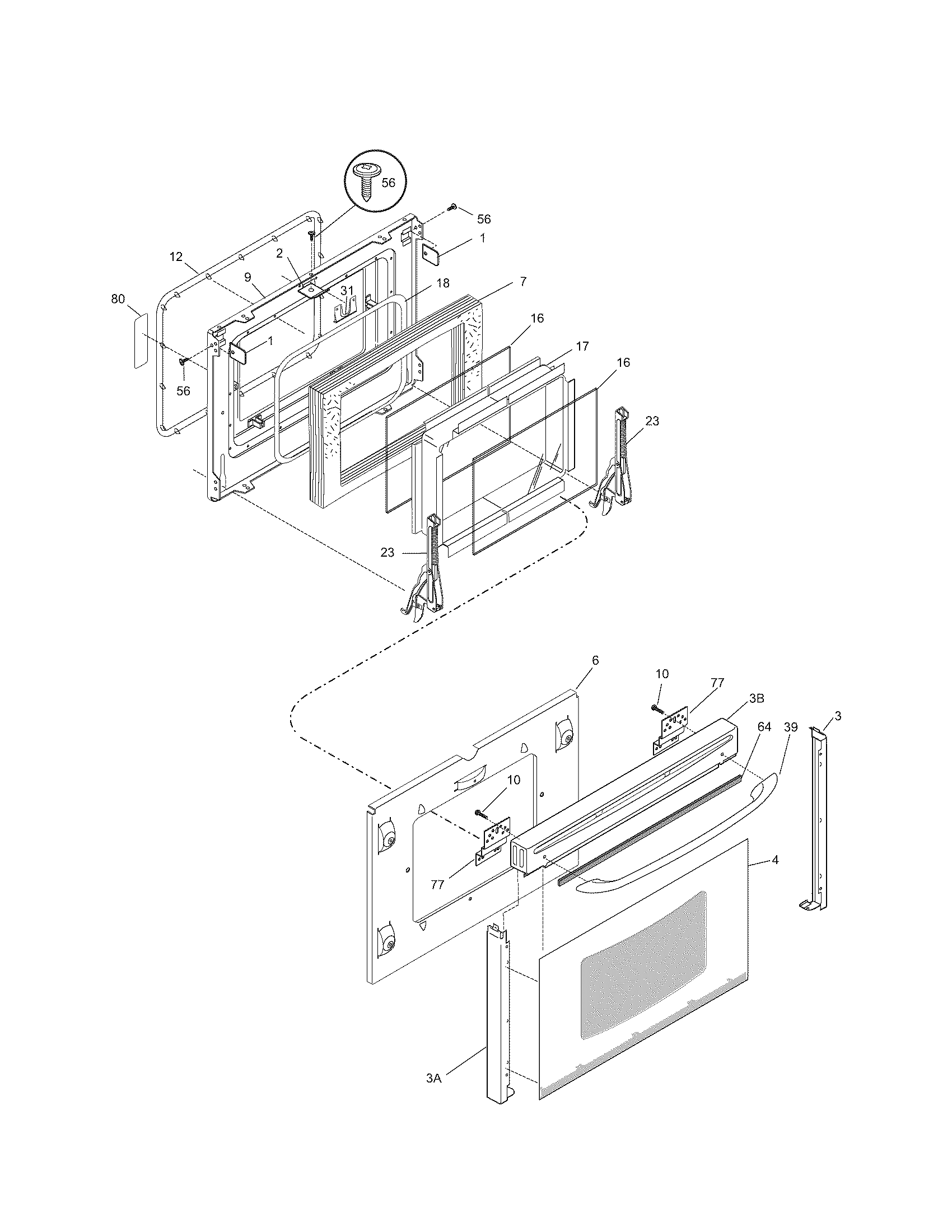

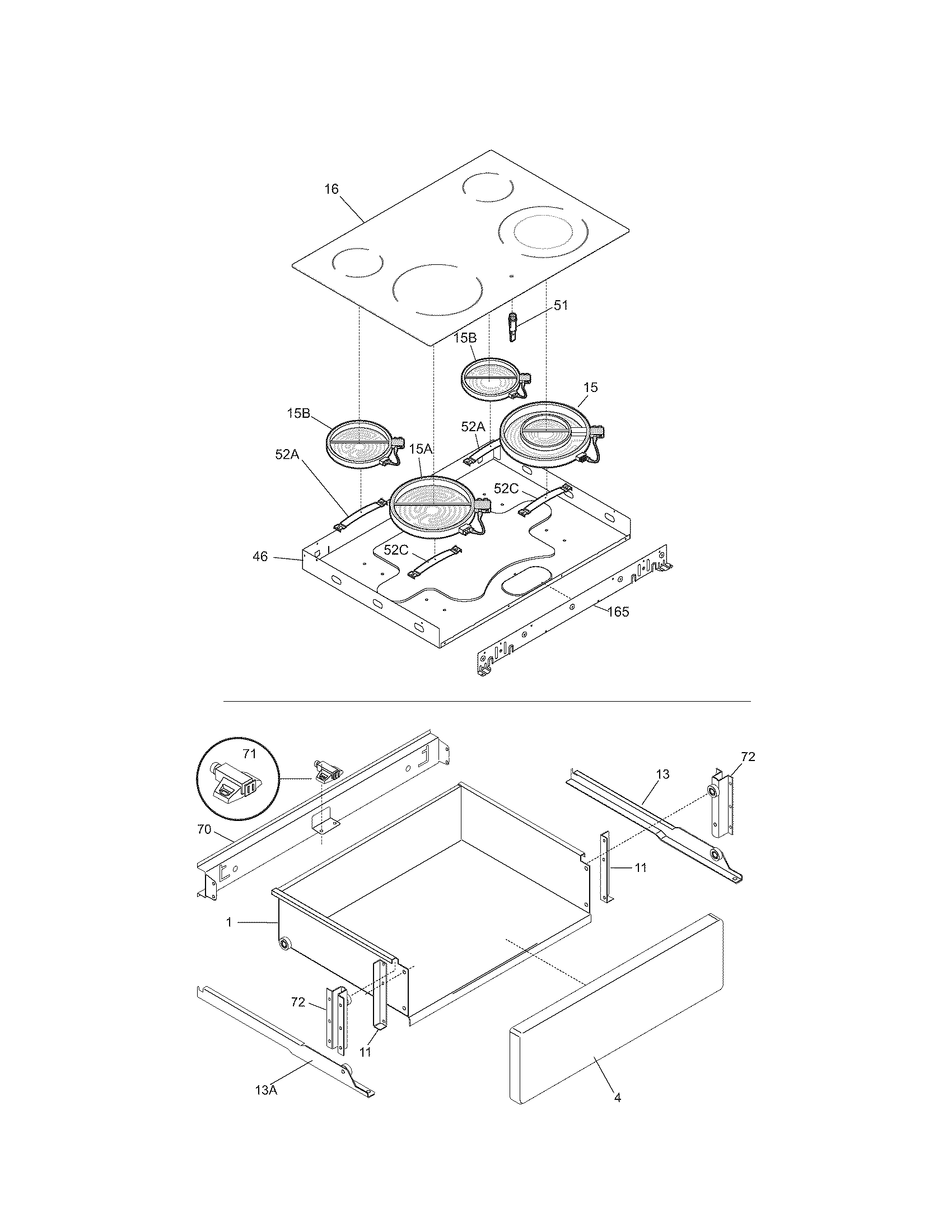

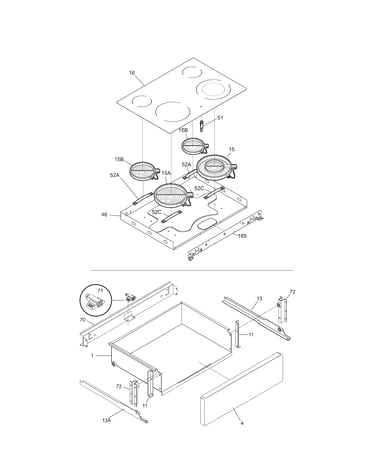

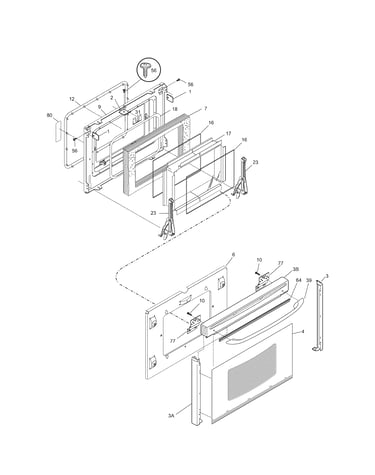

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Range Oven Light Bulb 5303013071
#15

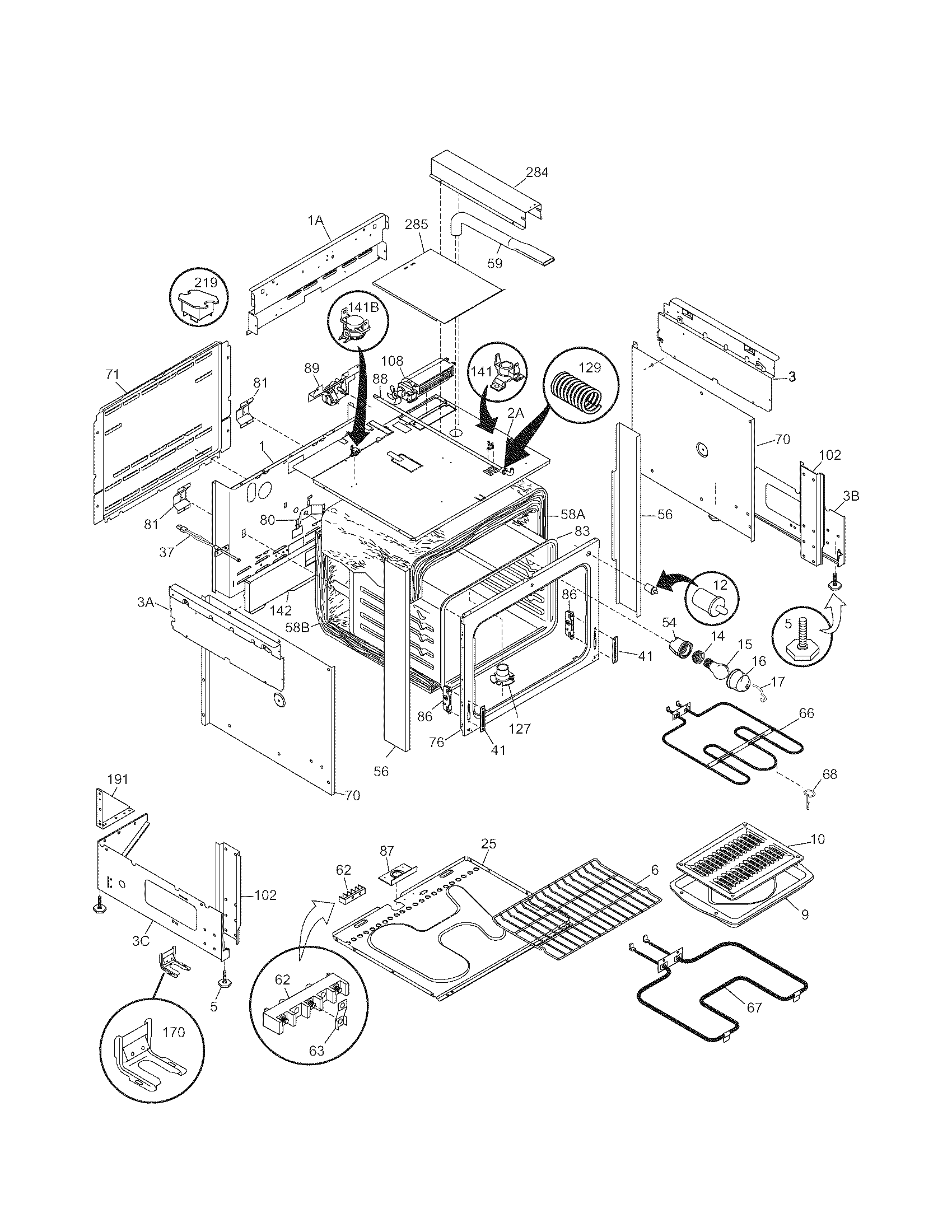

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$43.55 |
12% OFF Phone Price : $49.55
In Stock
Element 318255000
#67

Body diagram

Element

Part #318255000

Replaced by #318255006

?
Manufacturer substitution
This part replaces 318255000. Substitute parts can look different from the original.
BEST SELLER
$150.14 |
7% OFF Phone Price : $162.14
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Surface Element Infinite Switch (replaces 318191027, 903097-9010) 318191023
#54B

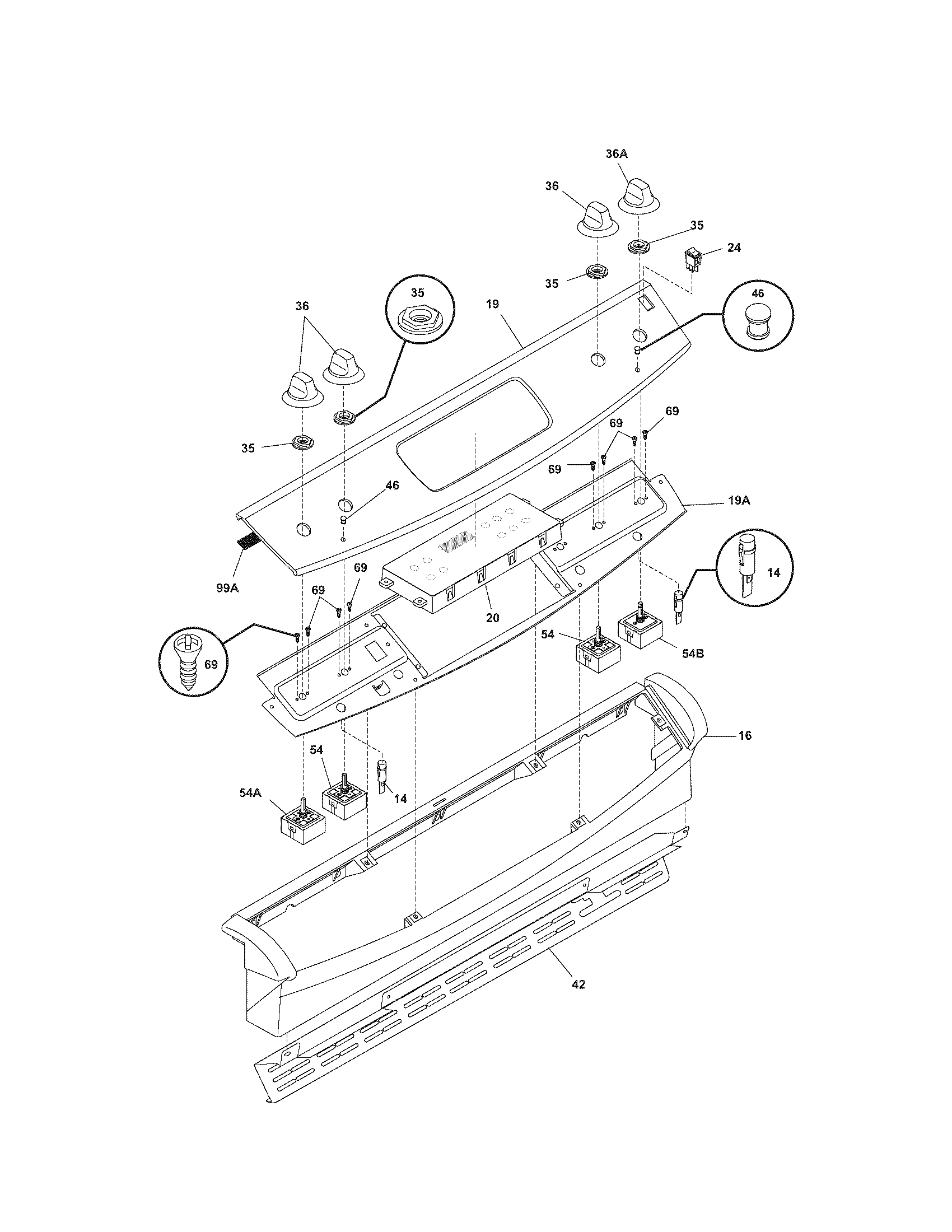

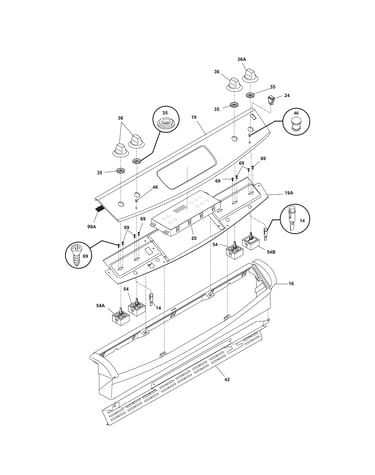

Backguard diagram

Range surface element infinite switch (replaces 318191027, 903097-9010)

Part #318191023

BEST SELLER
$62.73 |
9% OFF Phone Price : $68.73
In Stock
Oven Switch 318220081
#54A

Backguard diagram

Oven switch

Part #318220081

Replaced by #903136-9020

?
Manufacturer substitution
This part replaces 318220081. Substitute parts can look different from the original.
BEST SELLER
$72.58 |
8% OFF Phone Price : $78.58
In Stock
Range Broil Element 318255600
#66

Body diagram

Range broil element

Part #318255600

Replaced by #318255605

?
Manufacturer substitution
This part replaces 318255600. Substitute parts can look different from the original.
BEST SELLER
$124.23 |
9% OFF Phone Price : $136.23
In Stock
Range Control Overlay 316220840
#NI

Backguard diagram

Range control overlay

Part #316220840

Replaced by #316220804

?
Manufacturer substitution
This part replaces 316220840. Substitute parts can look different from the original.
BEST SELLER
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Range Control Overlay 316220839
#NI

Backguard diagram

Range control overlay

Part #316220839

Replaced by #316220804

?
Manufacturer substitution
This part replaces 316220839. Substitute parts can look different from the original.
BEST SELLER
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Cover 3201911
#16

Body diagram

Cover

Part #3201911

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3201911. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
