Model # FAB077Y7B1 Official Frigidaire room air conditioner - 5995281275

Here are the diagrams and repair parts for Official Frigidaire FAB077Y7B1 room air conditioner - 5995281275, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
FAB077Y7B1 Room Air Conditioner - 5995281275
Westinghouse Screw-wrapper 5303293767
#39

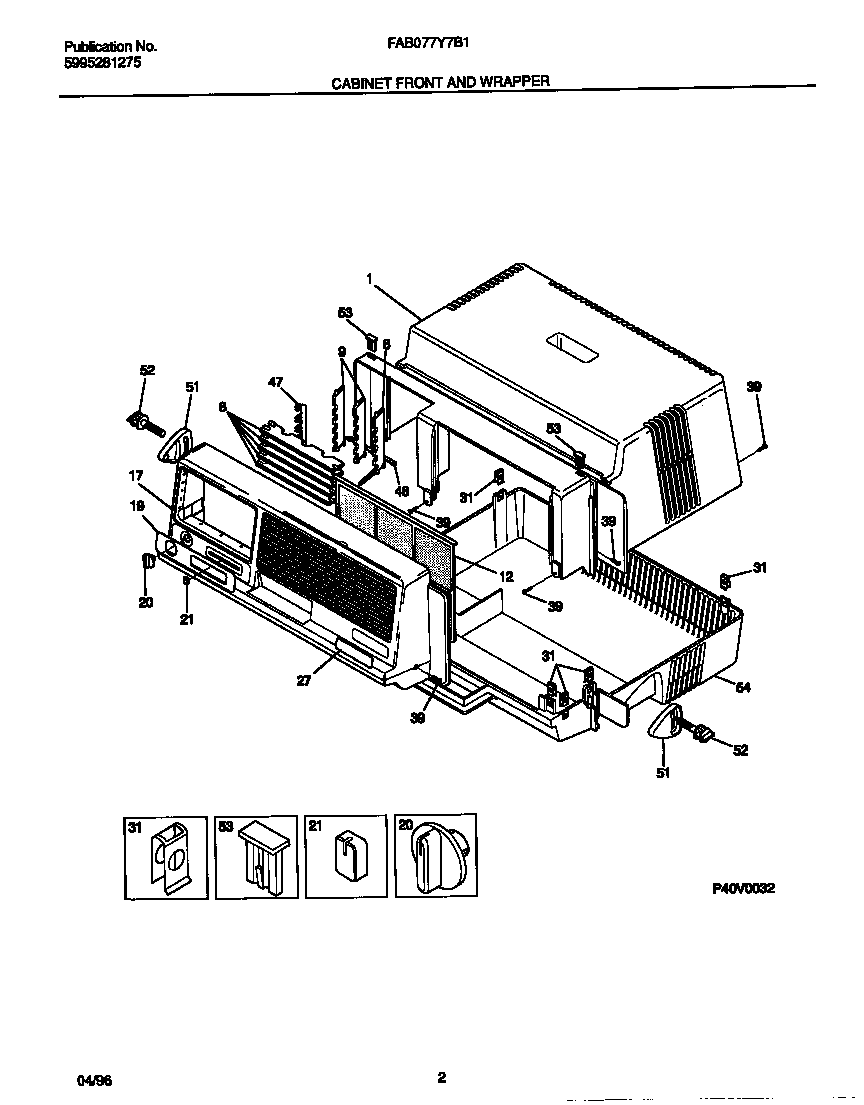

Cabinet front and wrapper diagram

Westinghouse screw-wrapper

Part #5303293767

This item is not returnable
$34.17
In Stock
Capacitor 5303295749
#13

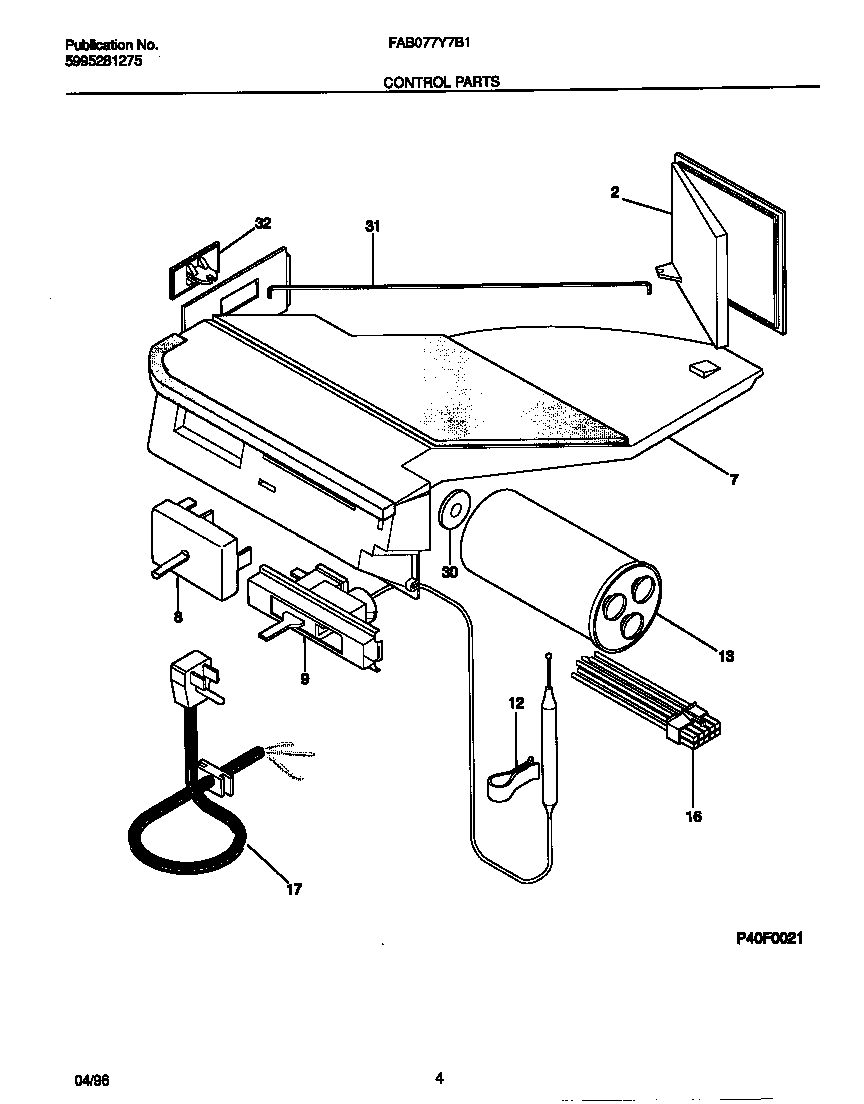

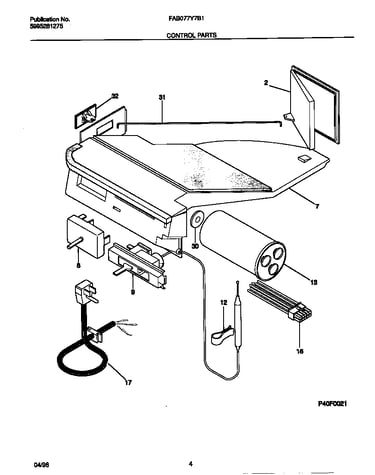

Control parts diagram

Capacitor

Part #5303295749

$122.96
In Stock
Overload 5303270037
#8

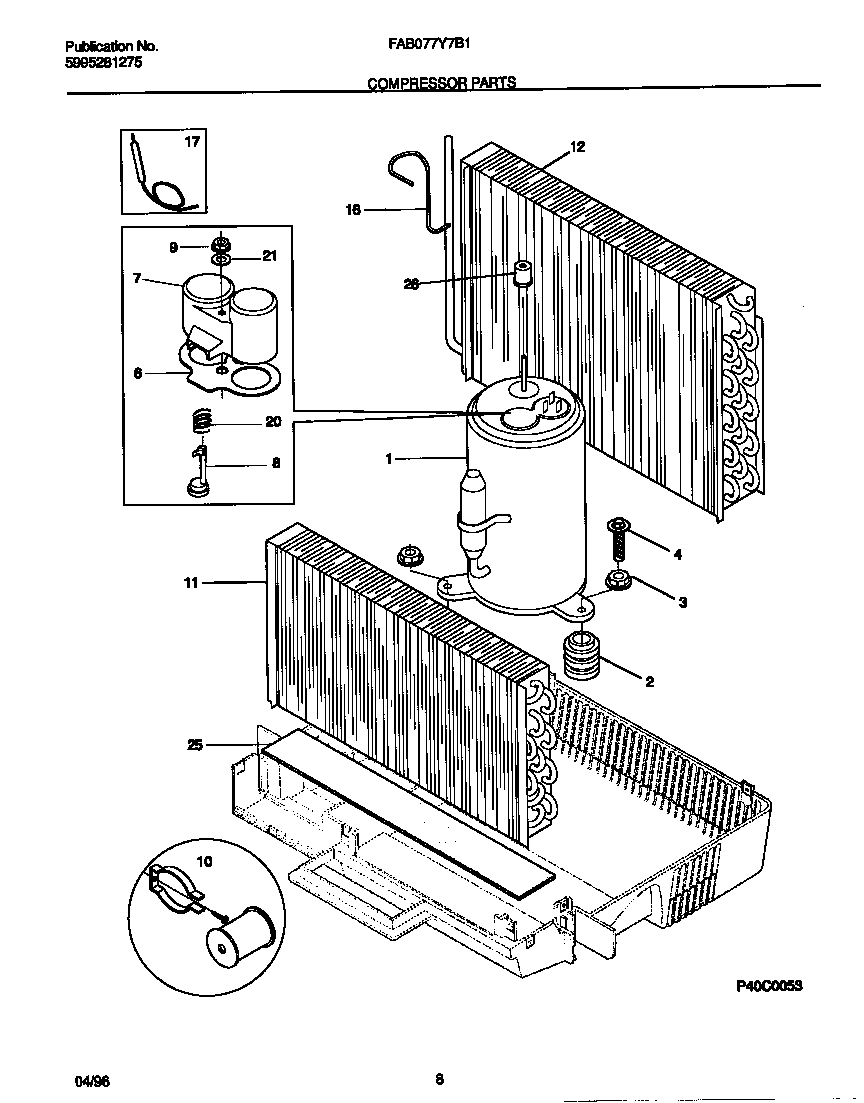

Compressor parts diagram

Overload

Part #5303270037

$12.19
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#17

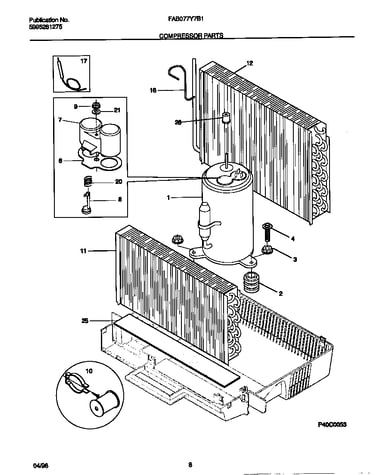

Compressor parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$261.24
In Stock
Gasket 3002603
#1

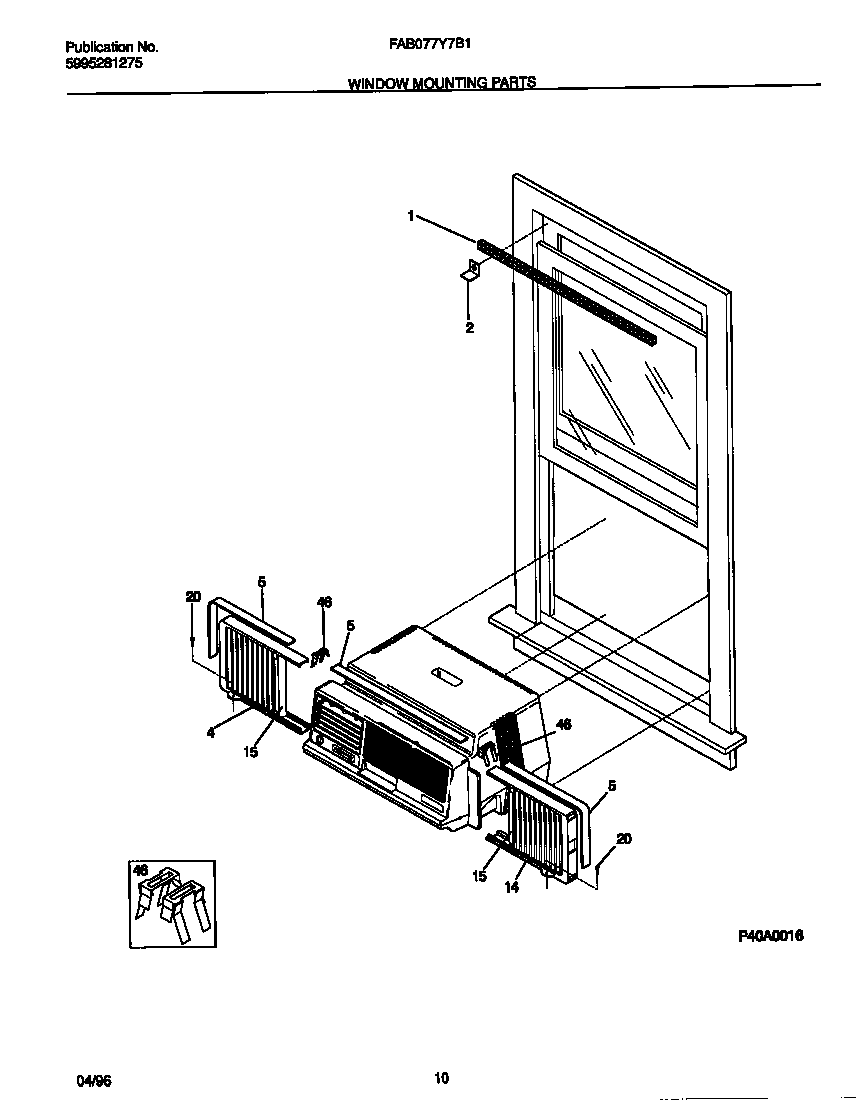

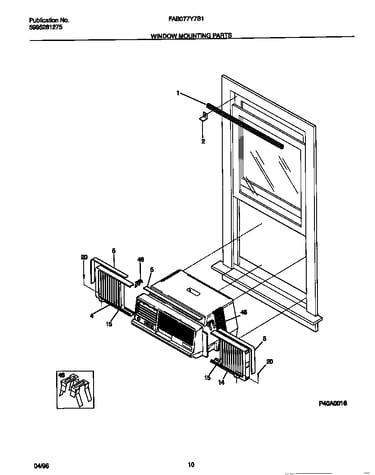

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Screw 3202975
#2

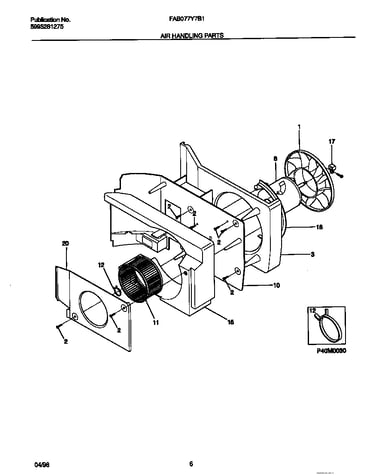

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Shroud 5303285446
#3

Air handling parts diagram

Shroud

Part #5303285446

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 5303285447
#1

Air handling parts diagram

Fan blade

Part #5303285447

The manufacturer no longer makes this part, and there's no substitute part

Filter 5303285479
#12

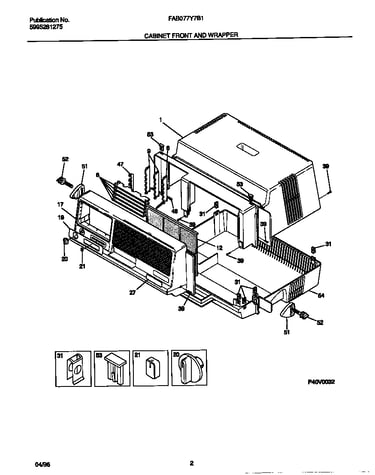

Cabinet front and wrapper diagram

Filter

Part #5303285479

The manufacturer no longer makes this part, and there's no substitute part

Louver 5303289530
#6

Cabinet front and wrapper diagram

Louver

Part #5303289530

The manufacturer no longer makes this part, and there's no substitute part
