Craftsman
Water Pump

Model # 390251182 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390251182 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Pump Body Gasket J20-18
#7

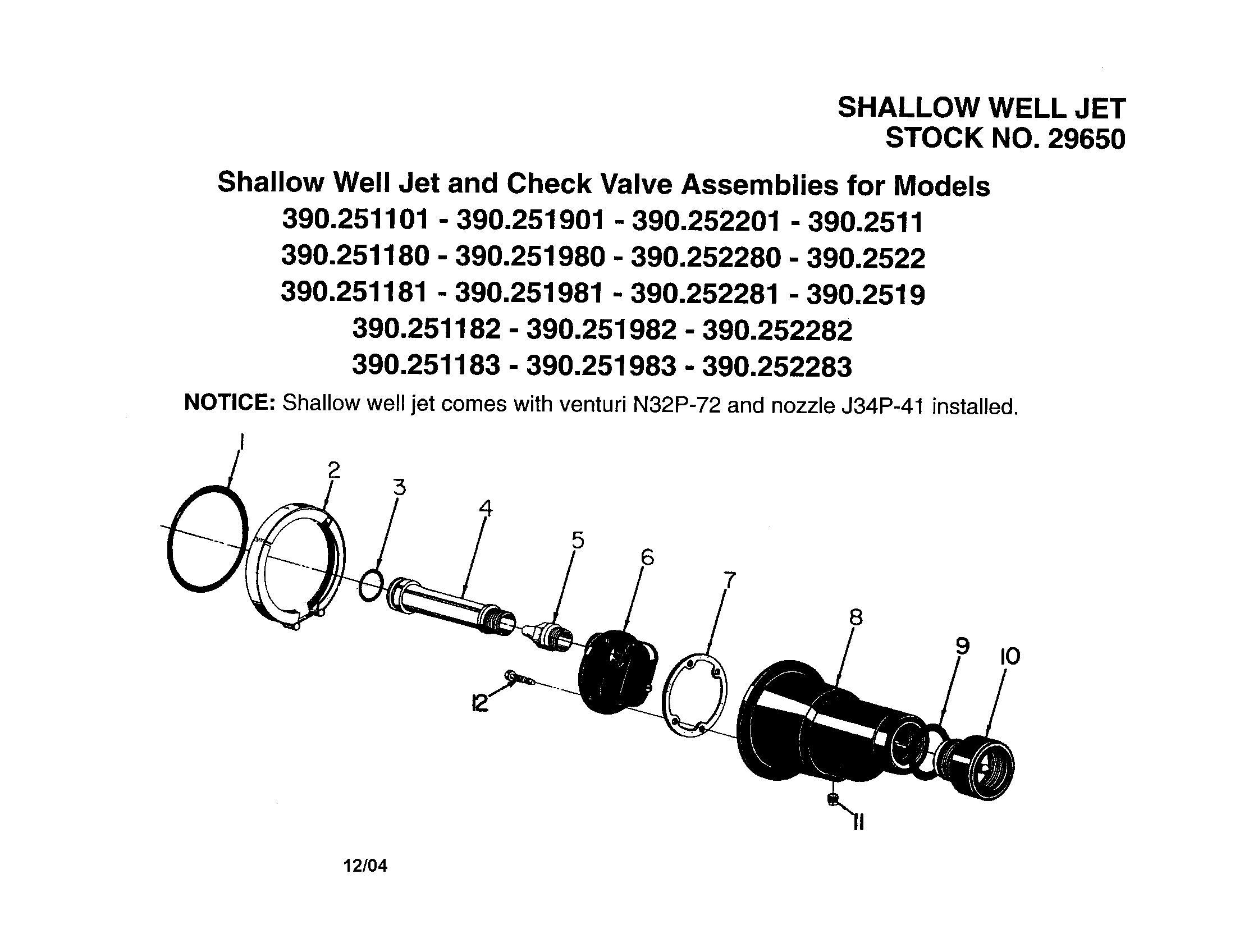

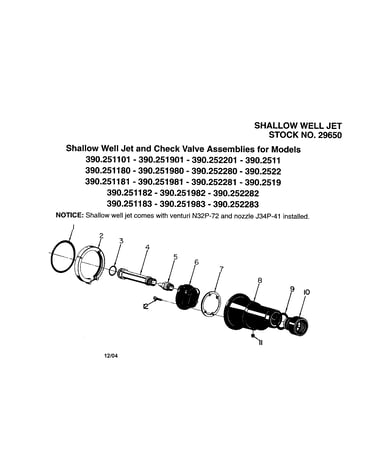

Shallow well jet/check valve asm diagram

Pump body gasket

Part #J20-18

Replaced by #J20-18C

?
Manufacturer substitution
This part replaces J20-18. Substitute parts can look different from the original.
This item is not returnable
$9.99 |
9% OFF Phone Price : $10.99
Back Order
Pump Pressure Switch Tube U37-673P
#13

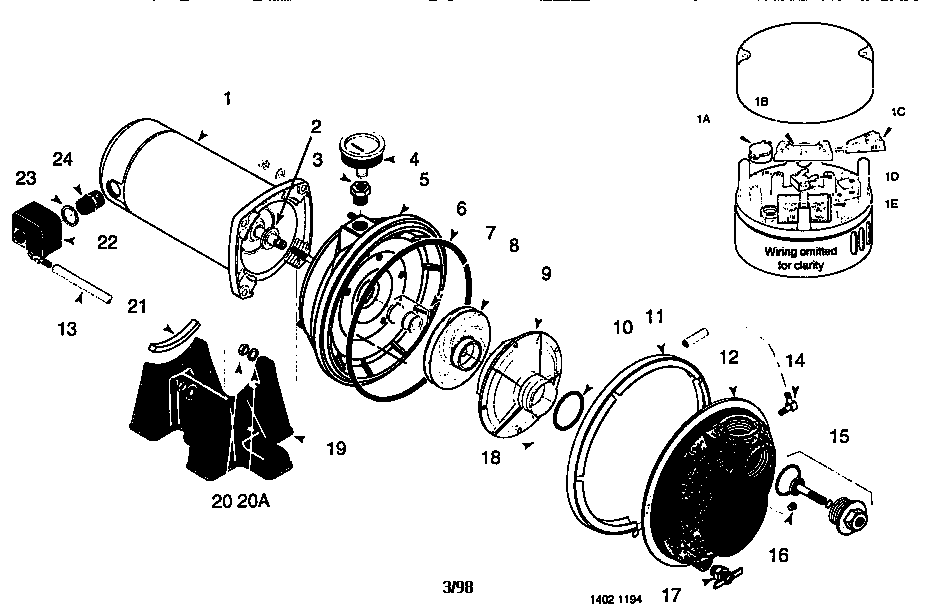

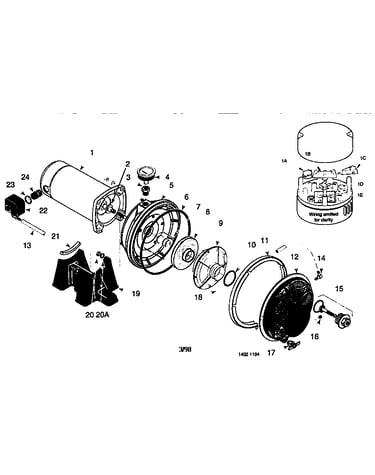

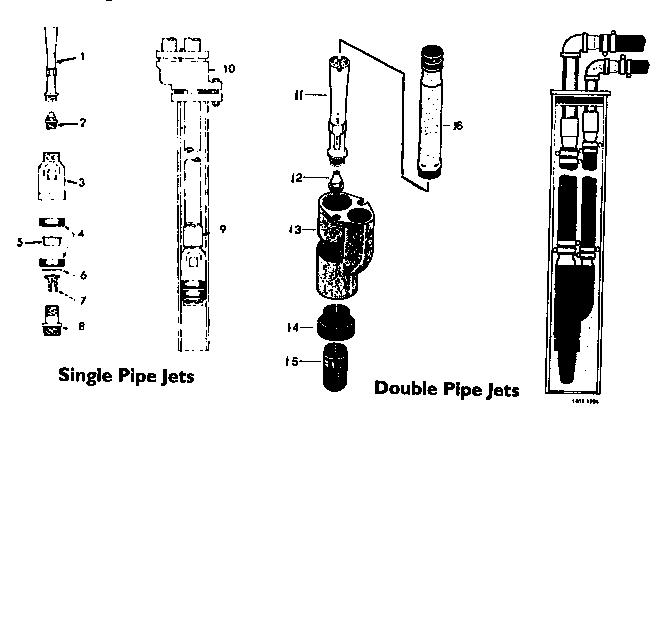

Motor and pump assembly diagram

Pump pressure switch tube

Part #U37-673P

This item is not returnable
$19.98 |
9% OFF Phone Price : $21.98
Back Order
Pump Shaft Seal U109-6A
#7

Motor and pump assembly diagram

Pump shaft seal

Part #U109-6A

Replaced by #U109-6B

?
Manufacturer substitution
This part replaces U109-6A. Substitute parts can look different from the original.
$106.69 |
10% OFF Phone Price : $118.69
Back Order
Slinger C69-2
#2

Motor and pump assembly diagram

Slinger

Part #C69-2

Replaced by #17351-0009

?
Manufacturer substitution
This part replaces C69-2. Substitute parts can look different from the original.
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
Back Order
Pump Check Valve N212-12P
#14

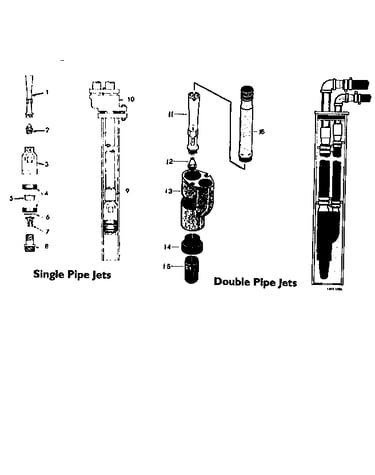

Single and double pipe jets diagram

Pump check valve

Part #N212-12P

$118.69 |
9% OFF Phone Price : $130.69
In Stock
Pump Jet Body Leather Seal, 2-in J57-1
#4A

Single and double pipe jets diagram

Pump jet body leather seal, 2-in

Part #J57-1

$63.99 |
9% OFF Phone Price : $69.99
In Stock
Pump Hose Fitting, 90-degree U111-212T
#14

Motor and pump assembly diagram

Pump hose fitting, 90-degree

Part #U111-212T

This item is not returnable
$27.69 |
18% OFF Phone Price : $33.69
Back Order
Kit PP1511

#NI

All parts diagram

Kit

Part #PP1511

$248.79 |
5% OFF Phone Price : $260.79
In Stock
Spacer J43-16
#5B

Single and double pipe jets diagram

Spacer

Part #J43-16

$59.85
In Stock
Kenmore Nipple U37-116GP
#10

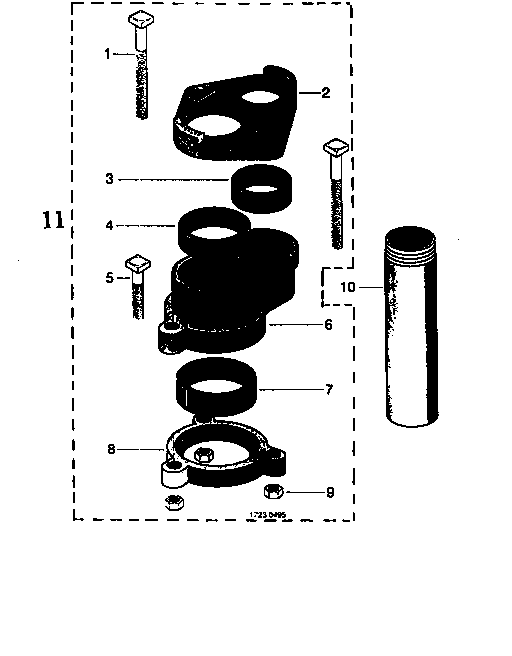

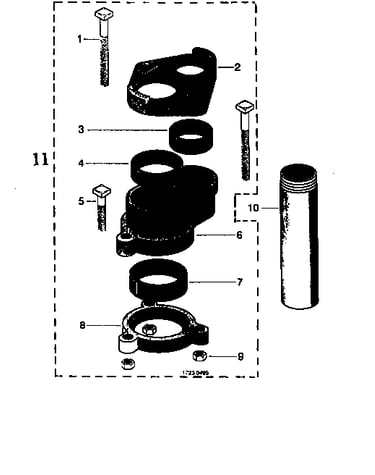

Vertical casing adapters diagram

Kenmore nipple

Part #U37-116GP

$33.03
In Stock
