Dacor
Range

Model # ERD36LP Official Dacor range

Here are the diagrams and repair parts for Official Dacor ERD36LP range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

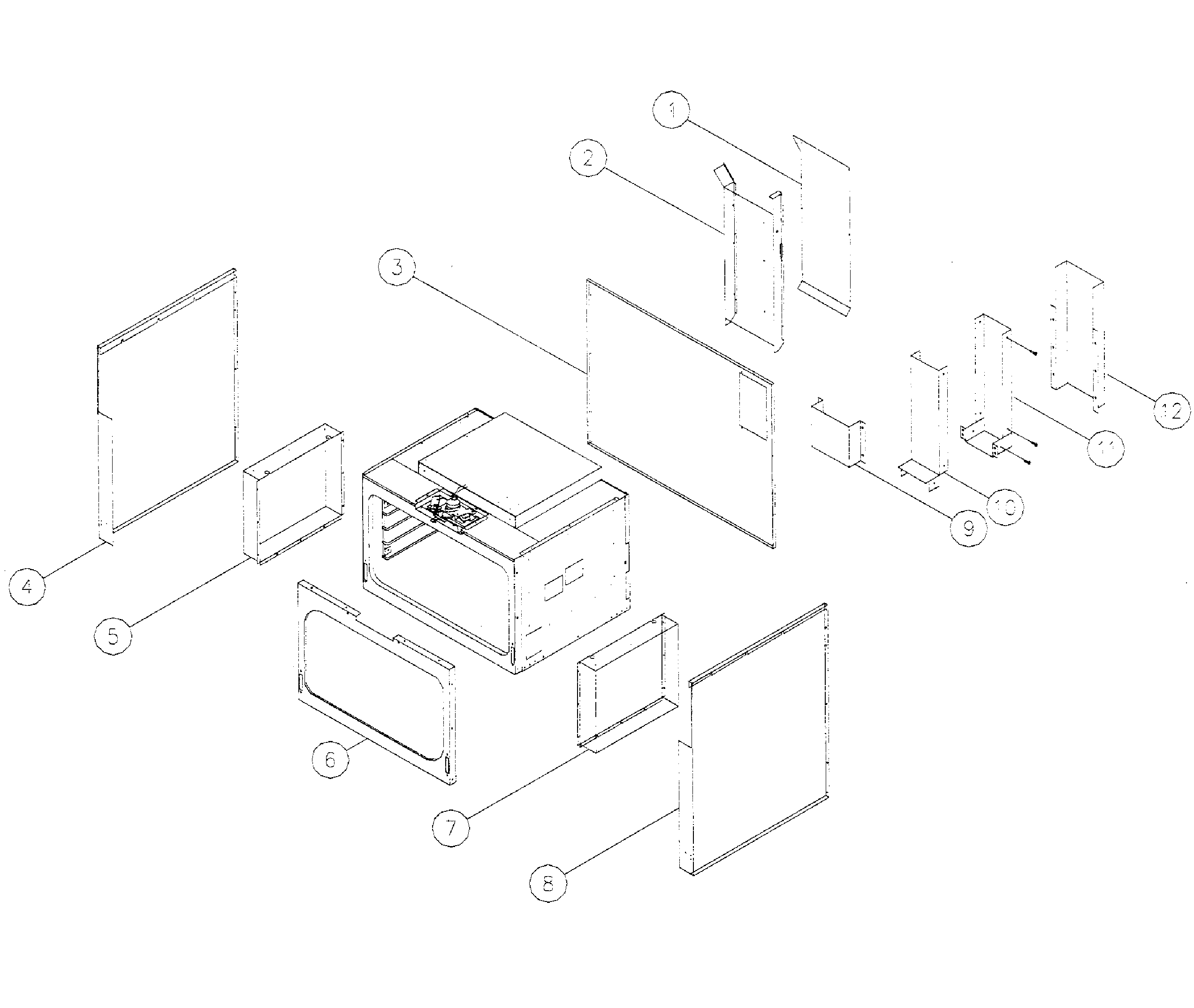

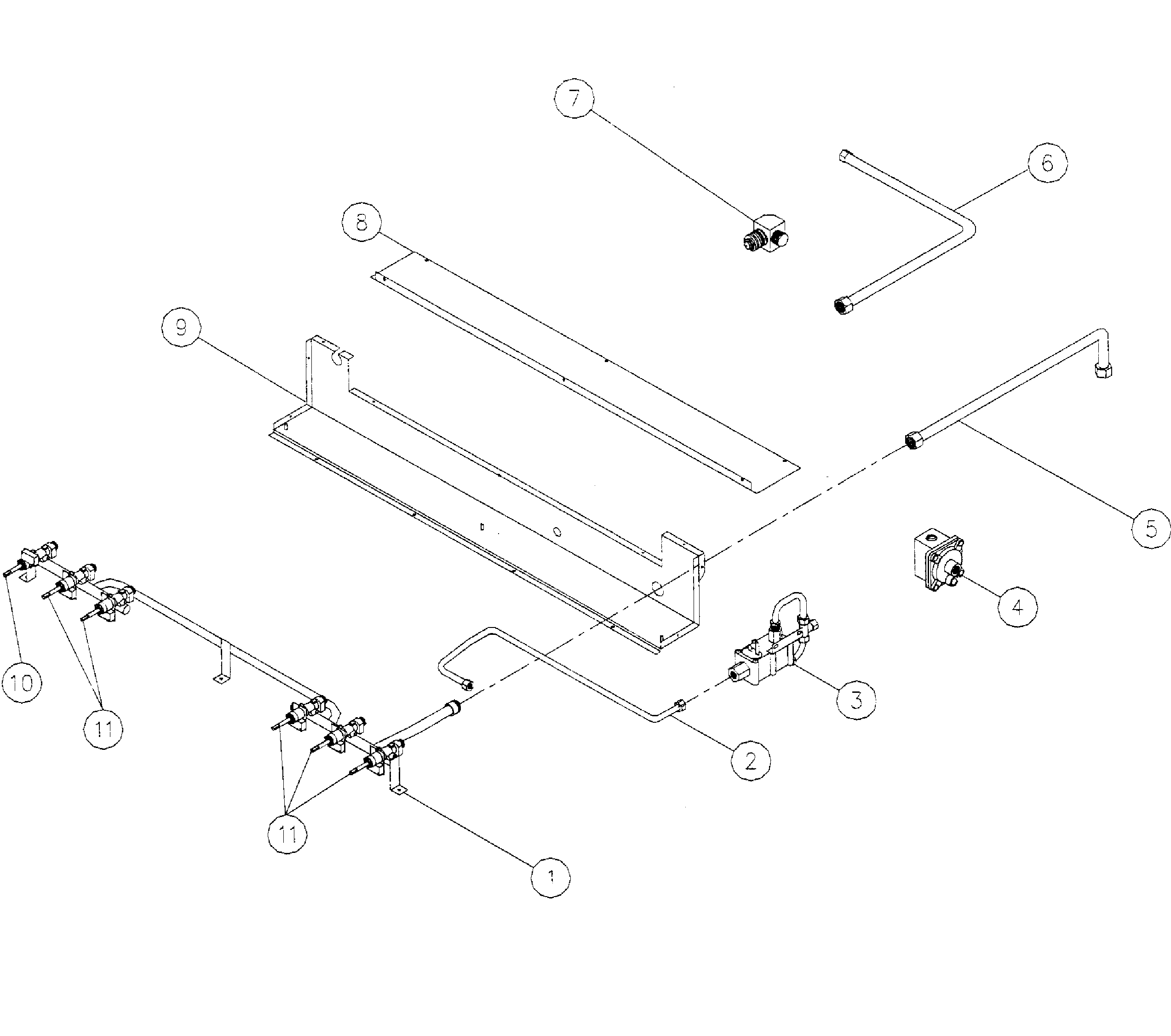

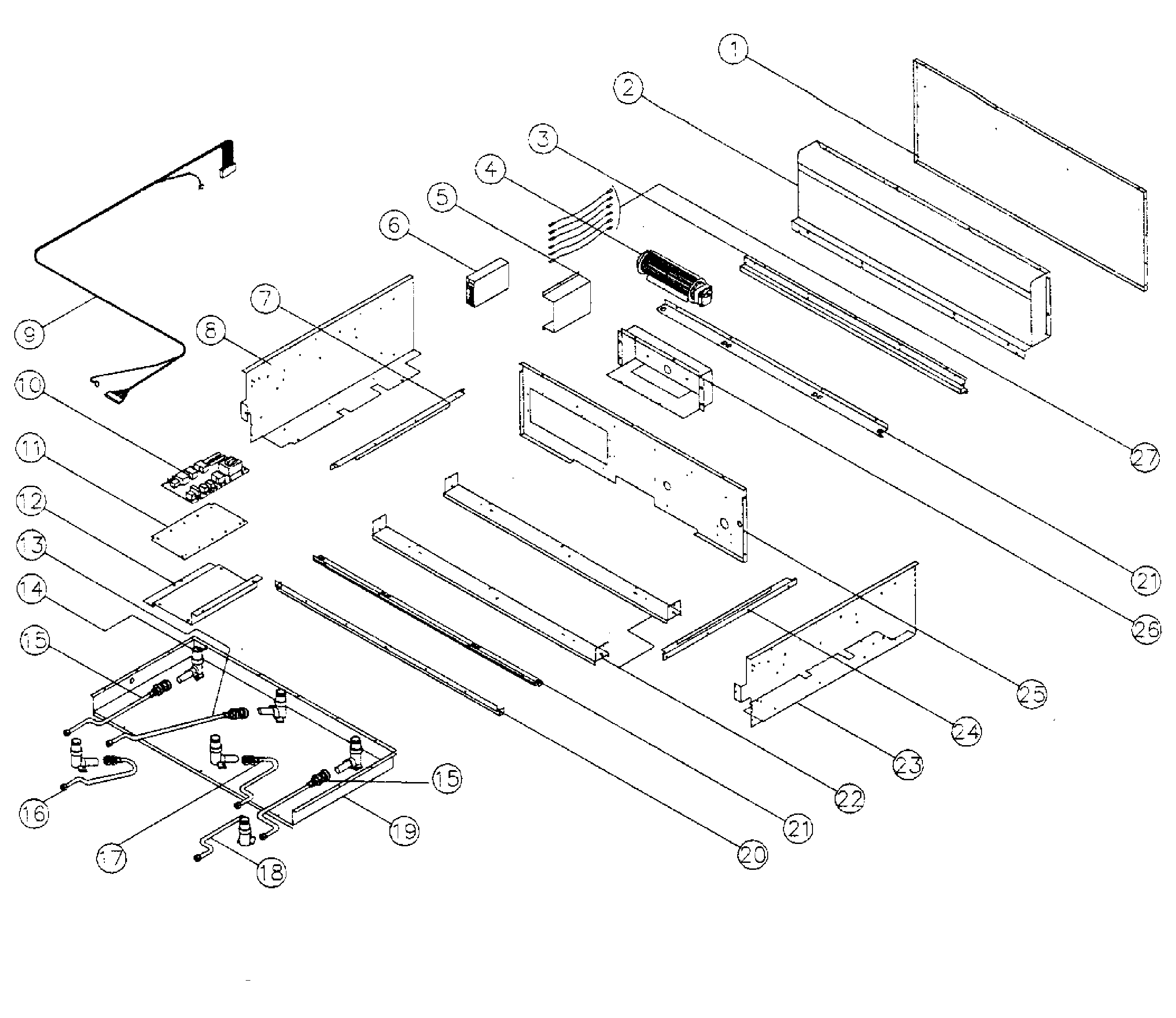

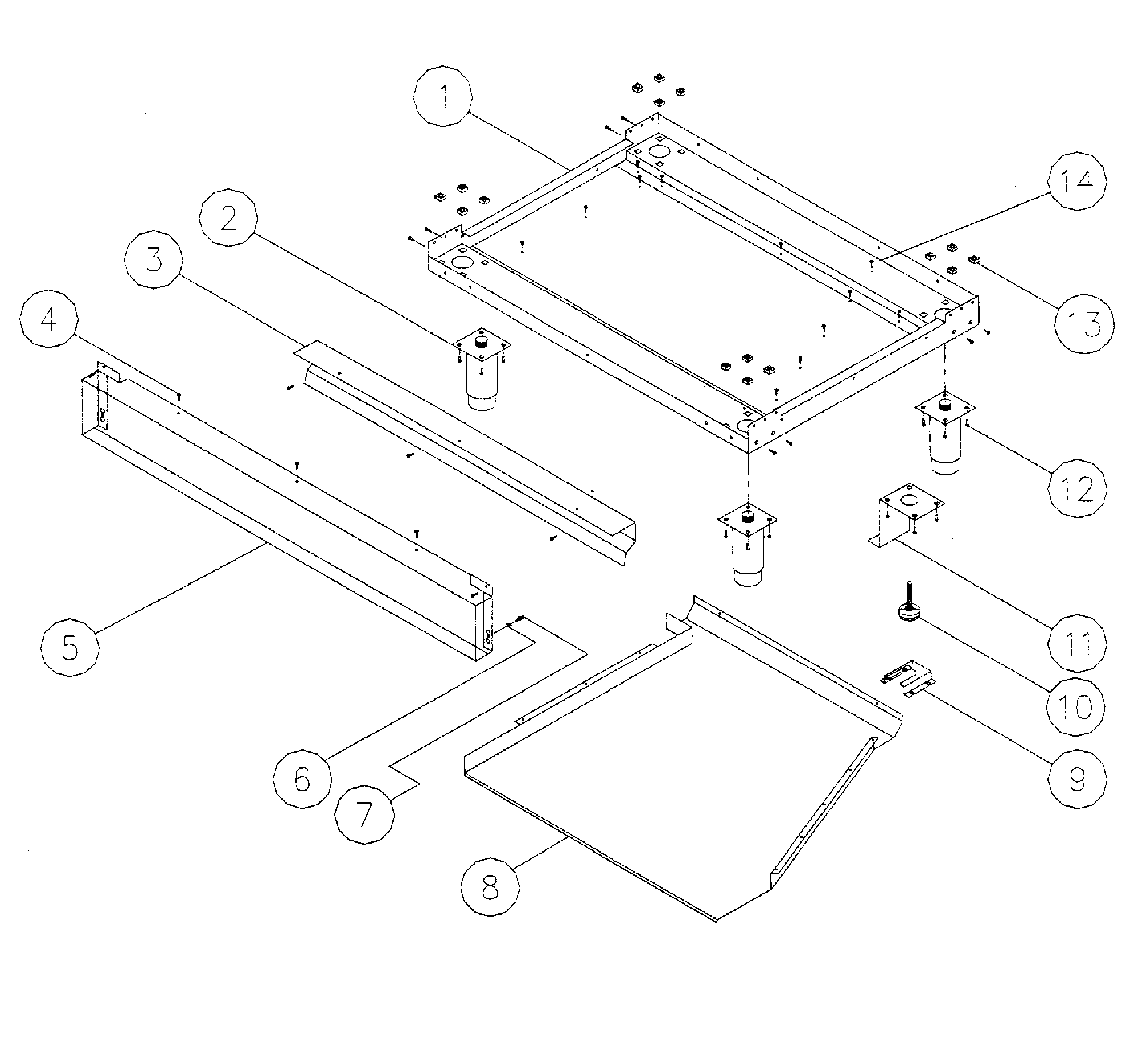

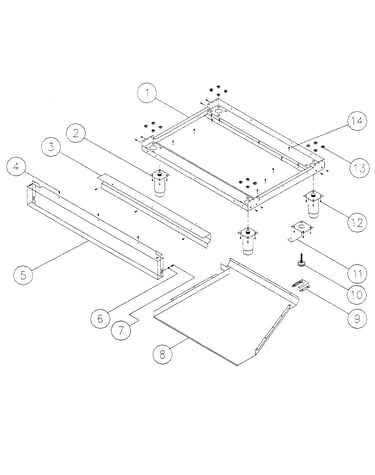

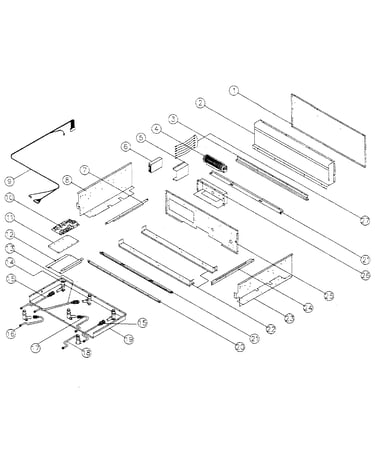

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Range Surface Burner Knob 62021B
#5

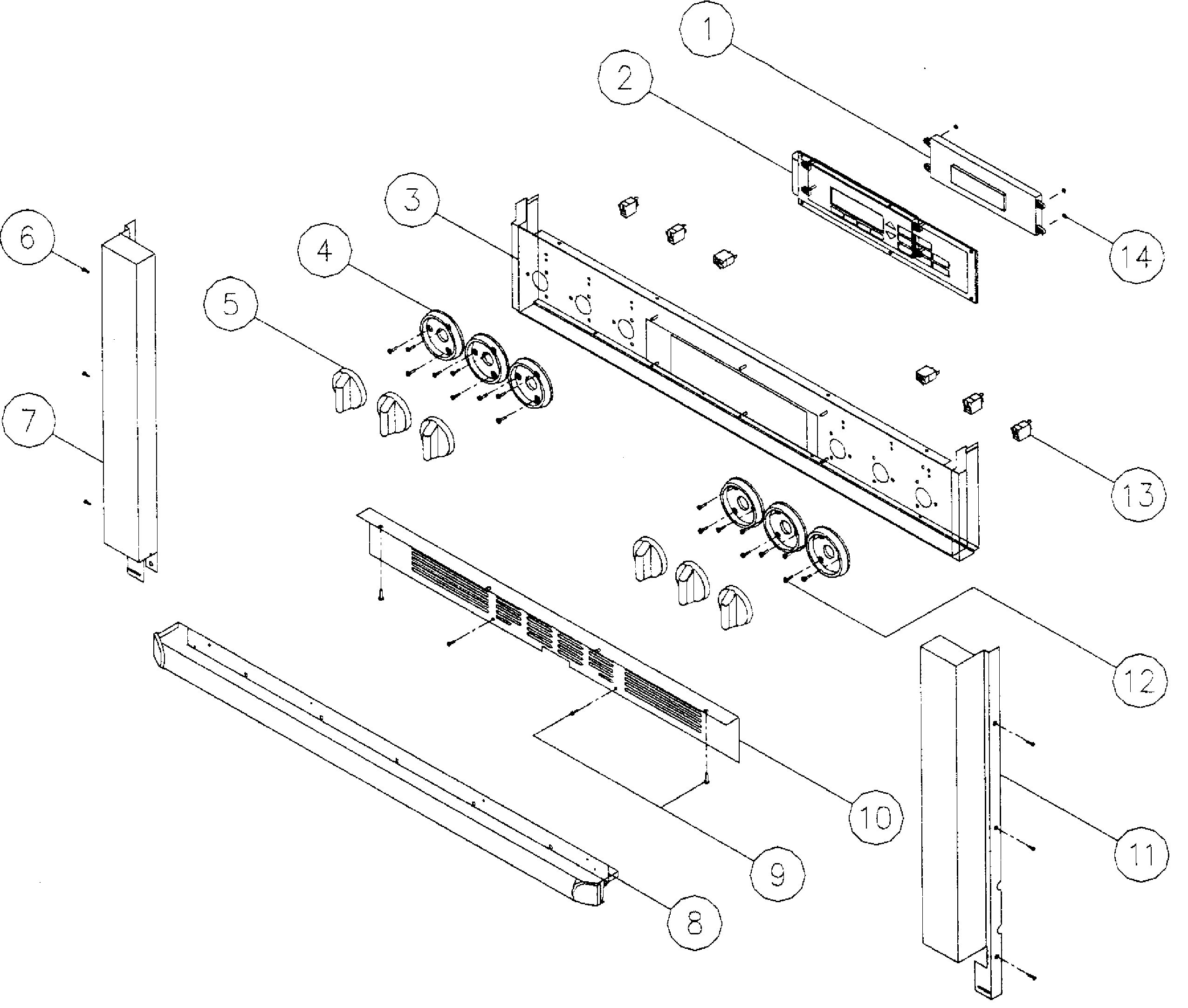

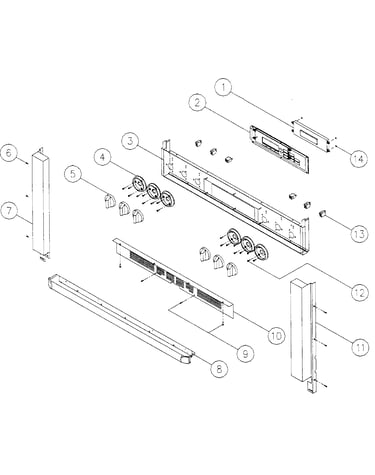

Control panel diagram

Range surface burner knob

Part #62021B

$12.49
In Stock
Range Insulation 80040
#24

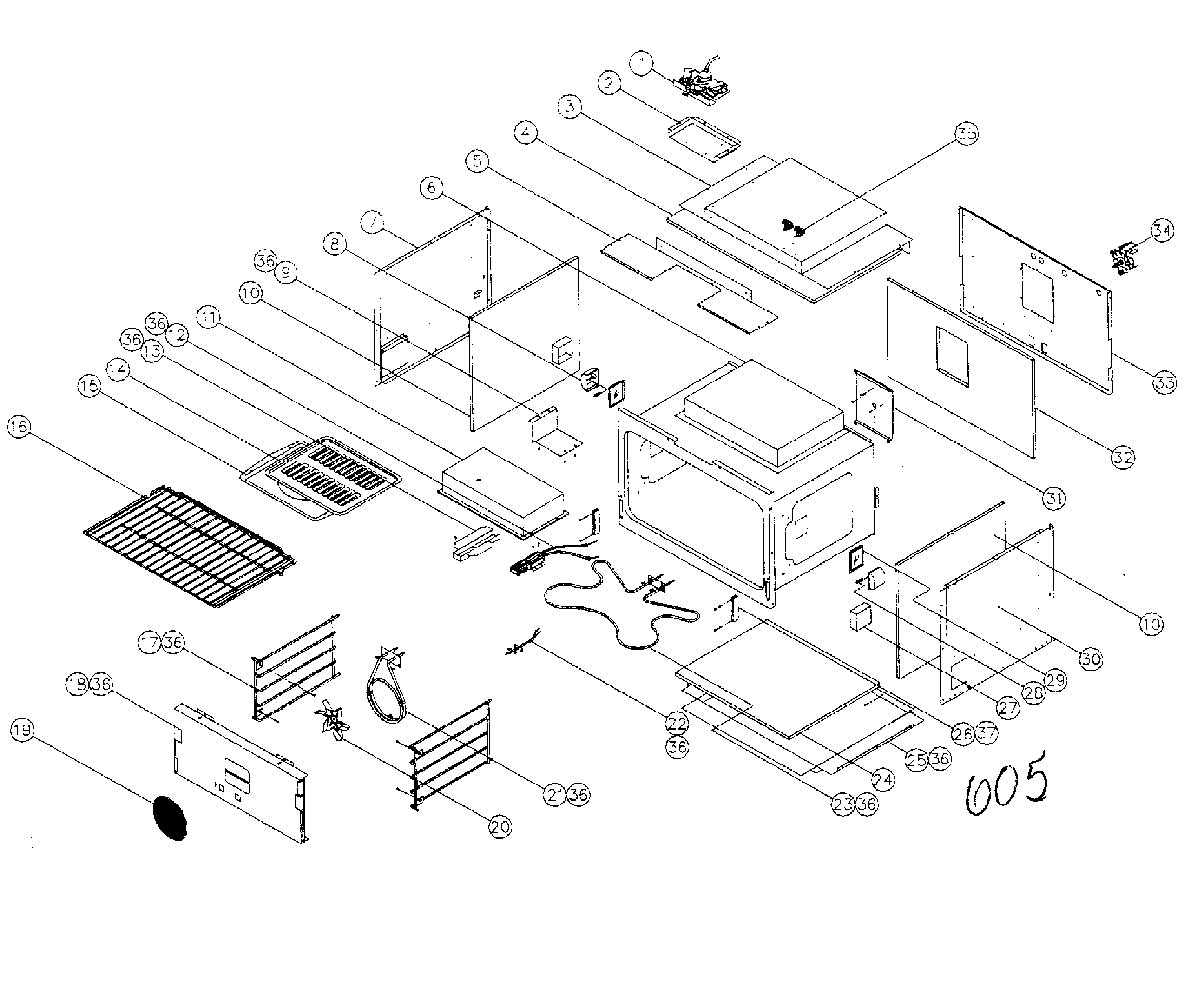

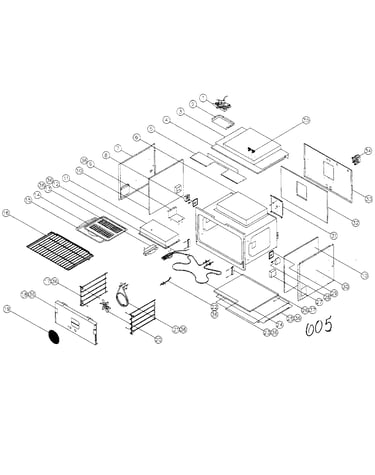

36" cell assy diagram

Range insulation

Part #80040

The manufacturer no longer makes this part, and there's no substitute part

Cap 62022BM
#10

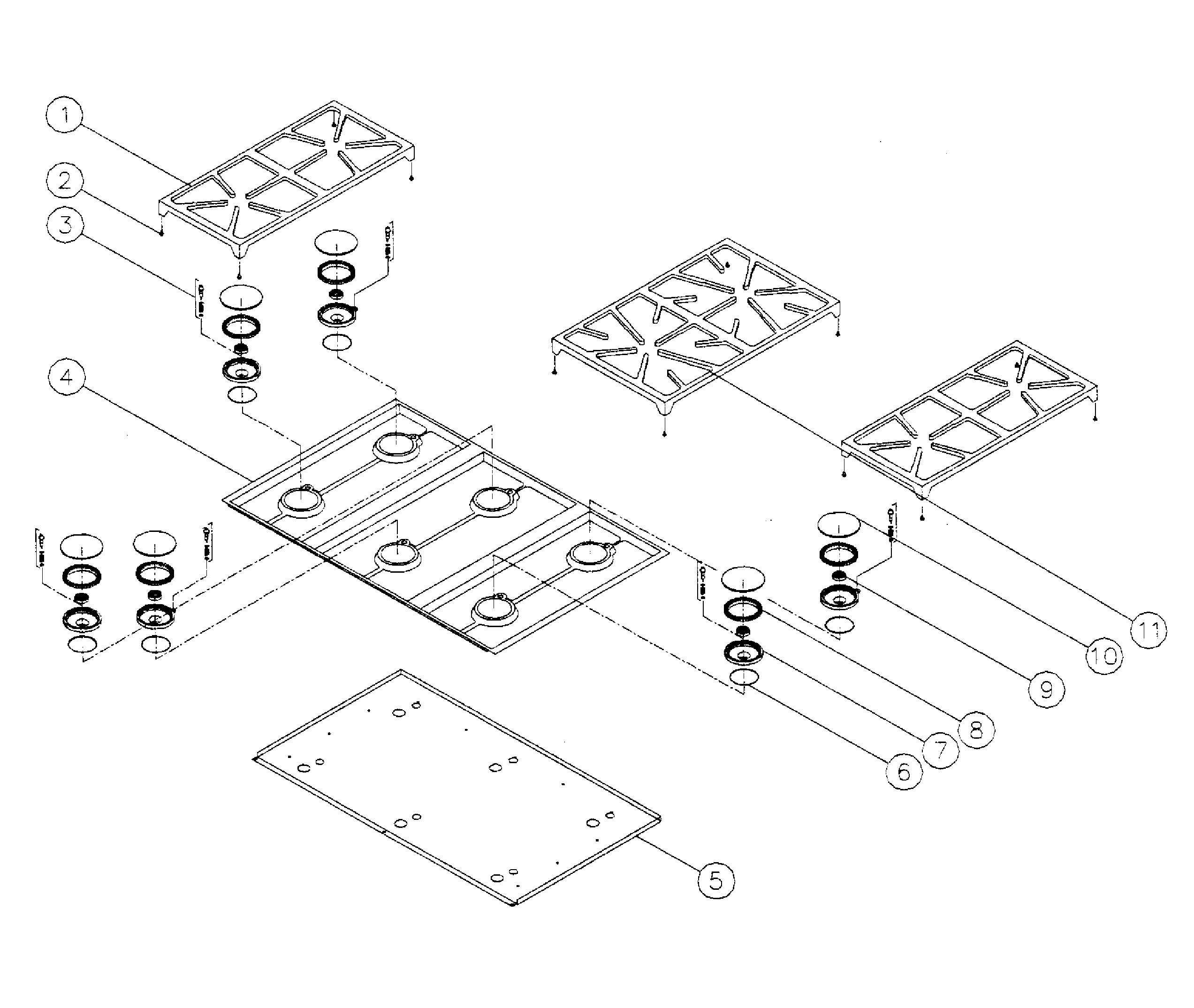

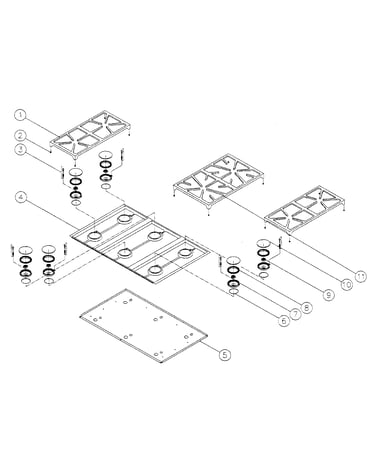

Top frame diagram

Cap

Part #62022BM

Replaced by #72435SB

?
Manufacturer substitution
This part replaces 62022BM. Substitute parts can look different from the original.
$15.99
Back Order
Range Oven Light Assembly 62175
#8

36" cell assy diagram

Range oven light assembly

Part #62175

$72.99
In Stock
Wall Oven Convection Fan Cover 82891
#19

36" cell assy diagram

Wall oven convection fan cover

Part #82891

$62.49
In Stock
Range Halogen Light Bulb 86573
#28

36" cell assy diagram

Range halogen light bulb

Part #86573

$35.49
In Stock
Range Surface Burner Head O-ring 86395
#6

Top frame diagram

Range surface burner head o-ring

Part #86395

$15.99
In Stock
Door Gasket 62813
#5

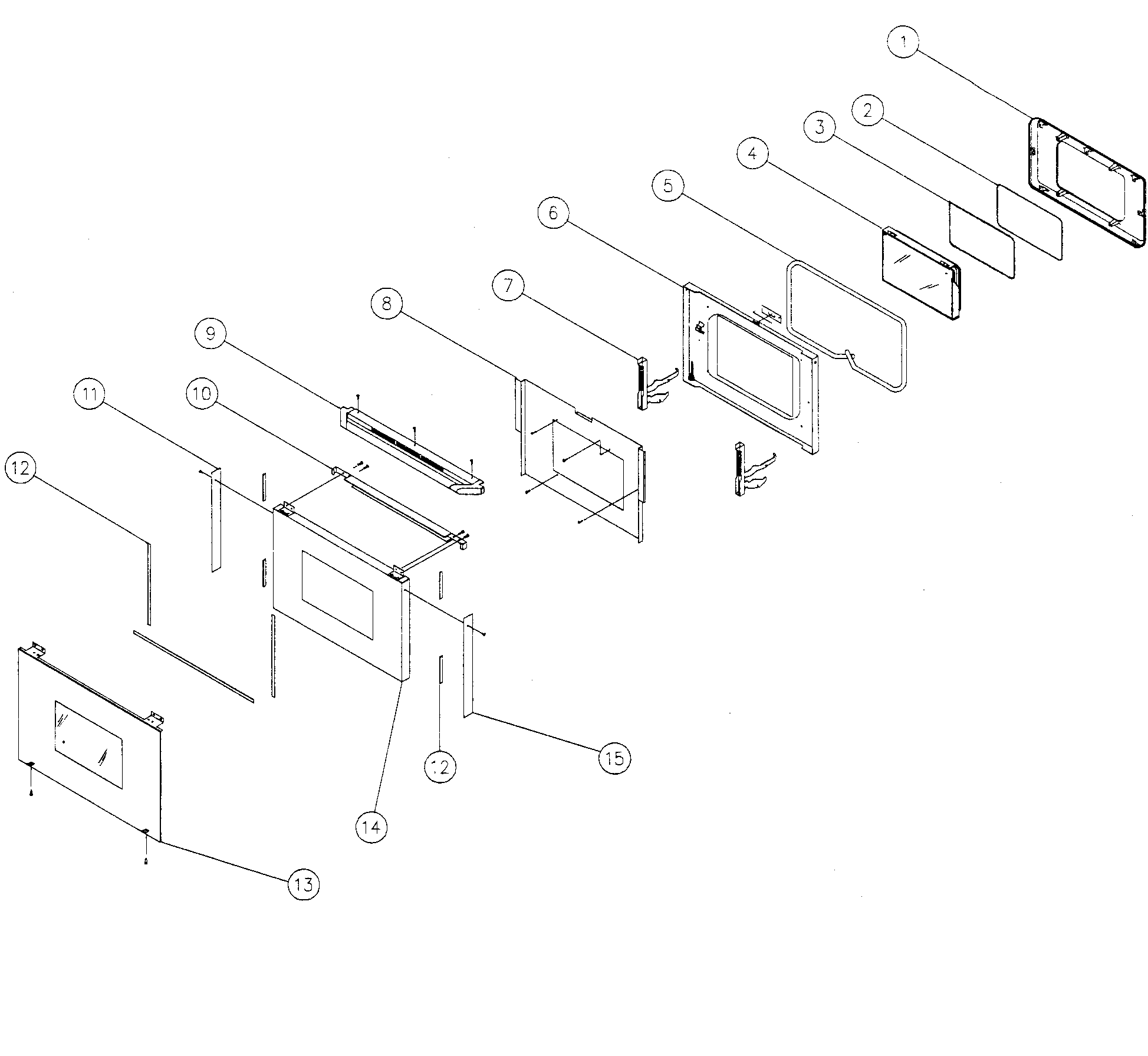

Door assy diagram

Door gasket

Part #62813

$33.99
In Stock
Screw 83026
#6

Control panel diagram

Screw

Part #83026

This item is not returnable
$2.16
In Stock
Conv Baffl 36818BP
#18A

36" cell assy diagram

Conv baffl

Part #36818BP

$76.49
In Stock
