Bosch
Dishwasher

Model # SHPM88Z75N/01 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHPM88Z75N-01 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

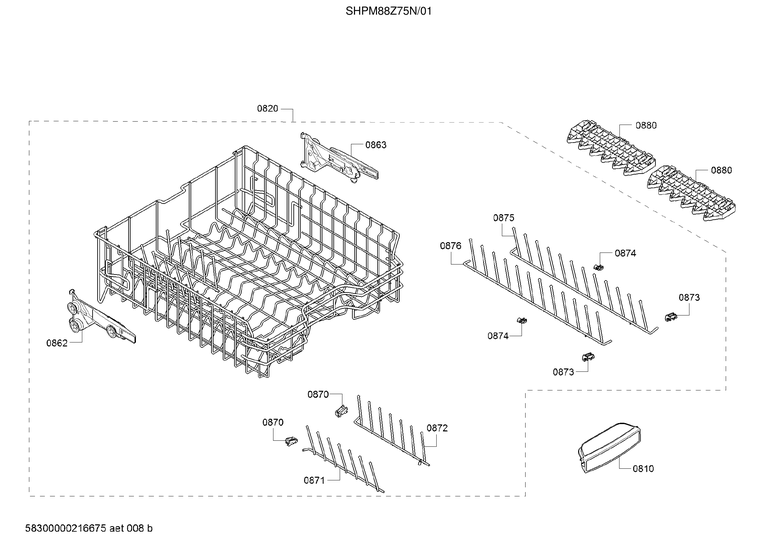

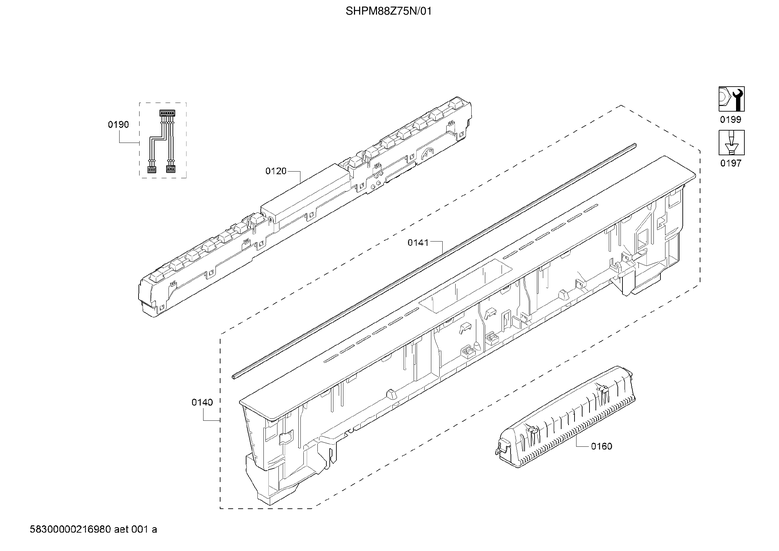

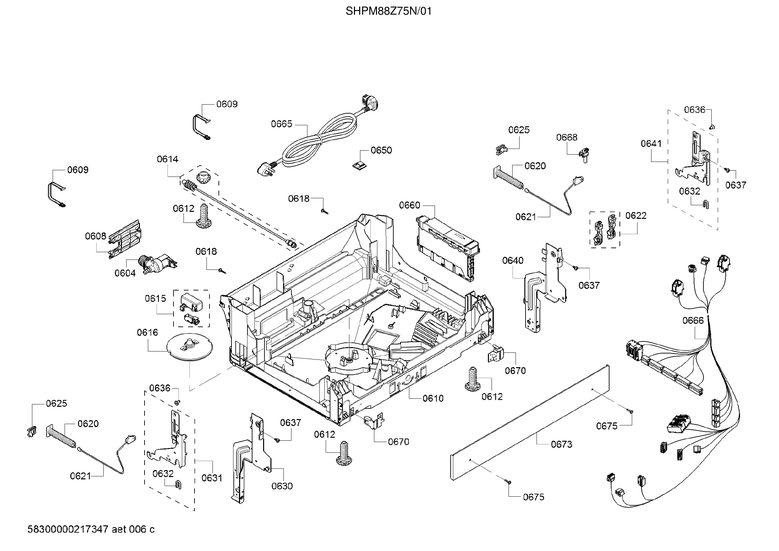

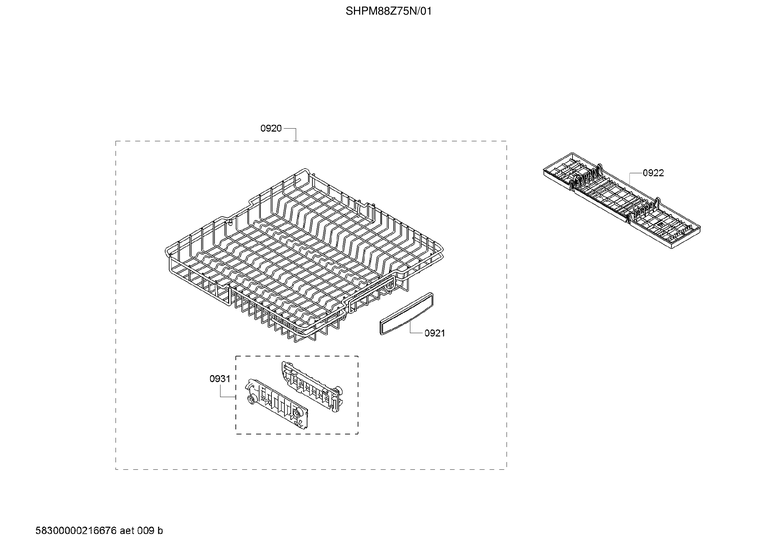

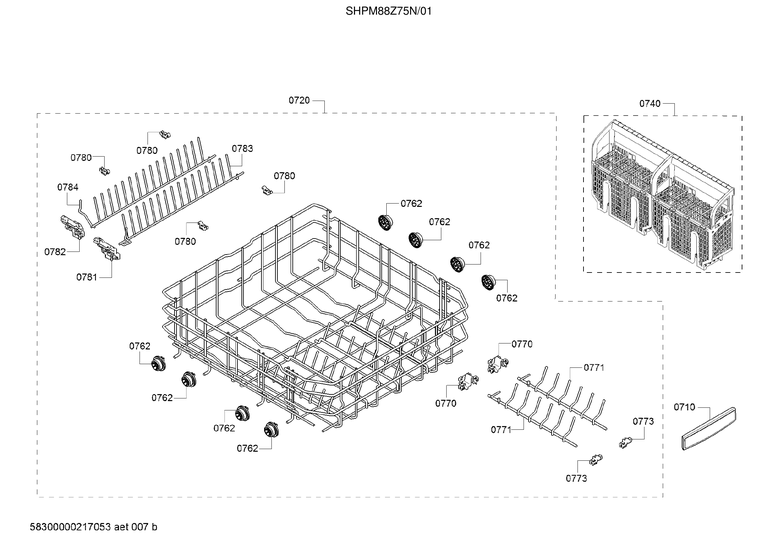

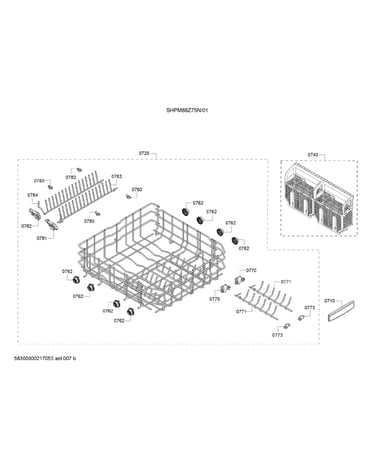

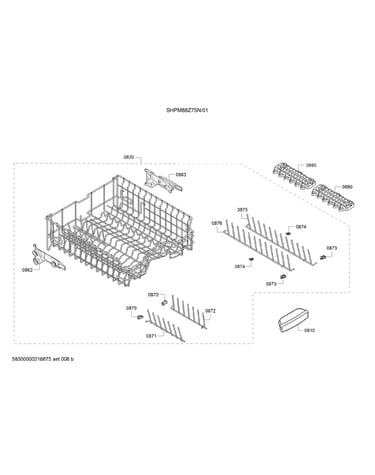

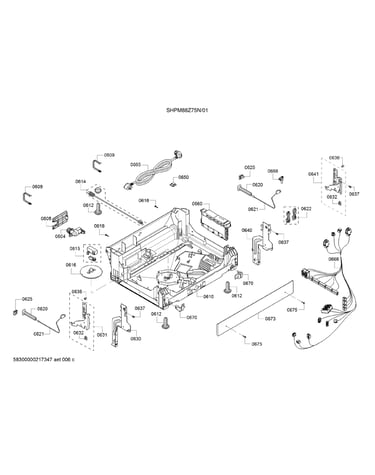

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Dishwasher Circulation Pump With Heater 12008381
#450

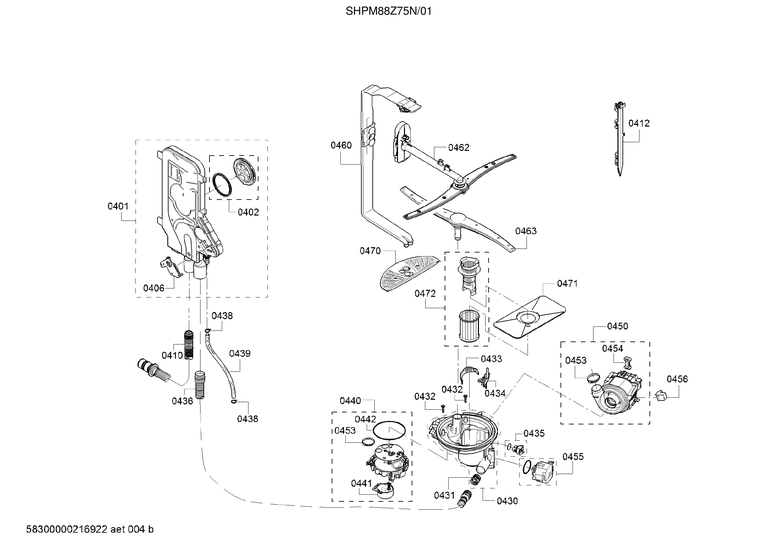

Spray arms/water inlet/heat pump diagram

Dishwasher circulation pump with heater

Part #12008381

BEST SELLER
$111.40 |
10% OFF Phone Price : $123.40
In Stock
Dishwasher Drain Pump 00631200
#455

Spray arms/water inlet/heat pump diagram

Dishwasher drain pump

Part #00631200

BEST SELLER
$40.84 |
13% OFF Phone Price : $46.84
In Stock
Dishwasher Door Seal (replaces 494772) 00494772
#310

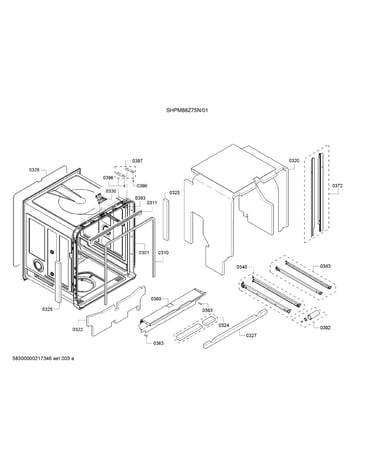

Tub/trim diagram

Dishwasher door seal (replaces 494772)

Part #00494772

BEST SELLER
$30.61 |
16% OFF Phone Price : $36.61
In Stock
Dishwasher Detergent Dispenser Assembly 12008380
#201

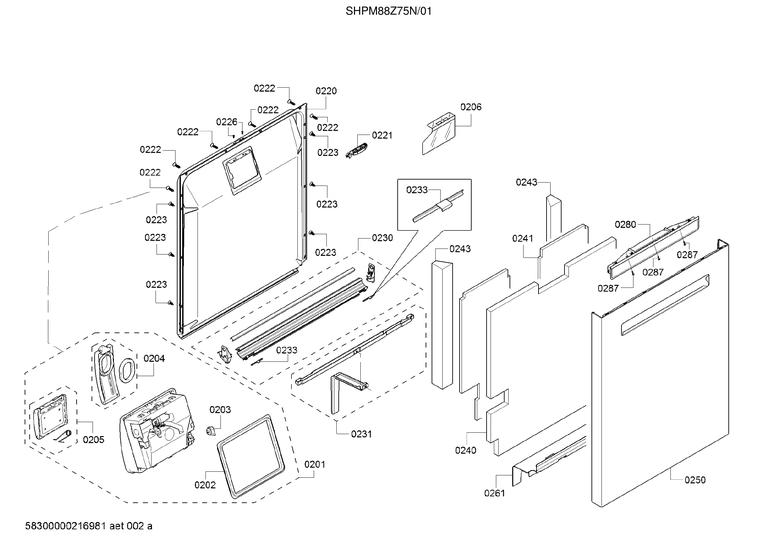

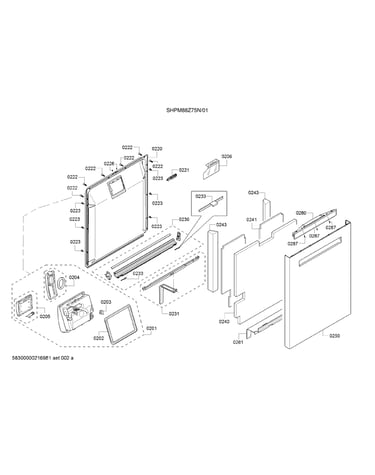

Door/dispenser diagram

Dishwasher detergent dispenser assembly

Part #12008380

BEST SELLER
$45.63 |
12% OFF Phone Price : $51.63
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#453

Spray arms/water inlet/heat pump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Dishwasher Drain Hose (replaces 744881) 00744881
#410

Spray arms/water inlet/heat pump diagram

Dishwasher drain hose (replaces 744881)

Part #00744881

BEST SELLER
This item is not returnable
$23.69 |
20% OFF Phone Price : $29.69
In Stock
Dishwasher Door Lock Kit (replaces 630784) 00630784
Dishwasher door lock kit (replaces 630784)

Part #00630784

BEST SELLER
This item is not returnable
$23.49 |
20% OFF Phone Price : $29.49
In Stock
Dishwasher Turbidity Sensor (replaces 00611567, 00611568, 611323) 00611323
#435

Spray arms/water inlet/heat pump diagram

Dishwasher turbidity sensor (replaces 00611567, 00611568, 611323)

Part #00611323

BEST SELLER
$38.75 |
13% OFF Phone Price : $44.75
In Stock
Dishwasher Sump 00752078
#430

Spray arms/water inlet/heat pump diagram

Dishwasher sump

Part #00752078

Replaced by #00668102

?
Manufacturer substitution
This part replaces 00752078. Substitute parts can look different from the original.
BEST SELLER
$71.79 |
8% OFF Phone Price : $77.79
In Stock
Dishwasher Zeolite Fan Motor Assembly 12009748
#530

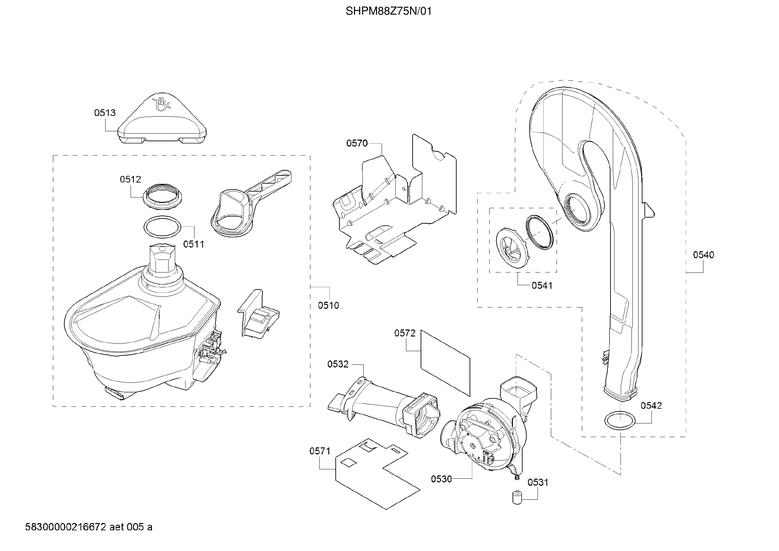

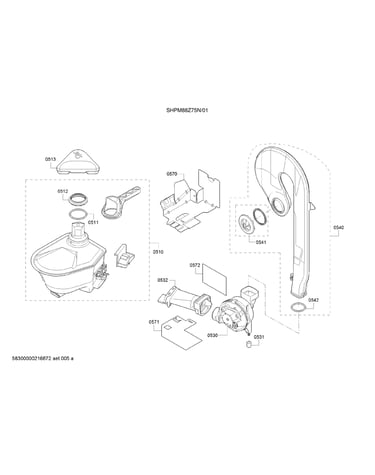

Ventilation duct/zeolite container diagram

Dishwasher zeolite fan motor assembly

Part #12009748

BEST SELLER
$89.42
In Stock
