Top-Mount Refrigerator

Model # 4ET20NKXFW02 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool 4ET20NKXFW02 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Refrigerator Light Switch 1118894
#19

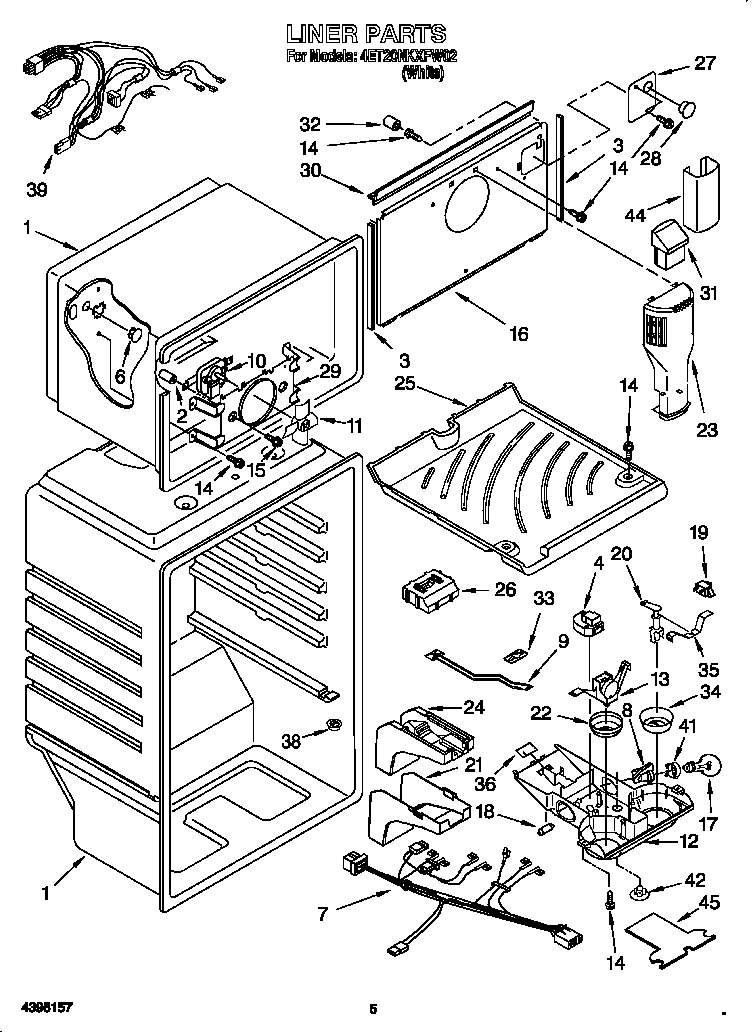

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier-tue 2199167
#29

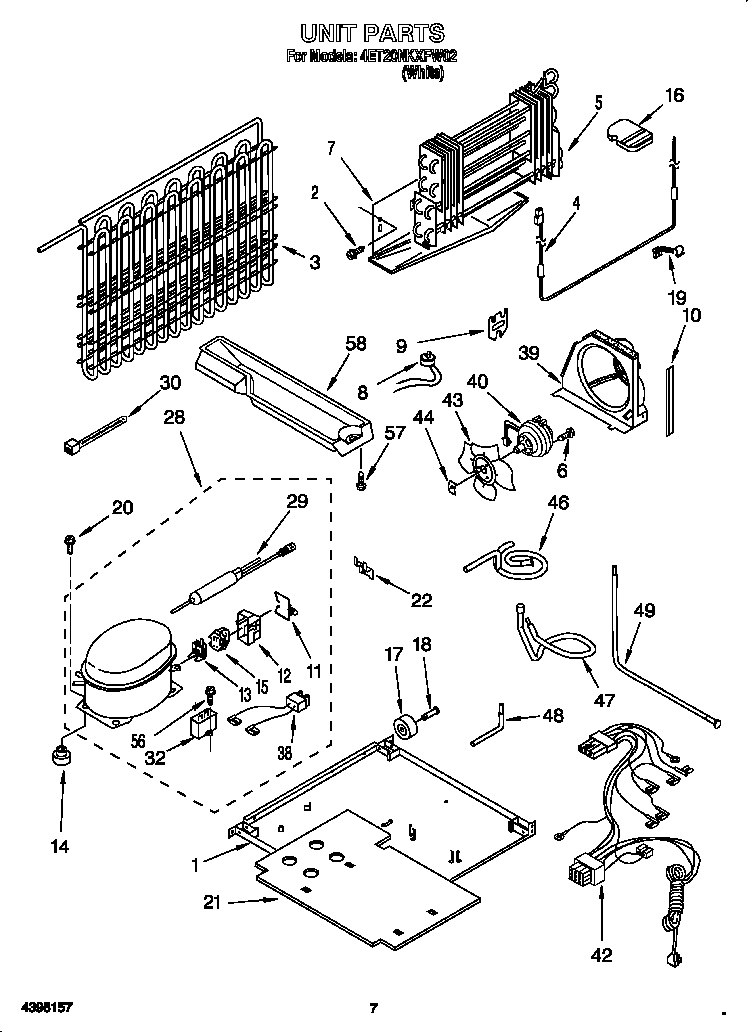

Unit diagram

Drier-tue

Part #2199167

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2199167. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Crisper Pan 2166256
#24

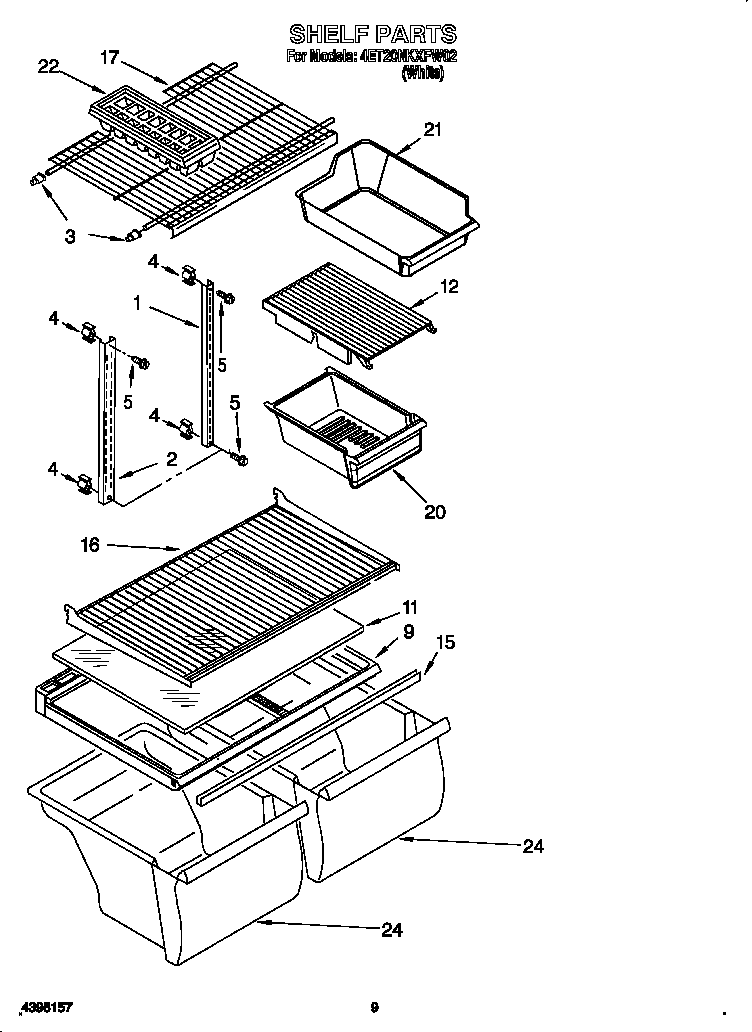

Shelf diagram

Refrigerator crisper pan

Part #2166256

Replaced by #W10854037

?
Manufacturer substitution
This part replaces 2166256. Substitute parts can look different from the original.
BEST SELLER
$79.65 |
7% OFF Phone Price : $85.65
In Stock
Refrigerator Door Gasket (replaces 2171377, 2183851, 2202875, 2214963, W11406608) 2159061
#9A

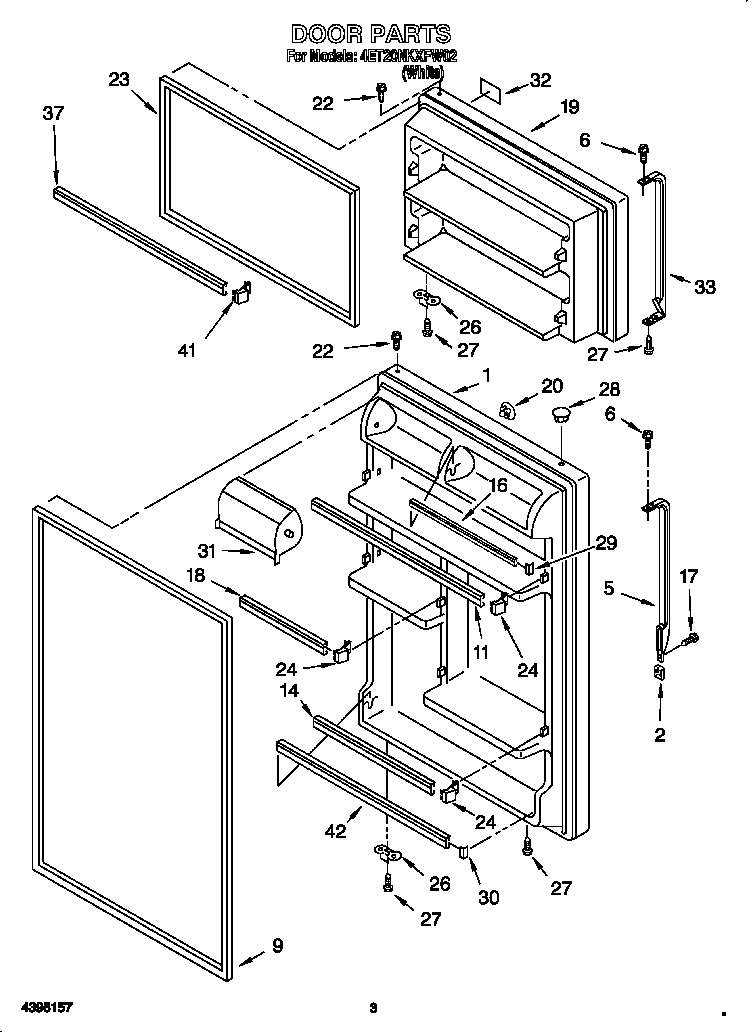

Door diagram

Refrigerator door gasket (replaces 2171377, 2183851, 2202875, 2214963, w11406608)

Part #2159061

BEST SELLER
$108.62 |
10% OFF Phone Price : $120.62
In Stock
Refrigerator Evaporator Fan Blade 2163777
#11

Liner diagram

Refrigerator evaporator fan blade

Part #2163777

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2163777. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Refrigerator Washer 487576
#38

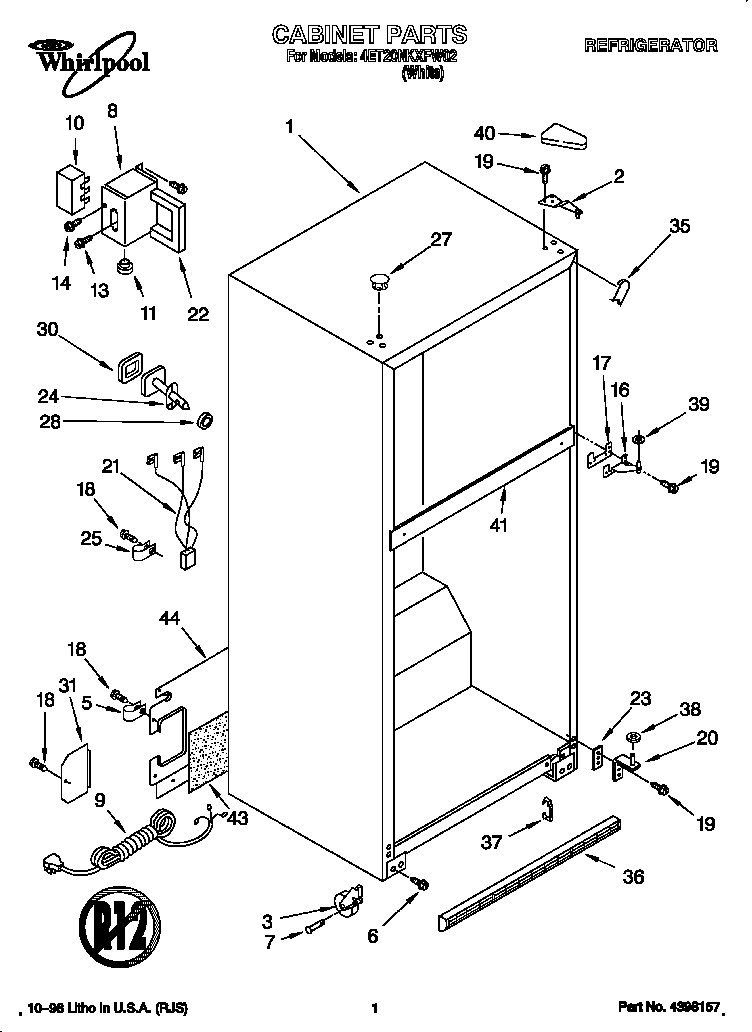

Cabinet diagram

Refrigerator washer

Part #487576

Replaced by #WP487576

?
Manufacturer substitution
This part replaces 487576. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.24 |
14% OFF Phone Price : $7.24
In Stock
Refrigerator Screw 489478
Refrigerator screw

Part #489478

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 489478. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Washer 489341
#39

Cabinet diagram

Washer

Part #489341

Replaced by #WP489467

?
Manufacturer substitution
This part replaces 489341. Substitute parts can look different from the original.
BEST SELLER
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Refrigerator Service Valve 978025

#NI

All parts diagram

Refrigerator service valve

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Refrigerator Pan Cover 2195344
#9

Shelf diagram

Refrigerator pan cover

Part #2195344

Replaced by #WP2314549

?
Manufacturer substitution
This part replaces 2195344. Substitute parts can look different from the original.
BEST SELLER
$99.95 |
11% OFF Phone Price : $111.95
In Stock
