Toro
Rear-Engine Riding Mower

Model # 74370 (270000001-270999999) Official Toro riding lawn mower

Here are the diagrams and repair parts for Official Toro 74370-270000001-270999999 riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

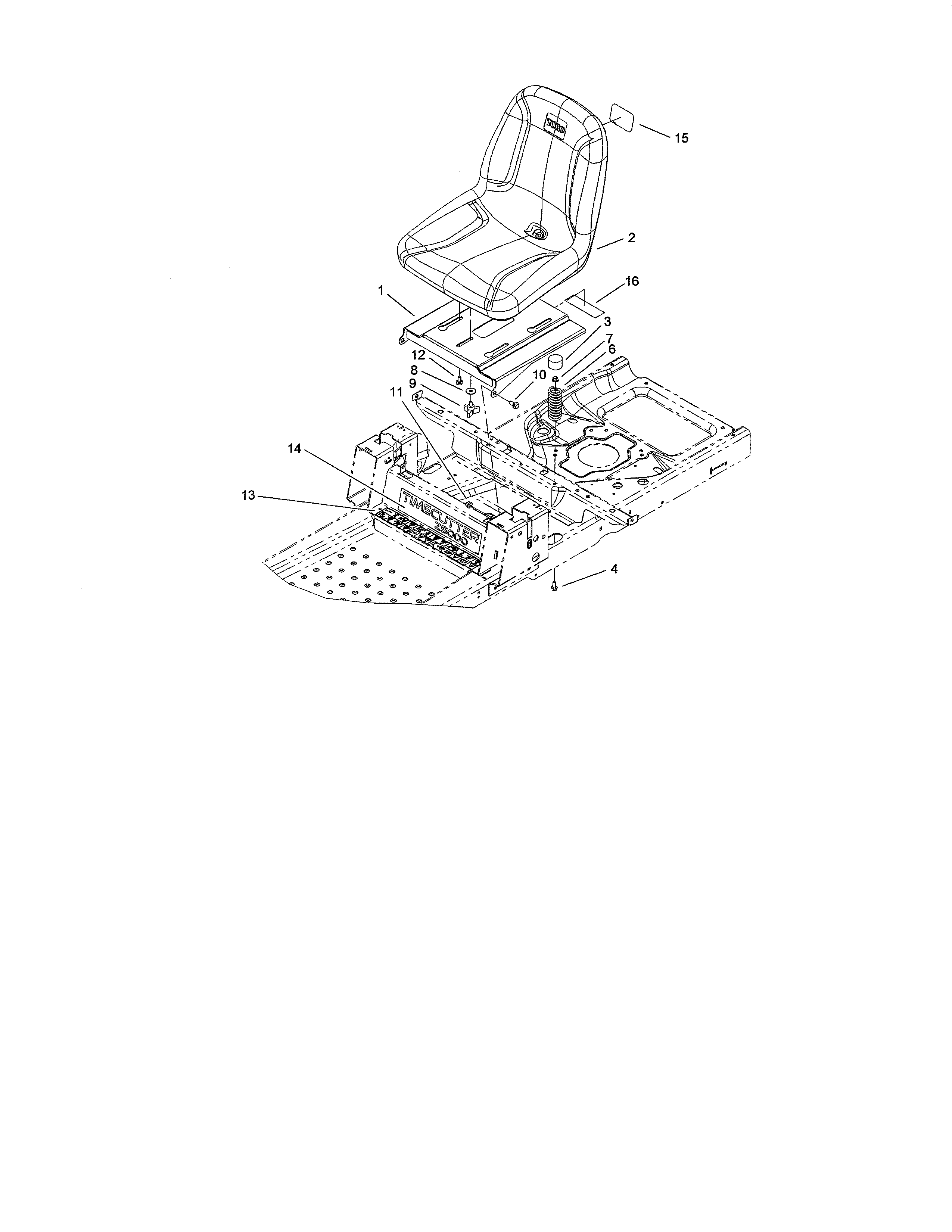

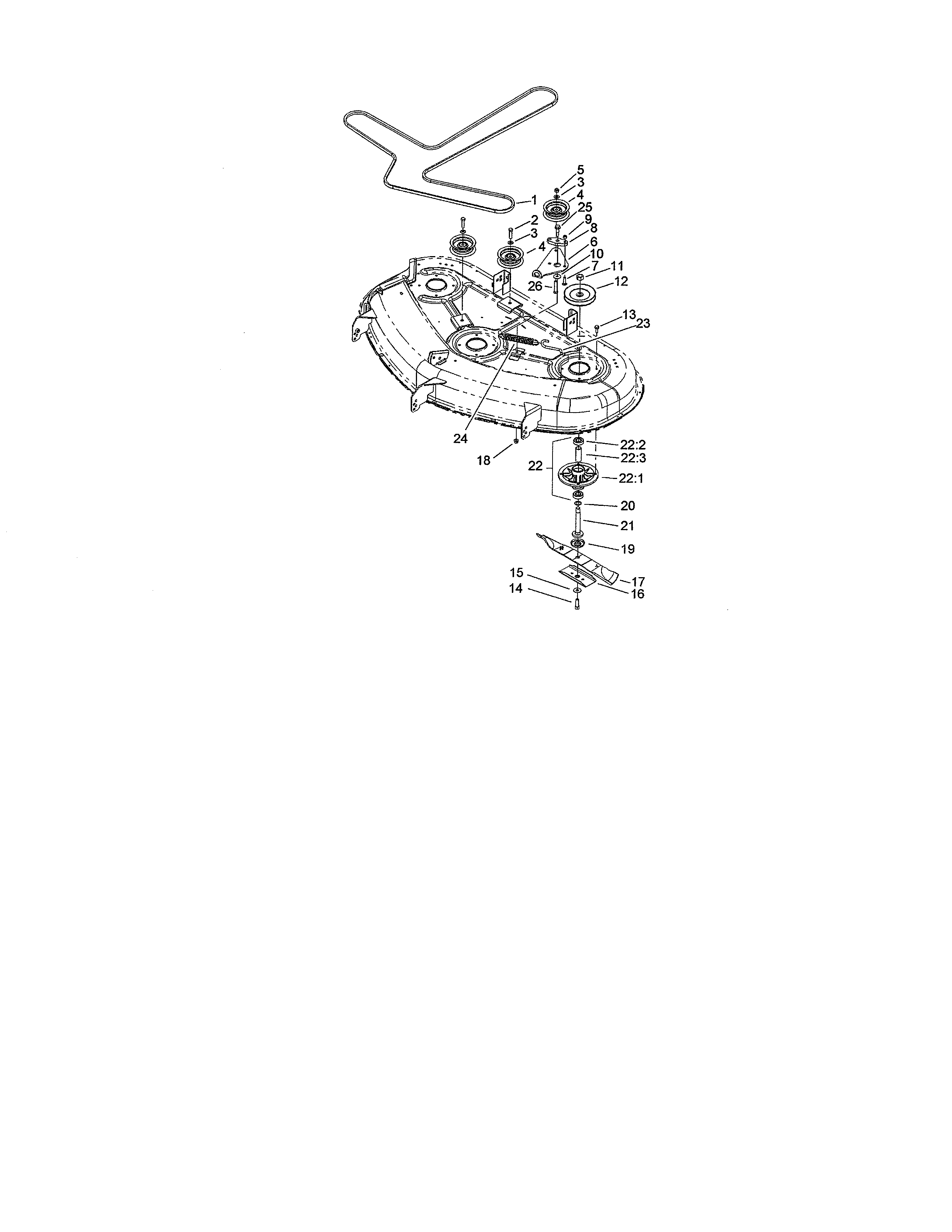

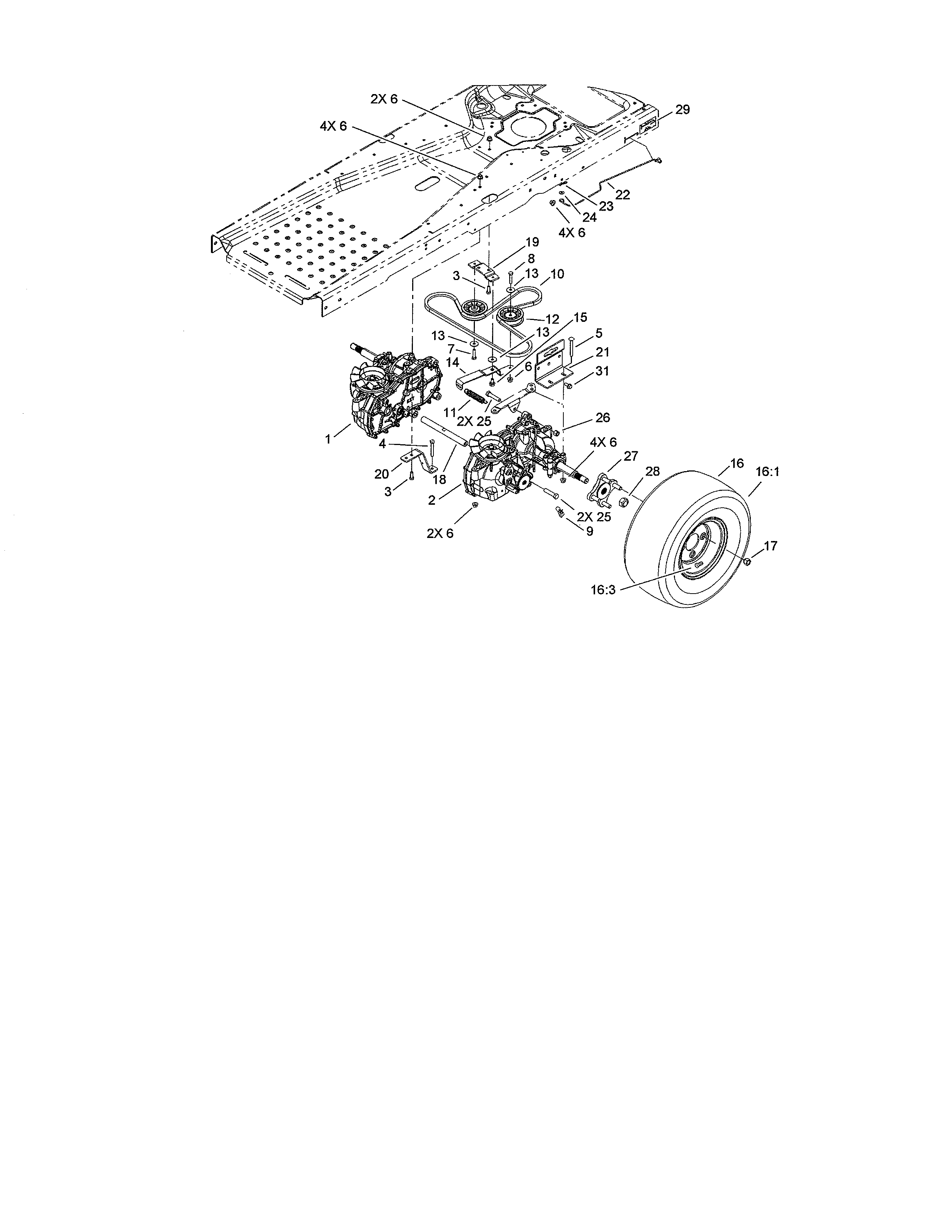

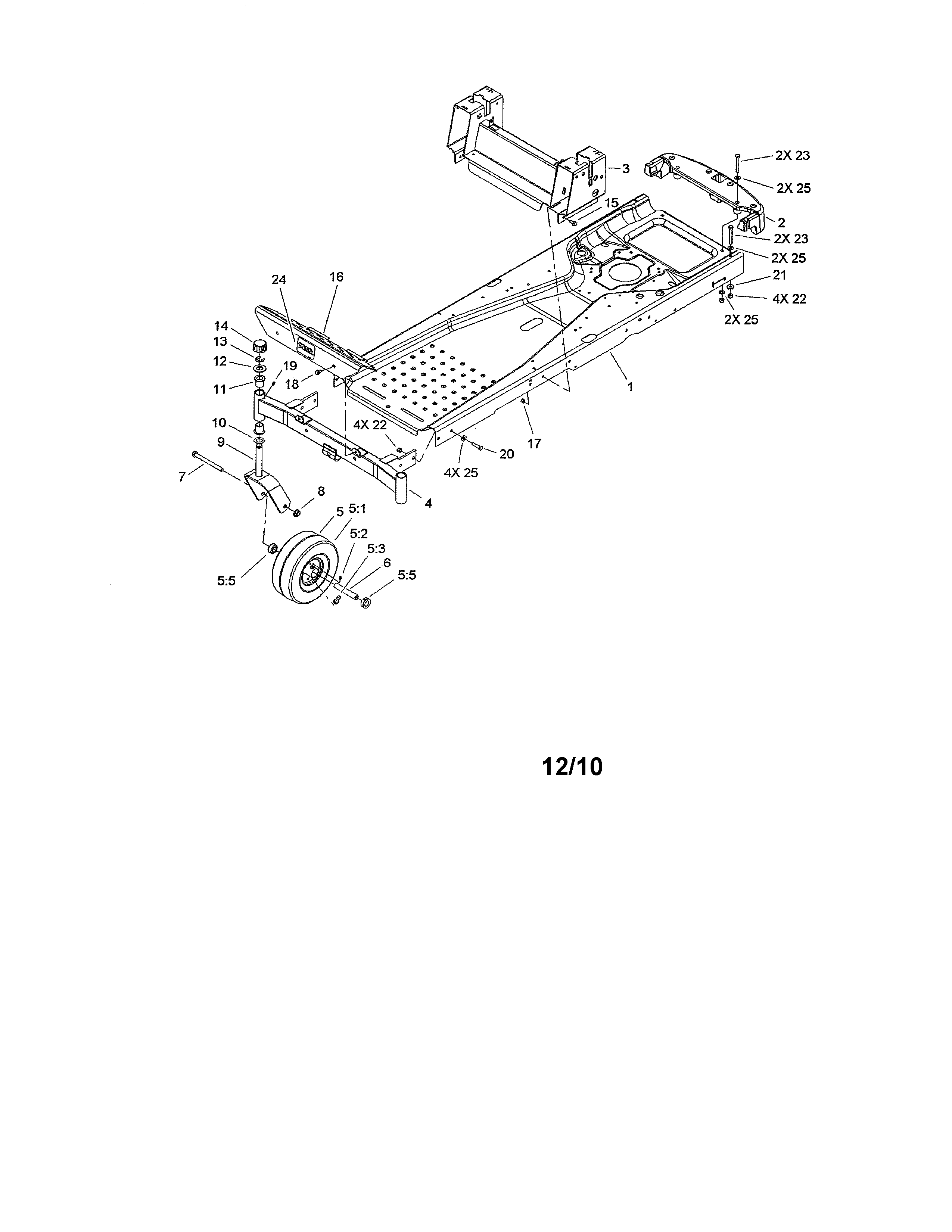

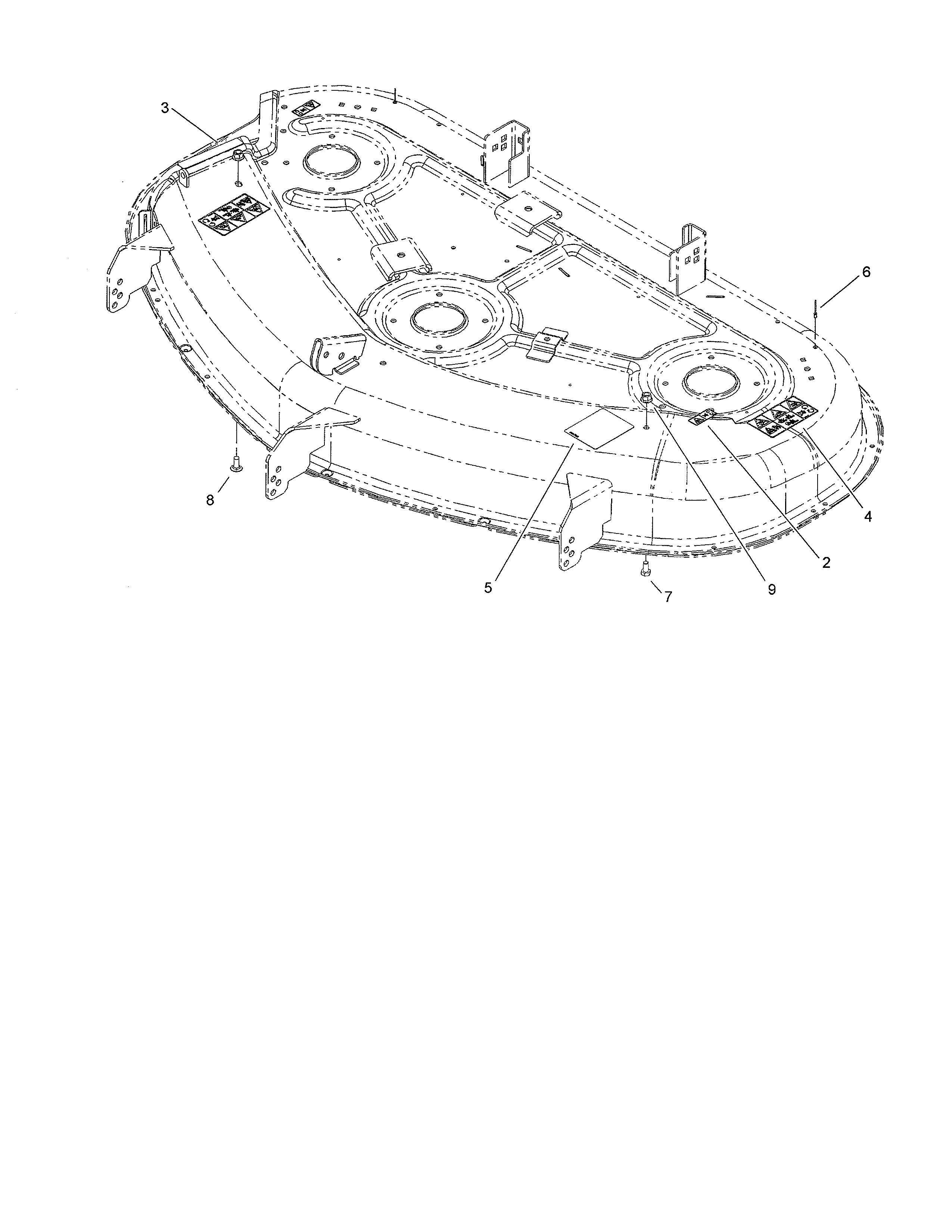

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 370 parts  |

Stop Nut 3296-29
Stop nut

Part #3296-29

The manufacturer no longer makes this part, and there's no substitute part

Lawn Tractor Seat Support Bracket 110-6805-03
#7

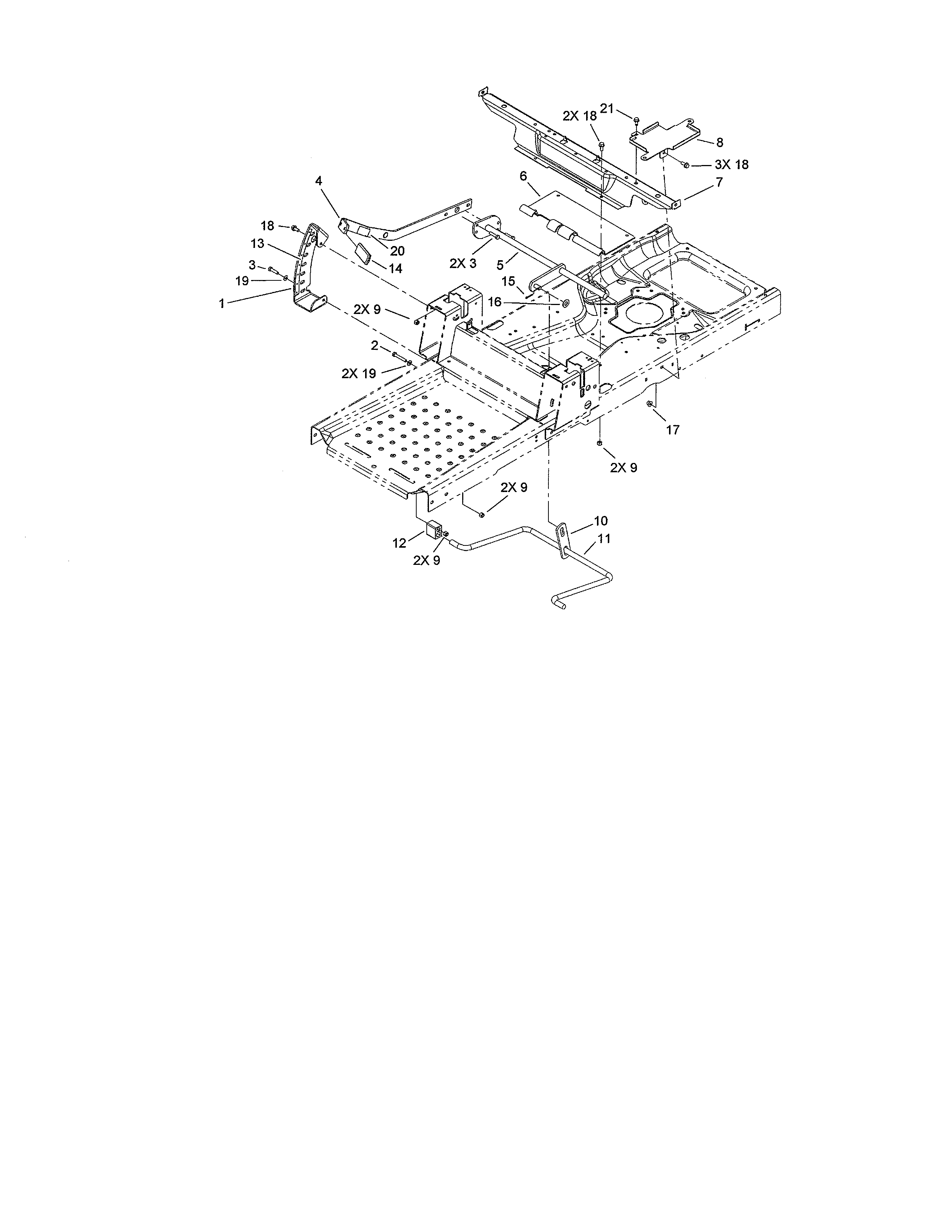

Deck lift/seat support diagram

Lawn tractor seat support bracket

Part #110-6805-03

In Stock
Cap Screw 3274-10
#3

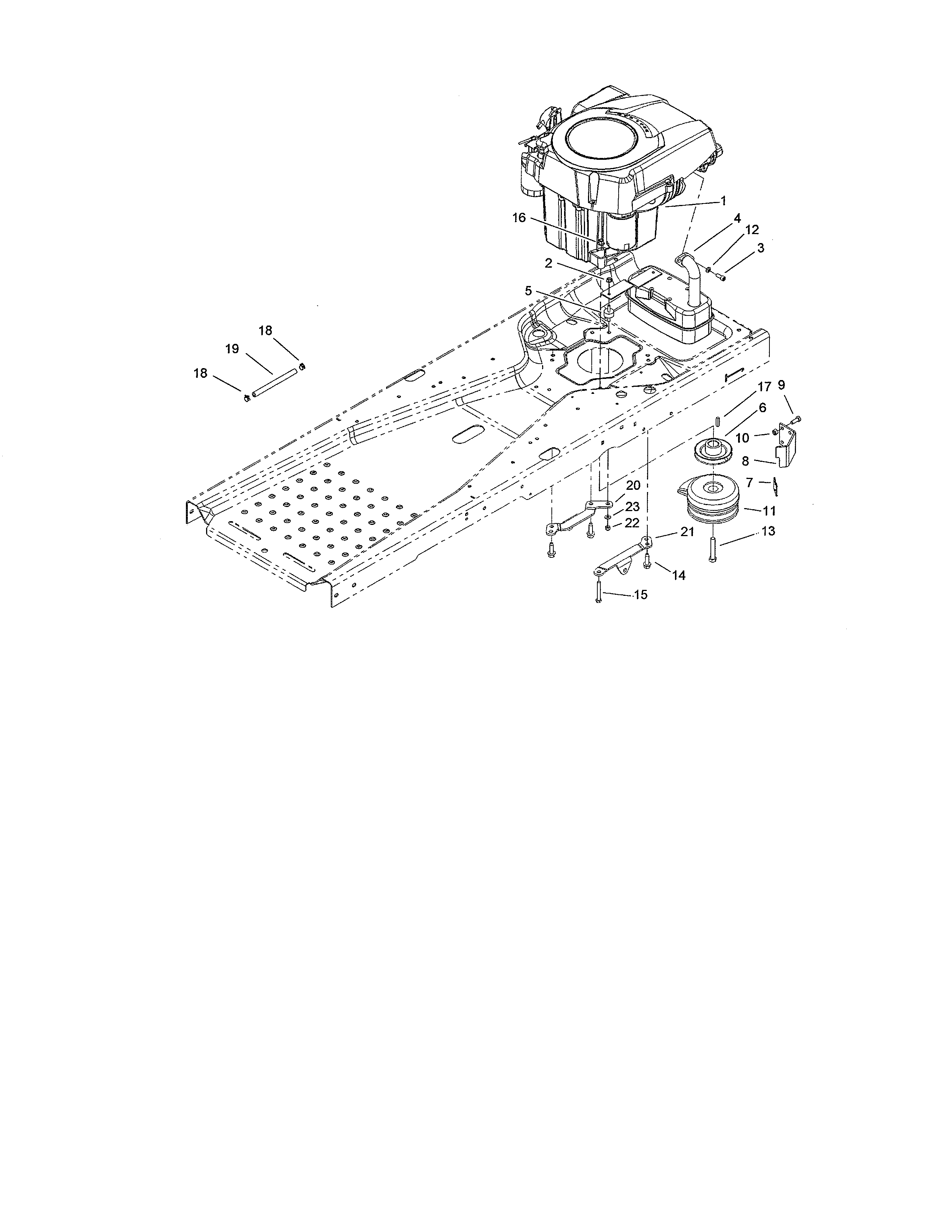

Engine/clutch assembly diagram

Cap screw

Part #3274-10

This item is not returnable
In Stock
Connector Housing 95-3270
#12

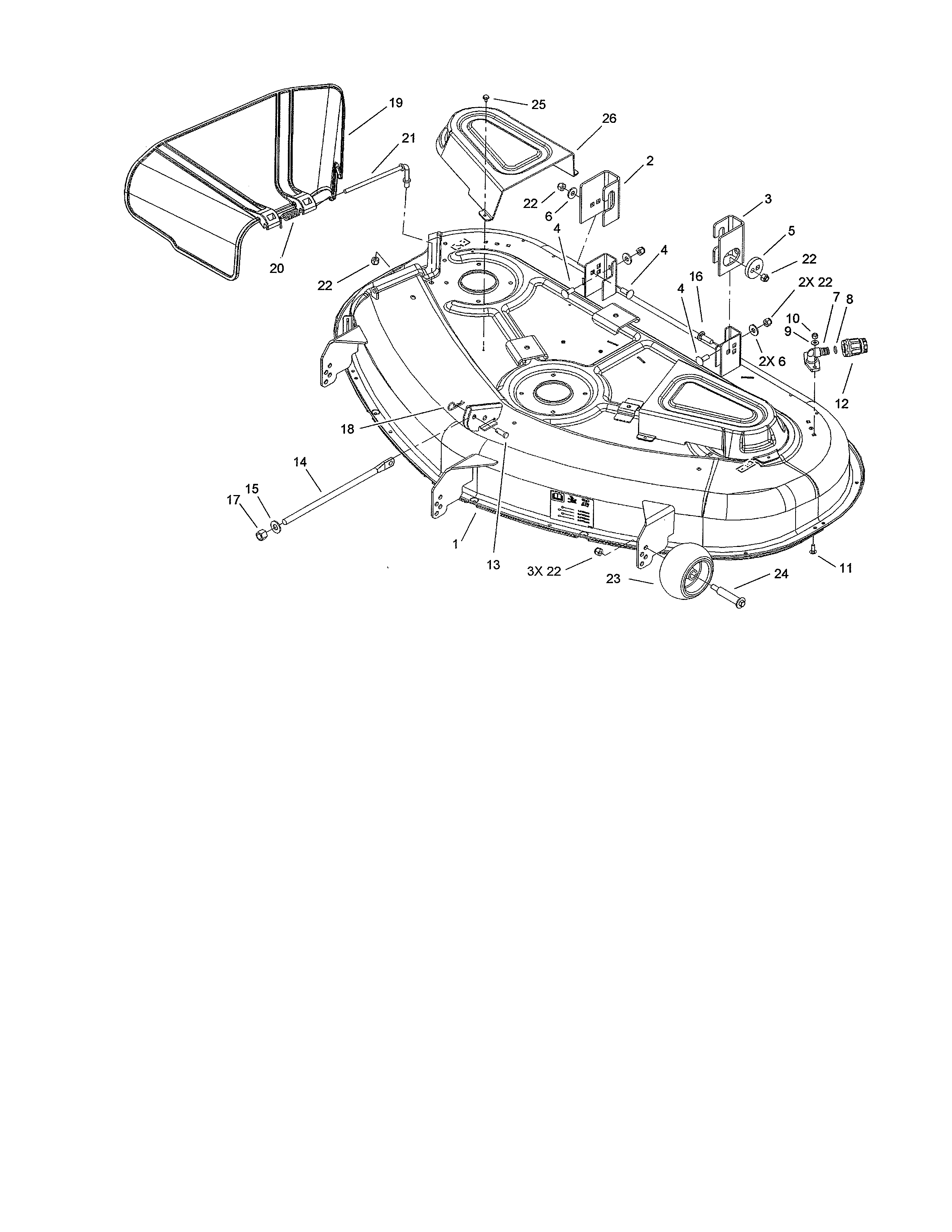

50" deck/side discharge diagram

Connector housing

Part #95-3270

In Stock
Shoulder Bolt 112-3977
#24

50" deck/side discharge diagram

Shoulder bolt

Part #112-3977

This item is not returnable
In Stock
Clevis Pin 1-808280
#17

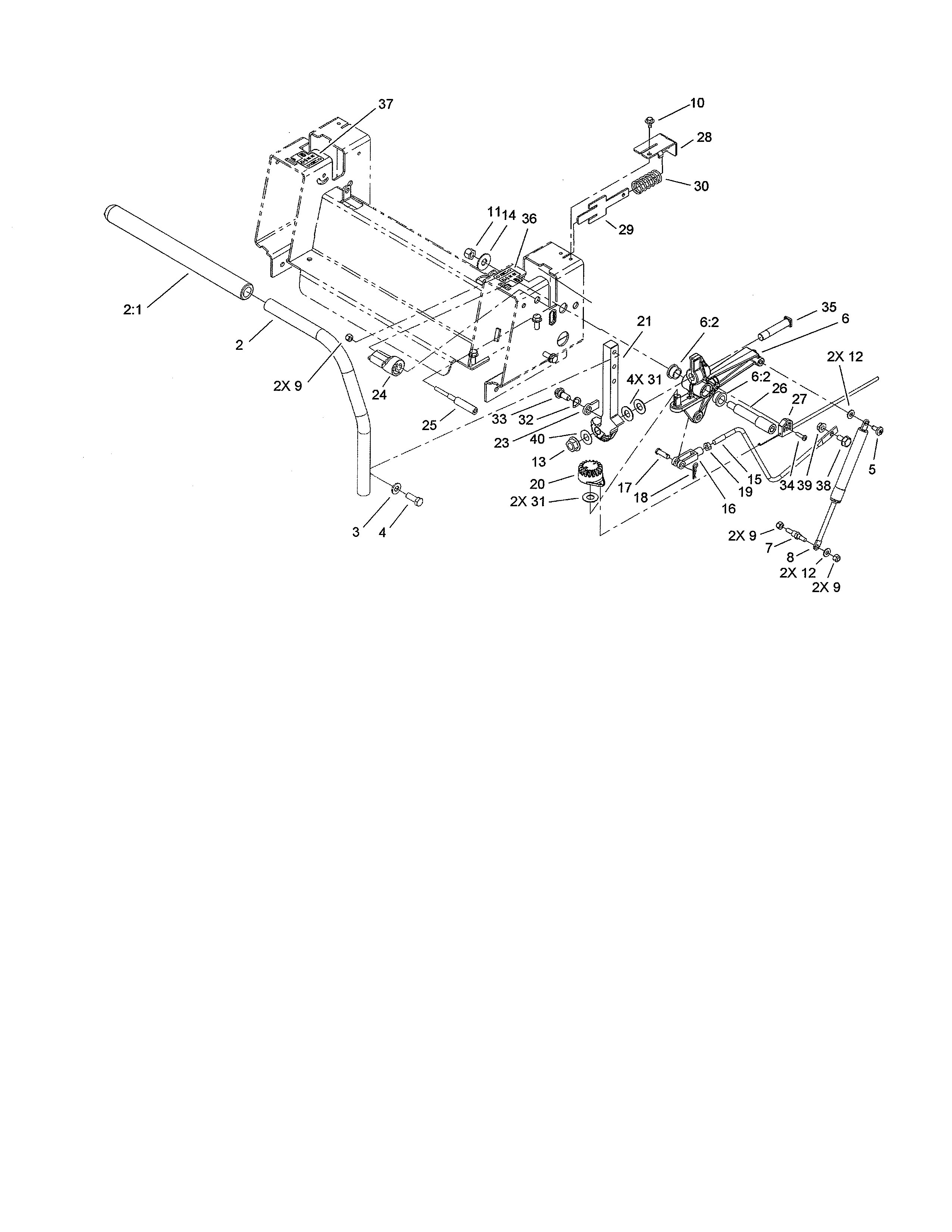

Control assembly diagram

Clevis pin

Part #1-808280

This item is not returnable
In Stock
Cap Screw 321-3
#13

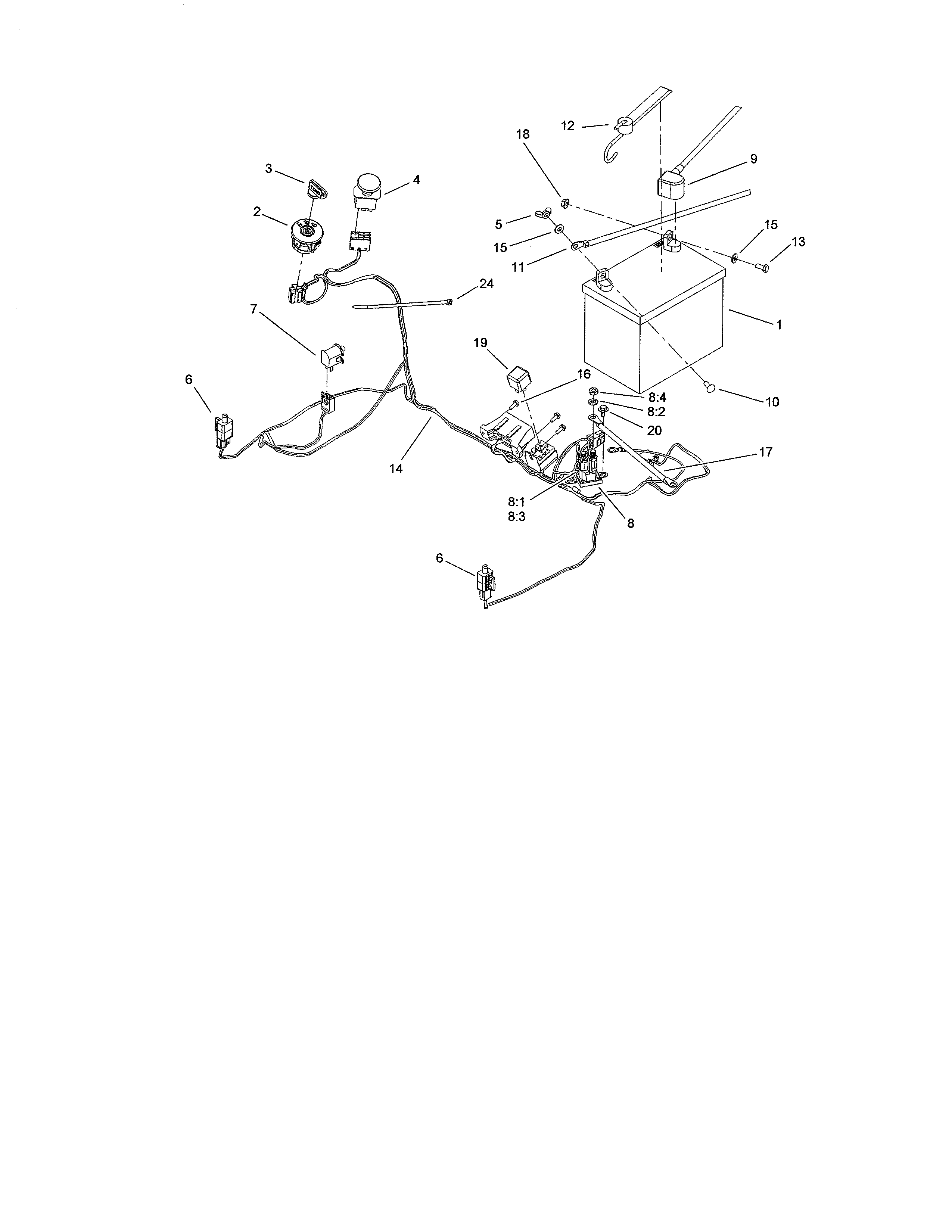

Electrical assembly diagram

Cap screw

Part #321-3

This item is not returnable
In Stock
Tab Stop 110-6856
#23

Control assembly diagram

Tab stop

Part #110-6856

This item is not returnable
In Stock
Hydro Link 110-6693
#15

Control assembly diagram

Hydro link

Part #110-6693

In Stock
Lawn Mower Bushing 46-6560
#9:2

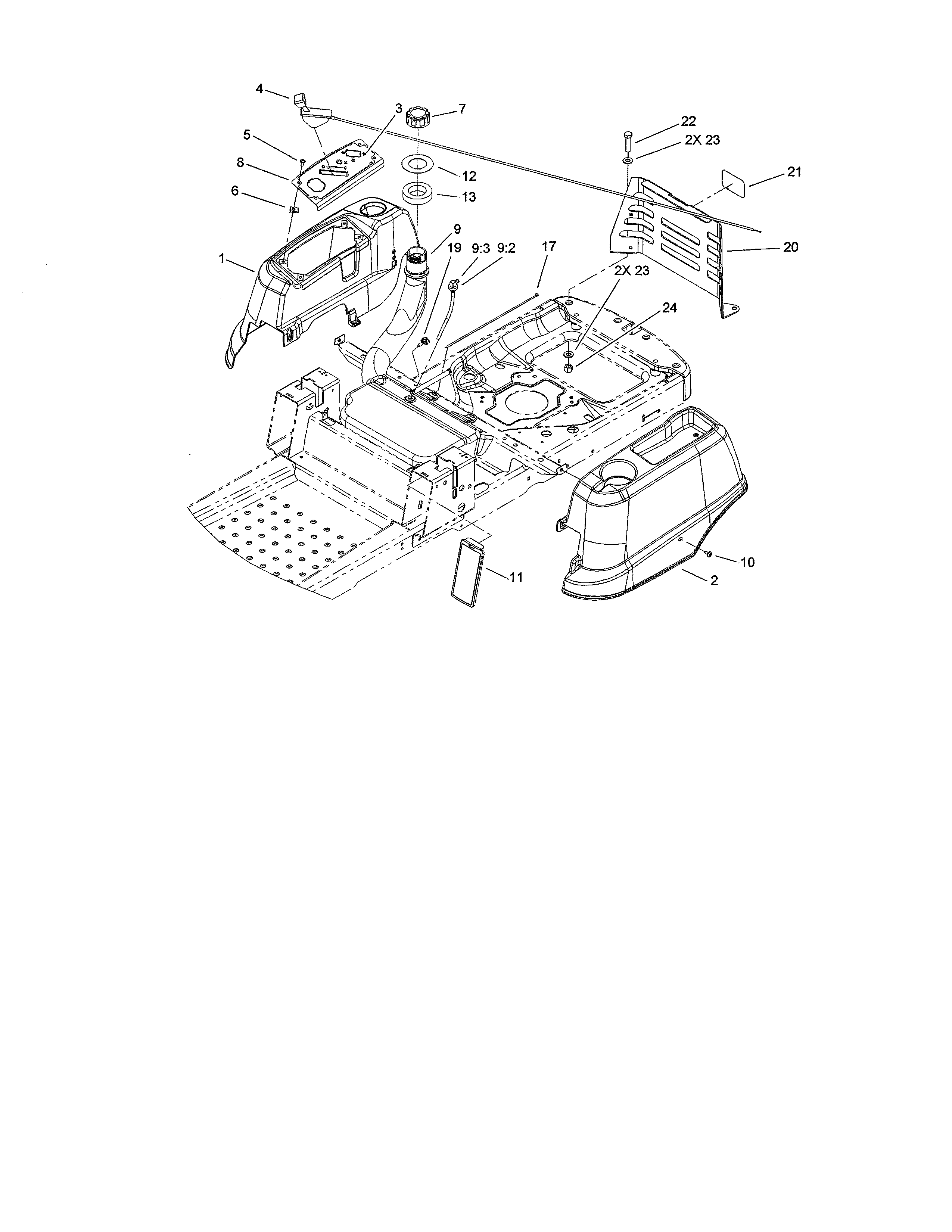

Styling/fuel system diagram

Lawn mower bushing

Part #46-6560

This item is not returnable
In Stock
