Frigidaire
Gas Cooktop

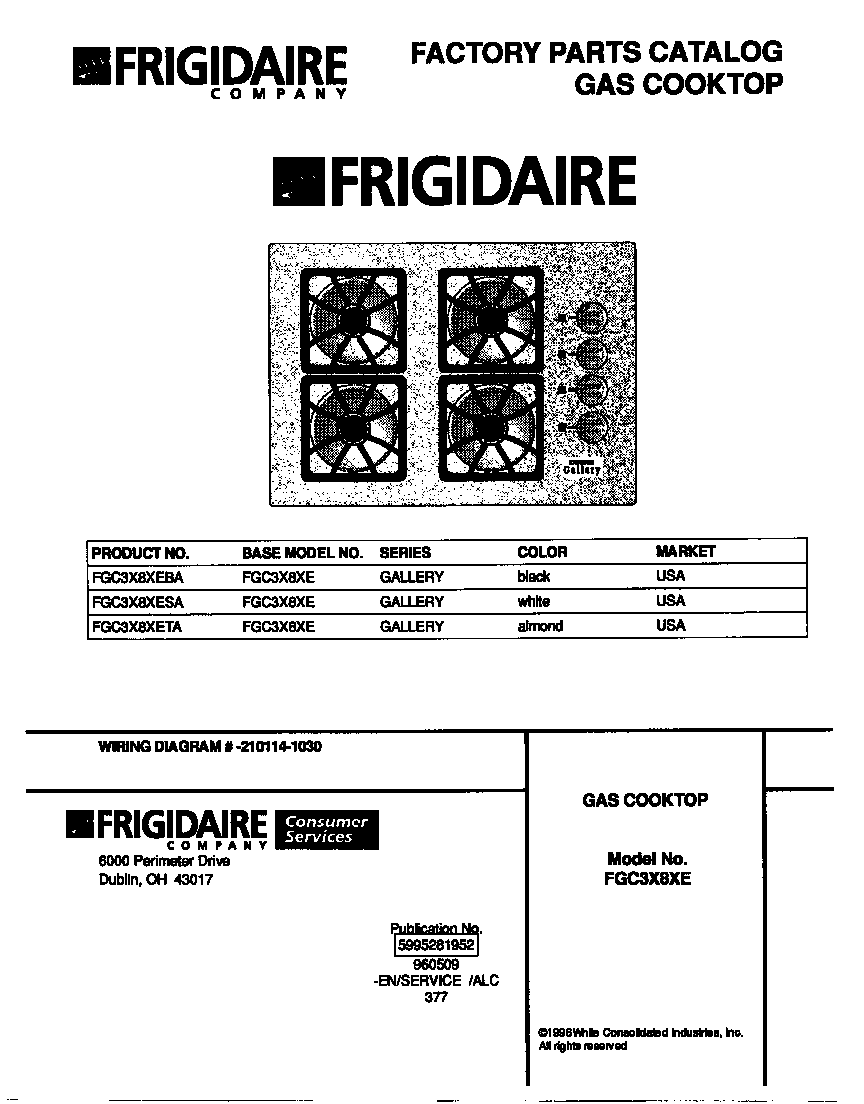

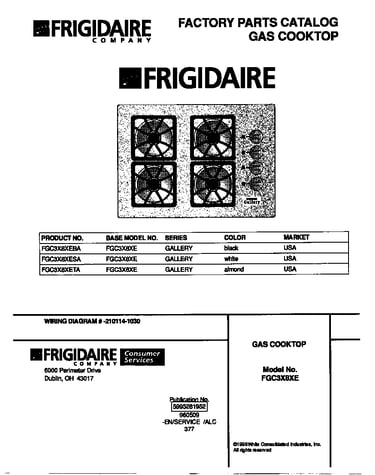

Model # FGC3X8XETA Official Frigidaire gas cooktop - 5995281952

Here are the diagrams and repair parts for Official Frigidaire FGC3X8XETA gas cooktop - 5995281952, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Igniter 5303311262
#11

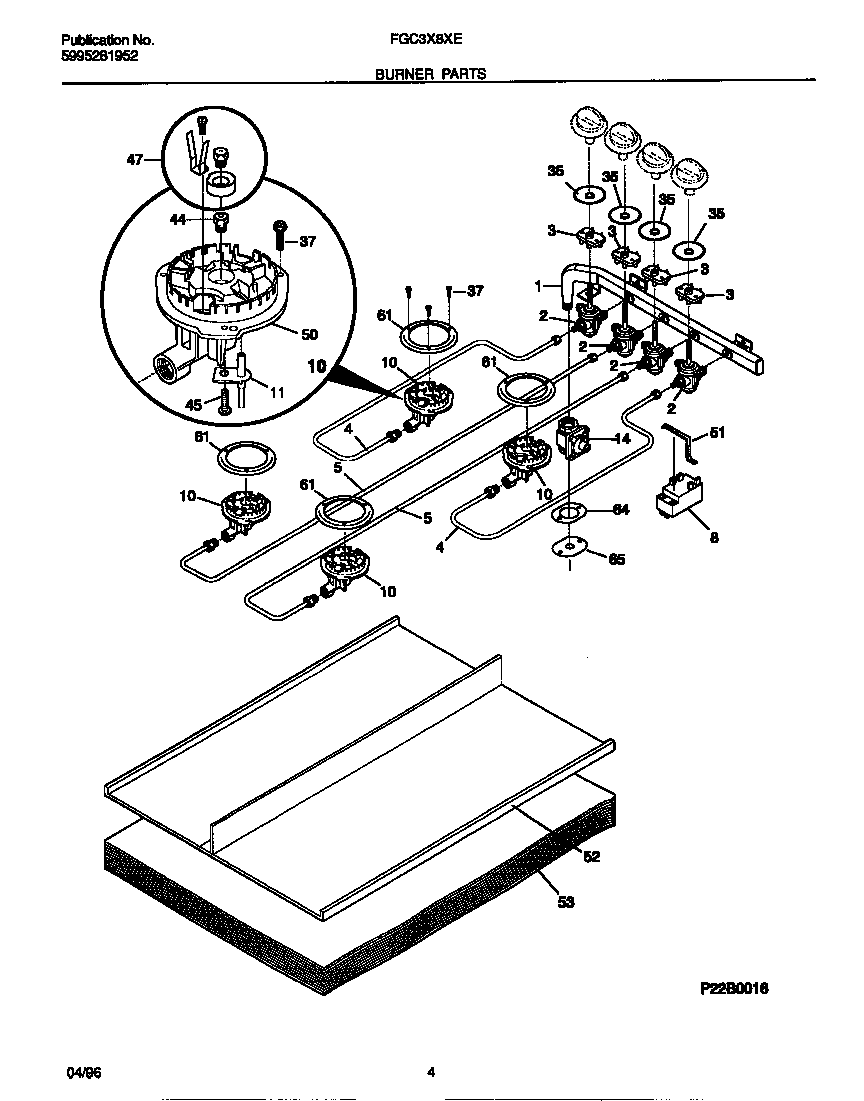

Burner parts diagram

Igniter

Part #5303311262

Replaced by #316011200

?
Manufacturer substitution
This part replaces 5303311262. Substitute parts can look different from the original.
$25.59 |
19% OFF Phone Price : $31.59
In Stock
Gasket 5303307931
#31

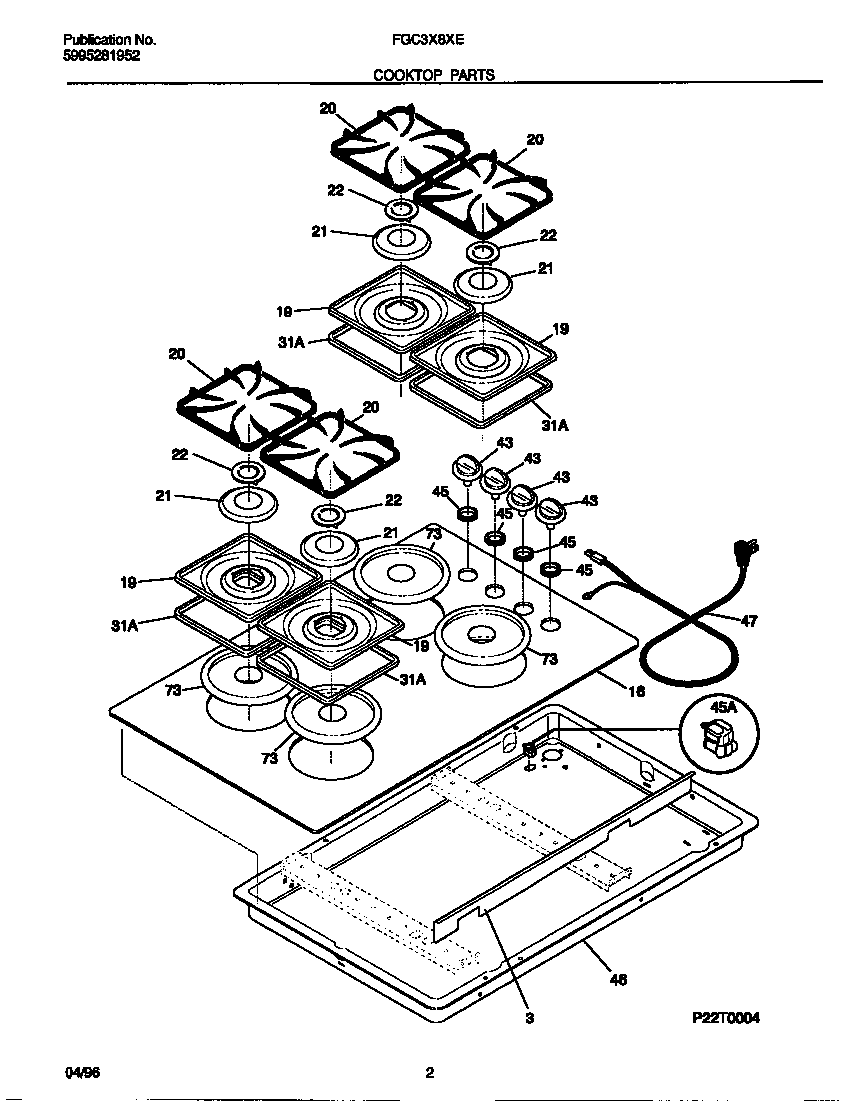

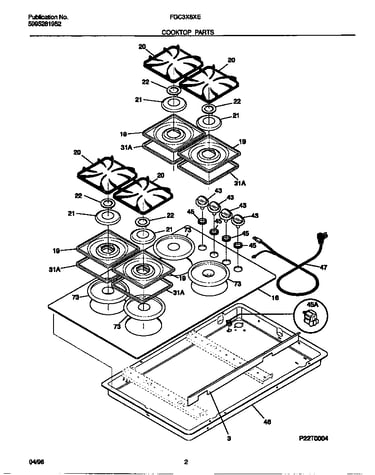

Cooktop parts diagram

Gasket

Part #5303307931

Replaced by #318053901

?
Manufacturer substitution
This part replaces 5303307931. Substitute parts can look different from the original.
$24.70 |
20% OFF Phone Price : $30.70
In Stock
Range Screw, #10-24 X 0.375-in 08011955
#1B

Burner parts diagram

Range screw, #10-24 x 0.375-in

Part #08011955

Replaced by #5303311174

?
Manufacturer substitution
This part replaces 08011955. Substitute parts can look different from the original.
This item is not returnable
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Pan Burner 5303307929
#19

Cooktop parts diagram

Pan burner

Part #5303307929

$26.84
In Stock
Range Pressure Regulator 5308007974
#14

Burner parts diagram

Range pressure regulator

Part #5308007974

$186.45 |
6% OFF Phone Price : $198.45
In Stock
Range Screw 5303307980

#NI

All parts diagram

Range screw

Part #5303307980

$21.34 |
22% OFF Phone Price : $27.34
In Stock
Burner Screw 316069300
#37

Burner parts diagram

Burner screw

Part #316069300

Replaced by #316069301

?
Manufacturer substitution
This part replaces 316069300. Substitute parts can look different from the original.
This item is not returnable
$2.69 |
27% OFF Phone Price : $3.69
In Stock
Range Igniter Spark Module 5303280394
#8

Burner parts diagram

Range igniter spark module

Part #5303280394

Replaced by #316135701

?
Manufacturer substitution
This part replaces 5303280394. Substitute parts can look different from the original.
$23.01
In Stock
Screw 5303211311

#NI

All parts diagram

Screw

Part #5303211311

Replaced by #5303211311

?
Manufacturer substitution
This part replaces 5303211311. Substitute parts can look different from the original.
$16.66
In Stock
Cooking Appliance Power Cord Strain Relief 3201437
#45

Cooktop parts diagram

Cooking appliance power cord strain relief

Part #3201437

Replaced by #5304513507

?
Manufacturer substitution
This part replaces 3201437. Substitute parts can look different from the original.
$9.97
In Stock
