Bottom-Mount Refrigerator

Model # E522A-21638A Official Fisher & Paykel refrigerator

Here are the diagrams and repair parts for Official Fisher & Paykel E522A-21638A refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

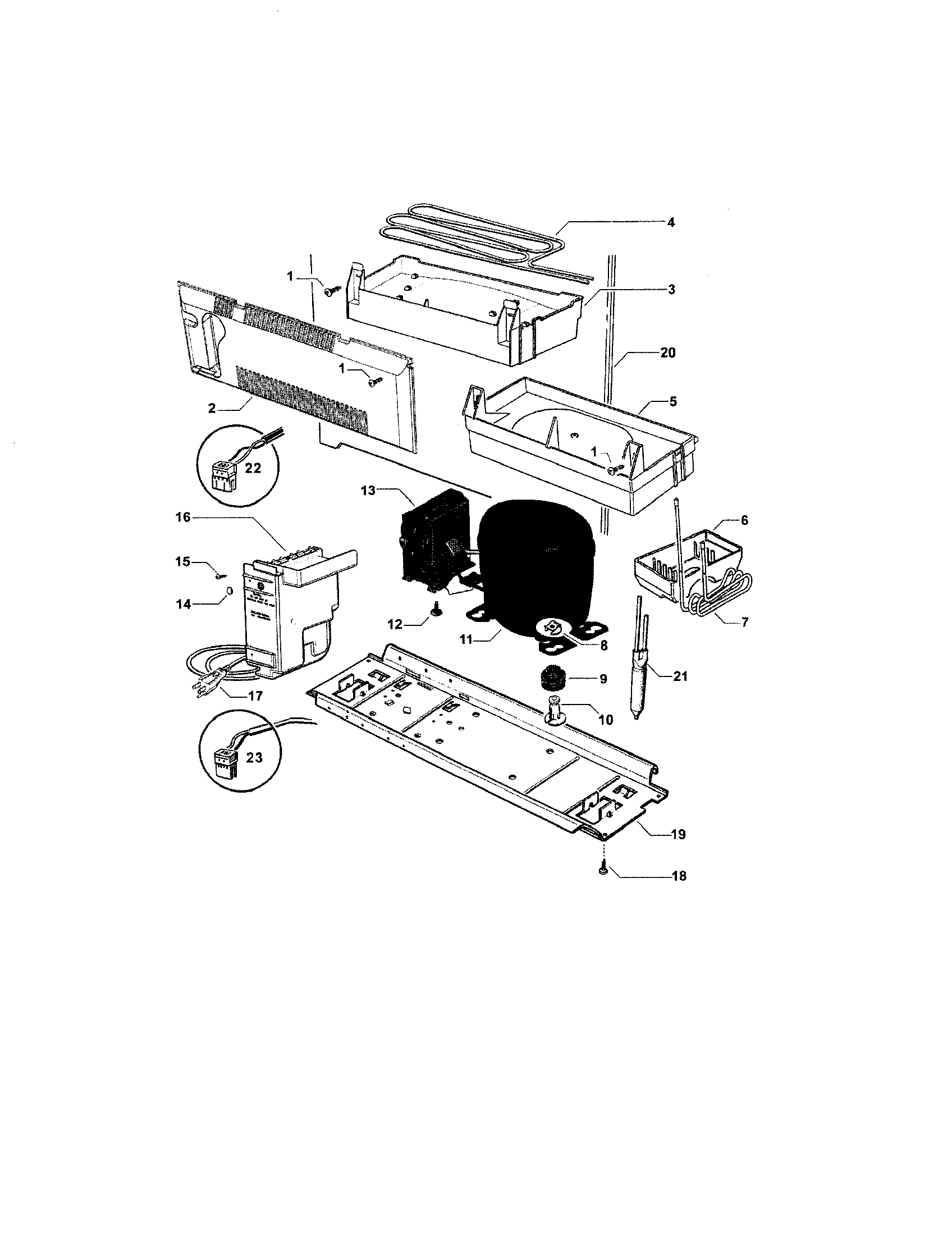

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
E522A-21638A Refrigerators
Refrigerator Lamp 874017
#13

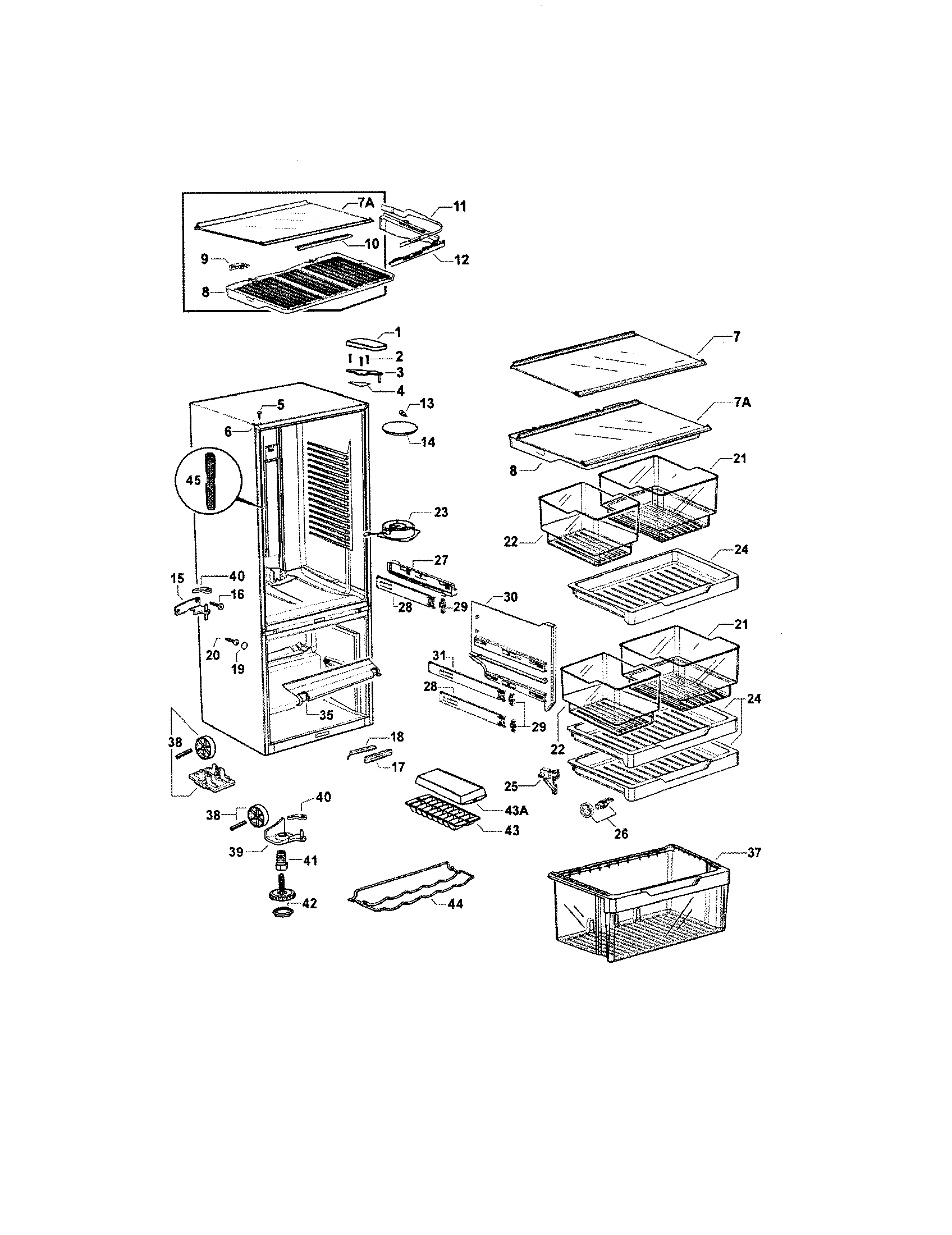

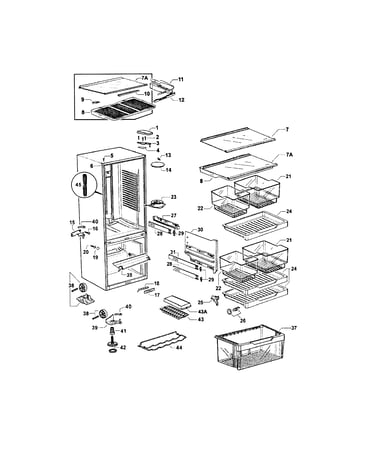

Cabinet diagram

Refrigerator lamp

Part #874017

Replaced by #874017P

?
Manufacturer substitution
This part replaces 874017. Substitute parts can look different from the original.
This item is not returnable
$12.09 |
14% OFF Phone Price : $14.09
In Stock
Leveling 880512
#42

Cabinet diagram

Leveling

Part #880512

Replaced by #818535

?
Manufacturer substitution
This part replaces 880512. Substitute parts can look different from the original.
$7.60 |
12% OFF Phone Price : $8.60
In Stock
Fisher & Paykel Refrigerator Door Bin 882146
#8

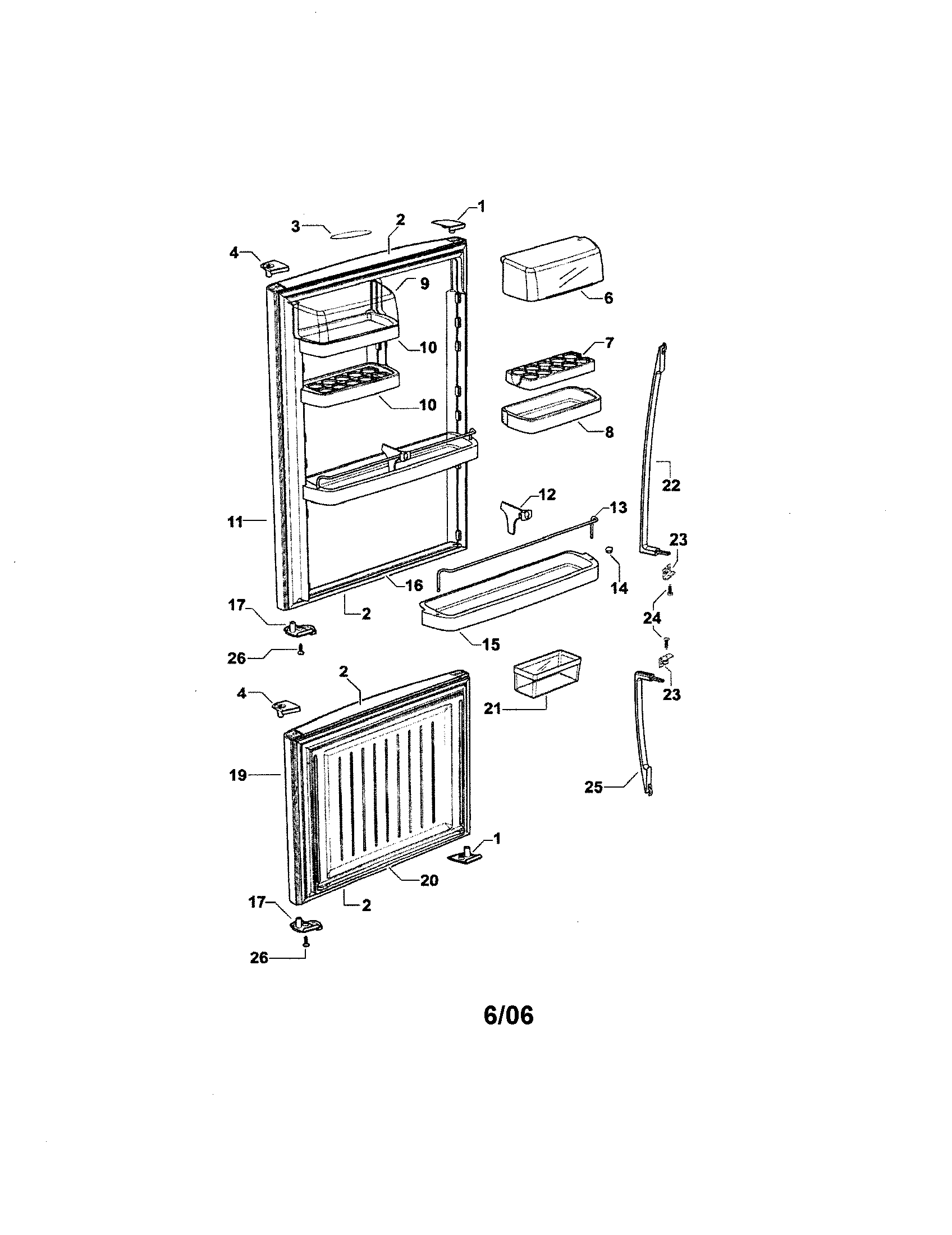

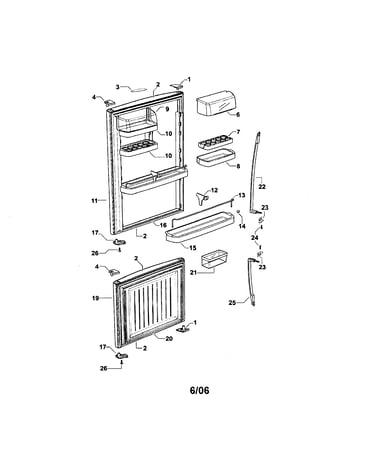

Doors diagram

Fisher & paykel refrigerator door bin

Part #882146

$18.53 |
10% OFF Phone Price : $20.53
In Stock
Fisher & Paykel Screw #8x22 Pk10 881044P
#24

Doors diagram

Fisher & paykel screw #8x22 pk10

Part #881044P

$12.09 |
14% OFF Phone Price : $14.09
In Stock
Fisher & Paykel Refrigerator Slide Assembly 836703
#31A

Cabinet diagram

Fisher & paykel refrigerator slide assembly

Part #836703

$32.12 |
16% OFF Phone Price : $38.12
In Stock
Fisher & Paykel Refrigerator Door Cover 882140
#9

Doors diagram

Fisher & paykel refrigerator door cover

Part #882140

$16.98 |
11% OFF Phone Price : $18.98
In Stock

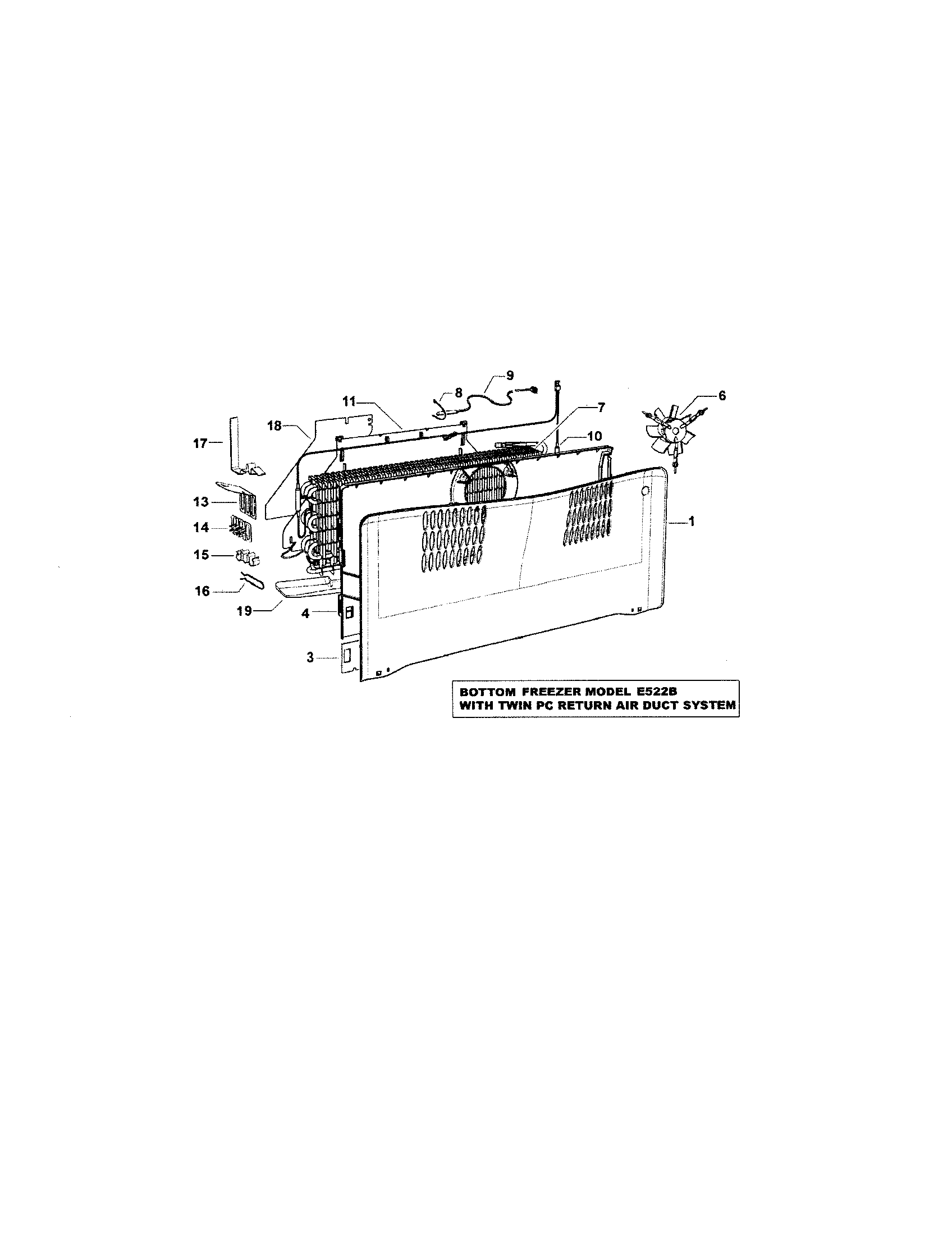

Refrigerator Fan Housing 884518P
#23

Cabinet diagram

Refrigerator fan housing

Part #884518P

Replaced by #821183P

?
Manufacturer substitution
This part replaces 884518P. Substitute parts can look different from the original.
$106.01 |
10% OFF Phone Price : $118.01
In Stock
Refrigerator Socket 881595
#1

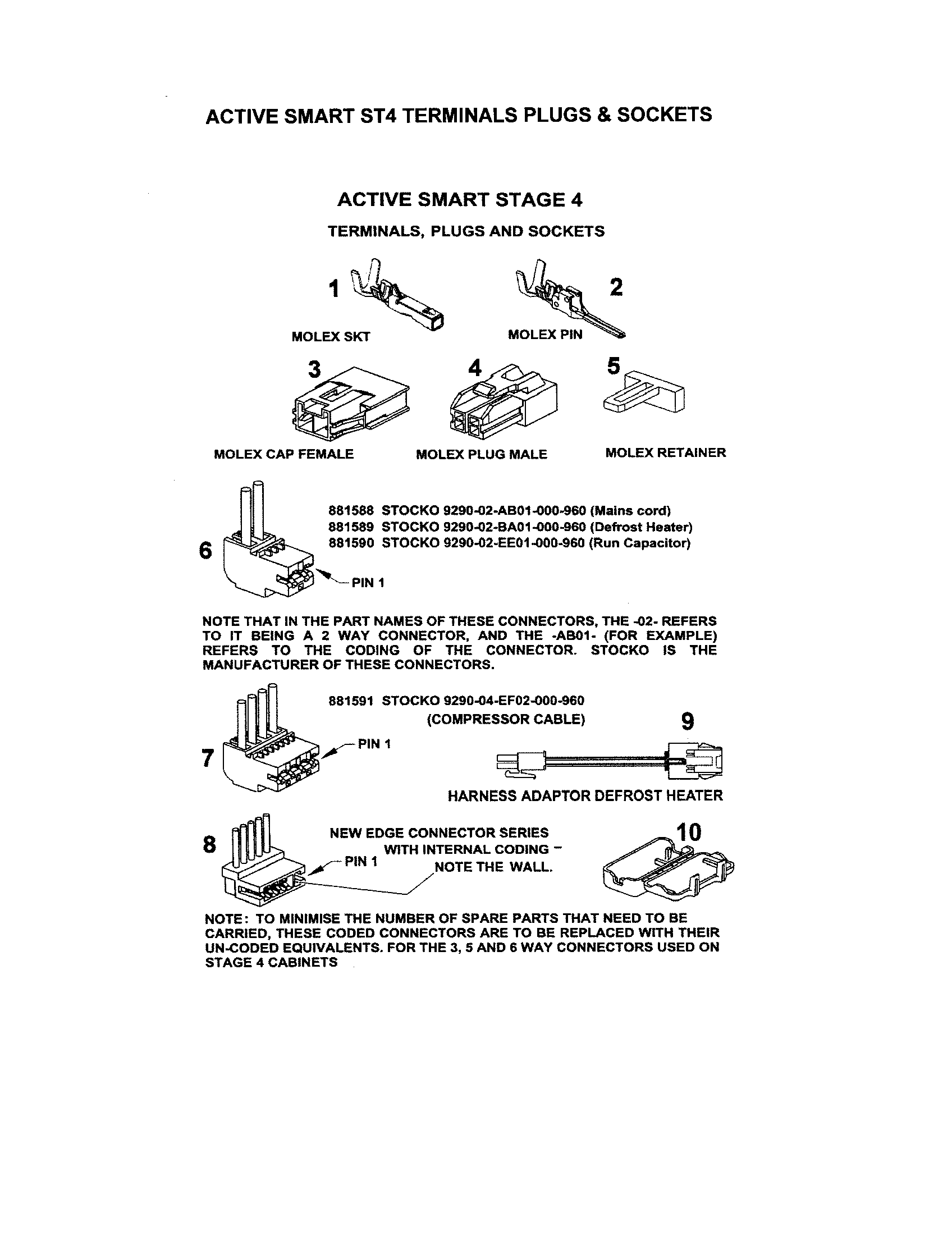

St4 terminals plugs & sockets diagram

Refrigerator socket

Part #881595

This item is not returnable
$5.99
In Stock
Refrigerator Hinge Gasket, Upper 882355
#4

Cabinet diagram

Refrigerator hinge gasket, upper

Part #882355

$8.99
In Stock
Refrigerator Lens 883449
#5

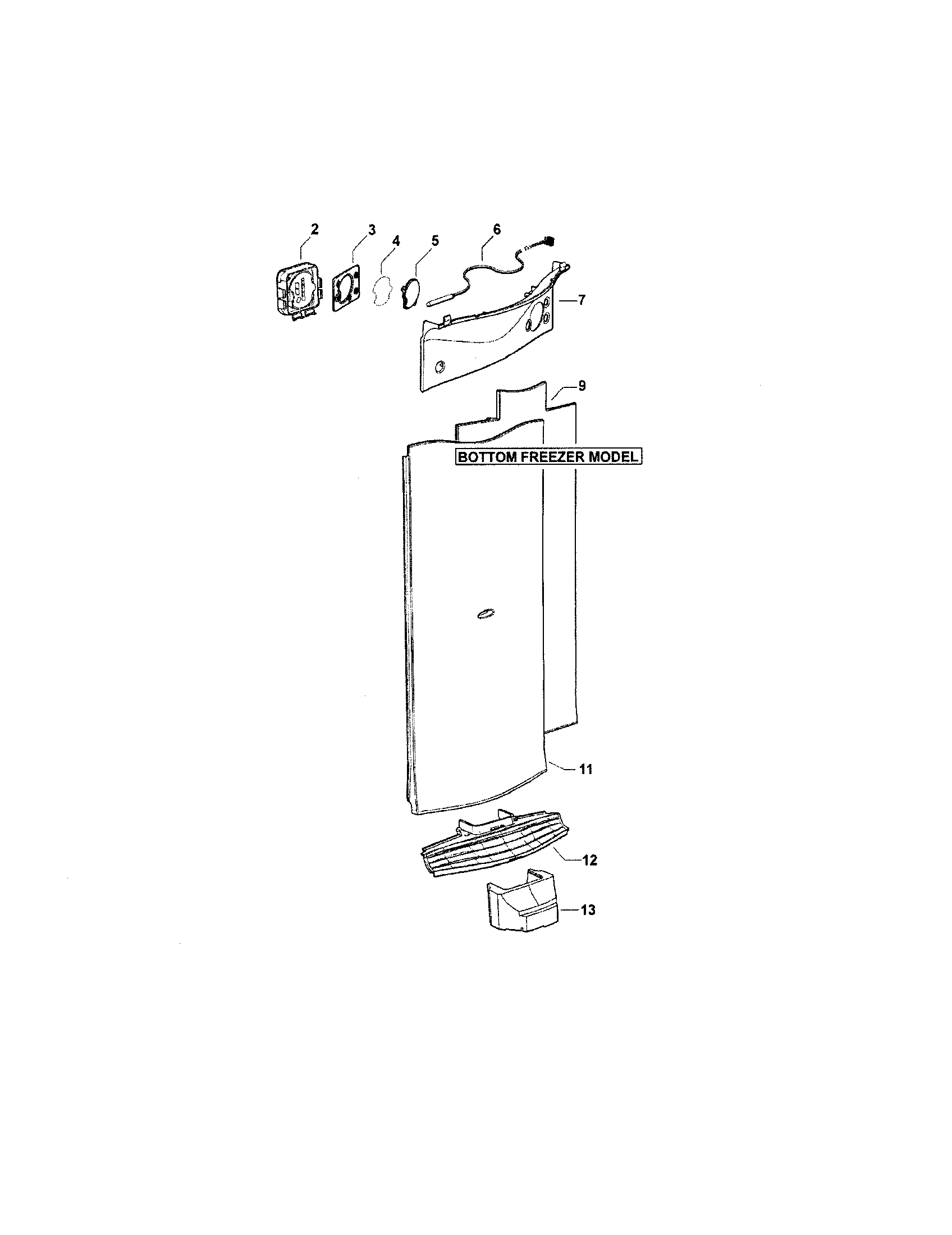

Display module/duct covers diagram

Refrigerator lens

Part #883449

$7.99
In Stock
