Model # 9611 Official Peerless lavatory faucet

Here are the diagrams and repair parts for Official Peerless 9611 lavatory faucet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |
Repair Kit RP2083
#5

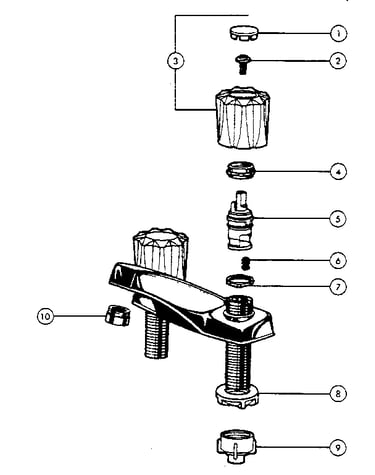

Two handle washerless lavatory faucets diagram

Repair kit

Part #RP2083

The manufacturer no longer makes this part, and there's no substitute part

Repair Kit RP1815
#6

Two handle washerless lavatory faucets diagram

Repair kit

Part #RP1815

The manufacturer no longer makes this part, and there's no substitute part

Nut RP5408
#7

Two handle washerless lavatory faucets diagram

Nut

Part #RP5408

The manufacturer no longer makes this part, and there's no substitute part

Bonnet RP5389
#4

Two handle washerless lavatory faucets diagram

Bonnet

Part #RP5389

The manufacturer no longer makes this part, and there's no substitute part

Button Set RP9450
#1

Two handle washerless lavatory faucets diagram

Button set

Part #RP9450

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut RP5412
#8

Two handle washerless lavatory faucets diagram

Lock nut

Part #RP5412

The manufacturer no longer makes this part, and there's no substitute part

Hndls & Scrw RP13729
#3

Two handle washerless lavatory faucets diagram

Hndls & scrw

Part #RP13729

The manufacturer no longer makes this part, and there's no substitute part

Coupling Nut RP7022
#9

Two handle washerless lavatory faucets diagram

Coupling nut

Part #RP7022

The manufacturer no longer makes this part, and there's no substitute part

Pop RP7623

#NI

All parts diagram

Pop

Part #RP7623

The manufacturer no longer makes this part, and there's no substitute part

Aerator RP5268
#10

Two handle washerless lavatory faucets diagram

Aerator

Part #RP5268

The manufacturer no longer makes this part, and there's no substitute part
