Model # 11652612209 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11652612209 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Vacuum Foam Filter 4370713
#8

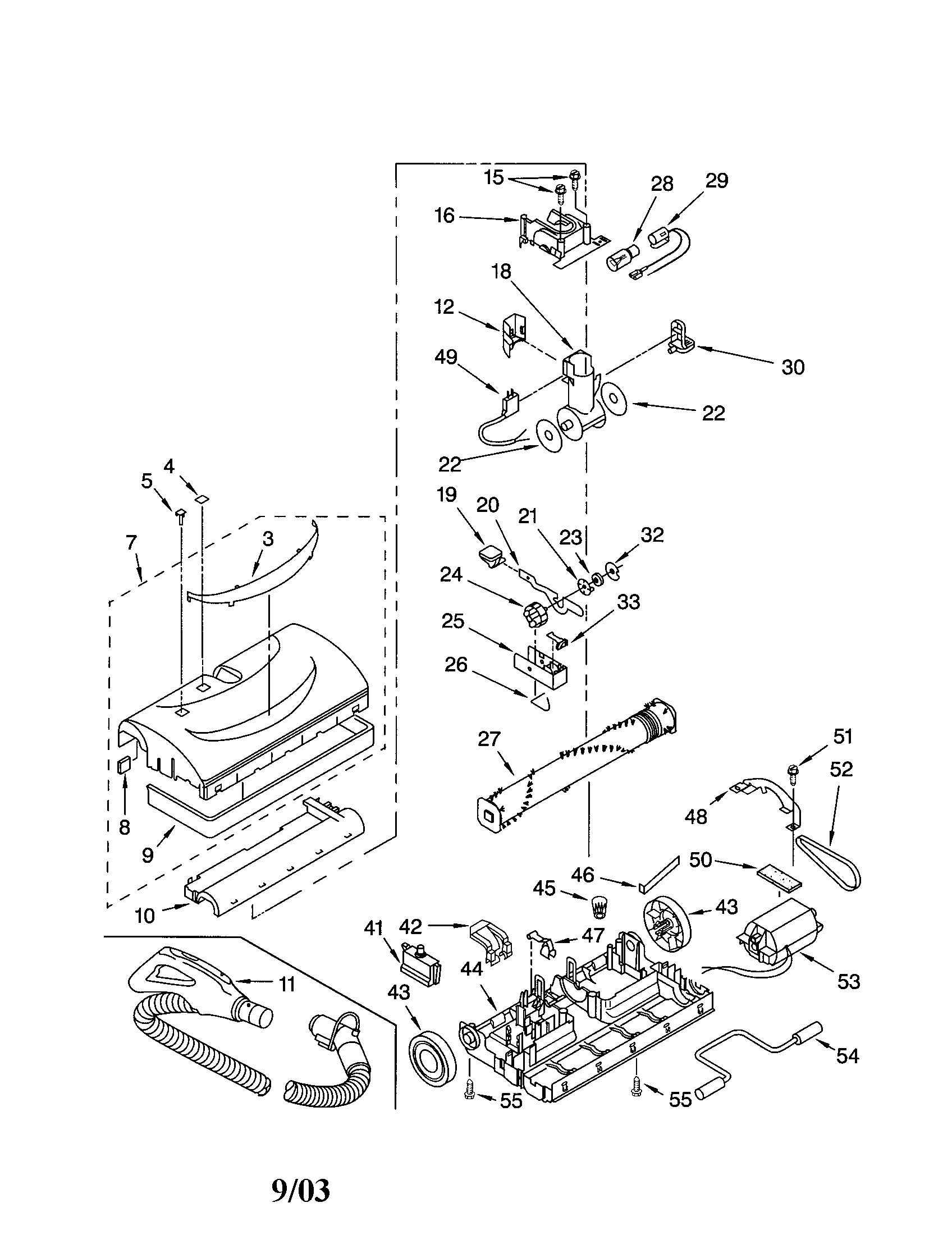

Power-mate diagram

Vacuum foam filter

Part #4370713

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Wheel 4370724
#43

Power-mate diagram

Vacuum powermate wheel

Part #4370724

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 8192535
#27

Power-mate diagram

Vacuum beater bar

Part #8192535

The manufacturer no longer makes this part, and there's no substitute part

Release 4370578
#42

Power-mate diagram

Release

Part #4370578

Replaced by #KC47AGJ3V06

?
Manufacturer substitution
This part replaces 4370578. Substitute parts can look different from the original.
This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
Vacuum Hose Assembly 8174872
#11

Power-mate diagram

Vacuum hose assembly

Part #8174872

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Axle Lifter 4370726
#47

Power-mate diagram

Vacuum axle lifter

Part #4370726

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Cover 4370715
#10

Power-mate diagram

Vacuum beater bar cover

Part #4370715

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Height Indicator Lens 4369687
#4

Power-mate diagram

Vacuum height indicator lens

Part #4369687

The manufacturer no longer makes this part, and there's no substitute part

Extension Button 4370941
#5

Power-mate diagram

Extension button

Part #4370941

The manufacturer no longer makes this part, and there's no substitute part

Swivel 4370720
#20

Power-mate diagram

Swivel

Part #4370720

The manufacturer no longer makes this part, and there's no substitute part
