Model # RGC304SLPH Official Dacor cooktop

Here are the diagrams and repair parts for Official Dacor RGC304SLPH cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |

Led W/sock 103705
#2

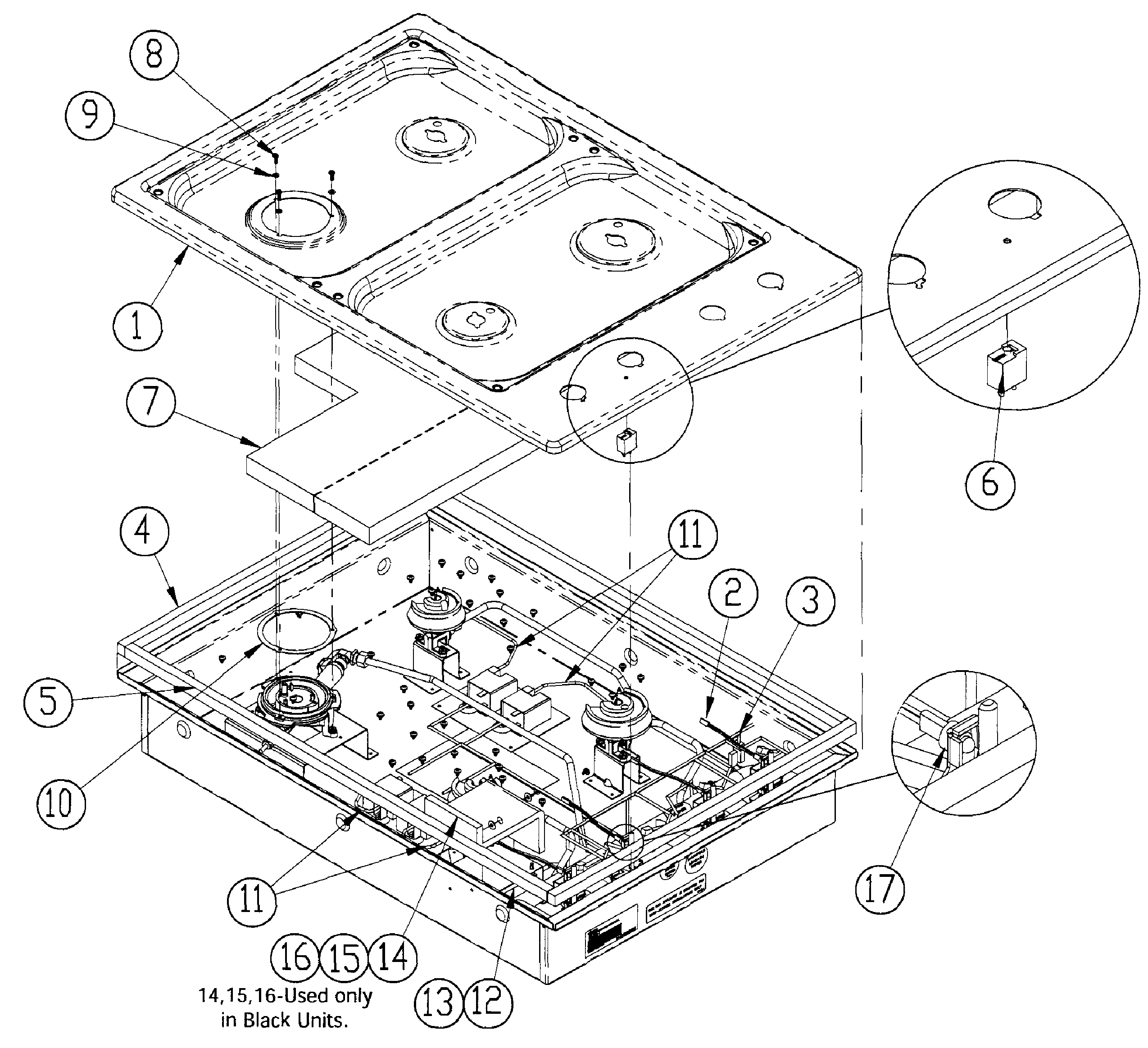

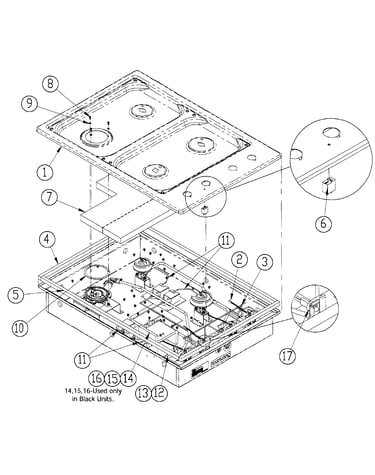

Upper assy diagram

Led w/sock

Part #103705

In Stock
Cooktop Burner Ring 92459
#13

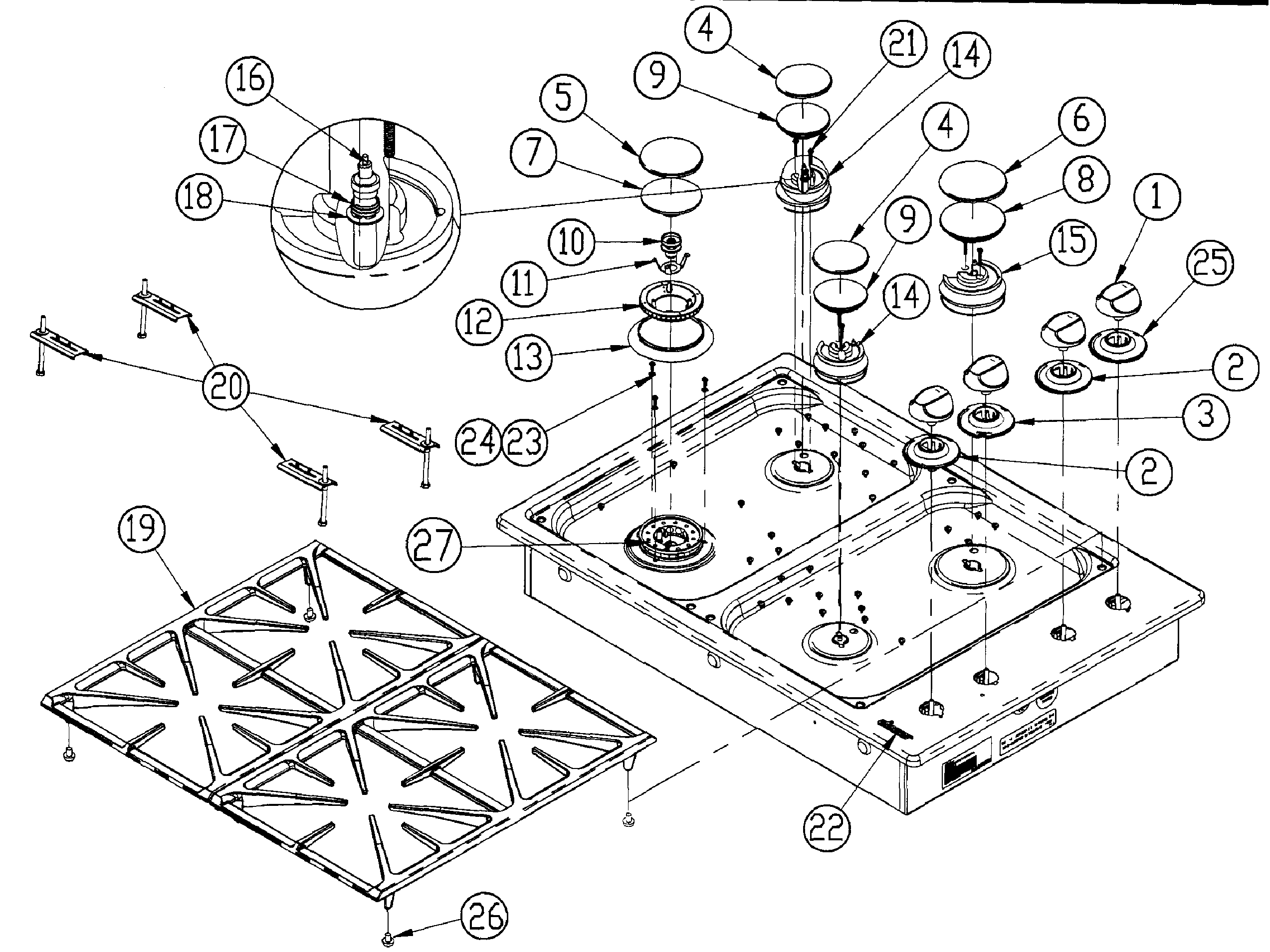

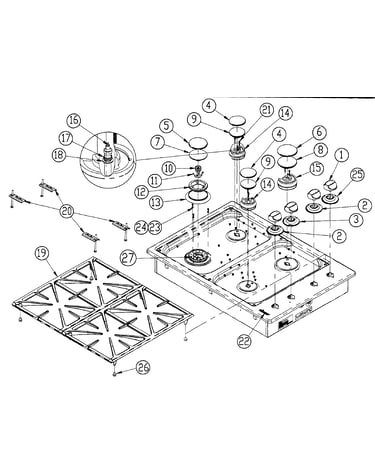

Top frame diagram

Cooktop burner ring

Part #92459

In Stock
Tube 72952
#13

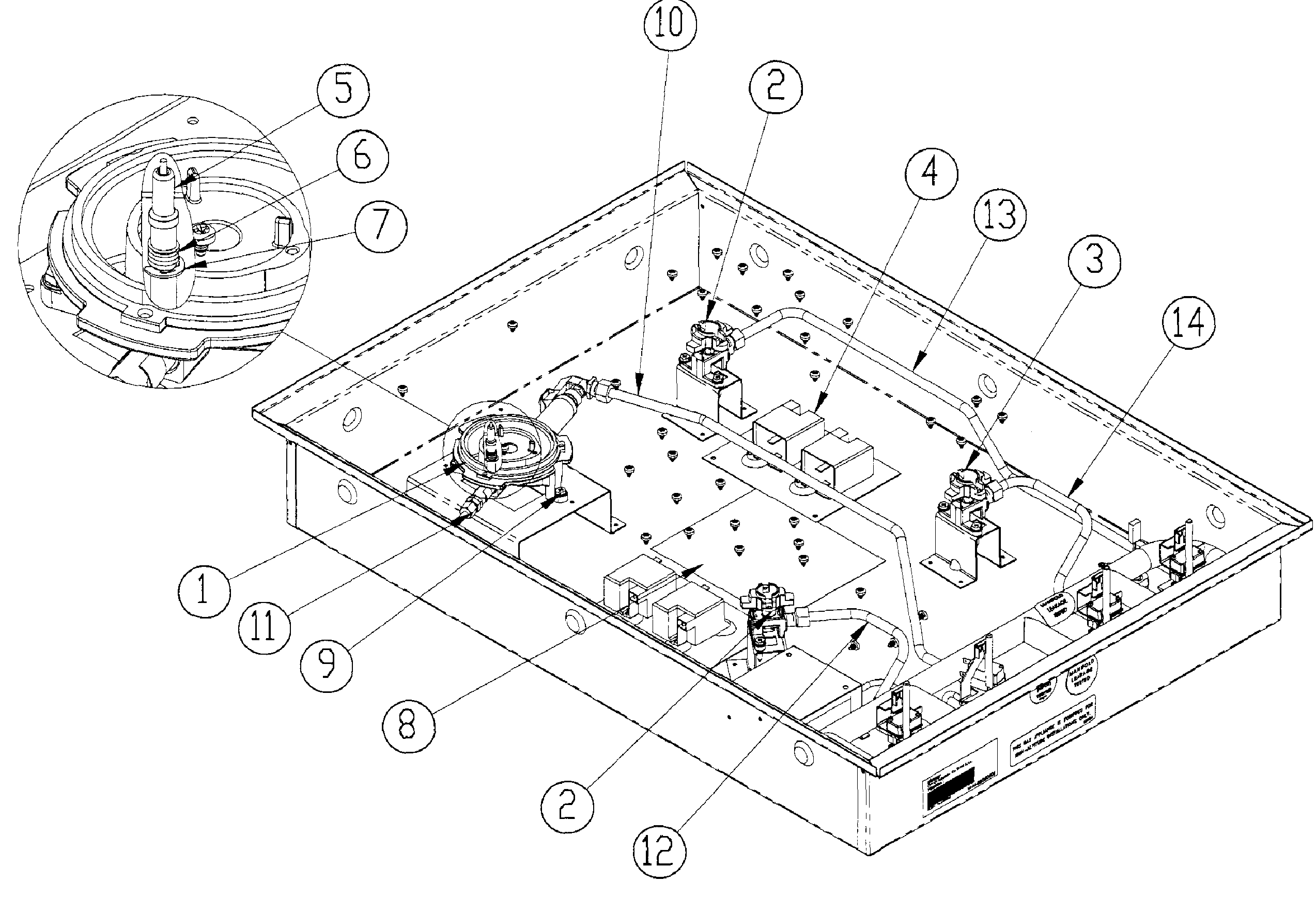

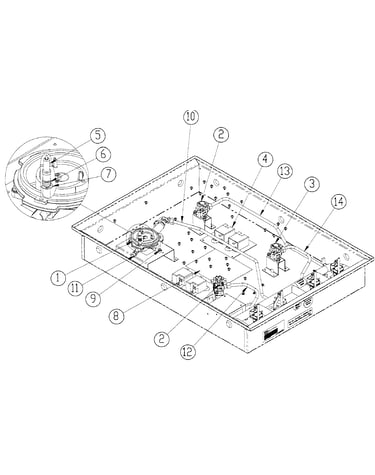

Spark system diagram

Tube

Part #72952

In Stock
Cooktop Burner Head 103737
#8

Top frame diagram

Cooktop burner head

Part #103737

In Stock
Sing Valve 66971NG
#14

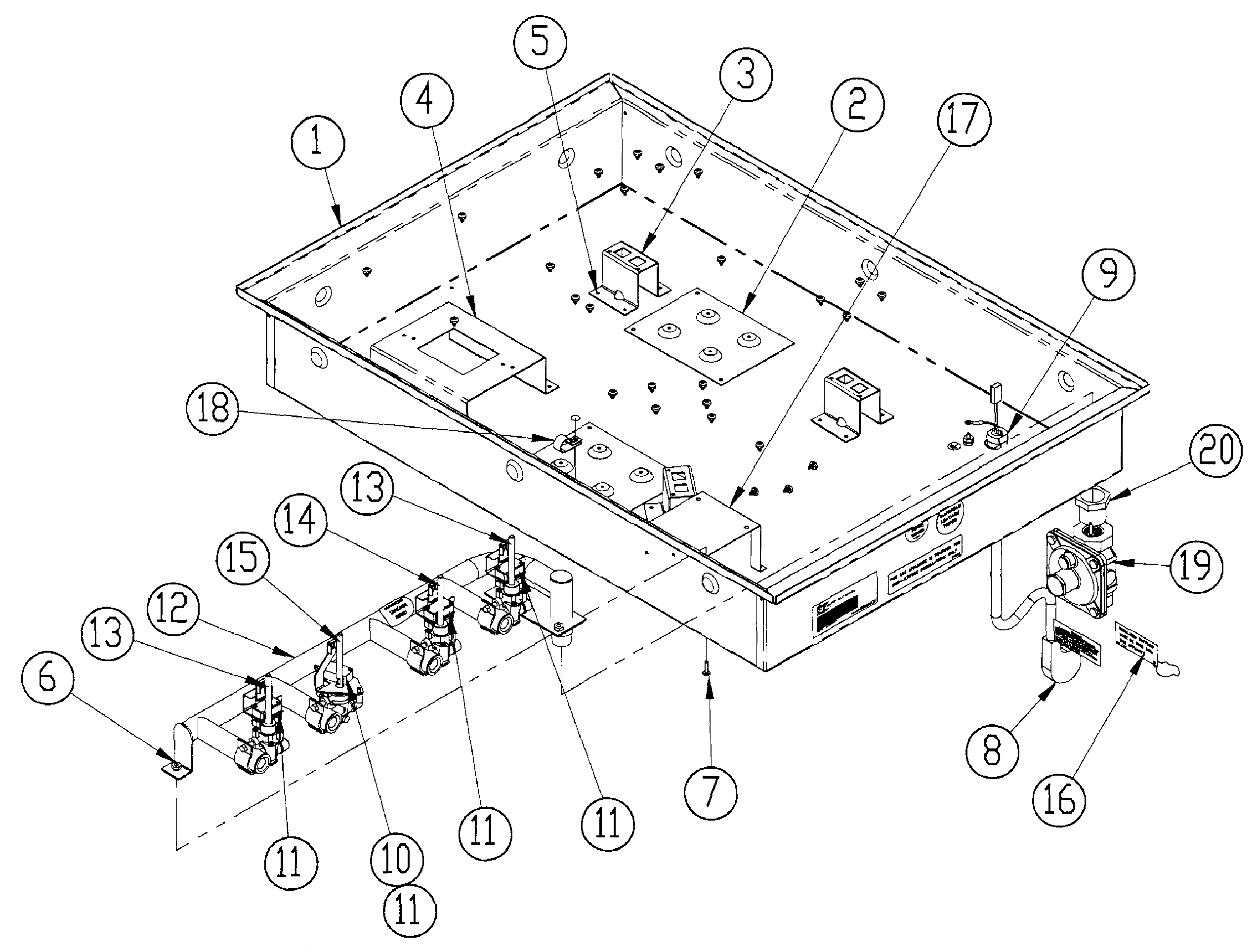

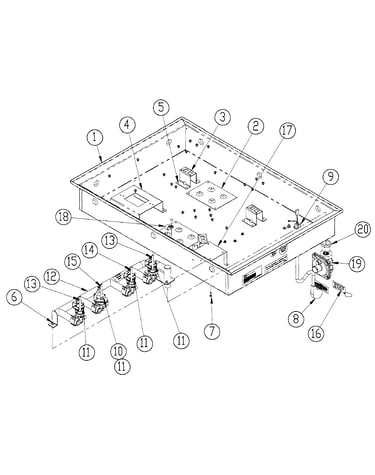

Chassis diagram

Sing valve

Part #66971NG

In Stock
Foam Gasket 92310-001
#4

Upper assy diagram

Foam gasket

Part #92310-001

This item is not returnable
In Stock
Burner Base 103801
#10

Top frame diagram

Burner base

Part #103801

In Stock
Harness 103792
#3A

Upper assy diagram

Harness

Part #103792

In Stock
Reducer Burner 83458
#20

Chassis diagram

Reducer burner

Part #83458

This item is not returnable
In Stock
Sing Valve 66953NG
#13

Chassis diagram

Sing valve

Part #66953NG

In Stock
