Model # 2335978012 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 2335978012 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Range Hood Vent Damper 97005544
#25

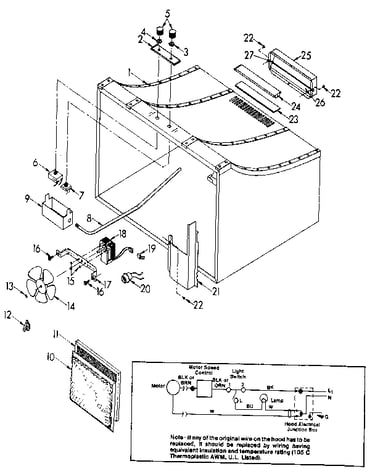

Range hood-canopy diagram

Range hood vent damper

Part #97005544

The manufacturer no longer makes this part, and there's no substitute part

Vent Hood Fan Switch 99030132
#6

Range hood-canopy diagram

Vent hood fan switch

Part #99030132

The manufacturer no longer makes this part, and there's no substitute part

Pal Nut 99260422
#4

Range hood-canopy diagram

Pal nut

Part #99260422

Replaced by #S99260419

?
Manufacturer substitution
This part replaces 99260422. Substitute parts can look different from the original.
This item is not returnable
$3.33
In Stock
Blade 99020123
#14

Range hood-canopy diagram

Blade

Part #99020123

Replaced by #06112-00

?
Manufacturer substitution
This part replaces 99020123. Substitute parts can look different from the original.
This item is not returnable
$6.92
In Stock
Range Hood Vent Damper Cover 98005221
#26

Range hood-canopy diagram

Range hood vent damper cover

Part #98005221

Replaced by #S98005221

?
Manufacturer substitution
This part replaces 98005221. Substitute parts can look different from the original.
This item is not returnable
$3.70
In Stock
Range Hood Switch 97005328
#7

Range hood-canopy diagram

Range hood switch

Part #97005328

This item is not returnable
$16.38
In Stock
Lock Nut 99260466
#15

Range hood-canopy diagram

Lock nut

Part #99260466

Replaced by #S99260428

?
Manufacturer substitution
This part replaces 99260466. Substitute parts can look different from the original.
This item is not returnable
$3.33
In Stock
Range Hood Fan Motor Bracket 98005568
#17

Range hood-canopy diagram

Range hood fan motor bracket

Part #98005568

Replaced by #S98005568

?
Manufacturer substitution
This part replaces 98005568. Substitute parts can look different from the original.
This item is not returnable
$3.39
In Stock
Range Hood Filter Latch 99420472
#12

Range hood-canopy diagram

Range hood filter latch

Part #99420472

Replaced by #S99420472

?
Manufacturer substitution
This part replaces 99420472. Substitute parts can look different from the original.
This item is not returnable
$19.92 |
9% OFF Phone Price : $21.92
In Stock
Range Hood Nameplate 99090634
#2

Range hood-canopy diagram

Range hood nameplate

Part #99090634

Replaced by #S99090634

?
Manufacturer substitution
This part replaces 99090634. Substitute parts can look different from the original.
This item is not returnable
$5.49
In Stock
