Model # 113116121 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 113116121 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Sp Clip 967227-001
#22

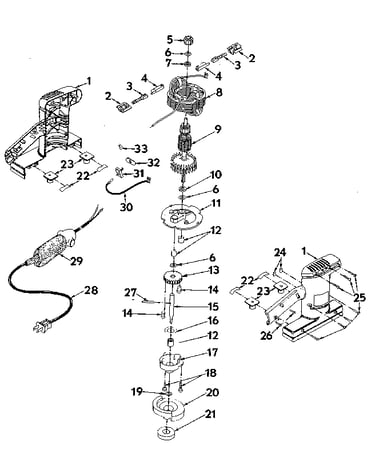

Section "a" diagram

Sp clip

Part #967227-001

The manufacturer no longer makes this part, and there's no substitute part

Wire Connctr 623173-001
#33

Section "a" diagram

Wire connctr

Part #623173-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-024
#10

Section "a" diagram

Washer

Part #706382-024

The manufacturer no longer makes this part, and there's no substitute part

1/2 In. Cutter (item No. 9-25413) (standard Hardware Item-may Be Purchased Locally) N/P
#8

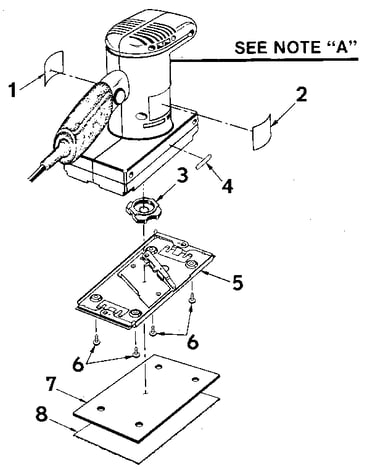

Platen assembly diagram

1/2 in. cutter (item no. 9-25413) (standard hardware item-may be purchased locally)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Screw 999162-001
#6

Platen assembly diagram

Screw

Part #999162-001

The manufacturer no longer makes this part, and there's no substitute part

Sander Motor Housing Rubber Plug 623019-004
#24

Section "a" diagram

Sander motor housing rubber plug

Part #623019-004

The manufacturer no longer makes this part, and there's no substitute part

Actuator 999182-001
#32

Section "a" diagram

Actuator

Part #999182-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 990352-001
#21

Section "a" diagram

Ball bearing

Part #990352-001

The manufacturer no longer makes this part, and there's no substitute part

Feild 999369-006
#8

Section "a" diagram

Feild

Part #999369-006

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly 998051-000
#28A

Section "a" diagram

Cord assembly

Part #998051-000

The manufacturer no longer makes this part, and there's no substitute part
