Kenmore
Dishwasher

Model # 5871747580 Official Kenmore portable dishwasher

Here are the diagrams and repair parts for Official Kenmore 5871747580 portable dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

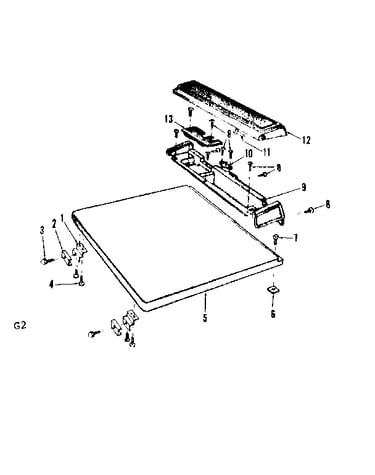

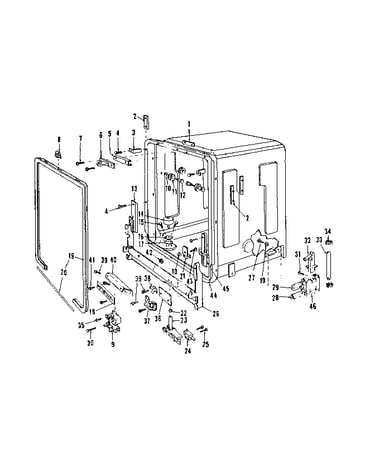

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Nut 806834
#24

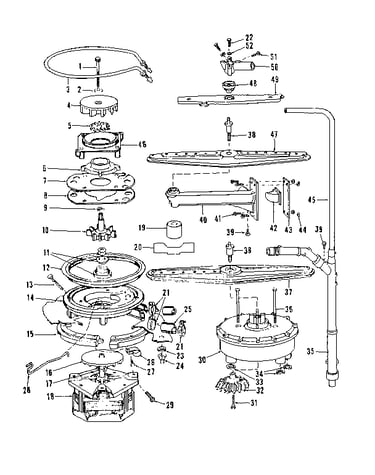

Motor, heater and spray arm diagram

Nut

Part #806834

Replaced by #154106202

?
Manufacturer substitution
This part replaces 806834. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Basket 808994
#3

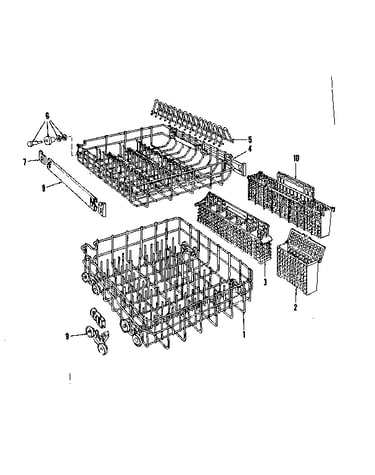

Rack diagram

Basket

Part #808994

Replaced by #5304509753

?
Manufacturer substitution
This part replaces 808994. Substitute parts can look different from the original.
This item is not returnable
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Lock Nut 808470
#5

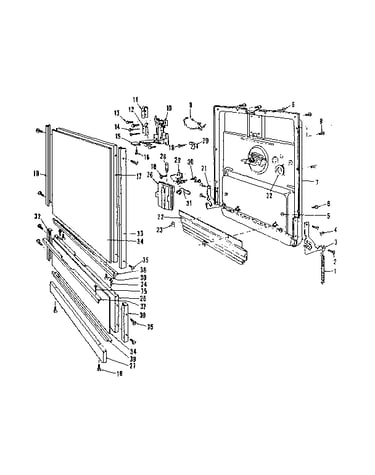

Door diagram

Lock nut

Part #808470

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 808470. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Wire Tie 809075
#9

Door diagram

Wire tie

Part #809075

Replaced by #5300809075

?
Manufacturer substitution
This part replaces 809075. Substitute parts can look different from the original.
This item is not returnable
$3.00
In Stock
Scalant 807509

#NI

All parts diagram

Scalant

Part #807509

Replaced by #5304469950

?
Manufacturer substitution
This part replaces 807509. Substitute parts can look different from the original.
$86.64 |
6% OFF Phone Price : $92.64
In Stock
Screw 807293
#35

Door diagram

Screw

Part #807293

Replaced by #5300807293

?
Manufacturer substitution
This part replaces 807293. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Clamp 808442
Clamp

Part #808442

Replaced by #5308000133

?
Manufacturer substitution
This part replaces 808442. Substitute parts can look different from the original.
$11.20
In Stock
Washer 808613
#18

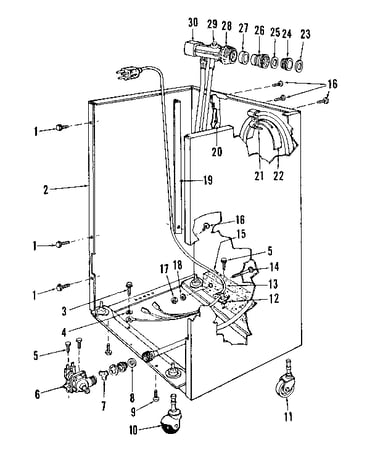

Frame diagram

Washer

Part #808613

Replaced by #5300808613

?
Manufacturer substitution
This part replaces 808613. Substitute parts can look different from the original.
$7.73
In Stock
Screw 808618
#14

Door diagram

Screw

Part #808618

Replaced by #5300808618

?
Manufacturer substitution
This part replaces 808618. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Clamp 805584
#15

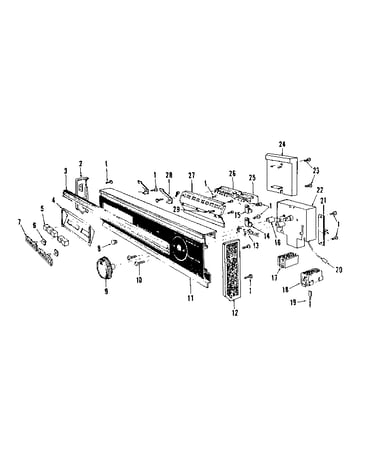

Console panel diagram

Clamp

Part #805584

Replaced by #5300808495

?
Manufacturer substitution
This part replaces 805584. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
