Model # U3107 Official Hoover upright vacuum
Here are the diagrams and repair parts for Official Hoover U3107 upright vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part

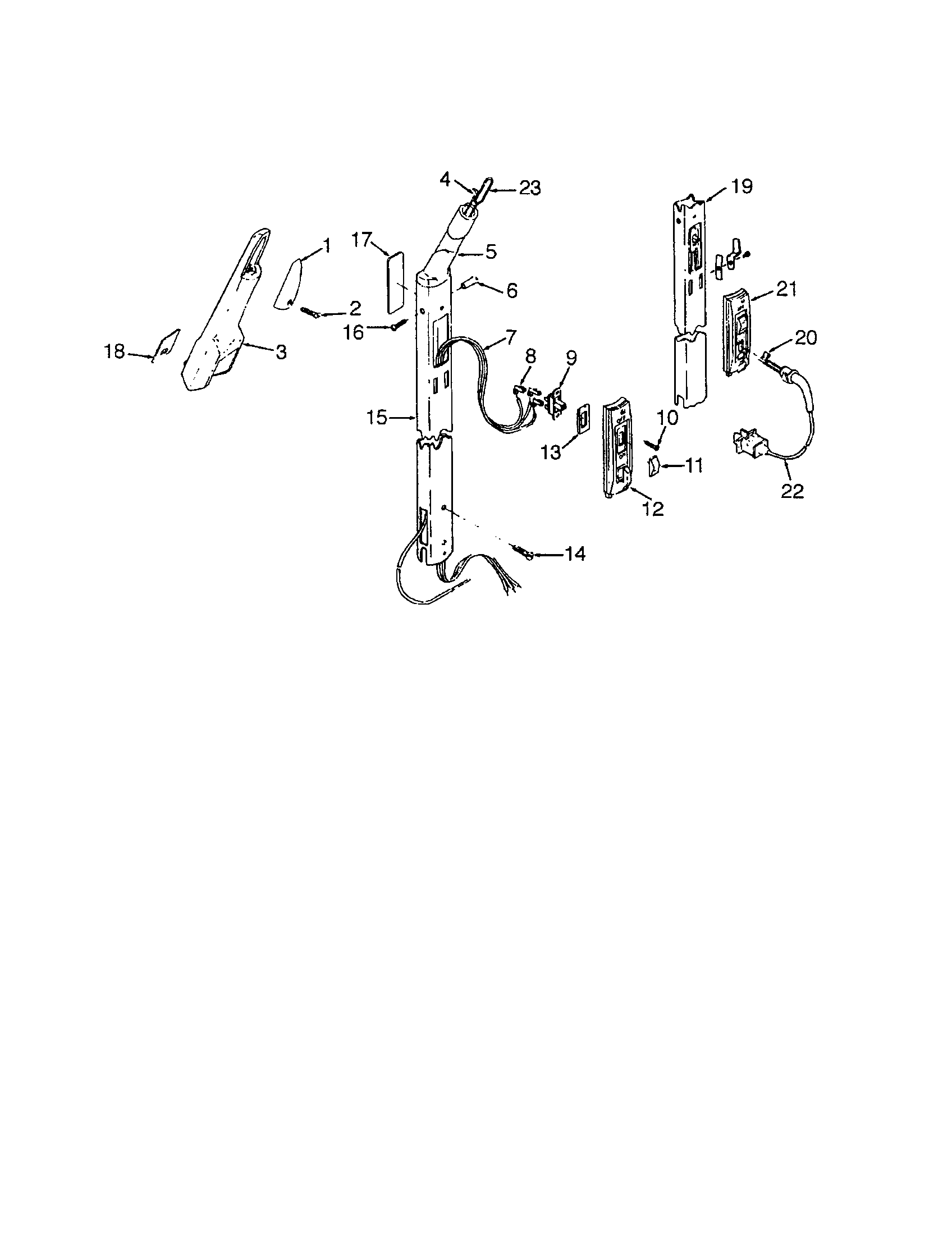

SELECT DIAGRAM
Browse Parts for
U3107 Vacuum Cleaners
#28

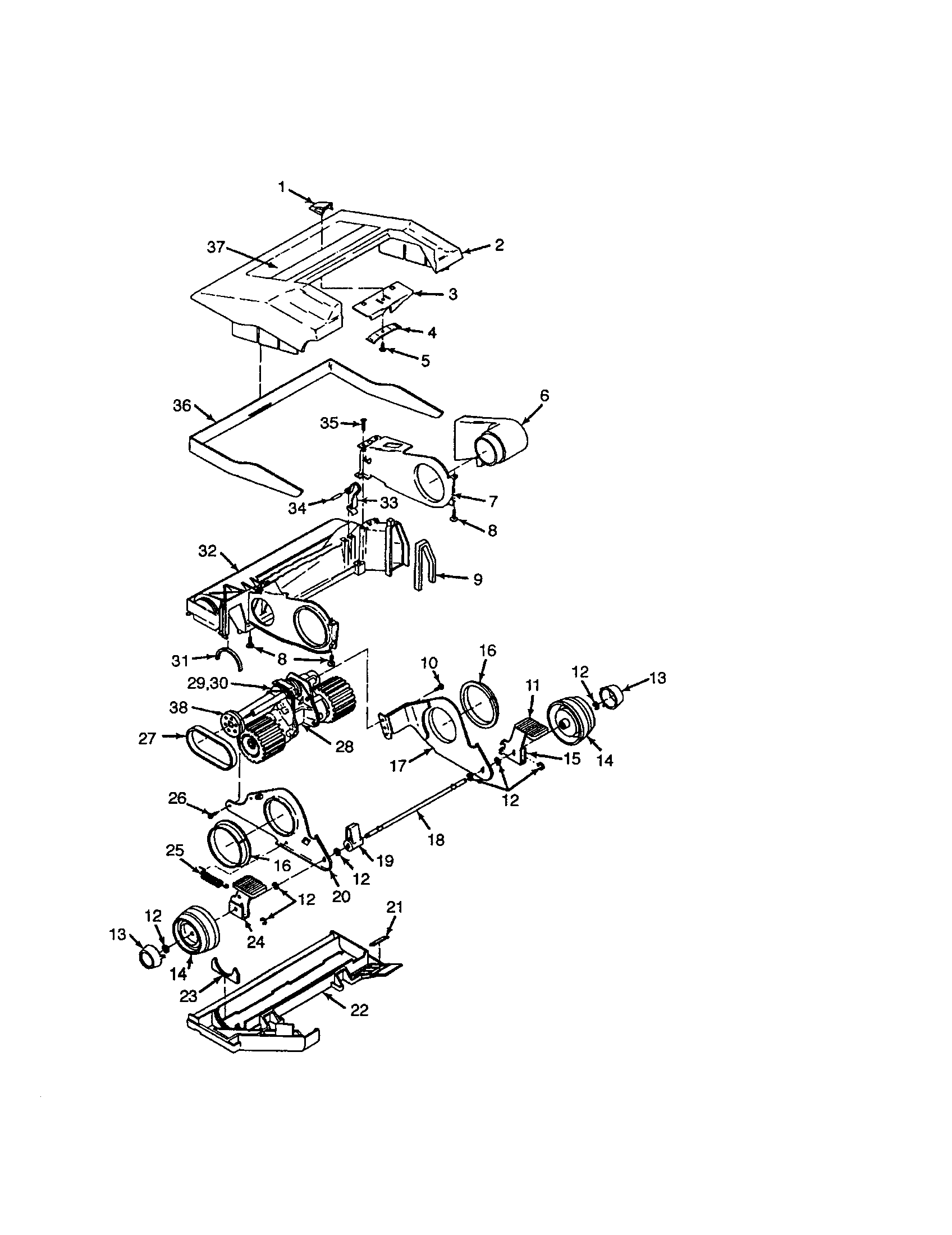

Agitator housing diagram
Power drive
Part #43124009
The manufacturer no longer makes this part, and there's no substitute part
#7

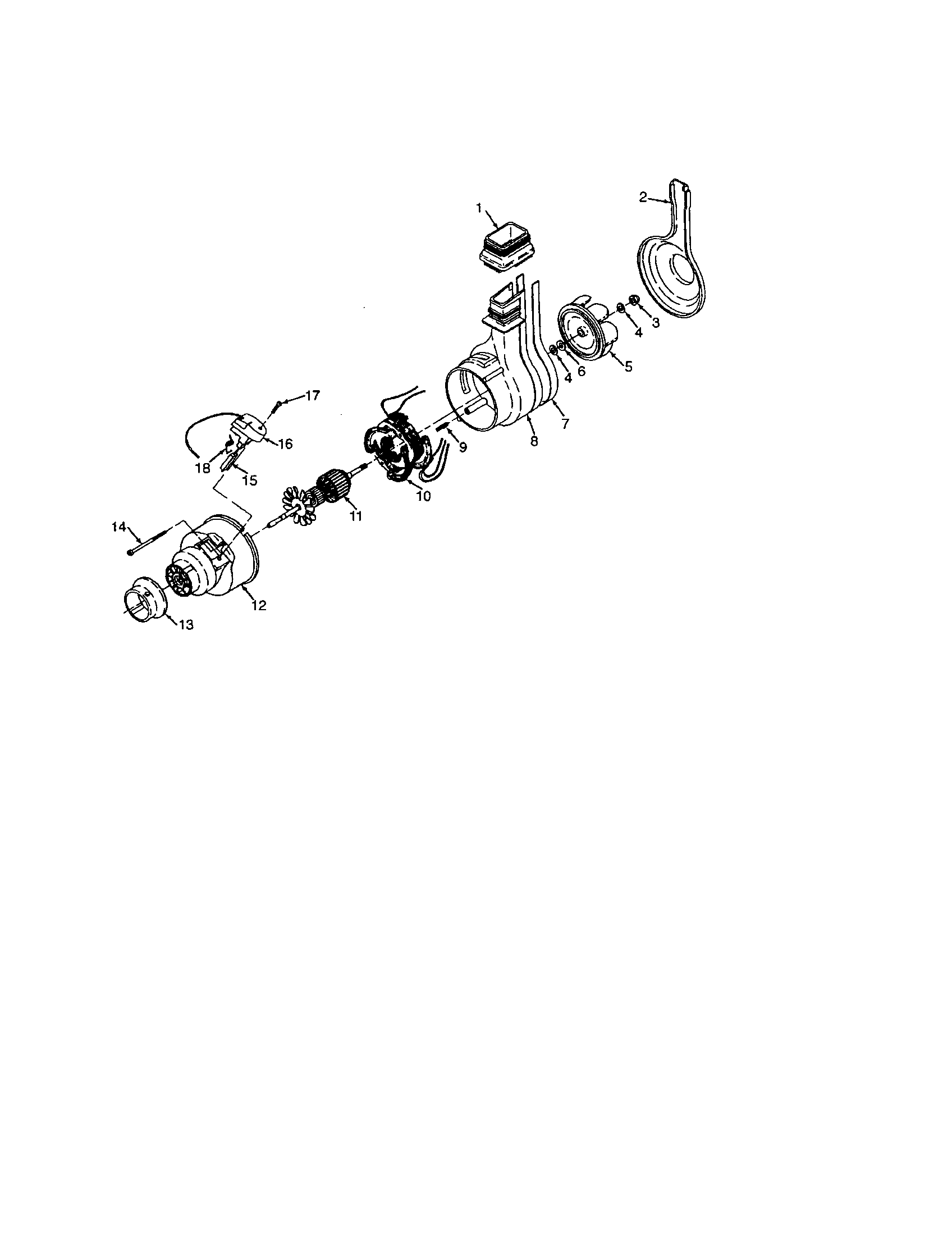

Motor diagram
Tape
Part #54821001
The manufacturer no longer makes this part, and there's no substitute part
#7

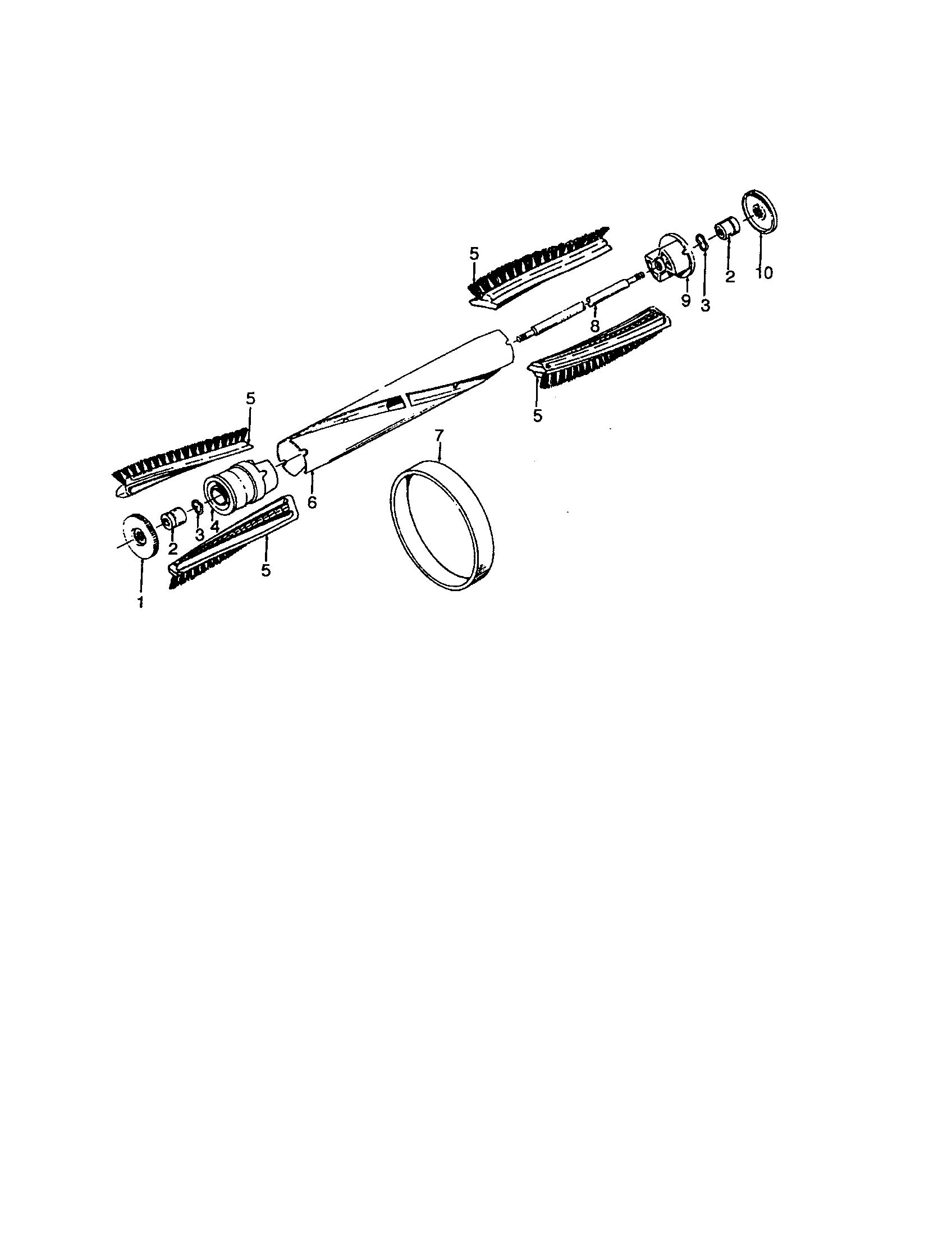

Agitator diagram
Vacuum beater bar belt
Part #38528008
The manufacturer no longer makes this part, and there's no substitute part
#6
Agitator housing diagram
Air duct
Part #38656023
The manufacturer no longer makes this part, and there's no substitute part
#13A
Agitator housing diagram
Wheel cover
Part #169242
The manufacturer no longer makes this part, and there's no substitute part
#54

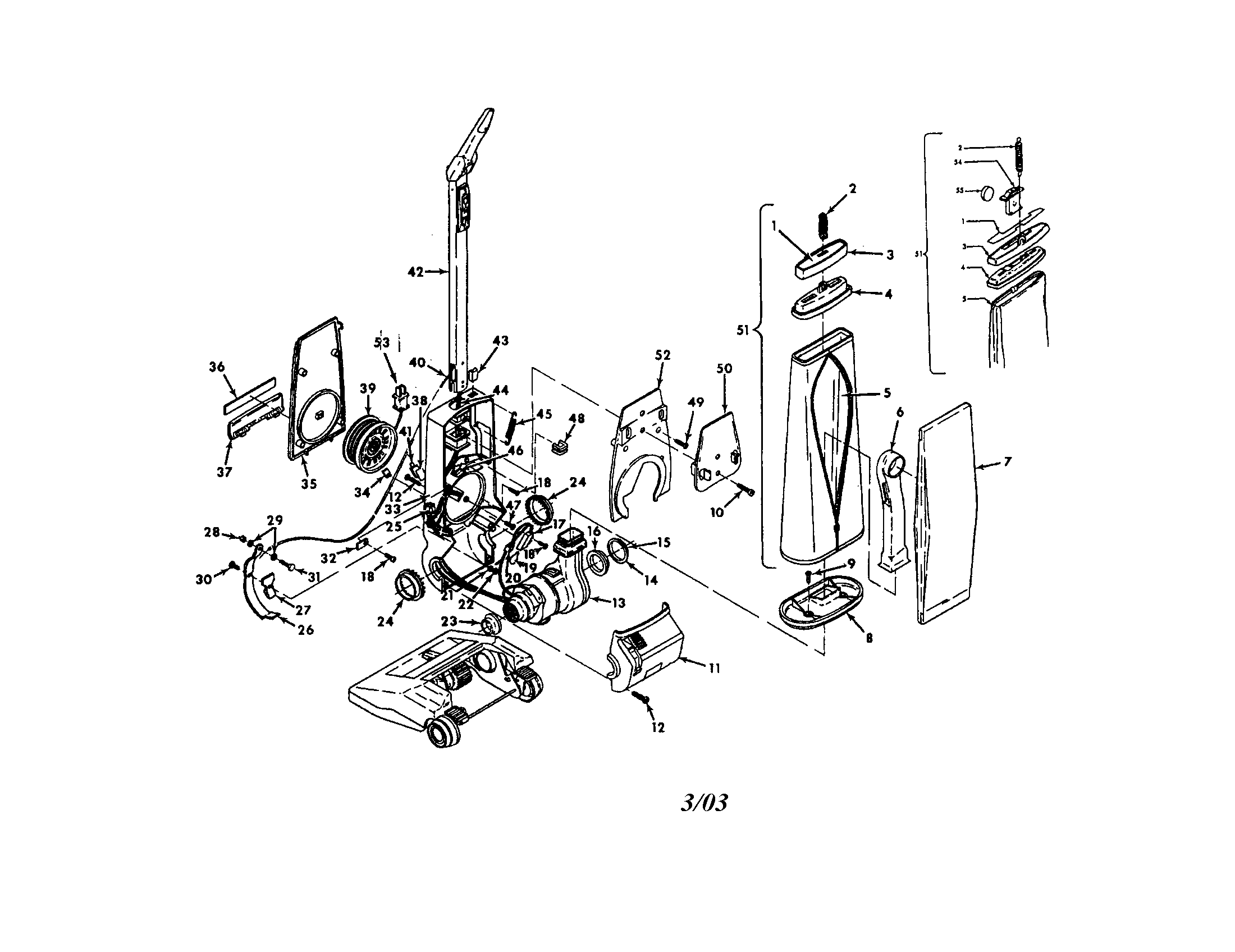

Front housing and bag diagram
Drawer
Part #35111002
The manufacturer no longer makes this part, and there's no substitute part
#26A
Front housing and bag diagram
Actuator bar
Part #43143096
The manufacturer no longer makes this part, and there's no substitute part
#22
Front housing and bag diagram
Kenmore nut
Part #33423007
The manufacturer no longer makes this part, and there's no substitute part
#12
Motor diagram
Motor housing
Part #42193004
The manufacturer no longer makes this part, and there's no substitute part
Screw assembly
Part #16295
The manufacturer no longer makes this part, and there's no substitute part
