Homelite
Gas Line Trimmer

Model # 74112 Official Homelite trimmer

Here are the diagrams and repair parts for Official Homelite 74112 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |

Gasket 98766-A
#26

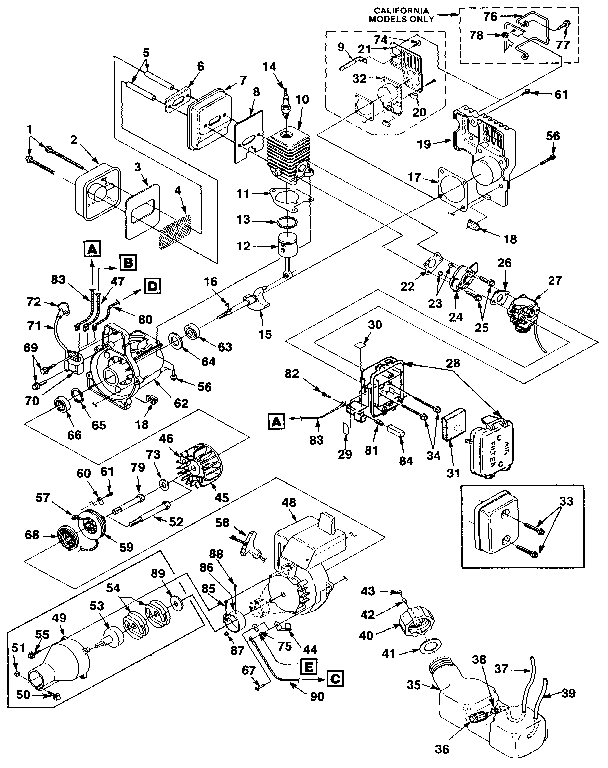

Figure 1 diagram

Gasket

Part #98766-A

The manufacturer no longer makes this part, and there's no substitute part

Part 00676
#4

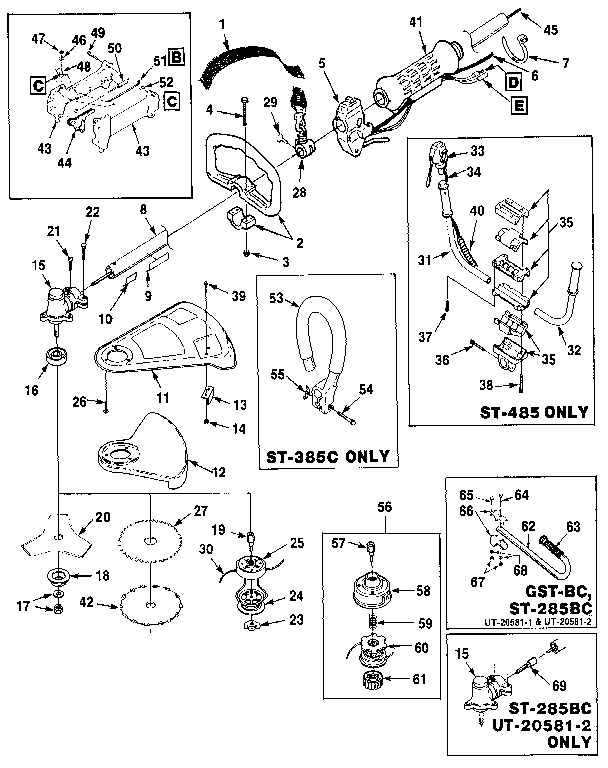

Figure 5 diagram

Part

Part #00676

The manufacturer no longer makes this part, and there's no substitute part

Screw 82521
#16

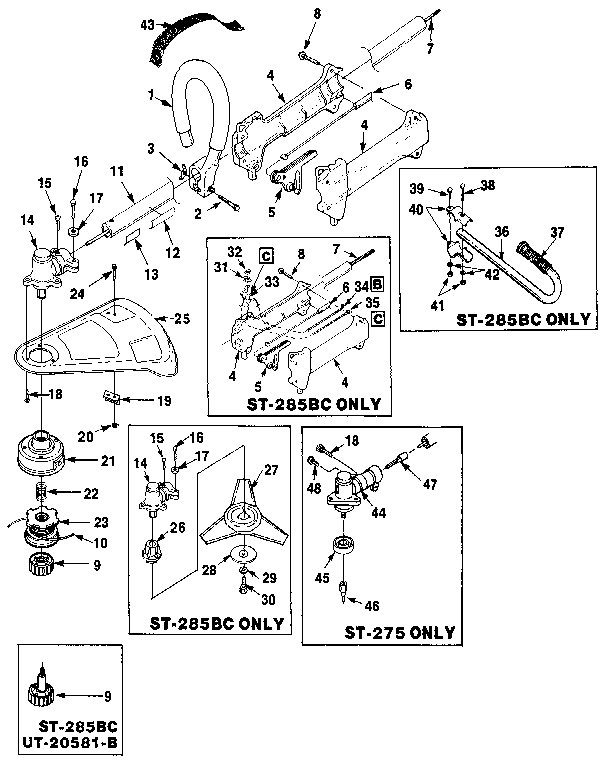

Figure 4 diagram

Screw

Part #82521

The manufacturer no longer makes this part, and there's no substitute part

Nut 97574
#87

Figure 1 diagram

Nut

Part #97574

The manufacturer no longer makes this part, and there's no substitute part

Fuel Cap Kit A-00982-A
#40

Figure 1 diagram

Fuel cap kit

Part #A-00982-A

The manufacturer no longer makes this part, and there's no substitute part

Drive Housing A-00114
#8

Figure 5 diagram

Drive housing

Part #A-00114

The manufacturer no longer makes this part, and there's no substitute part

Wre Gurd Kit A-00254
#76

Figure 1 diagram

Wre gurd kit

Part #A-00254

The manufacturer no longer makes this part, and there's no substitute part

Part 00677
#3

Figure 5 diagram

Part

Part #00677

The manufacturer no longer makes this part, and there's no substitute part

Front Hand 94474-B
Front hand

Part #94474-B

The manufacturer no longer makes this part, and there's no substitute part

Cutoff Pl A-03832
#18A

Figure 2 diagram

Cutoff pl

Part #A-03832

The manufacturer no longer makes this part, and there's no substitute part
