GE
Dishwasher

Model # GSD3930C07WW Official GE dishwasher

Here are the diagrams and repair parts for Official GE GSD3930C07WW dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Mechanism Assembly WD26X10007
#310

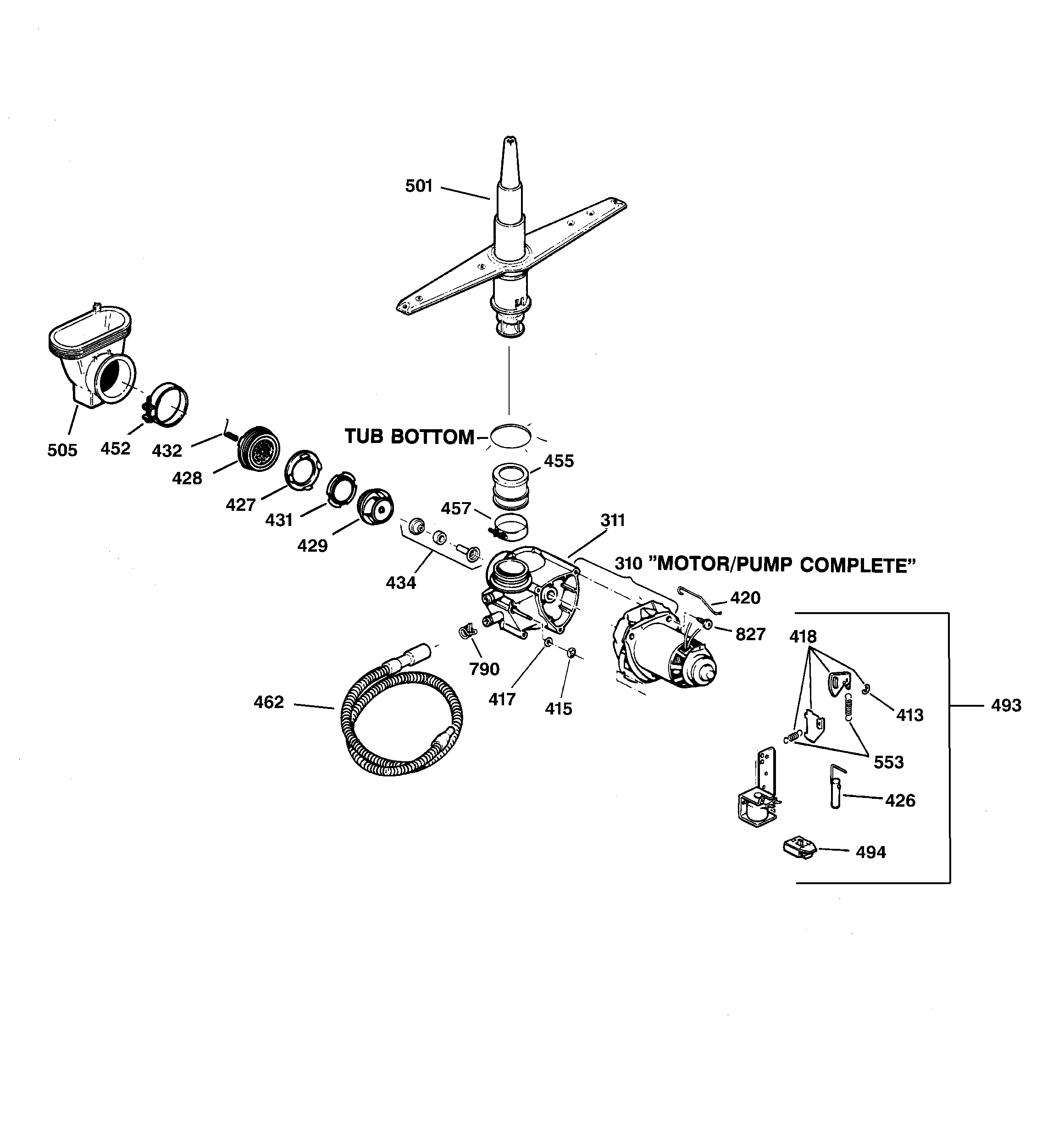

Motor-pump mechanism diagram

Mechanism assembly

Part #WD26X10007

Replaced by #WD26X10013

?
Manufacturer substitution
This part replaces WD26X10007. Substitute parts can look different from the original.
BEST SELLER
$148.24 |
9% OFF Was : $162.37
In Stock
Bracket & So WD21X10071
#493

Motor-pump mechanism diagram

Bracket & so

Part #WD21X10071

Replaced by #WD21X10268

?
Manufacturer substitution
This part replaces WD21X10071. Substitute parts can look different from the original.
BEST SELLER
$41.53 |
13% OFF Phone Price : $47.53
In Stock
Bafle Tubcnr WD08X0227
#26

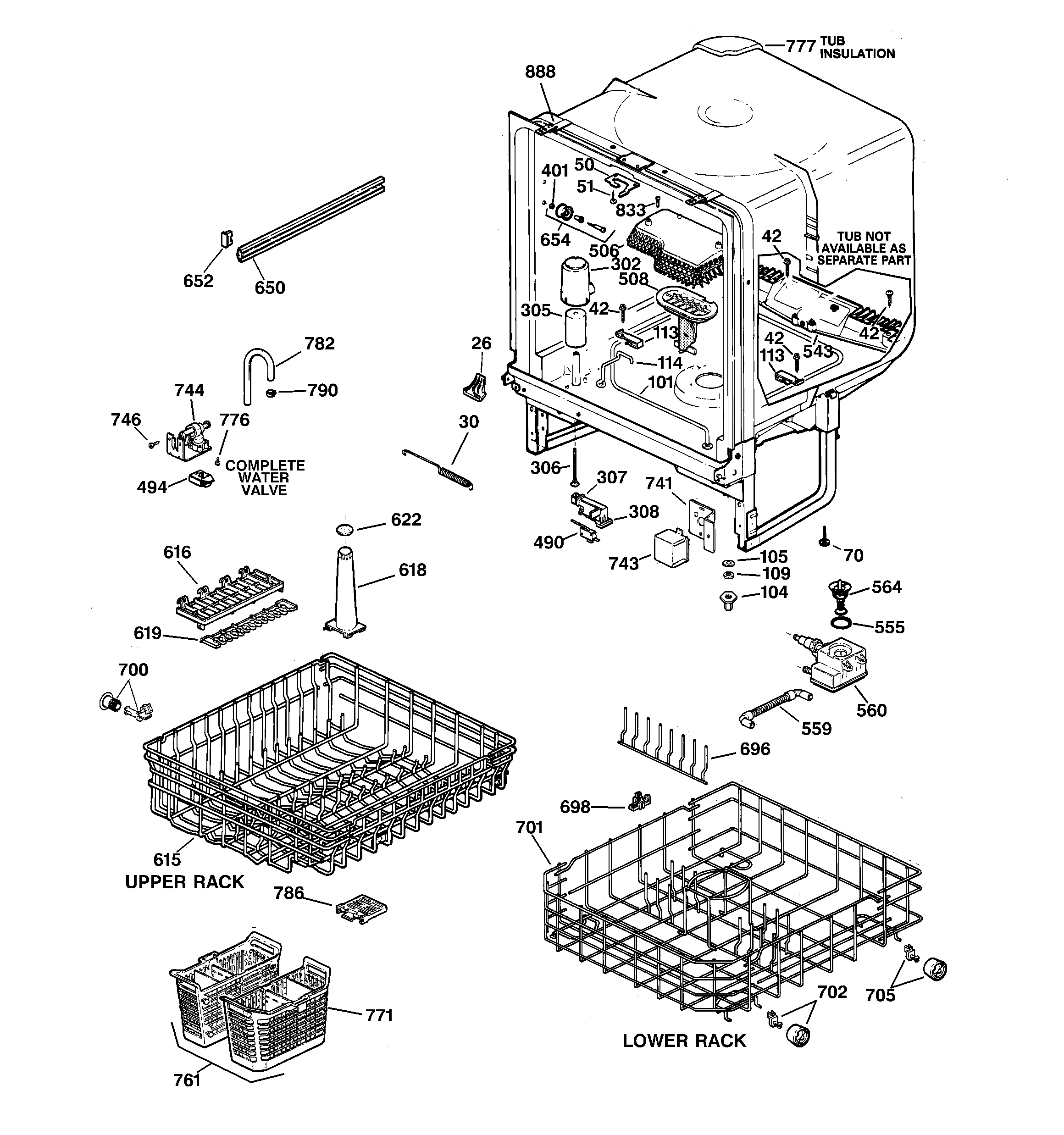

Body parts diagram

Bafle tubcnr

Part #WD08X0227

Replaced by #WD8X227

?
Manufacturer substitution
This part replaces WD08X0227. Substitute parts can look different from the original.
BEST SELLER
$19.45 |
9% OFF Phone Price : $21.45
In Stock
Bafle Tubcn WD08X0228
#26

Body parts diagram

Bafle tubcn

Part #WD08X0228

Replaced by #WD8X228

?
Manufacturer substitution
This part replaces WD08X0228. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Interlock Switch WD21X0557
#803

Escutcheon & door assembly diagram

Interlock switch

Part #WD21X0557

Replaced by #WD21X10261

?
Manufacturer substitution
This part replaces WD21X0557. Substitute parts can look different from the original.
BEST SELLER
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Dishwasher Drain Hose (replaces Wd24x10003) WD24X10014
#462

Motor-pump mechanism diagram

Dishwasher drain hose (replaces wd24x10003)

Part #WD24X10014

BEST SELLER
$30.06 |
17% OFF Phone Price : $36.06
In Stock
Dishwasher Drain Solenoid Kit (replaces Wd21x10057, Wd21x10064) WD21X10060
#493

Motor-pump mechanism diagram

Dishwasher drain solenoid kit (replaces wd21x10057, wd21x10064)

Part #WD21X10060

BEST SELLER
$66.29 |
8% OFF Phone Price : $72.29
In Stock
Dishwasher Heating Element Nut WD01X10070
#104

Body parts diagram

Dishwasher heating element nut

Part #WD01X10070

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Rack Roller WD12X0272
#705

Body parts diagram

Rack roller

Part #WD12X0272

Replaced by #WD35X21038

?
Manufacturer substitution
This part replaces WD12X0272. Substitute parts can look different from the original.
BEST SELLER
$32.91 |
15% OFF Phone Price : $38.91
In Stock
Sump Inlet WD18X0213
#505

Motor-pump mechanism diagram

Sump inlet

Part #WD18X0213

Replaced by #WD18X213

?
Manufacturer substitution
This part replaces WD18X0213. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$19.69 |
9% OFF Phone Price : $21.69
In Stock
