Model # ZBD4100S00BK Official GE dishwasher
Here are the diagrams and repair parts for Official GE ZBD4100S00BK dishwasher, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
ZBD4100S00BK Dishwasher
#NI
All parts diagram
Installation instructions
Part #31-3519
$8.49
In Stock
#NI
All parts diagram
Zbd4100s 43
Part #49-5551
$8.49
In Stock
#NI
All parts diagram
Wiring diagram
Part #31-3938
$21.99
In Stock
#144

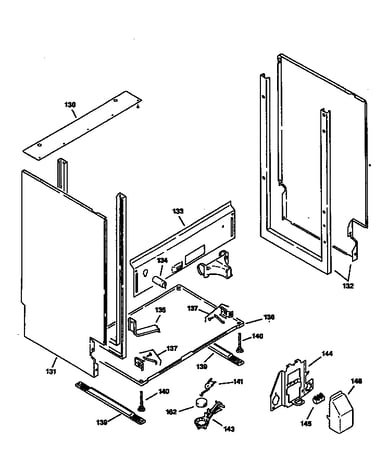

Cabinet diagram
Bracket s
Part #WD37X135
The manufacturer no longer makes this part, and there's no substitute part
#155

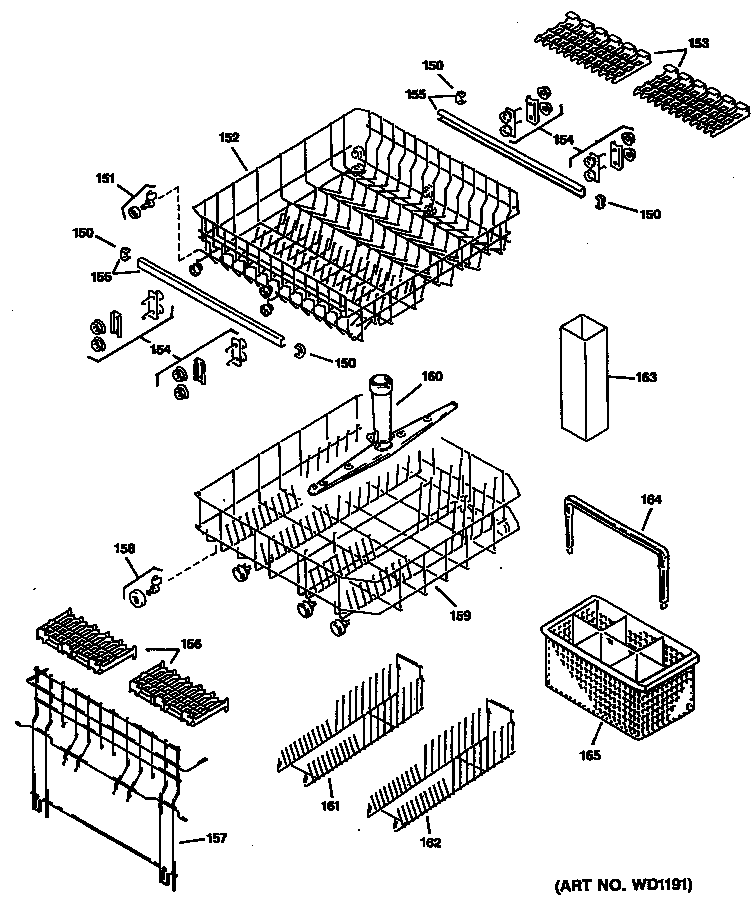

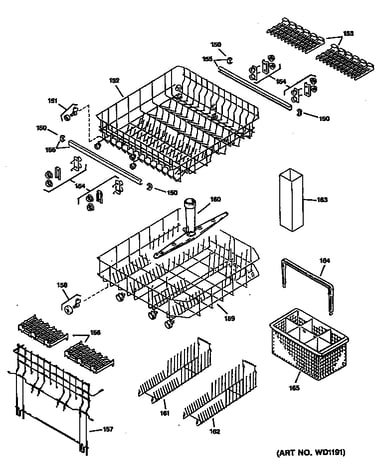

Racks diagram
Trigger b
Part #WD37X143
The manufacturer no longer makes this part, and there's no substitute part
#165
Racks diagram
Cutlery b
Part #WD37X153
The manufacturer no longer makes this part, and there's no substitute part
#53

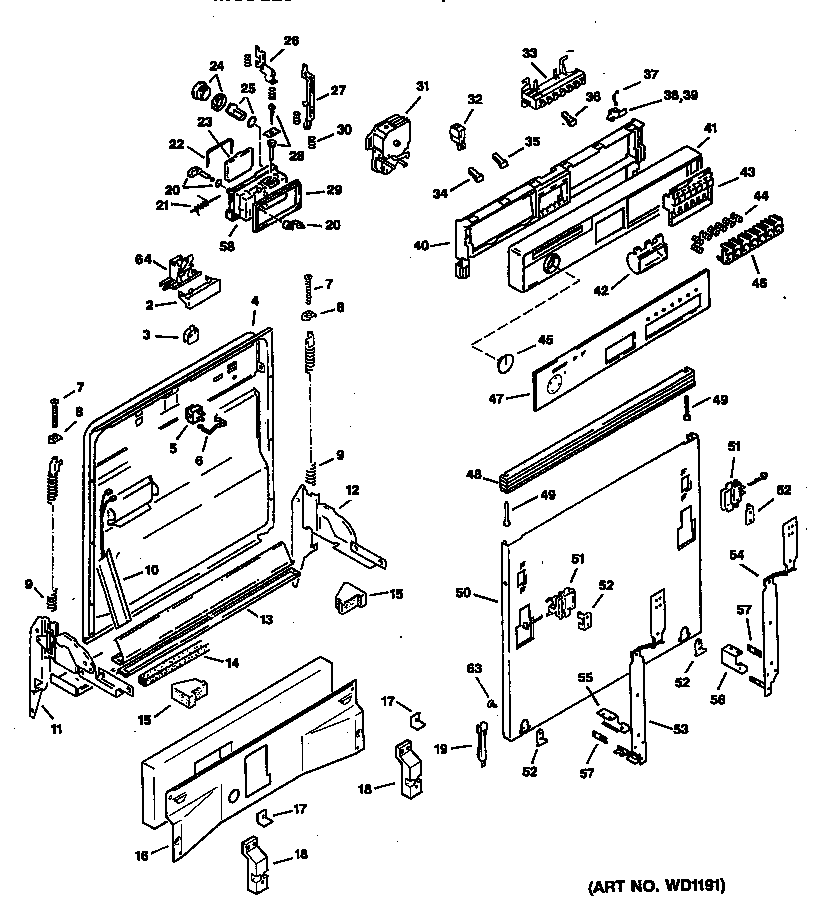

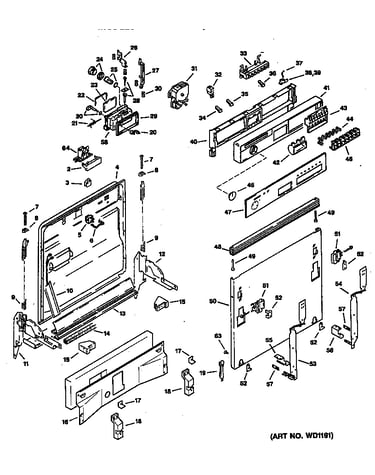

Door diagram
Hinge lh
Part #WD37X53
The manufacturer no longer makes this part, and there's no substitute part
#12
Door diagram
Hinge rh
Part #WD37X12
The manufacturer no longer makes this part, and there's no substitute part
#8
Door diagram
Guide spring
Part #WD37X08
The manufacturer no longer makes this part, and there's no substitute part
#83

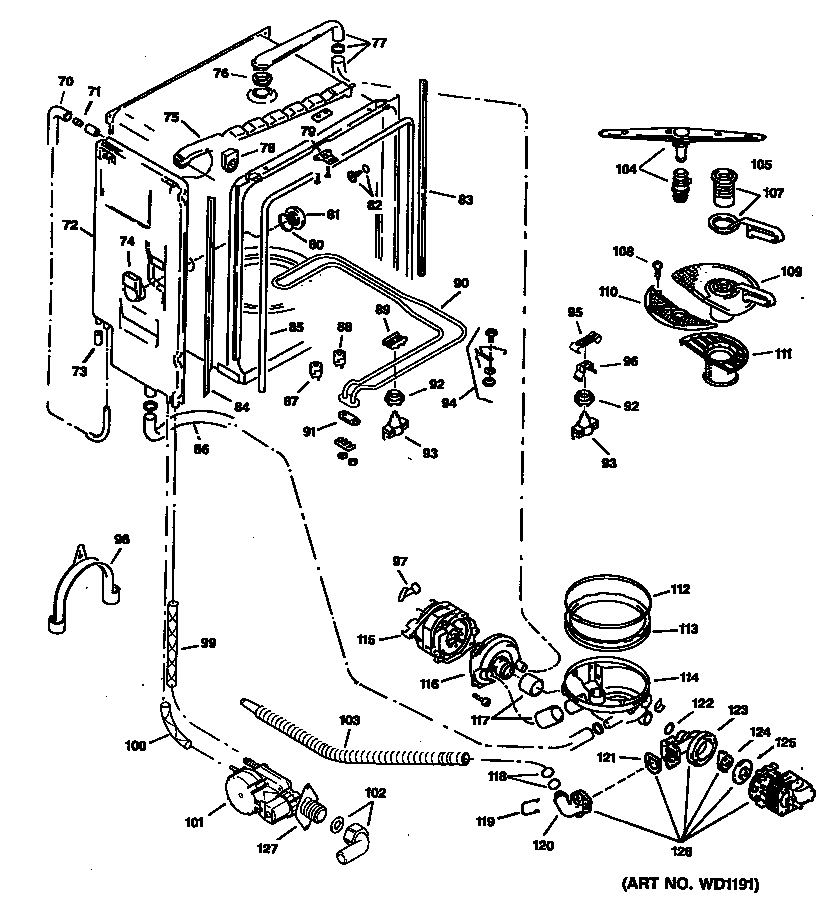

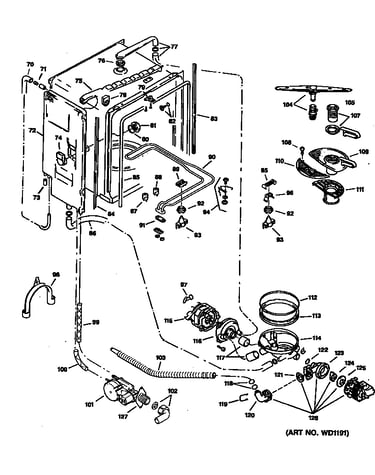

Tub assembly diagram
Strip rh
Part #WD37X163
The manufacturer no longer makes this part, and there's no substitute part
