Model # AR13MS8E1 Official Frigidaire room air conditioner - lf34087140

Here are the diagrams and repair parts for Official Frigidaire AR13MS8E1 room air conditioner - lf34087140, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Grommet 8010930
#4

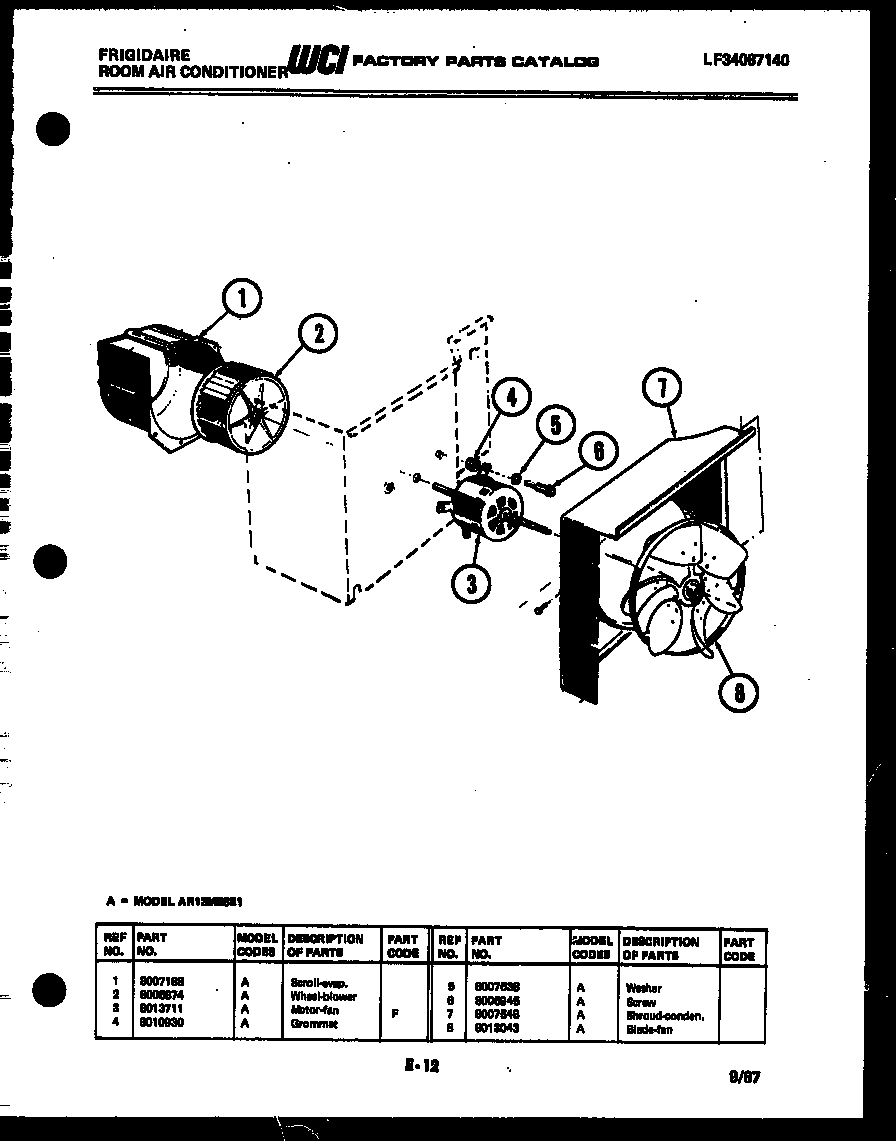

Air handling parts diagram

Grommet

Part #8010930

The manufacturer no longer makes this part, and there's no substitute part

Panel-front 8017172
#21

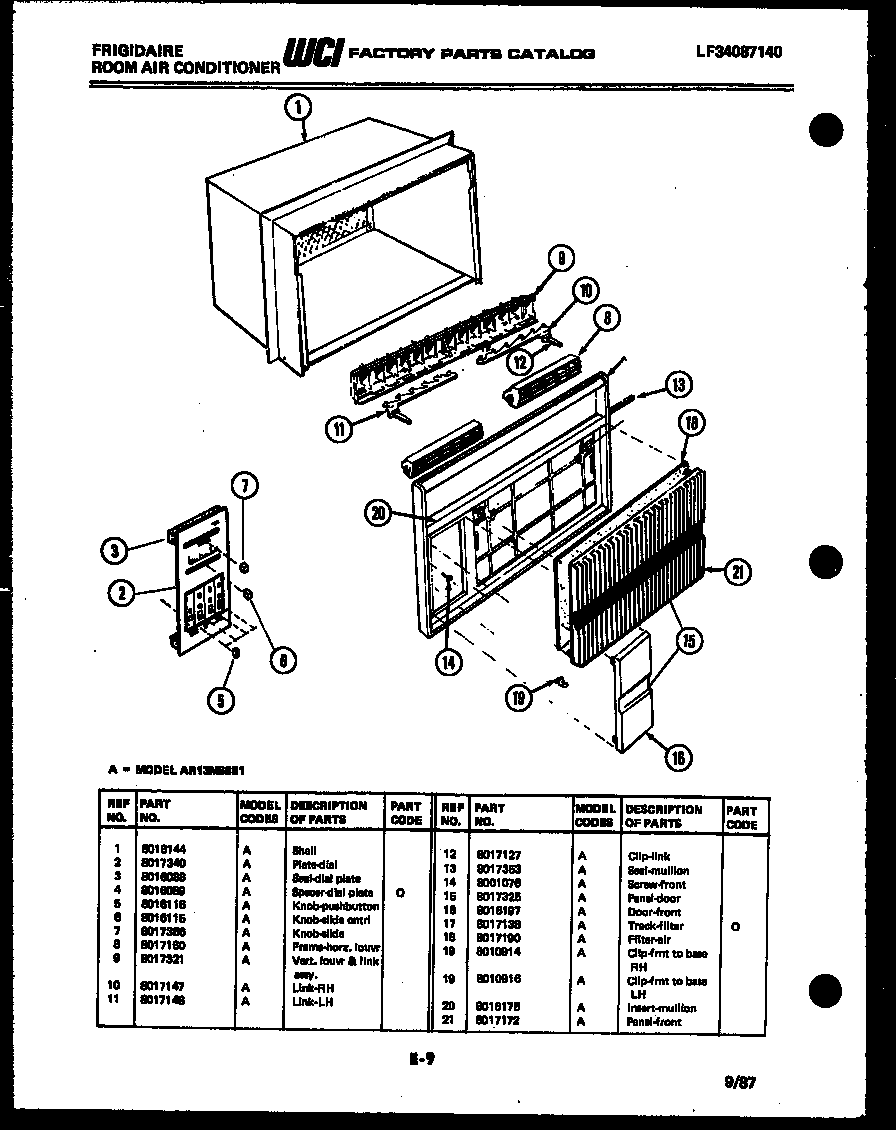

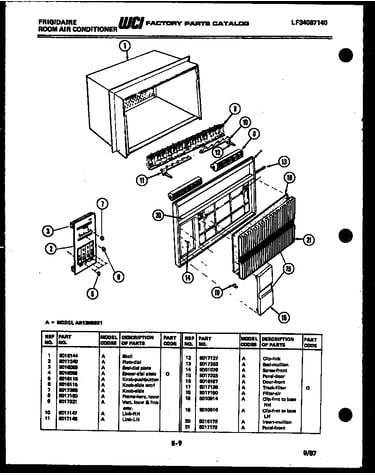

Cabinet parts diagram

Panel-front

Part #8017172

The manufacturer no longer makes this part, and there's no substitute part

Panel-control 8017326
#4

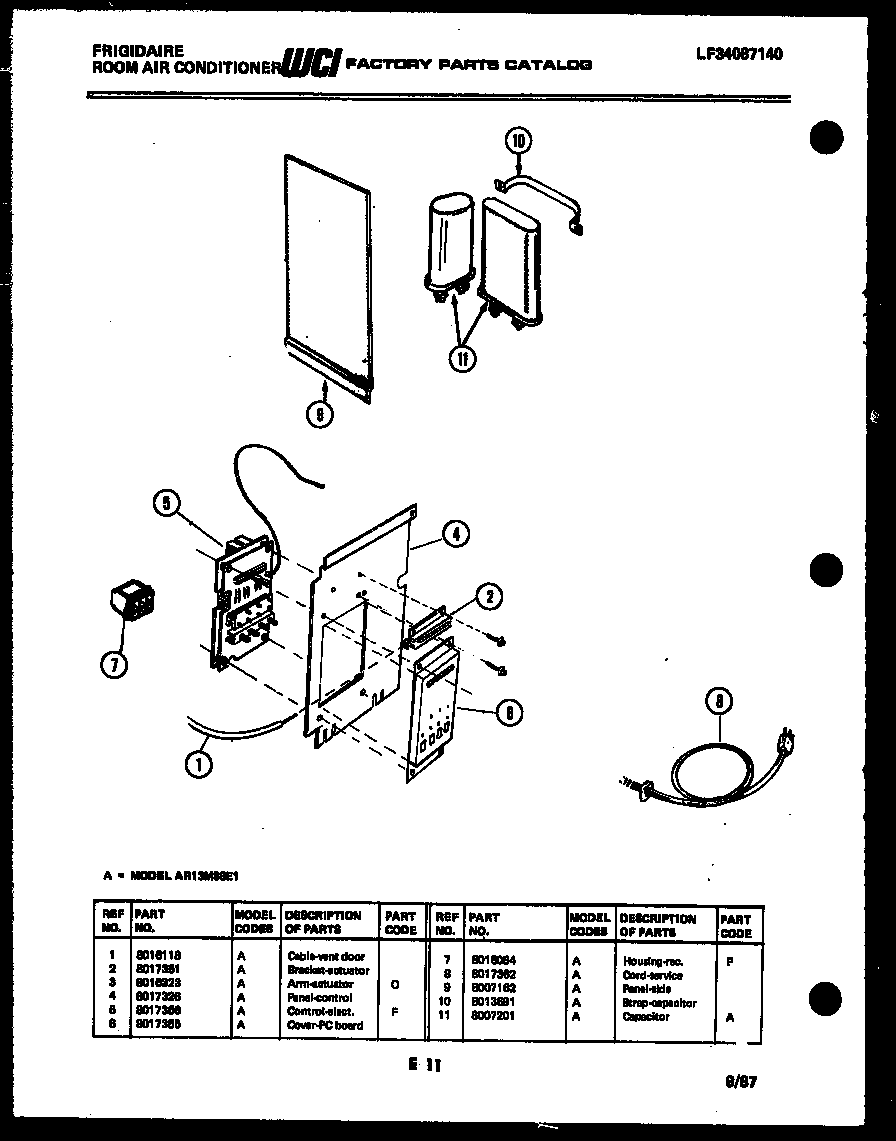

Electrical parts diagram

Panel-control

Part #8017326

The manufacturer no longer makes this part, and there's no substitute part

Retainer 8010943
Retainer

Part #8010943

The manufacturer no longer makes this part, and there's no substitute part

Nut 8006948
#8

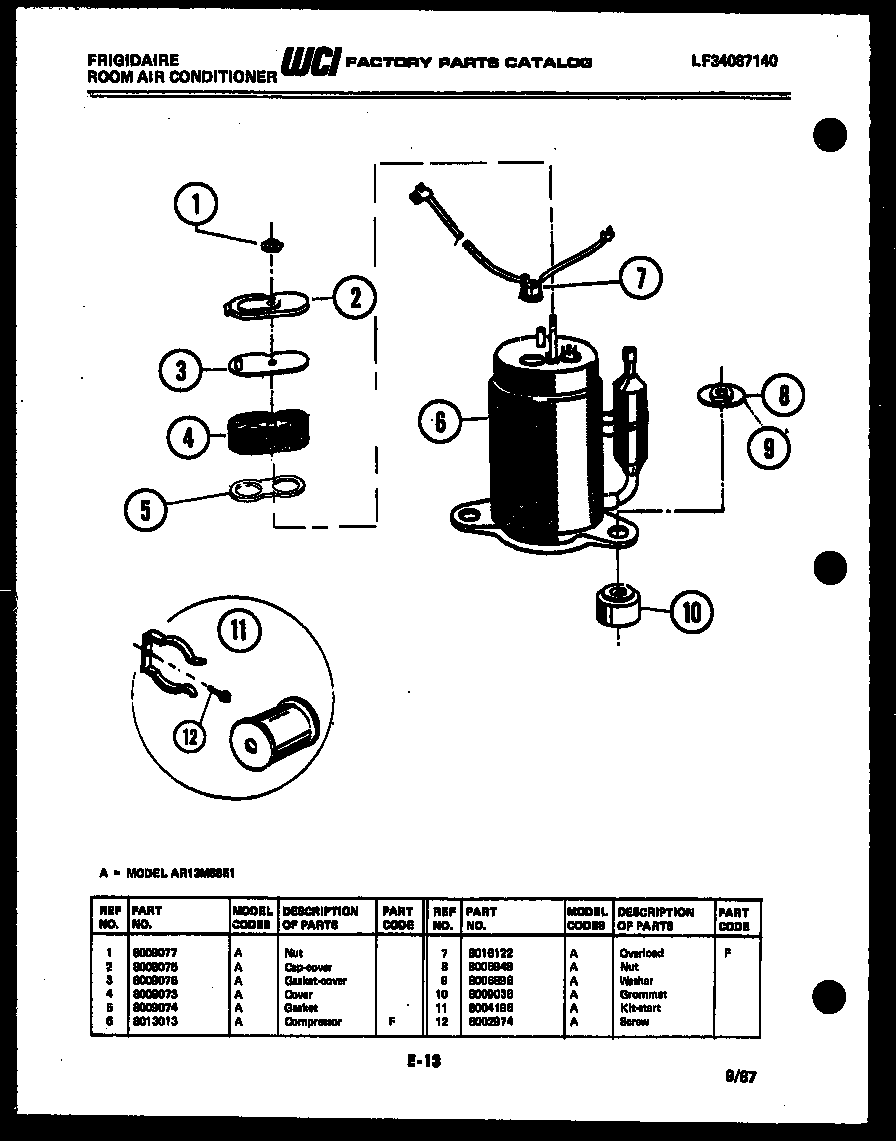

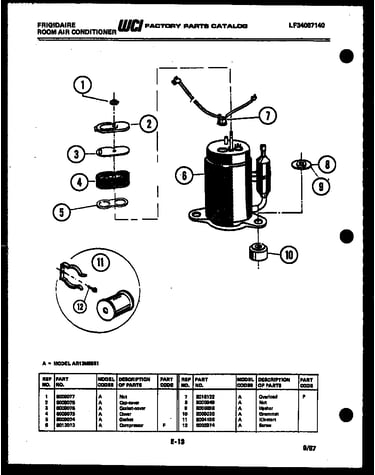

Compressor parts diagram

Nut

Part #8006948

The manufacturer no longer makes this part, and there's no substitute part

Clip (4) 8010927
#5

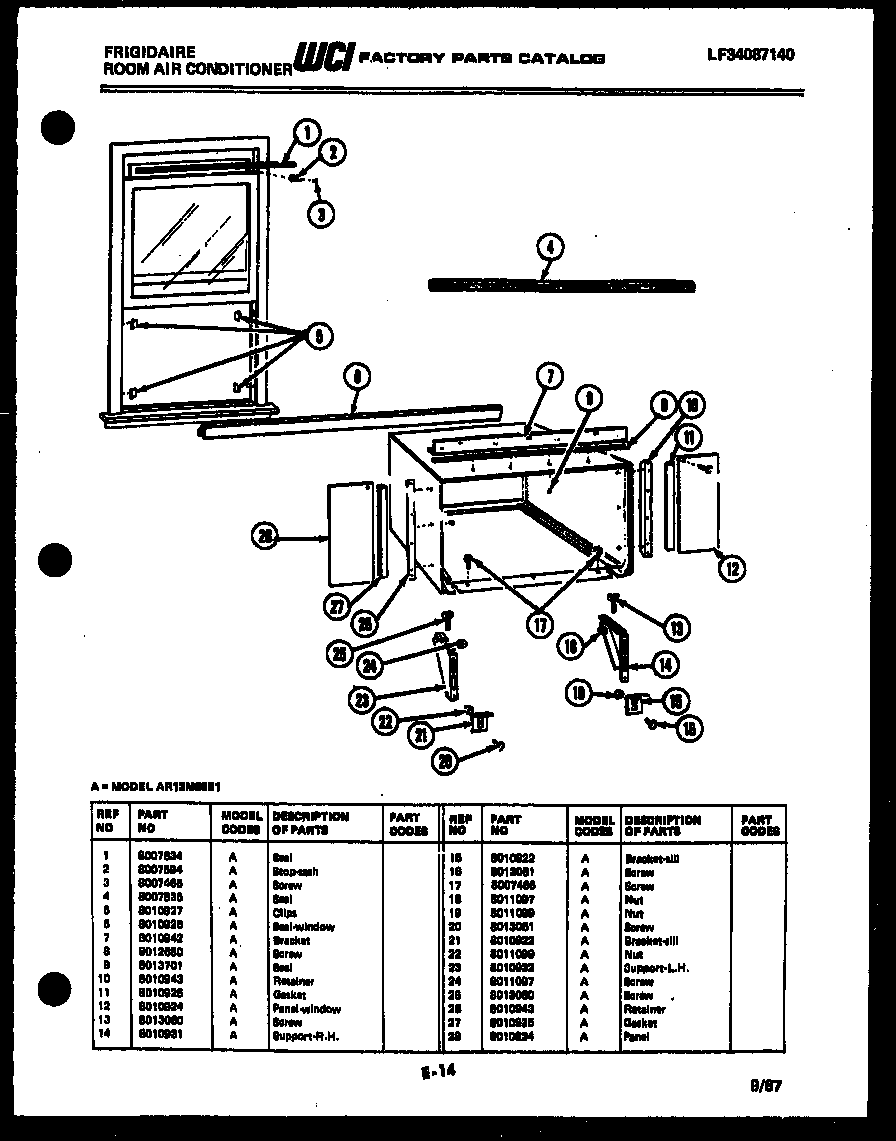

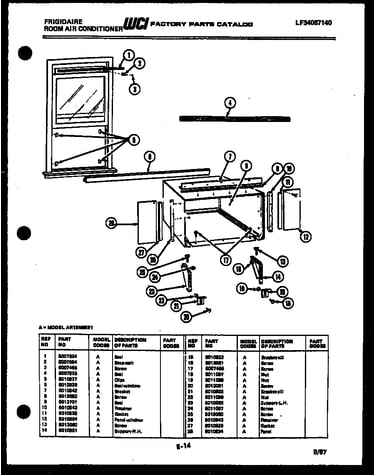

Window mounting parts diagram

Clip (4)

Part #8010927

The manufacturer no longer makes this part, and there's no substitute part

Shroud 8007548
#7

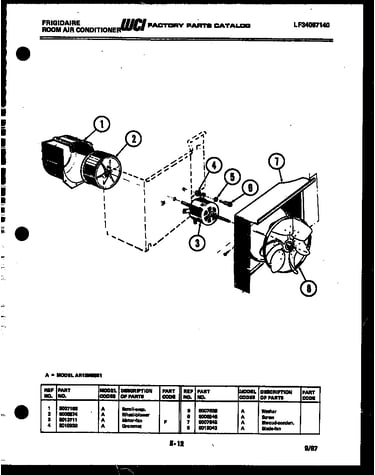

Air handling parts diagram

Shroud

Part #8007548

The manufacturer no longer makes this part, and there's no substitute part

Knob 8017356
#7

Cabinet parts diagram

Knob

Part #8017356

The manufacturer no longer makes this part, and there's no substitute part

Door, Vent (incl. Seal) 8016079
#1

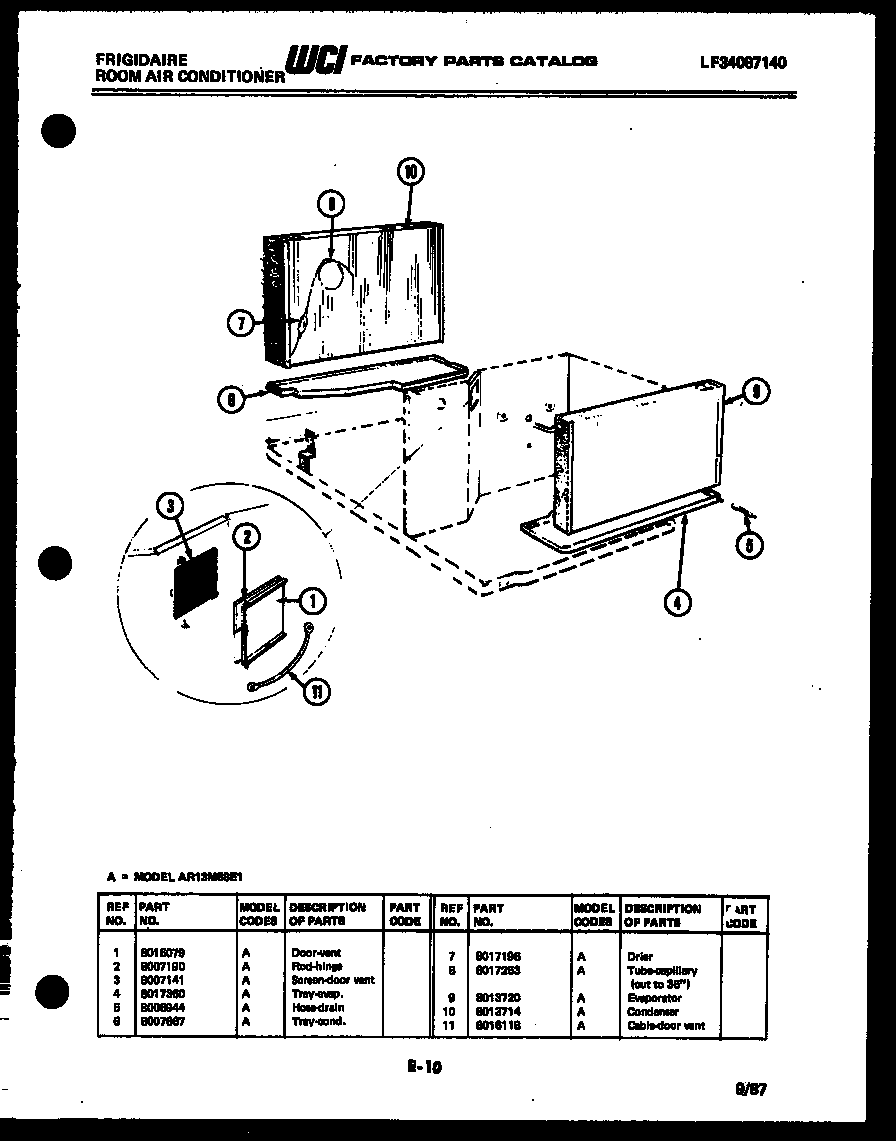

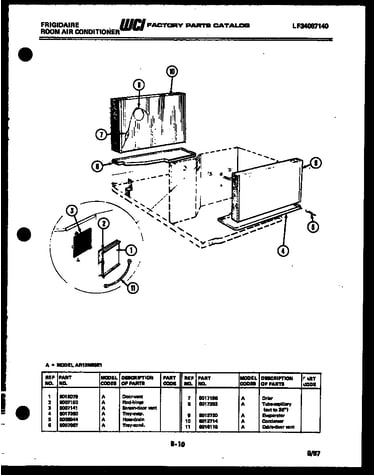

Unit parts diagram

Door, vent (incl. seal)

Part #8016079

The manufacturer no longer makes this part, and there's no substitute part

Nut 8011099
Nut

Part #8011099

The manufacturer no longer makes this part, and there's no substitute part
