Model # LFGS3025PFA Official Frigidaire gas range

Here are the diagrams and repair parts for Official Frigidaire LFGS3025PFA gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

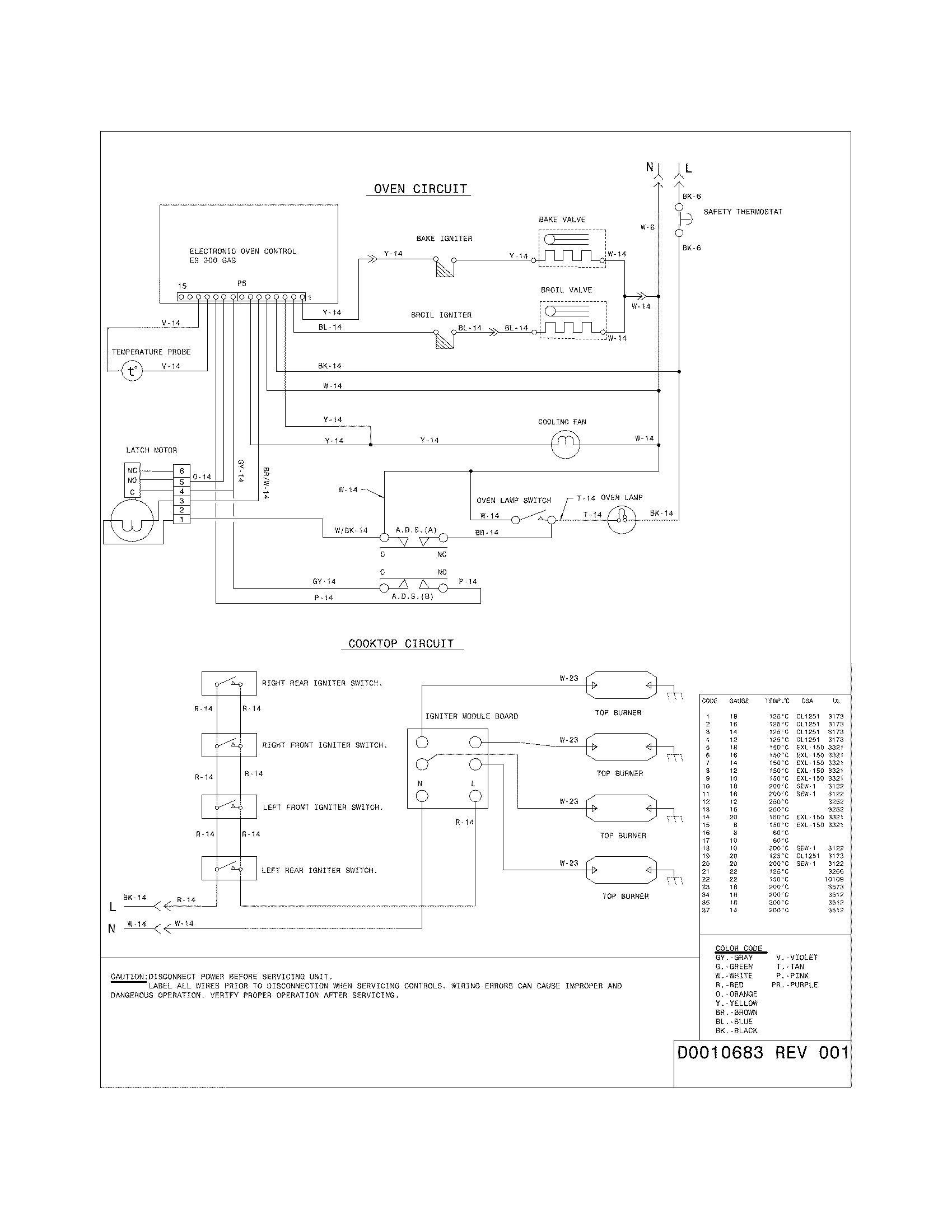

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Range Oven Temperature Sensor 318562500
#37

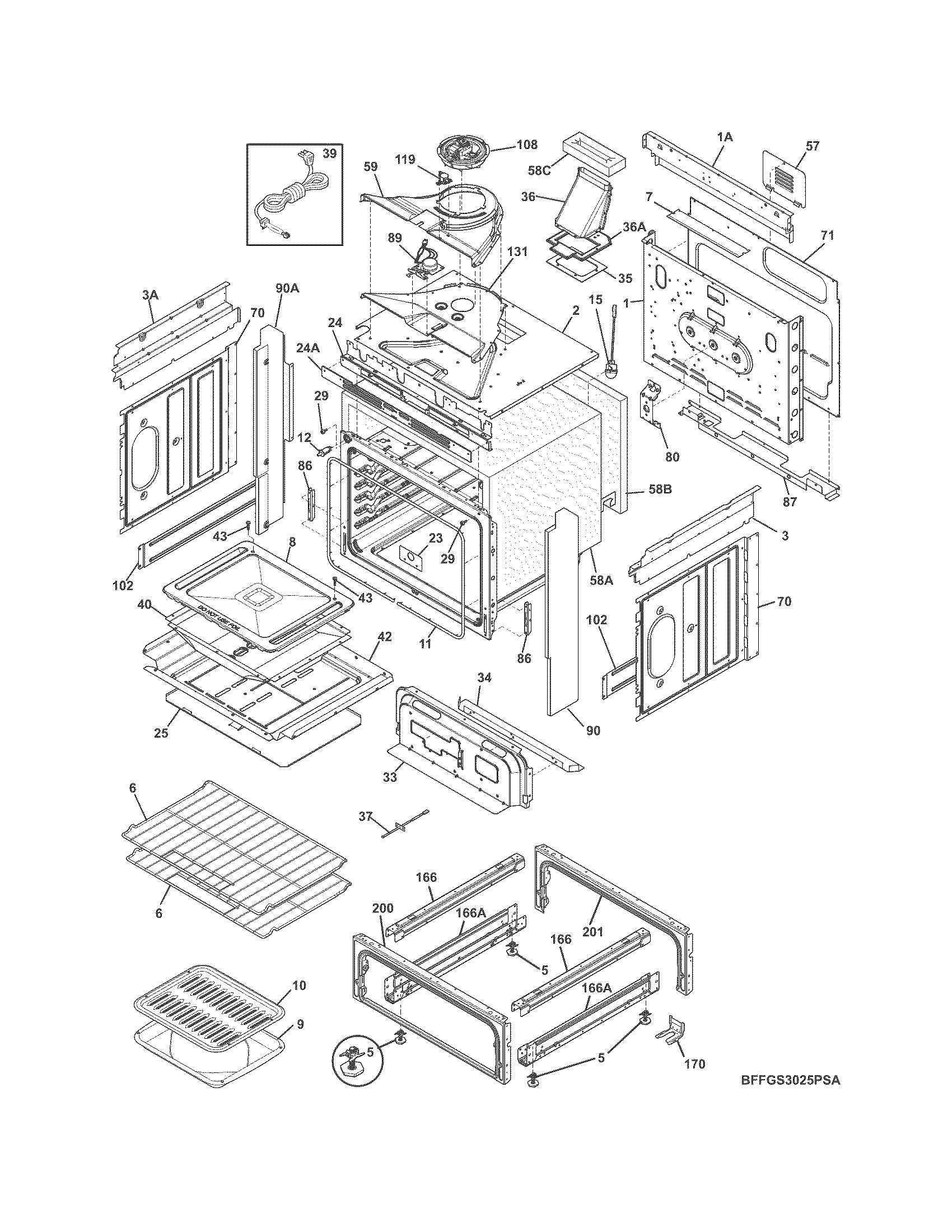

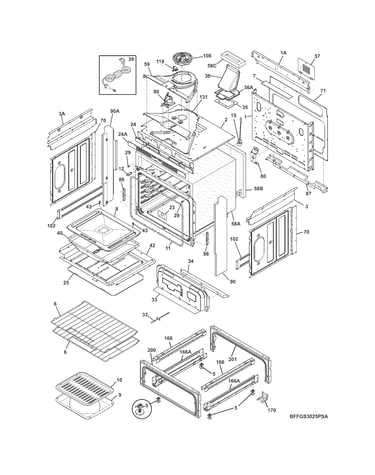

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$31.56 |
16% OFF Phone Price : $37.56
In Stock
Range Oven Door Inner Glass 316117502
#8

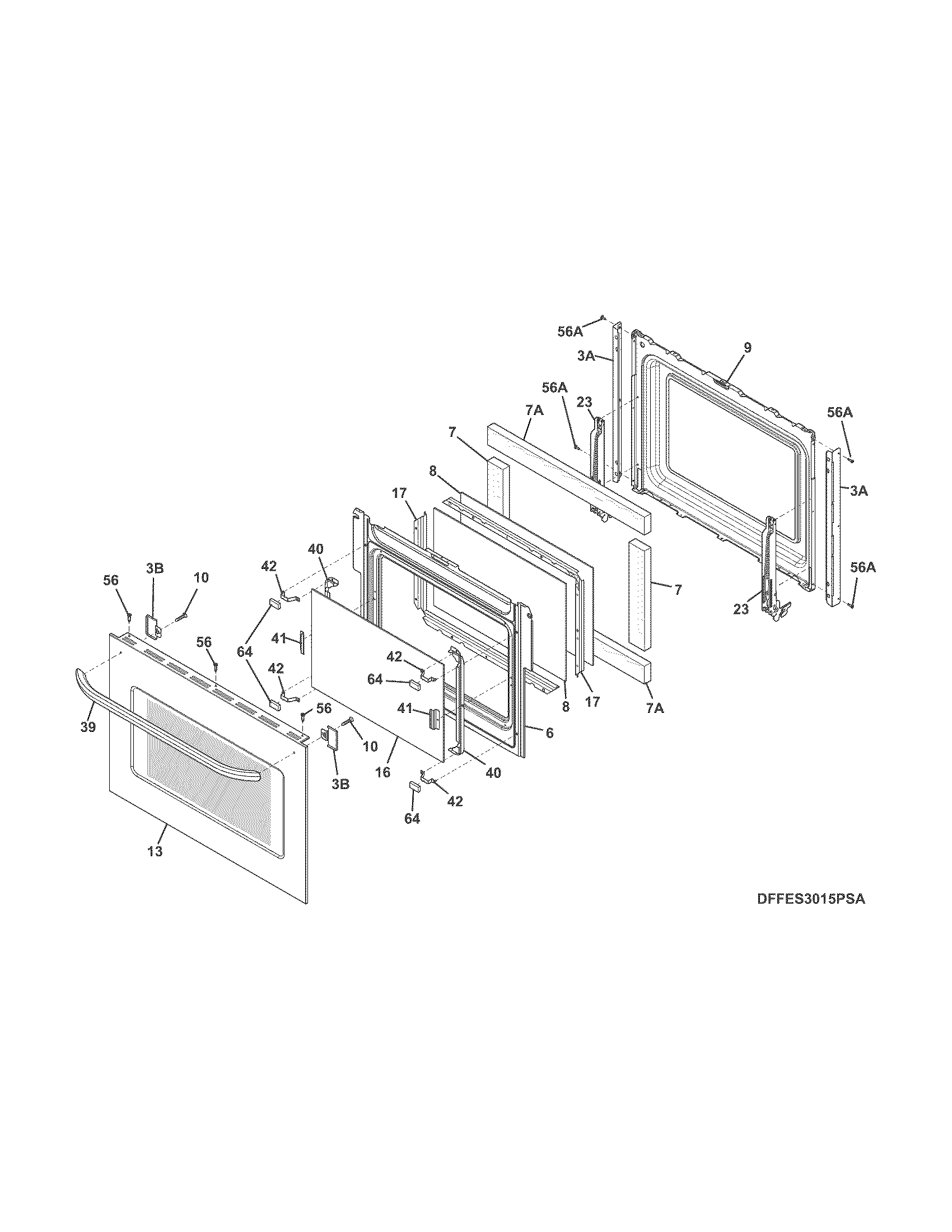

Door diagram

Range oven door inner glass

Part #316117502

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117502. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Kenmore Range Oven Control Overlay (replaces 316352004, 316419103, 316419109, 316419139, 316419142) 316419141
#20A

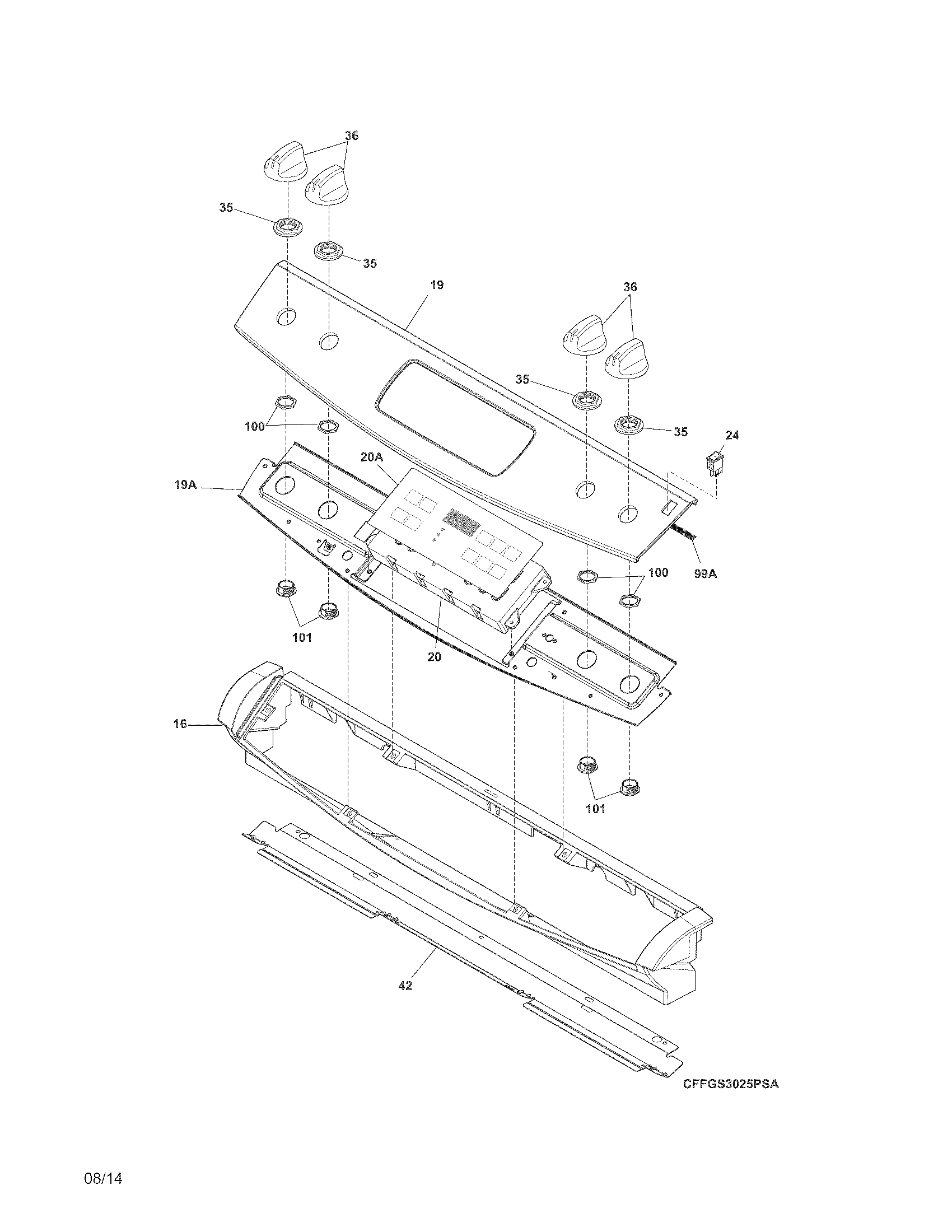

Backguard diagram

Kenmore range oven control overlay (replaces 316352004, 316419103, 316419109, 316419139, 316419142)

Part #316419141

BEST SELLER
$37.99 |
14% OFF Phone Price : $43.99
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10A

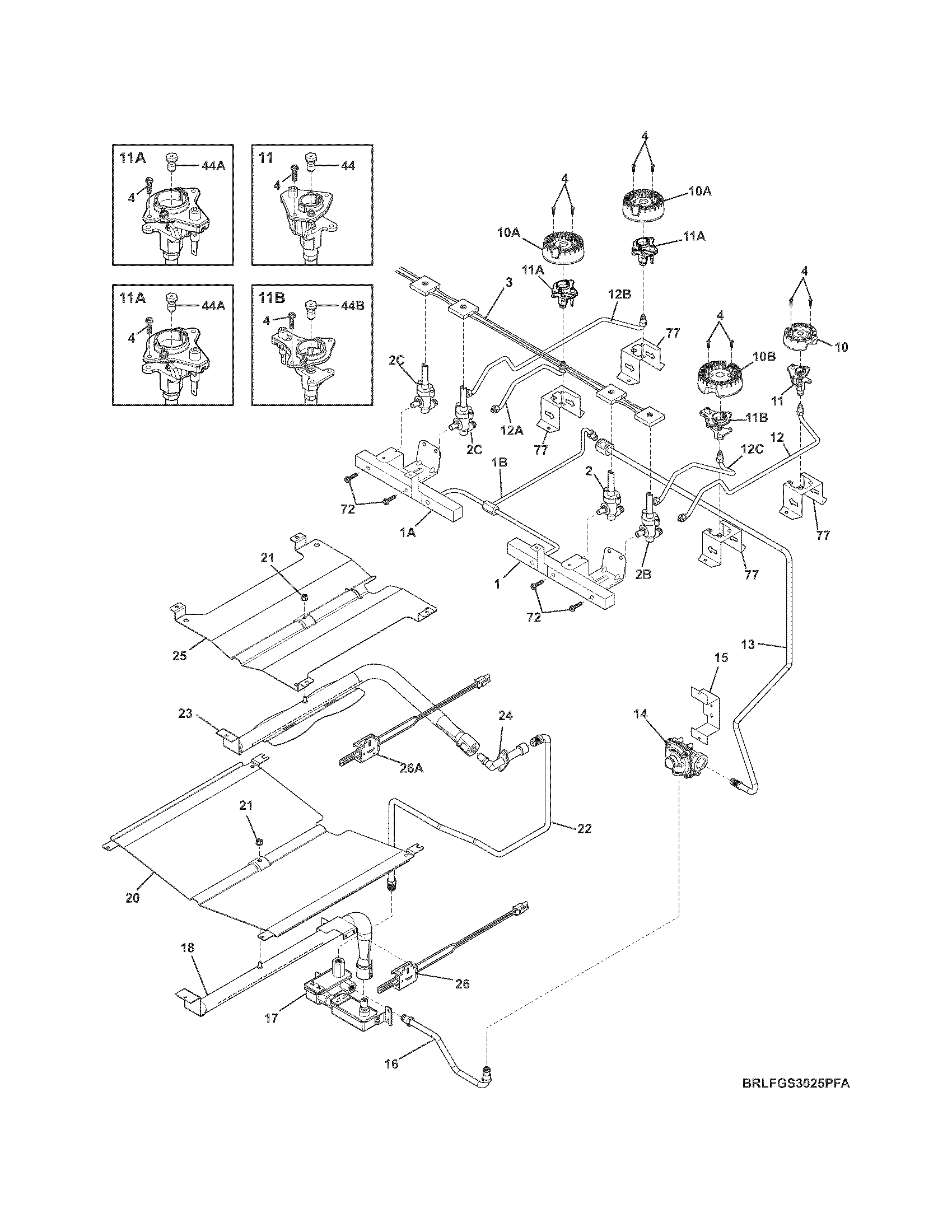

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$38.70 |
13% OFF Phone Price : $44.70
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22A

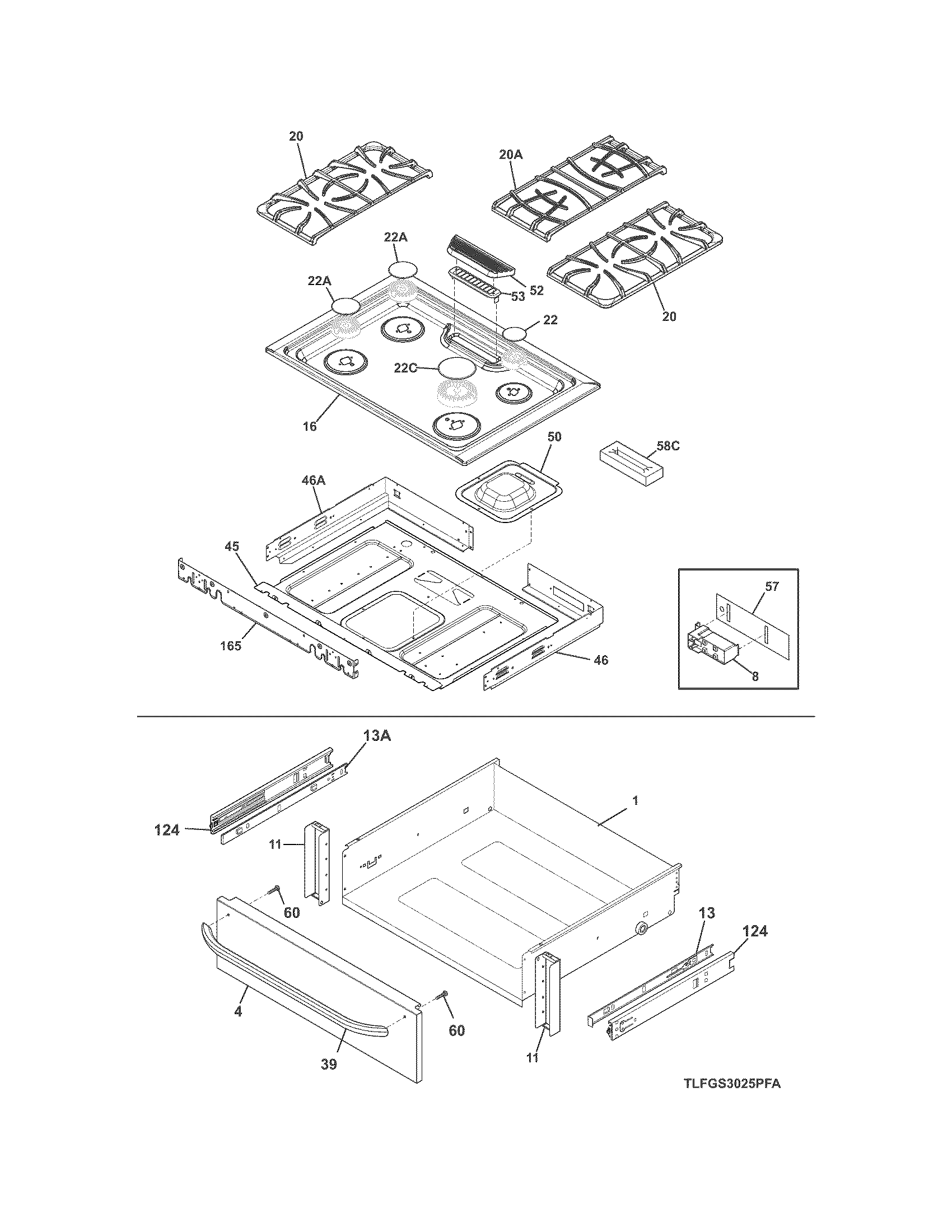

Top/drawer diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$26.31 |
19% OFF Phone Price : $32.31
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#22

Top/drawer diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

Replaced by #5304508441

?
Manufacturer substitution
This part replaces 316261704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$24.49 |
20% OFF Phone Price : $30.49
In Stock
Range Spark Module 316262405
#8

Top/drawer diagram

Range spark module

Part #316262405

Replaced by #808608802

?
Manufacturer substitution
This part replaces 316262405. Substitute parts can look different from the original.
BEST SELLER
$69.05 |
8% OFF Phone Price : $75.05
In Stock
Range Oven Gas Valve 316031501
#17

Burner diagram

Range oven gas valve

Part #316031501

BEST SELLER
$184.91 |
6% OFF Phone Price : $196.91
In Stock
Range Surface Burner Orifice (replaces 7316527500) 316527500
#44A

Burner diagram

Range surface burner orifice (replaces 7316527500)

Part #316527500

BEST SELLER
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 7316540700) 316540700
#11A

Burner diagram

Range surface burner igniter and orifice holder (replaces 7316540700)

Part #316540700

BEST SELLER
$78.91 |
7% OFF Phone Price : $84.91
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
