Model # CSK27DHXAAD Official Hotpoint refrigerator
Here are the diagrams and repair parts for Official Hotpoint CSK27DHXAAD refrigerator, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

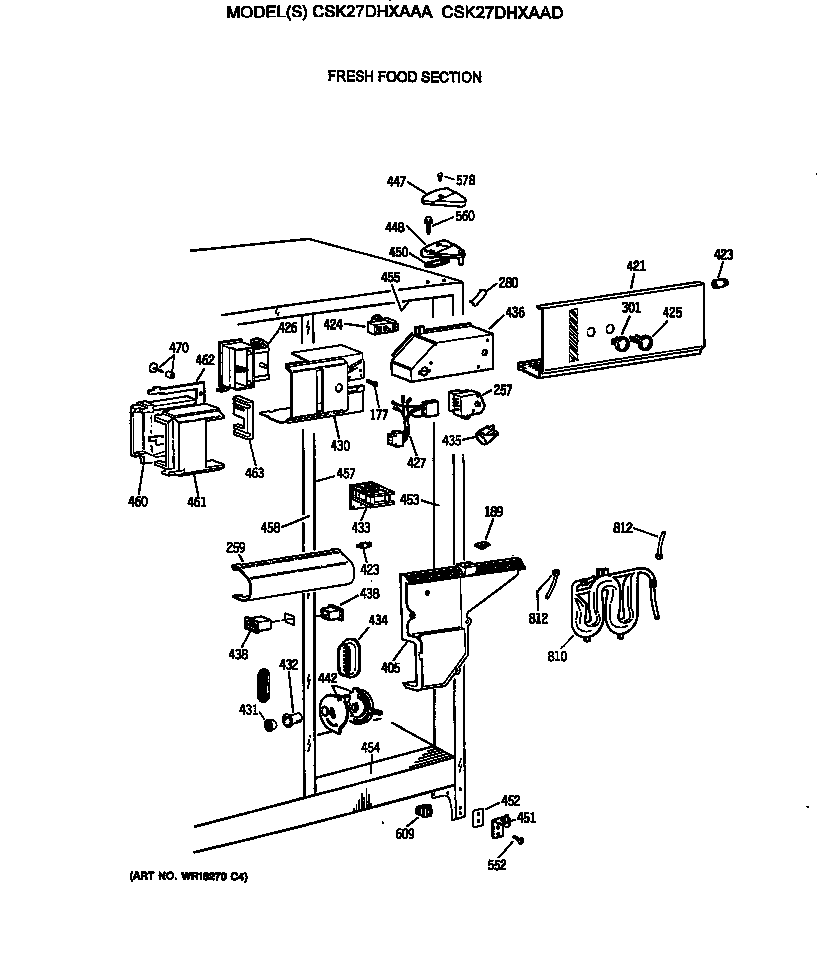

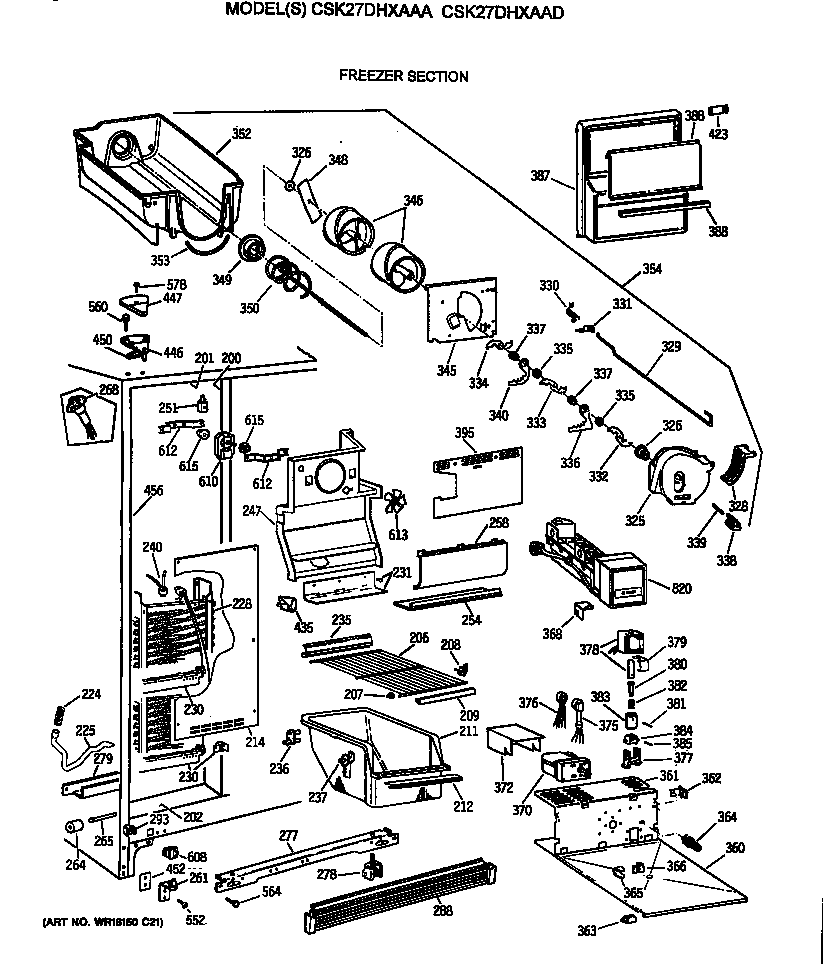

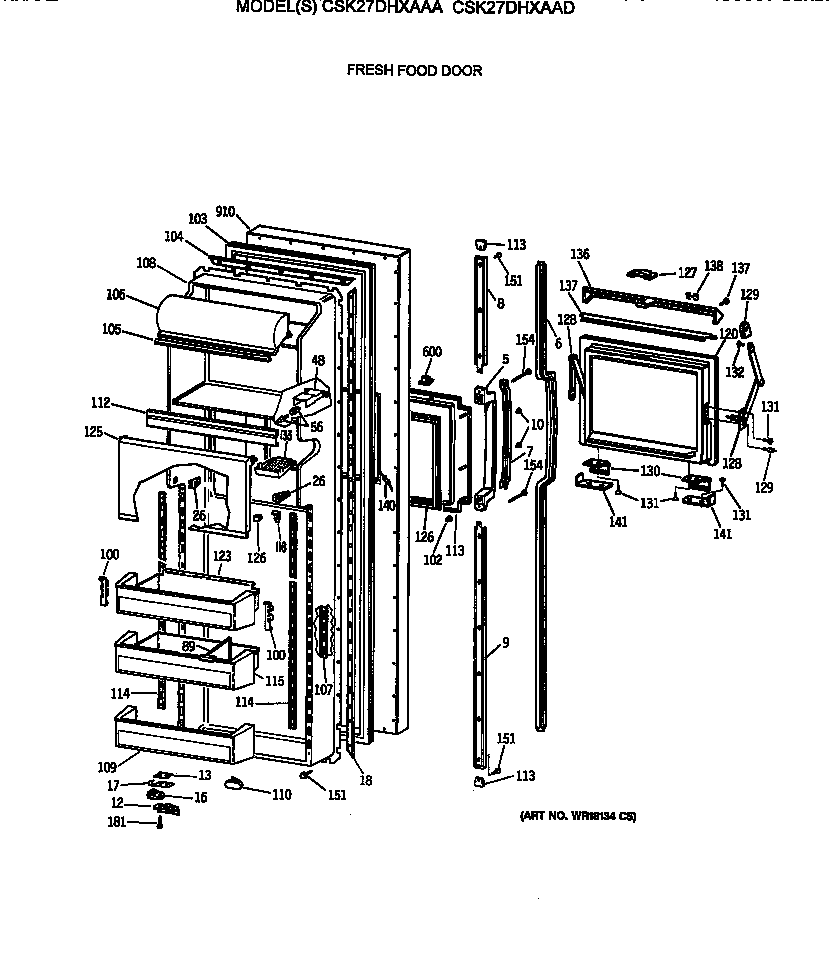

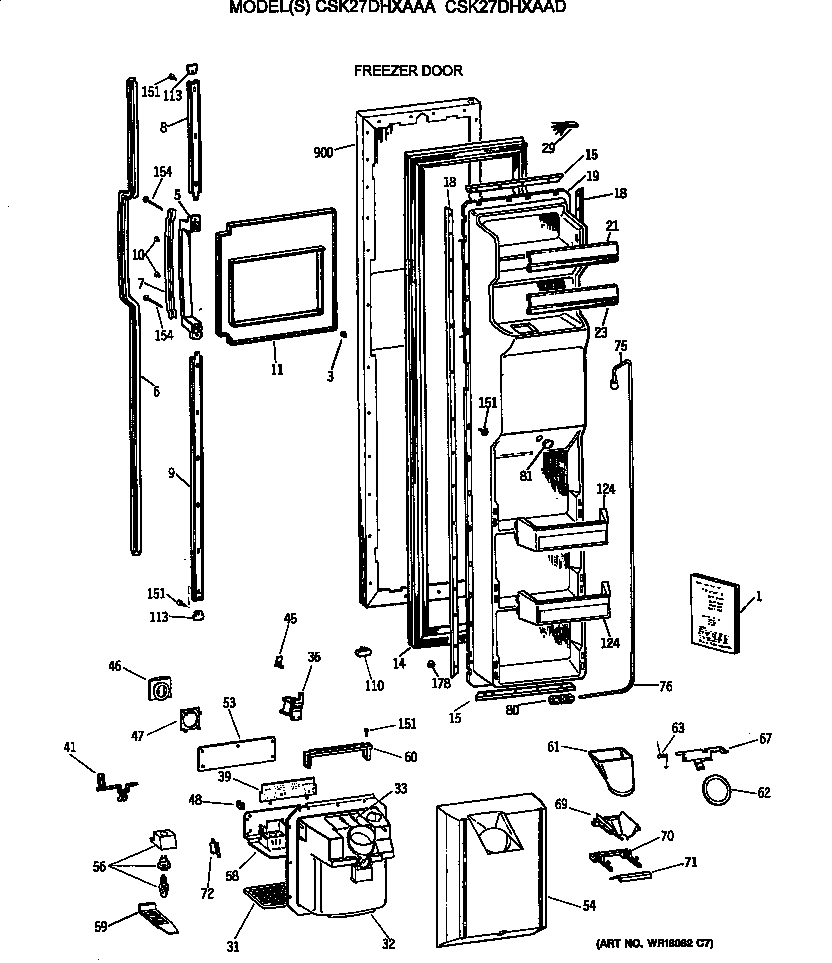

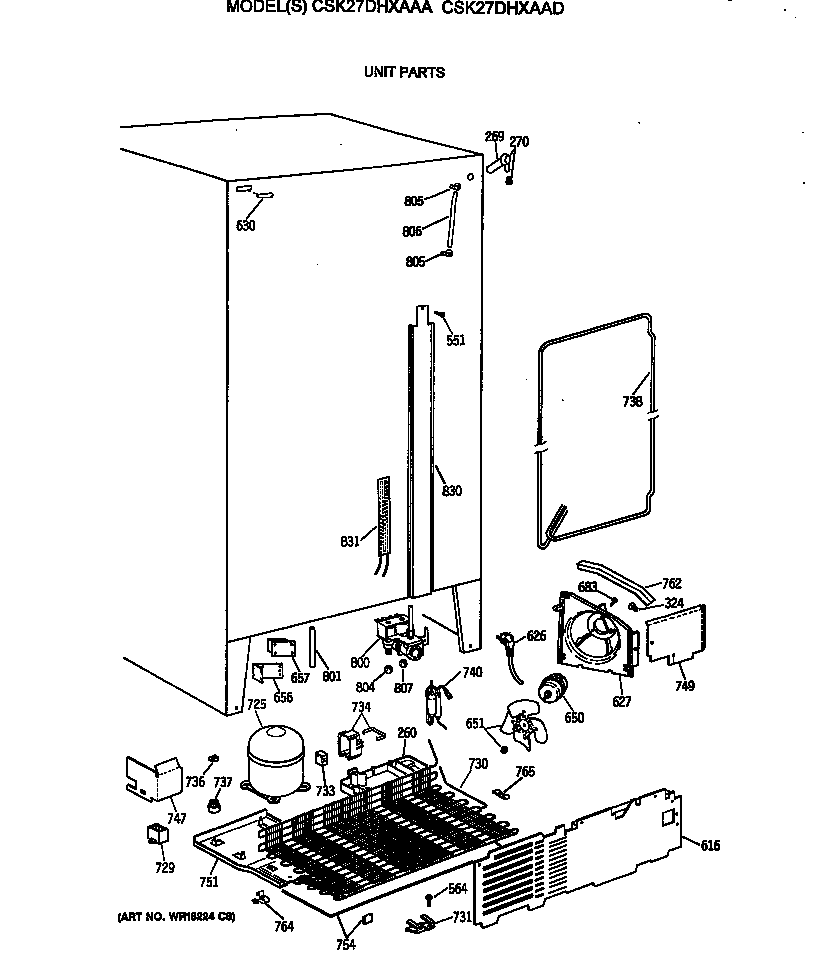

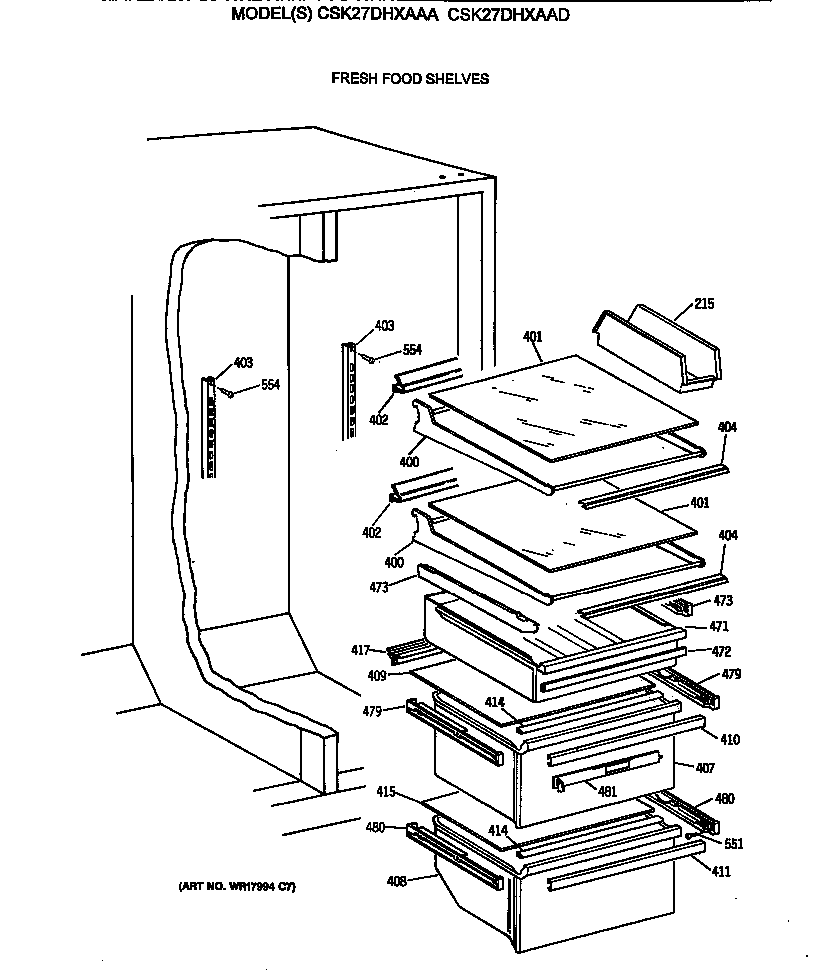

Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 378 parts |
#740
Unit parts diagram
Refrigerator filter dryer
Part #WR86X96
Replaced by #WR86X25269
?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
$79.18 |
7% OFF Phone Price : $85.18
In Stock
#80B
Freezer door diagram
Refrigerator water tube fitting and nut kit
Part #WR2X8545
Replaced by #WR02X11330
?
Manufacturer substitution
This part replaces WR2X8545. Substitute parts can look different from the original.
$8.20 |
11% OFF Phone Price : $9.20
In Stock
#807
Unit parts diagram
Nut&union as
Part #WR2X4048
Replaced by #WR02X11330
?
Manufacturer substitution
This part replaces WR2X4048. Substitute parts can look different from the original.
$8.20 |
11% OFF Phone Price : $9.20
In Stock
#62
Freezer door diagram
Dr reces asm
Part #WR17X3093
Replaced by #WR17X11653
?
Manufacturer substitution
This part replaces WR17X3093. Substitute parts can look different from the original.
$12.76 |
14% OFF Phone Price : $14.76
In Stock
#228
Freezer section diagram
Lo-side kit
Part #WR85X309
Replaced by #WR87X29147
?
Manufacturer substitution
This part replaces WR85X309. Substitute parts can look different from the original.
$406.73 |
$12.00 OFF Phone Price : $418.73
In Stock
#613B
Freezer section diagram
Refrigerator evaporator fan blade (replaces swr2x3198, swr60x114, wr2x3198, wr60x0114, wr60x107, wr60x113, wr60x247, wr60x55, wr60x80)
Part #WR60X114
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
#613A
Freezer section diagram
Refrigerator fan blade
Part #WR2X3198
Replaced by #WR60X114
?
Manufacturer substitution
This part replaces WR2X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
#270B
Unit parts diagram
Refrigerator ice maker fill tube seal
Part #WR2X8474
$10.24 |
16% OFF Phone Price : $12.24
In Stock
#806
Unit parts diagram
Refrigerator water line
Part #WR17X3475
Replaced by #WR17X11349
?
Manufacturer substitution
This part replaces WR17X3475. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
#NI
All parts diagram
Dryer screw
Part #WH2X930
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
