Model # ARSE66ZBB-PARSE66ZBB1 Official Amana refrigerator
Here are the diagrams and repair parts for Official Amana ARSE66ZBB-PARSE66ZBB1 refrigerator, as well as links to manuals and error code tables, if available.

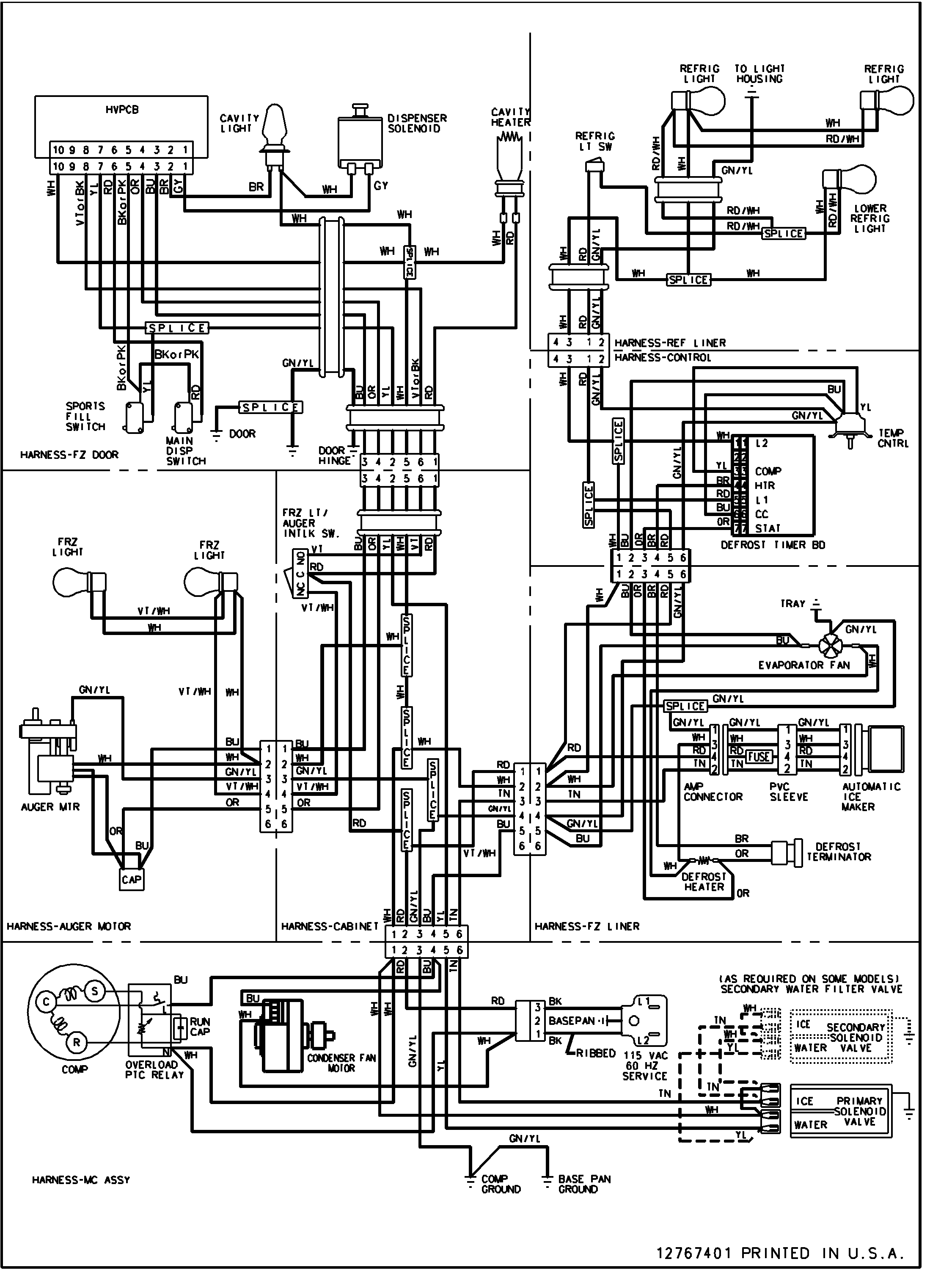

Error CodesBy Schematic
By Part
SELECT DIAGRAM

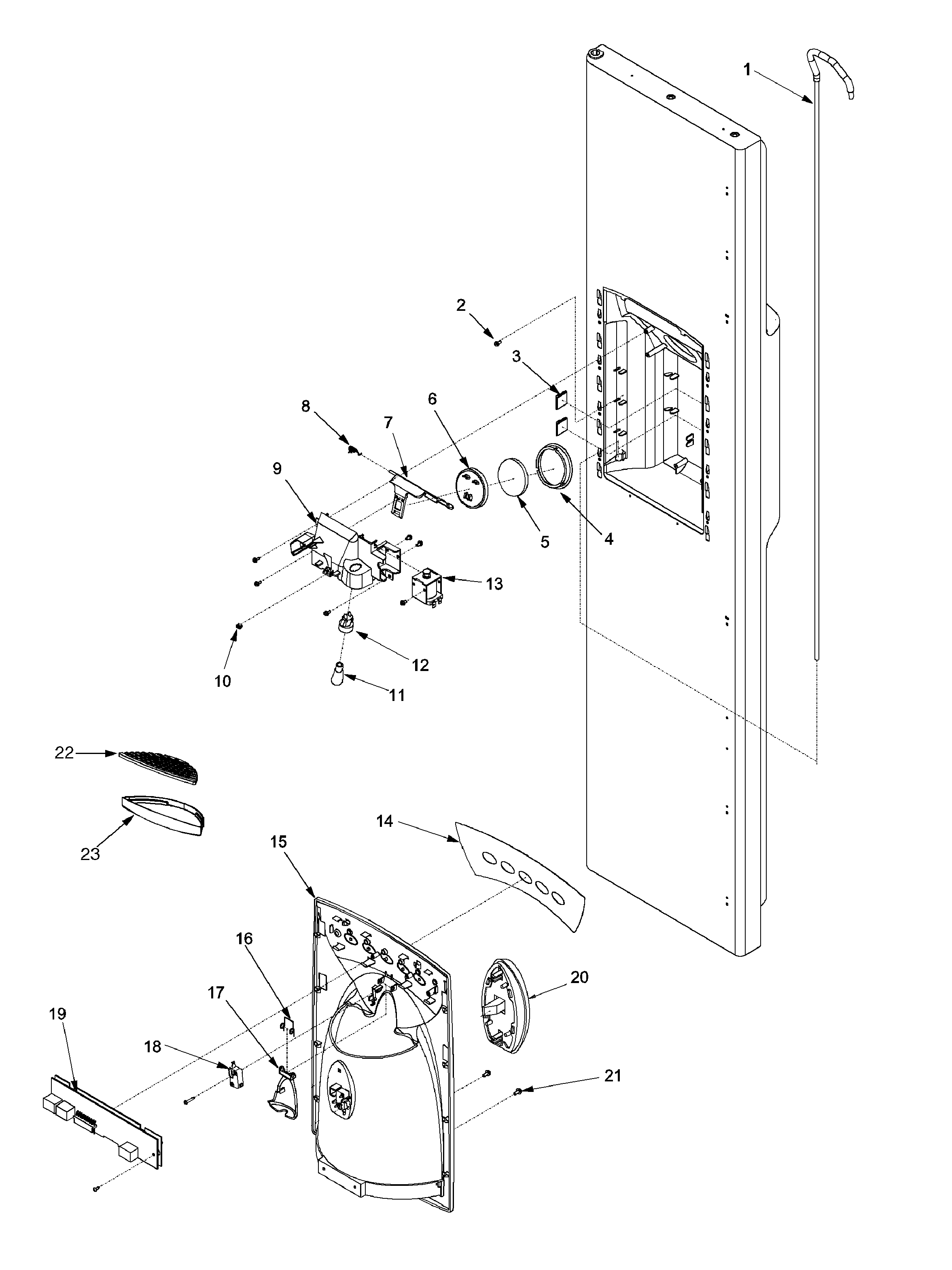

Browse Parts forARSE66ZBB-PARSE66ZBB1 Refrigerators
- #1

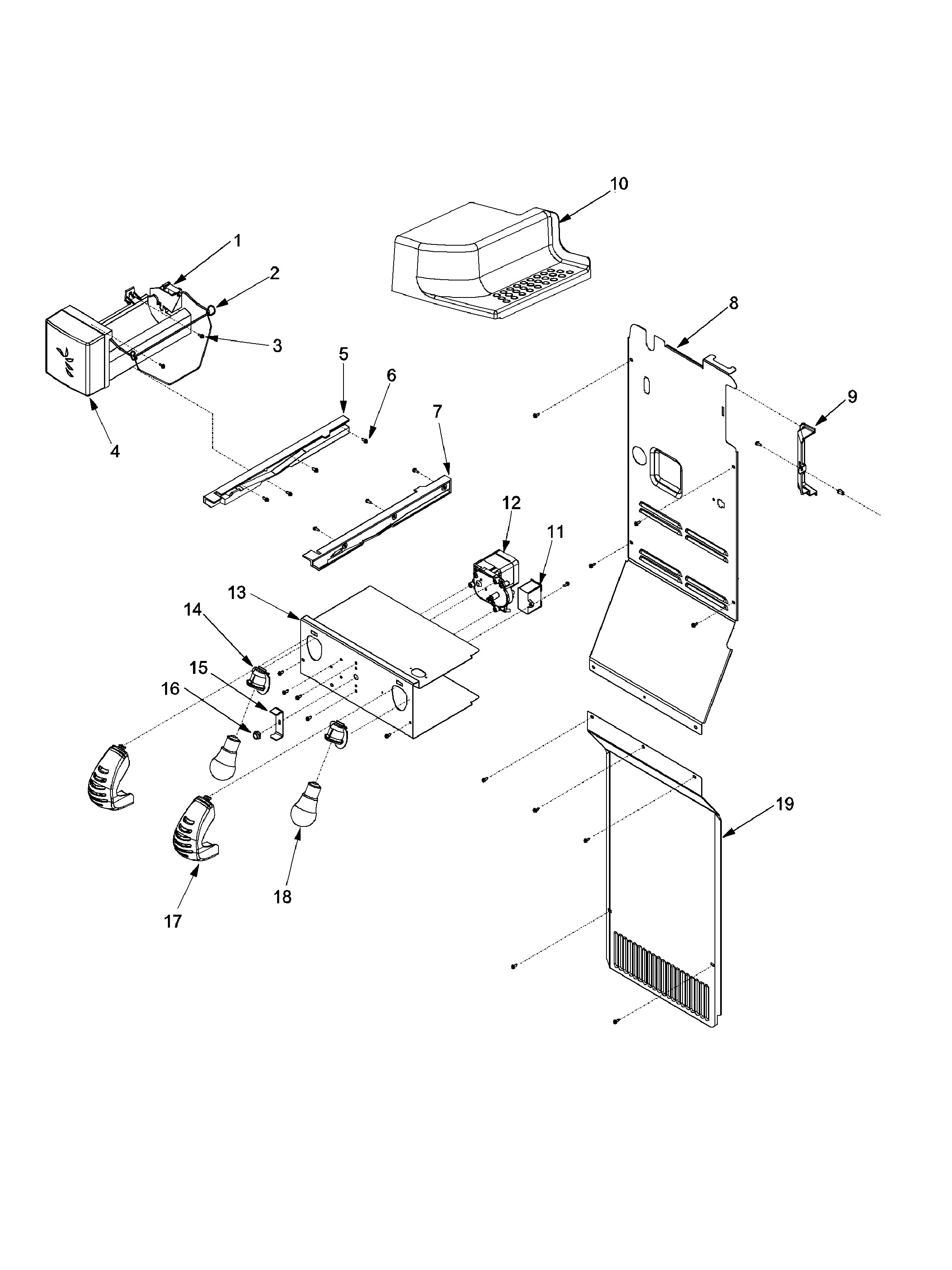

Lights and ice maker diagram
Refrigerator ice makerPart #61005508
Replaced by #D7824706Q
?Manufacturer substitutionThis part replaces 61005508. Substitute parts can look different from the original.$81.07 |7% OFF Phone Price : $87.07In Stock - #6

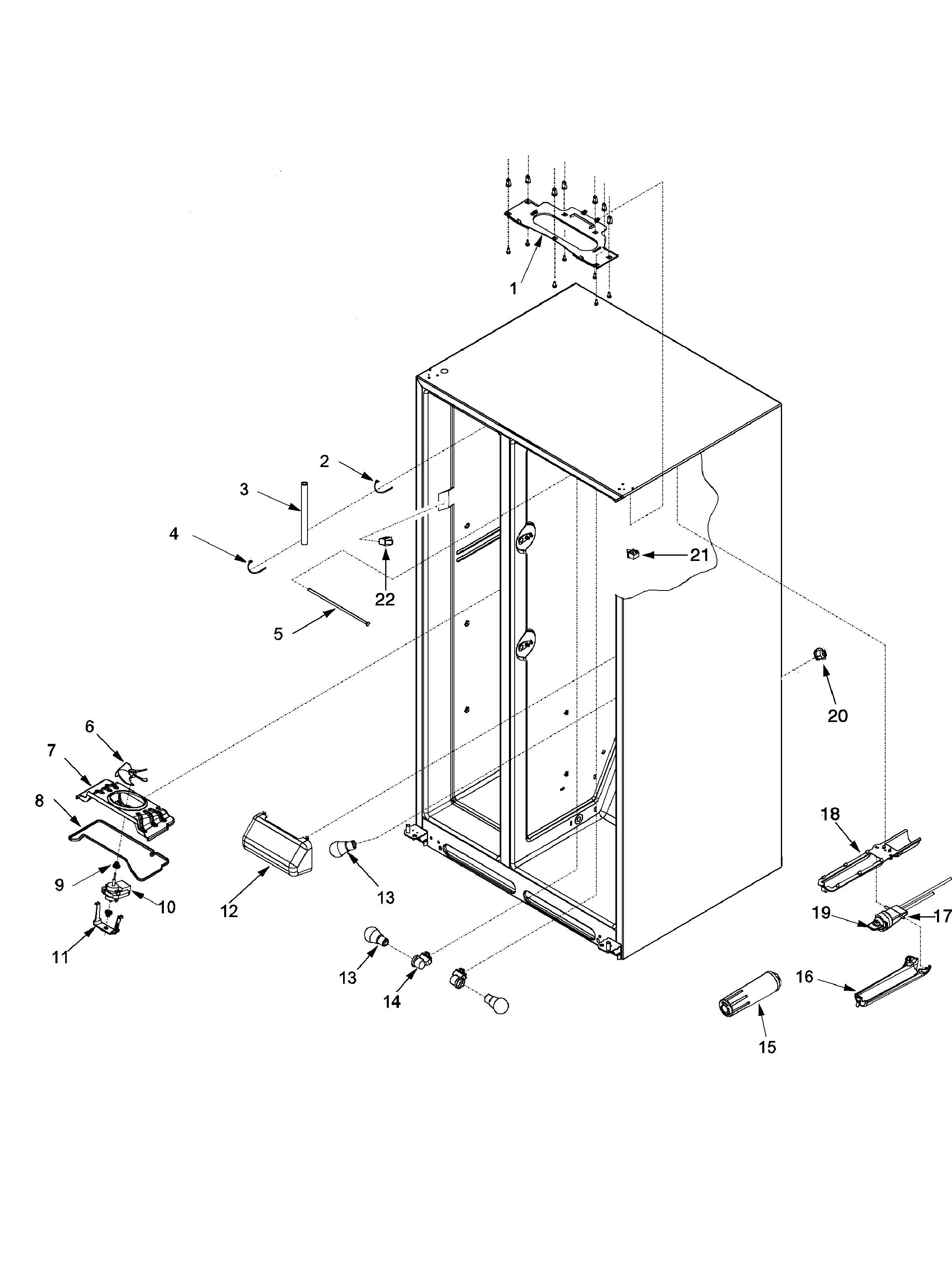

Evap fan assy and lights diagram
Refrigerator bladePart #12217201
The manufacturer no longer makes this part, and there's no substitute part
- #22
Evap fan assy and lights diagram
Refrigerator light switchPart #12466103
Replaced by #W11396033
?Manufacturer substitutionThis part replaces 12466103. Substitute parts can look different from the original.$19.31 |9% OFF Phone Price : $21.31In Stock - #10
Evap fan assy and lights diagram
Evaporator motorPart #67001509
The manufacturer no longer makes this part, and there's no substitute part
- #8A

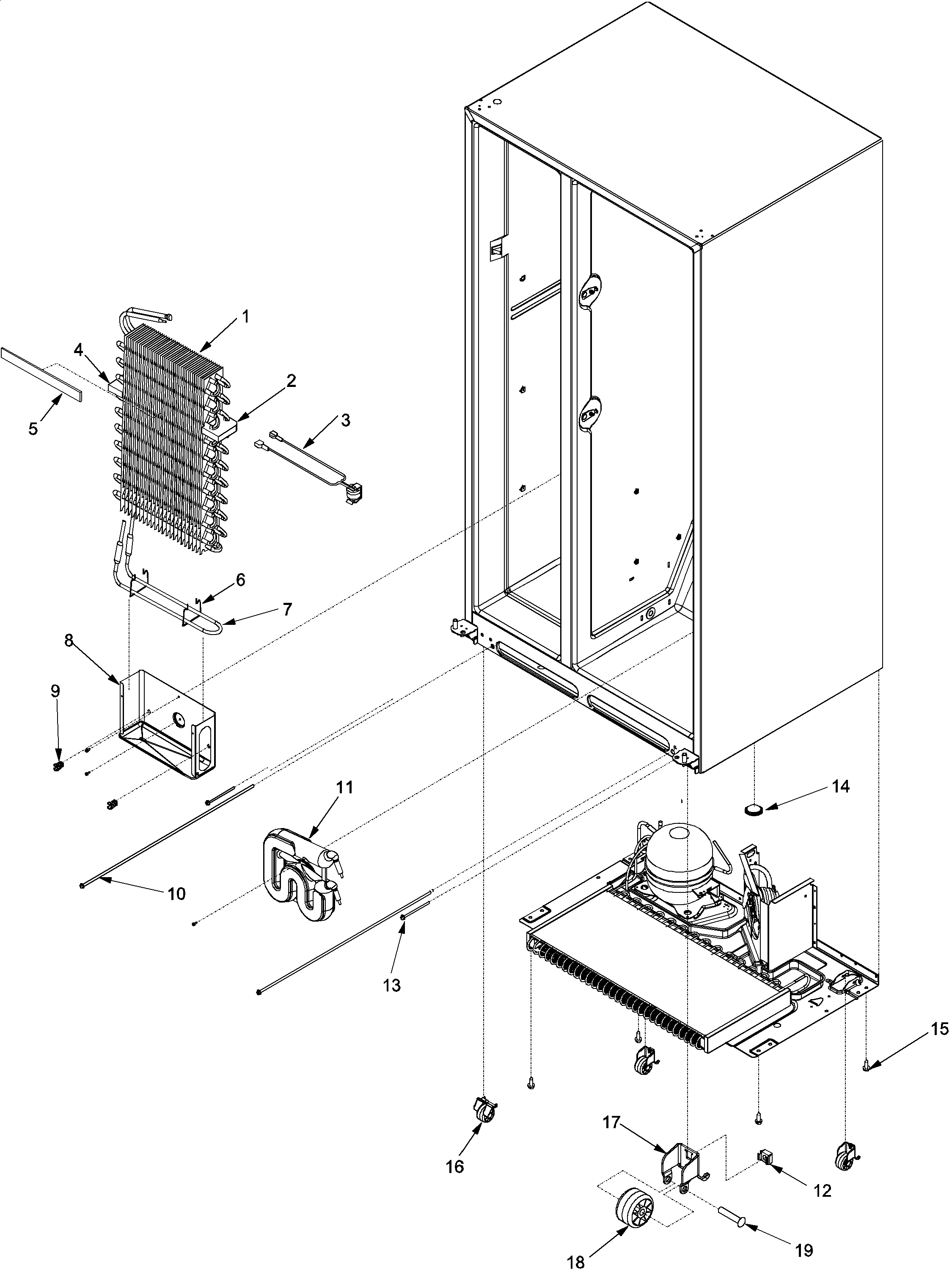

Evaporator assy and rollers diagram
Refrigerator screwPart #M0224416
Replaced by #WP90767
?Manufacturer substitutionThis part replaces M0224416. Substitute parts can look different from the original.This item is not returnable$4.15 |19% OFF Phone Price : $5.15In Stock - #7

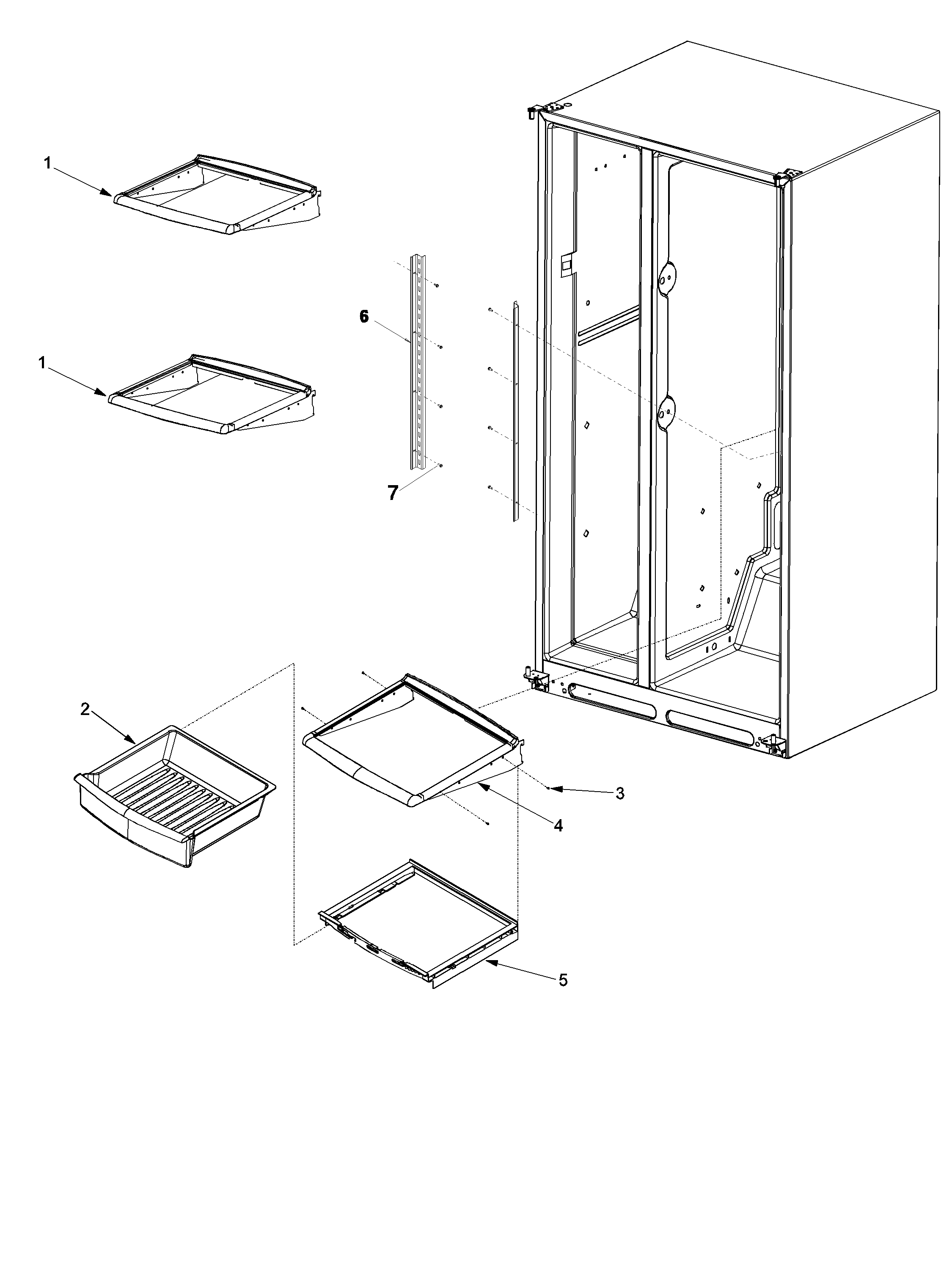

Deli and ref shelf diagram
ScrewPart #M0211016
Replaced by #WP90767

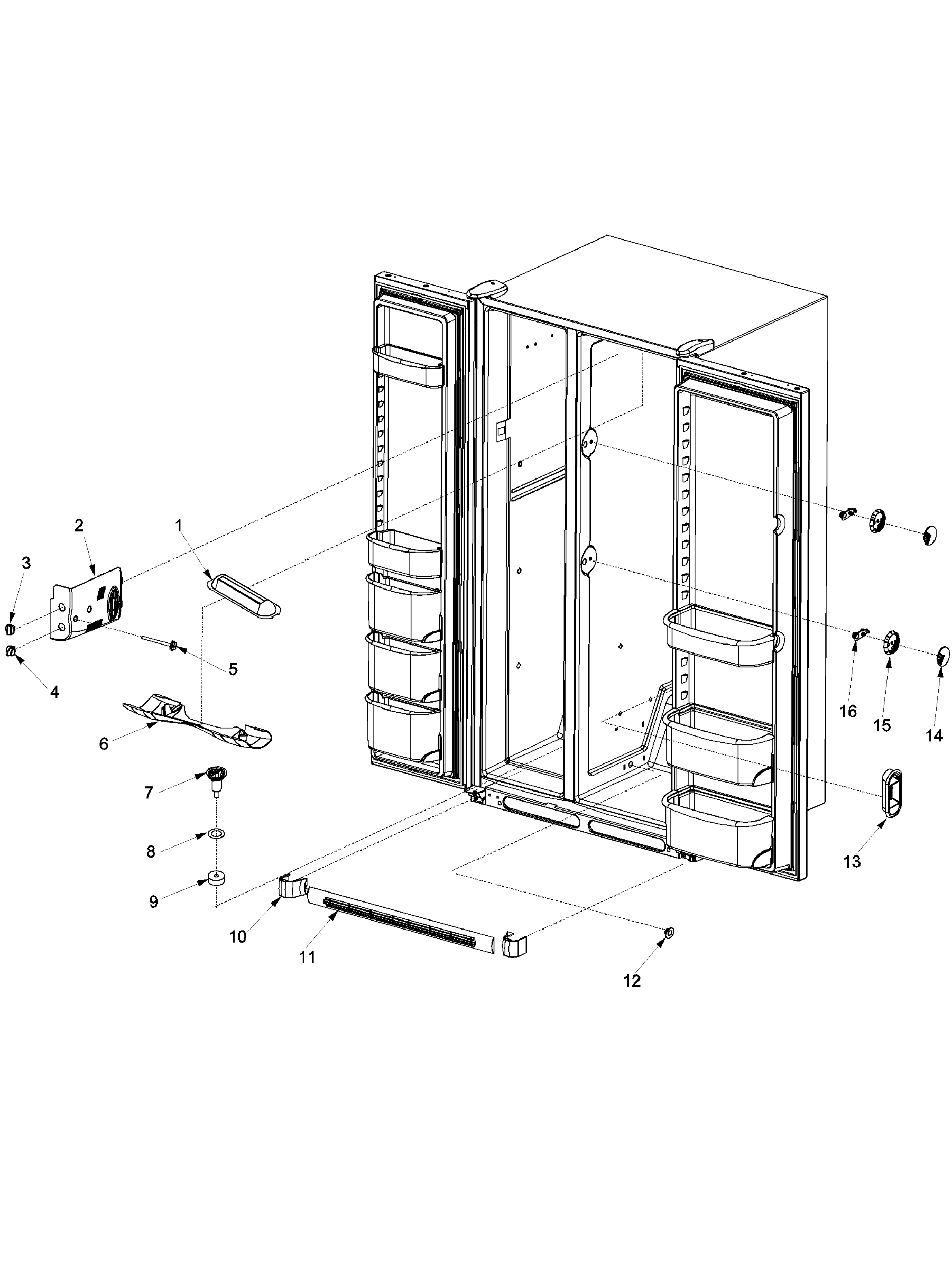

?Manufacturer substitutionThis part replaces M0211016. Substitute parts can look different from the original.This item is not returnable$4.15 |19% OFF Phone Price : $5.15In Stock - Bulb replcmt
Part #12570701
Replaced by #W11447232

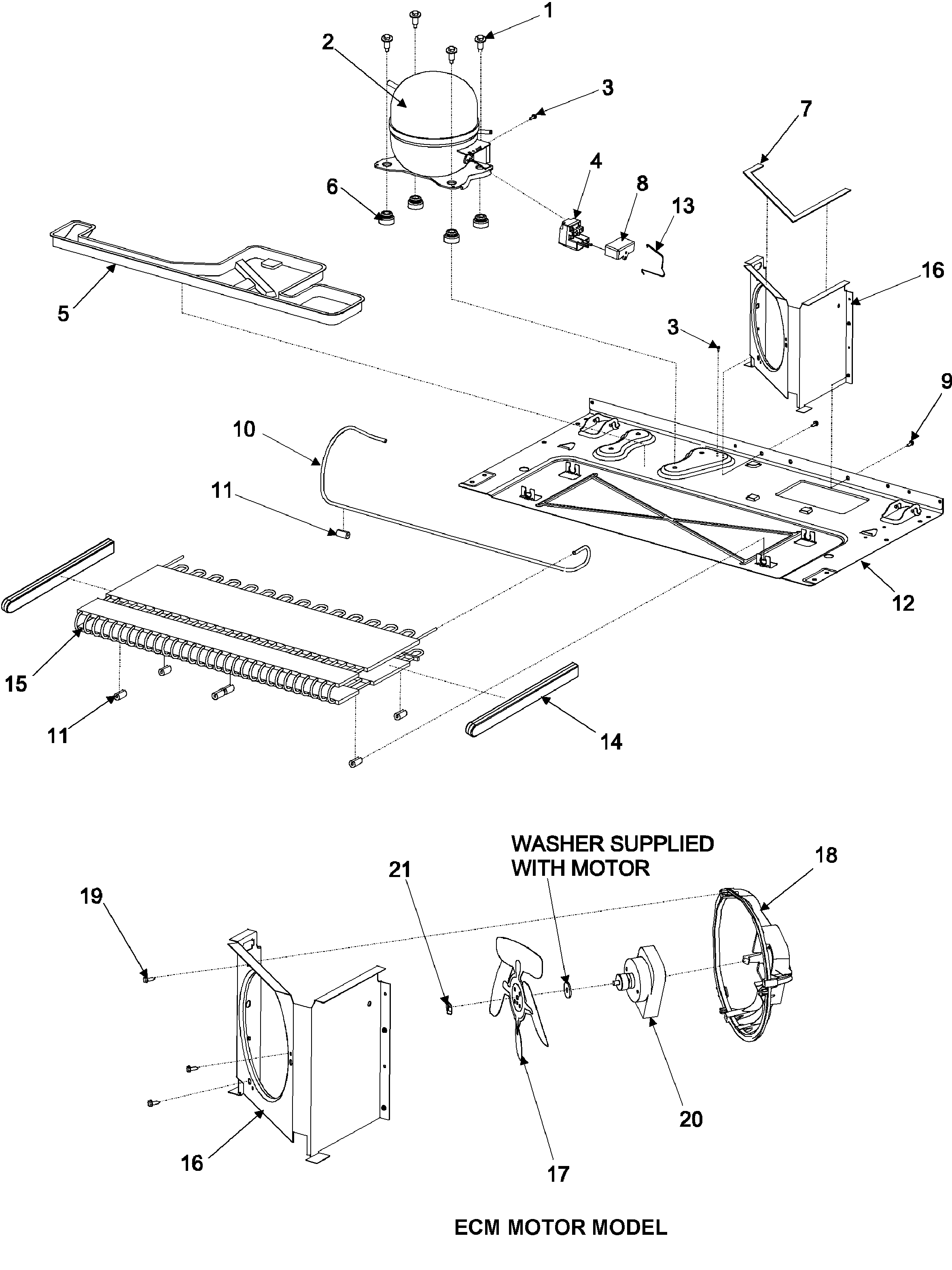

?Manufacturer substitutionThis part replaces 12570701. Substitute parts can look different from the original.This item is not returnable$7.59 |12% OFF Phone Price : $8.59In Stock - Refrigerator capacitor
Part #C8931612
Replaced by #WP65889-4
?Manufacturer substitutionThis part replaces C8931612. Substitute parts can look different from the original.$53.19 |10% OFF Phone Price : $59.19In Stock - #7
Ice maker diagram
Refrigerator screwPart #95106-1
Replaced by #WP681249
?Manufacturer substitutionThis part replaces 95106-1. Substitute parts can look different from the original.This item is not returnable$4.46 |18% OFF Phone Price : $5.46In Stock - #18

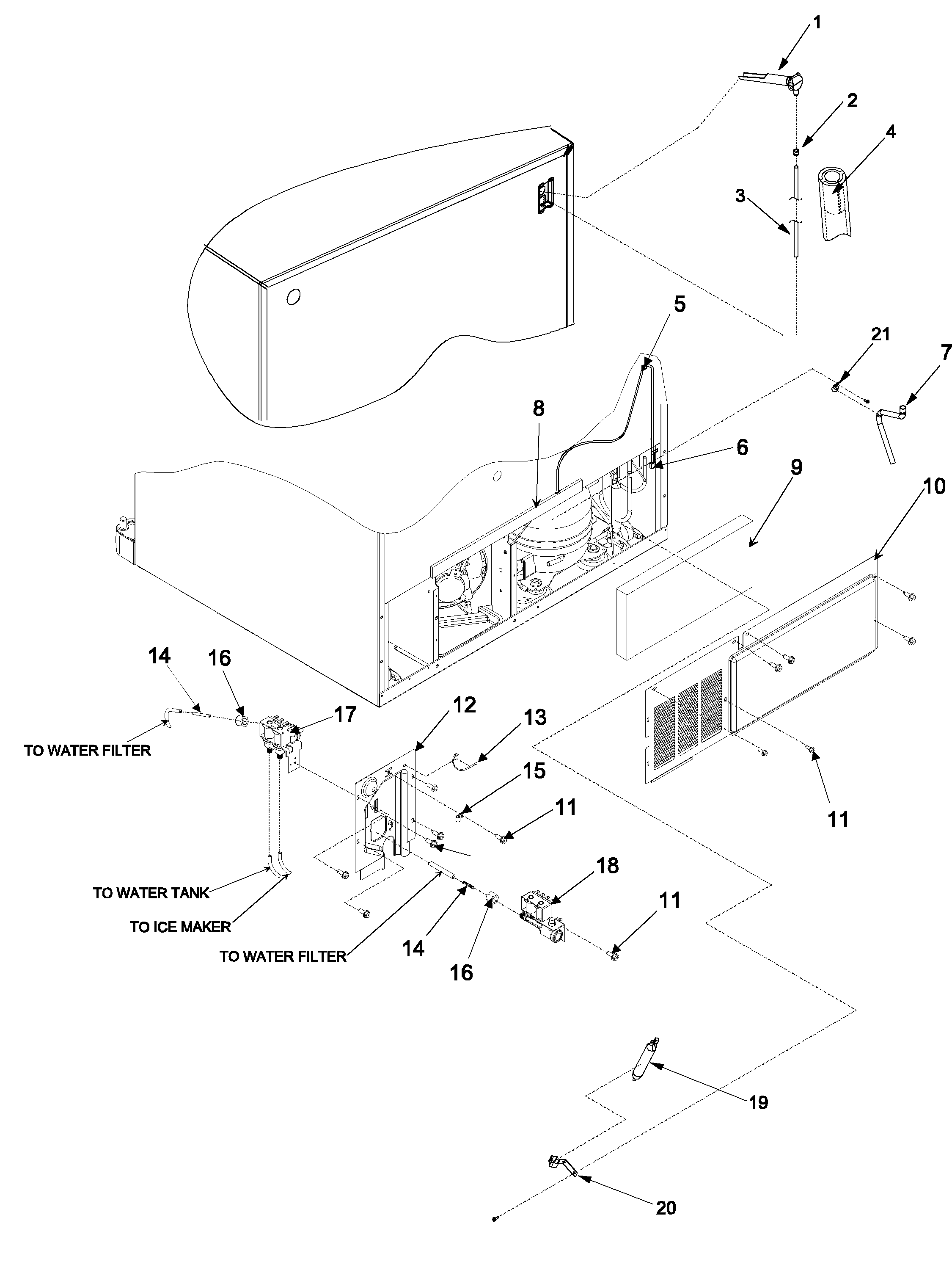

Cabinet back diagram
Refrigerator valvePart #12544002
Replaced by #WP12544002
?Manufacturer substitutionThis part replaces 12544002. Substitute parts can look different from the original.$125.37 |9% OFF Phone Price : $137.37In Stock
