Frigidaire
Electric Wall Oven

Model # FEB755CESA Official Frigidaire electric wall oven - 5995284360

Here are the diagrams and repair parts for Official Frigidaire FEB755CESA electric wall oven - 5995284360, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

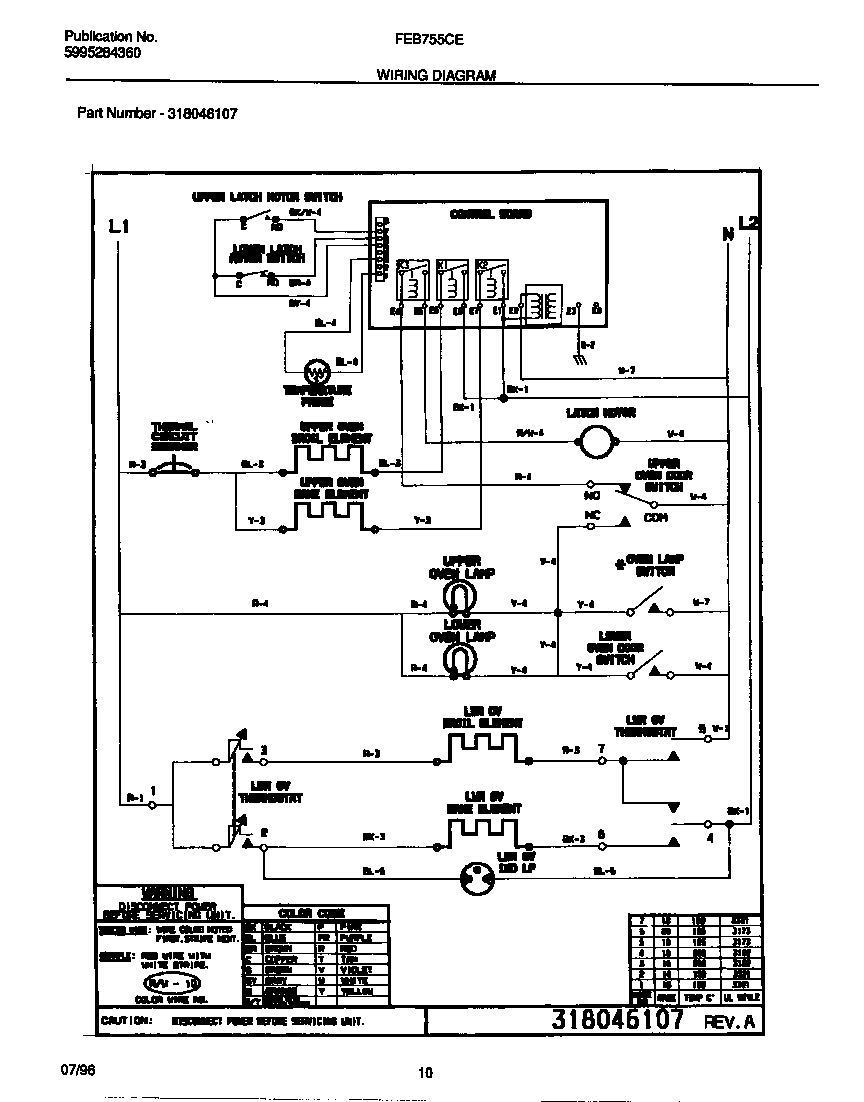

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Bulb 3201908
Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Sensor Probe 5303208888
#37

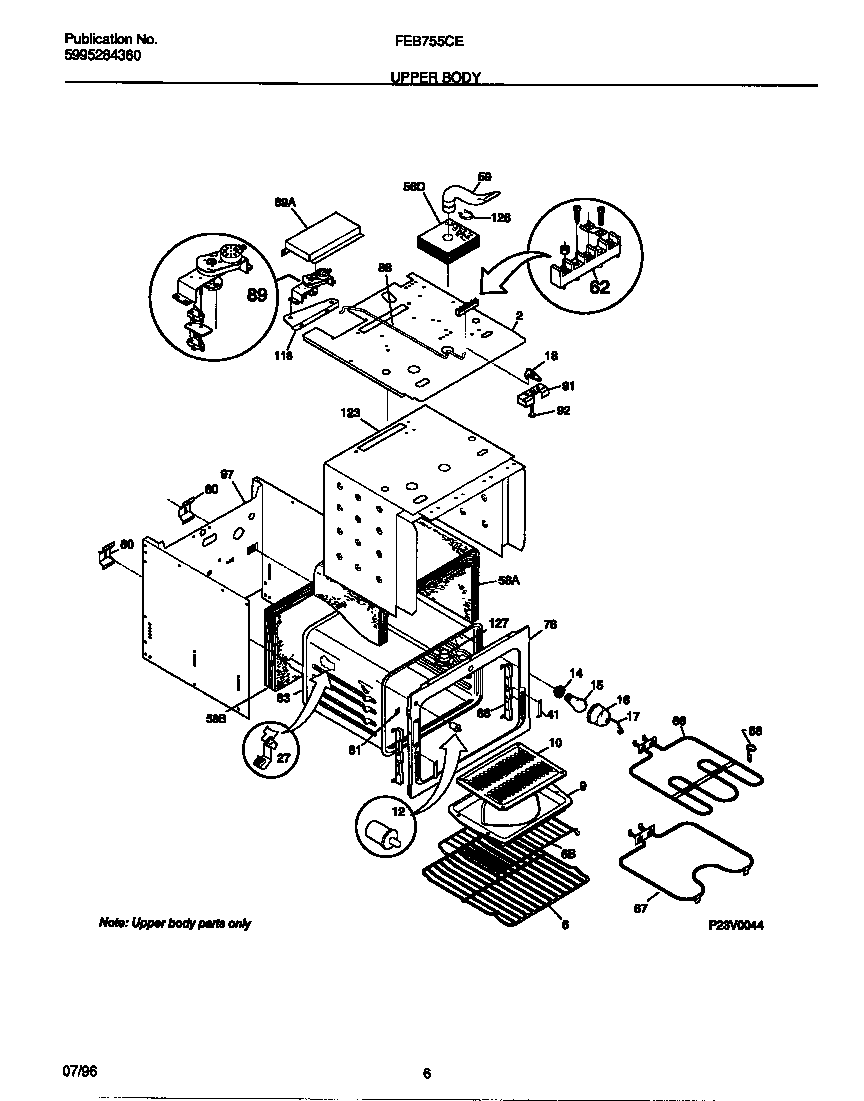

Upper body diagram

Sensor probe

Part #5303208888

Replaced by #316217002

?
Manufacturer substitution
This part replaces 5303208888. Substitute parts can look different from the original.
BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Element 3202440
Element

Part #3202440

Replaced by #318255101

?
Manufacturer substitution
This part replaces 3202440. Substitute parts can look different from the original.
BEST SELLER
$132.85 |
8% OFF Phone Price : $144.85
In Stock
Door Switch 5303311157
#12

Upper body diagram

Door switch

Part #5303311157

Replaced by #316445501

?
Manufacturer substitution
This part replaces 5303311157. Substitute parts can look different from the original.
$63.47 |
9% OFF Phone Price : $69.47
In Stock
Rocker Switch 316005607
#24

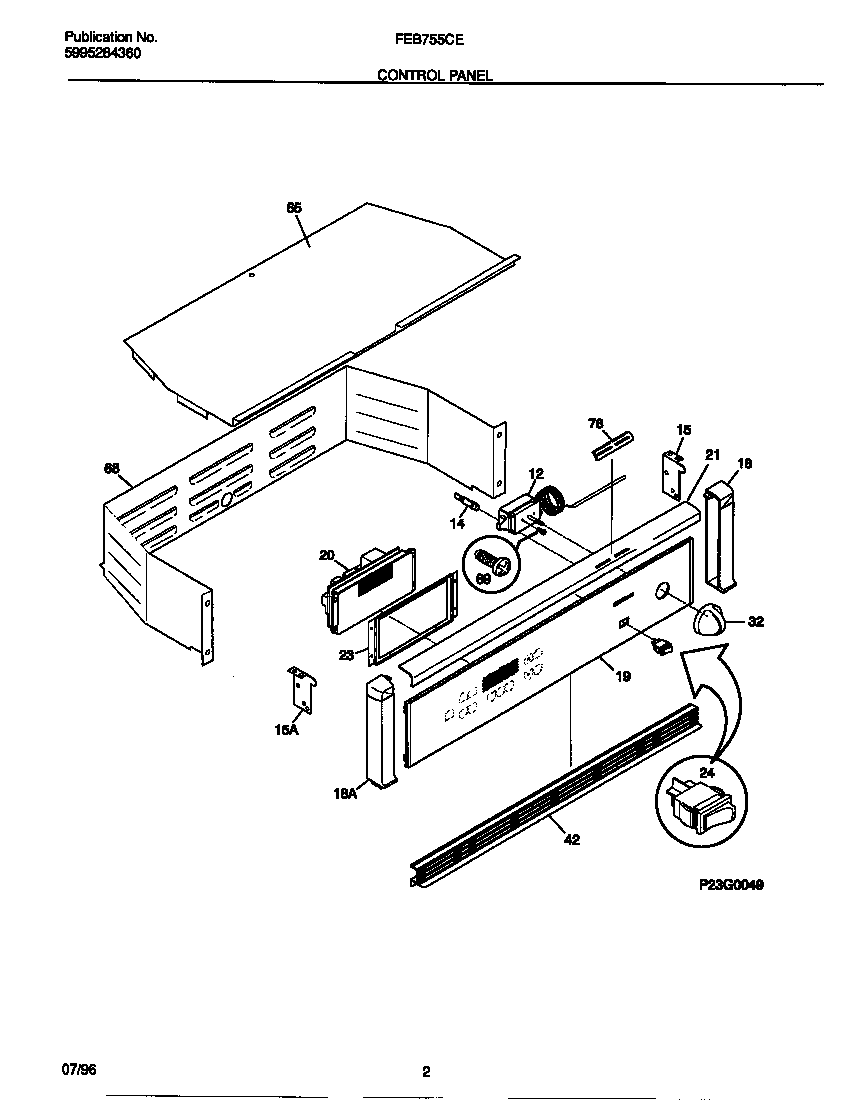

Control panel diagram

Rocker switch

Part #316005607

Replaced by #5304527842

?
Manufacturer substitution
This part replaces 316005607. Substitute parts can look different from the original.
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Light Switch 316005602
#24

Control panel diagram

Light switch

Part #316005602

Replaced by #5304527841

?
Manufacturer substitution
This part replaces 316005602. Substitute parts can look different from the original.
This item is not returnable
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Wall Oven Safety Thermostat 5303302280
#141

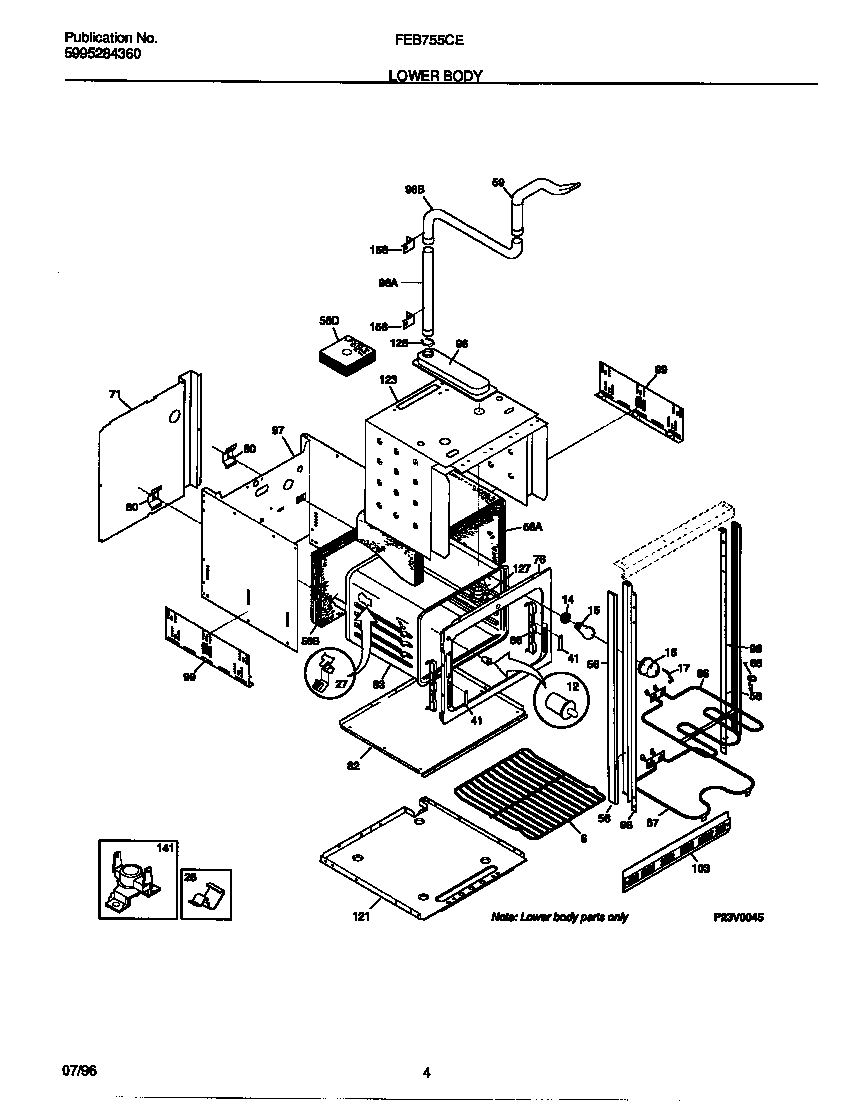

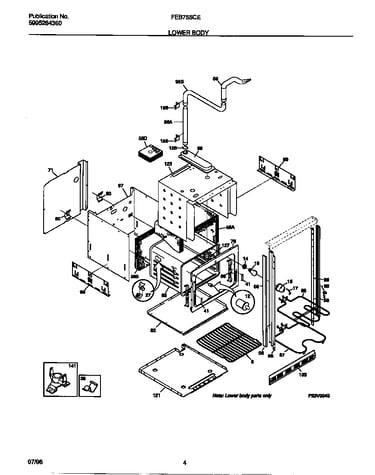

Lower body diagram

Wall oven safety thermostat

Part #5303302280

$121.60 |
9% OFF Phone Price : $133.60
In Stock
Wall Oven Door Switch 5301314211
#12

Lower body diagram

Wall oven door switch

Part #5301314211

$64.33 |
9% OFF Phone Price : $70.33
In Stock
Range Oven Control Thermostat Bulb Clip 5303284616
Range oven control thermostat bulb clip

Part #5303284616

This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Gibson Wall Oven Screw, 6 X 3/8-in 3201861

#NI

All parts diagram

Gibson wall oven screw, 6 x 3/8-in

Part #3201861

This item is not returnable
$2.16
In Stock
