Model # 63877 Official Craftsman motor

Here are the diagrams and repair parts for Official Craftsman 63877 motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |

Radial Arm Saw Motor Brake Shoe Lining 63137
#17

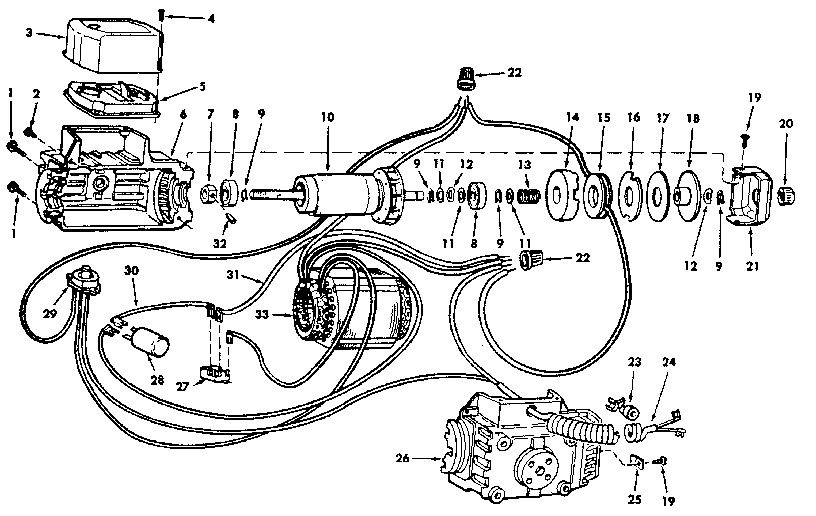

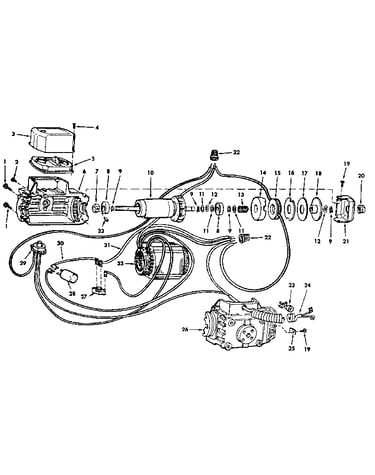

Motor assembly 63877 diagram

Radial arm saw motor brake shoe lining

Part #63137

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Power Tool Washer 30767
#11

Motor assembly 63877 diagram

Kenmore power tool washer

Part #30767

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 37886
#12

Motor assembly 63877 diagram

Spring washer

Part #37886

The manufacturer no longer makes this part, and there's no substitute part

Screw 448039
#1

Motor assembly 63877 diagram

Screw

Part #448039

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin STD571807
#32

Motor assembly 63877 diagram

Roll pin

Part #STD571807

The manufacturer no longer makes this part, and there's no substitute part

Spacer 63556
#7

Motor assembly 63877 diagram

Spacer

Part #63556

The manufacturer no longer makes this part, and there's no substitute part

Rotor Assembly 63577
#10

Motor assembly 63877 diagram

Rotor assembly

Part #63577

The manufacturer no longer makes this part, and there's no substitute part

Motor 63877
#1A

Motor assembly 63877 diagram

Motor

Part #63877

The manufacturer no longer makes this part, and there's no substitute part

L.h. Hsg 63578
#6

Motor assembly 63877 diagram

L.h. hsg

Part #63578

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Motor Shaft Cap 30582
#20

Motor assembly 63877 diagram

Radial arm saw motor shaft cap

Part #30582

The manufacturer no longer makes this part, and there's no substitute part
