Model # 79048343411 Official Kenmore Elite electric oven
Here are the diagrams and repair parts for Official Kenmore Elite 79048343411 electric oven, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

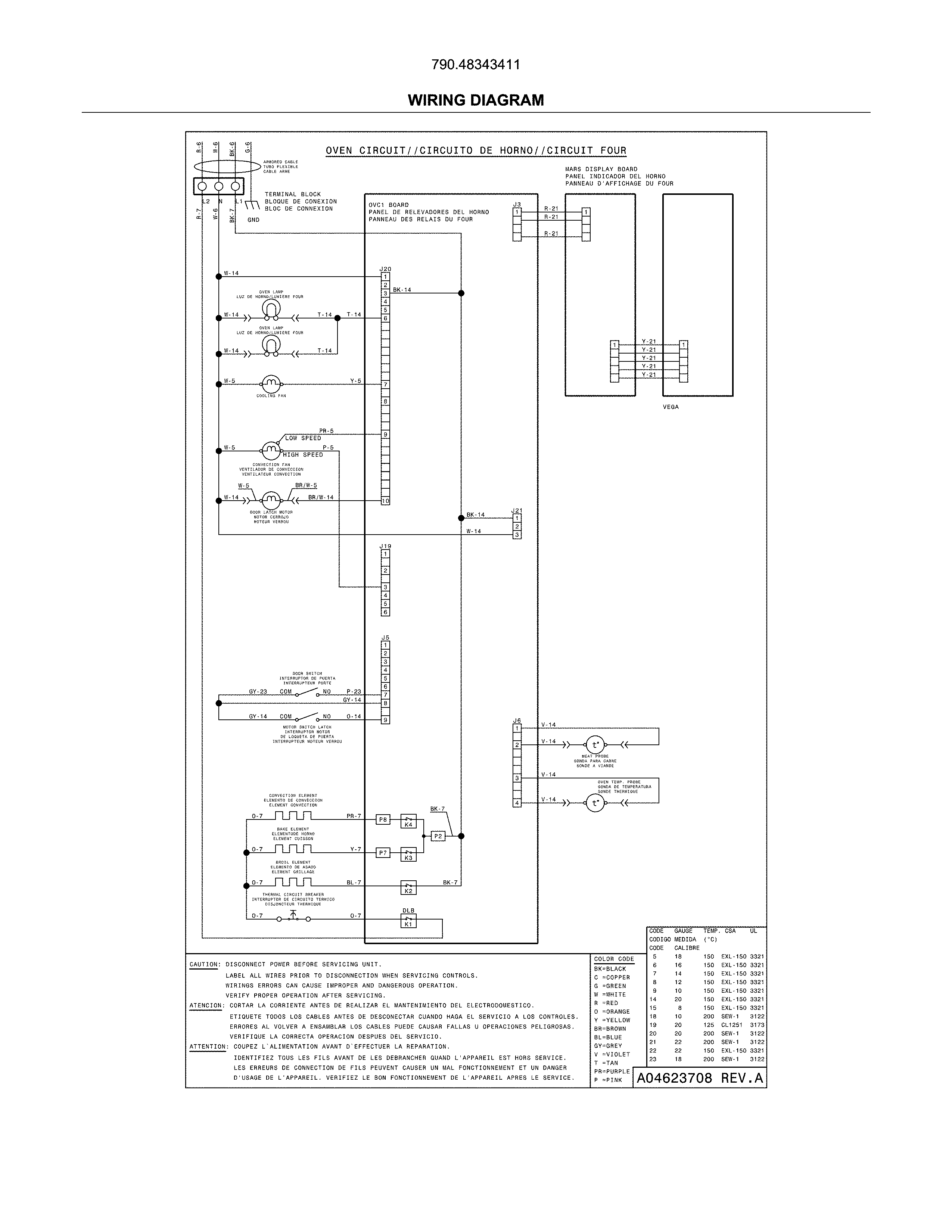

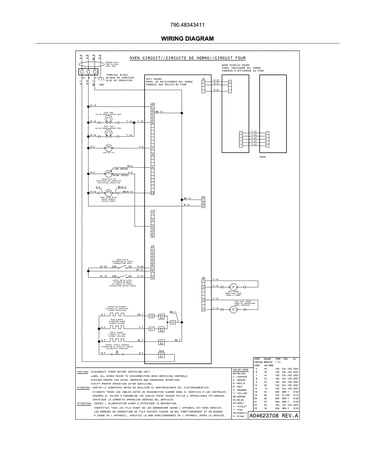

Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
79048343411 Wall Ovens

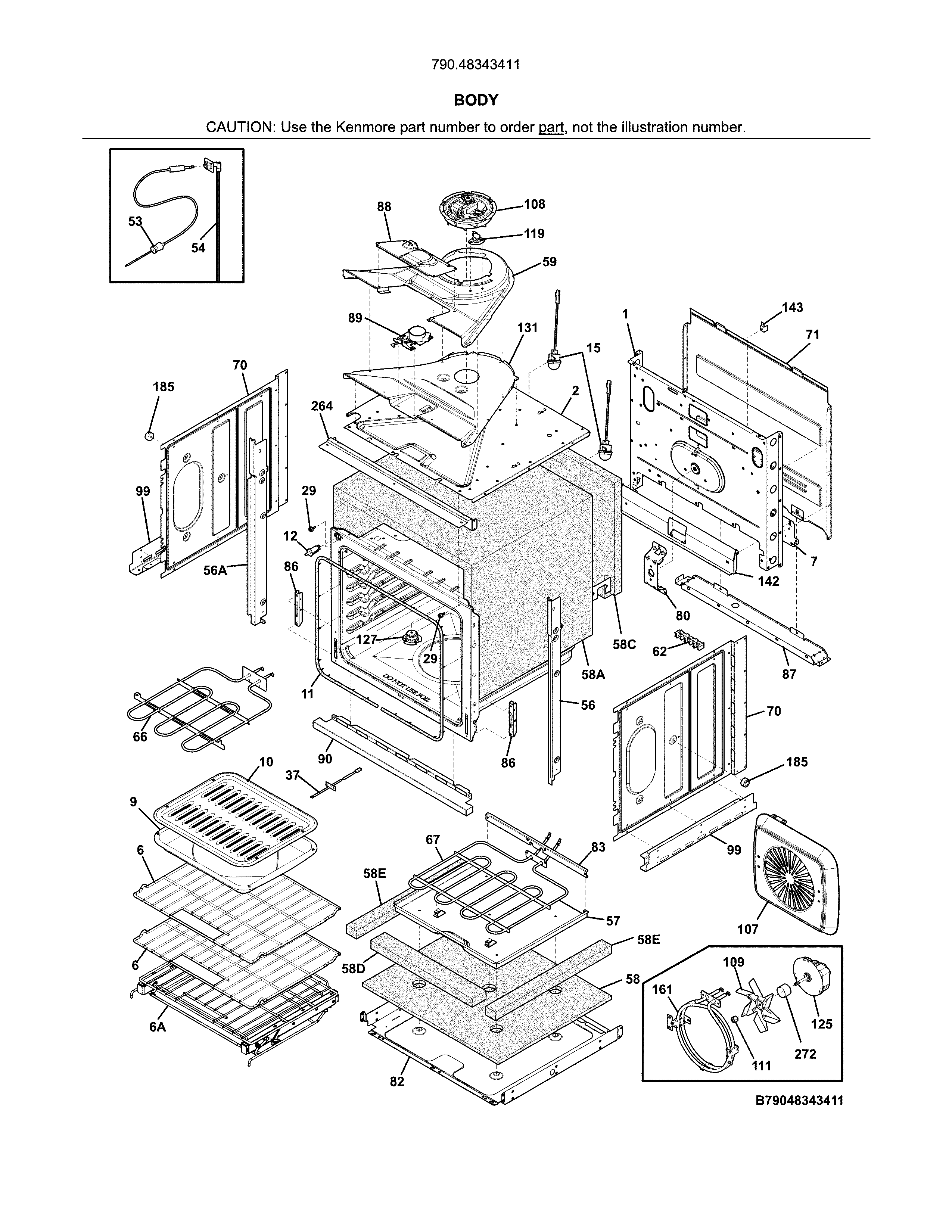

#119
Body diagram
Frigidaire range high-limit thermostat (replaces 318578501)
Part #318578506
$36.28 |
14% OFF Phone Price : $42.28
In Stock
#62
Body diagram
Terminal block
Part #316056000
Replaced by #5304409888
?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
$9.82 |
9% OFF Phone Price : $10.82
In Stock
#37
Body diagram
Cooking appliance oven temperature sensor
Part #5304504897
$33.53 |
15% OFF Phone Price : $39.53
In Stock

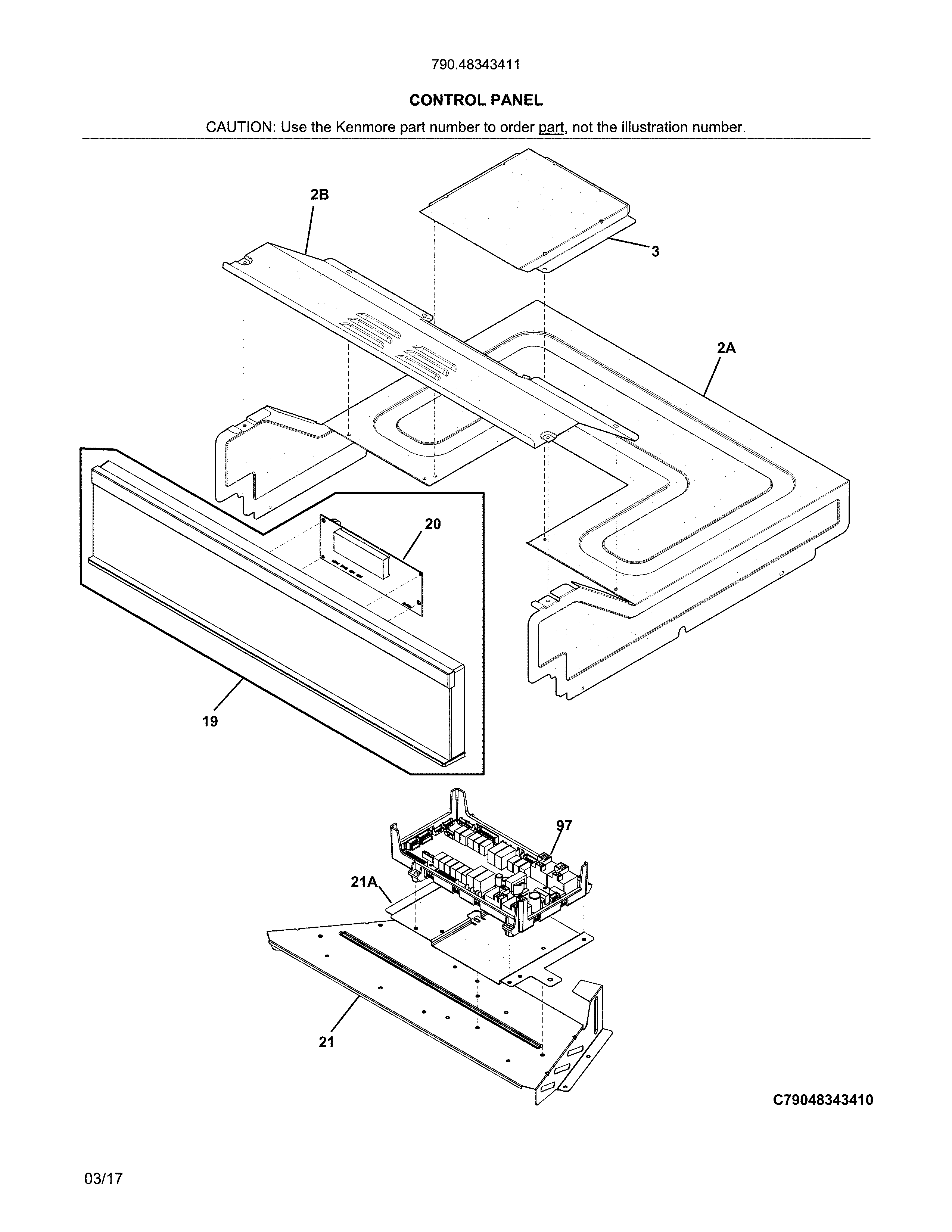

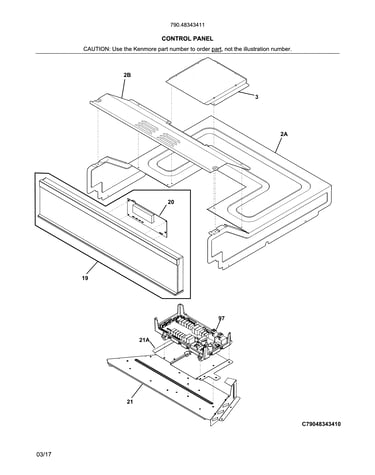

#97
Control panel diagram
Range oven relay control board
Part #316472802
Replaced by #316472807
?
Manufacturer substitution
This part replaces 316472802. Substitute parts can look different from the original.
$173.14 |
6% OFF Phone Price : $185.14
In Stock
#111
Body diagram
Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)
Part #316136600
$20.44 |
23% OFF Phone Price : $26.44
In Stock

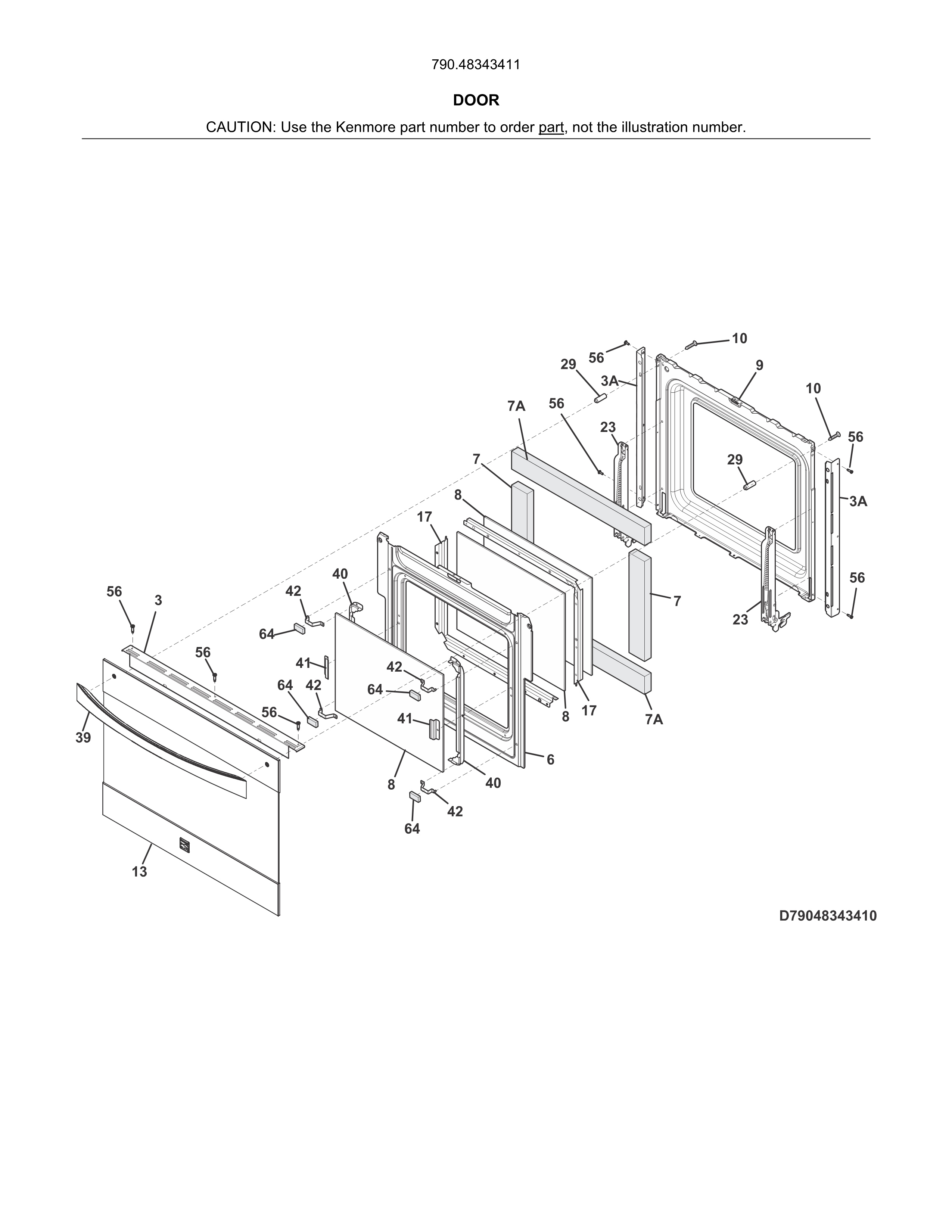

#10
Door diagram
Range screw, #10-24 x 1.94-in (replaces 316439501, 316513301, 5304502177)
Part #5304507924
$7.55 |
12% OFF Phone Price : $8.55
In Stock
#108
Body diagram
Range control panel cooling fan
Part #318575612
$165.57 |
7% OFF Phone Price : $177.57
In Stock
Range screw
Part #316001003
Replaced by #316001017
?
Manufacturer substitution
This part replaces 316001003. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
#NI
Body diagram
Range oven light bulb (replaces 808564103)
Part #318946500
$39.24 |
13% OFF Phone Price : $45.24
In Stock
#67
Body diagram
Wall oven bake element
Part #5304506946
$97.88 |
11% OFF Phone Price : $109.88
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
