GE
Compact Refrigerator

Model # SC3SSARWG Official GE 3 cubic foot compact refrigerator

Here are the diagrams and repair parts for Official GE SC3SSARWG 3 cubic foot compact refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

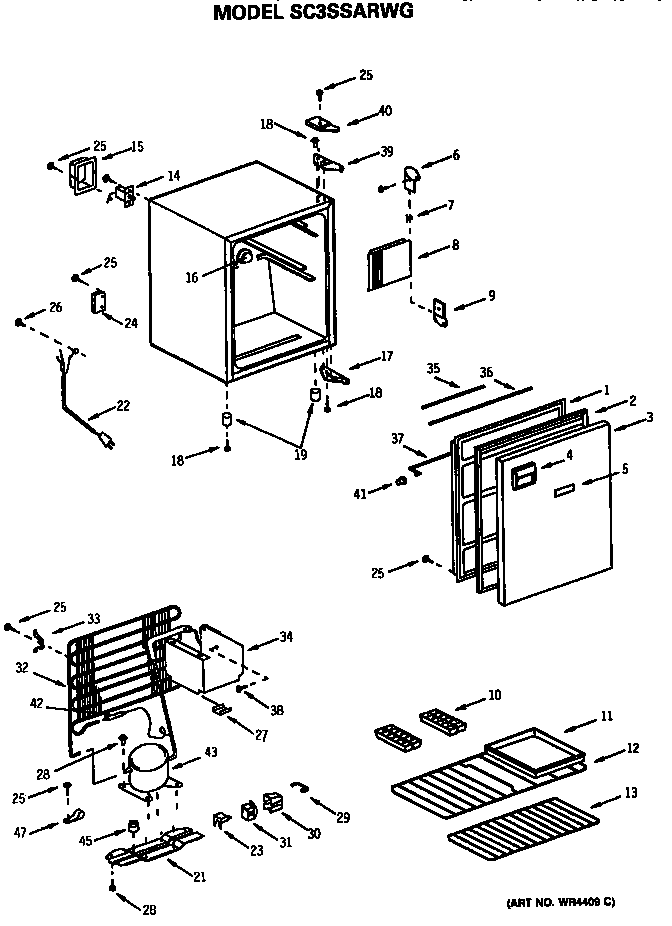

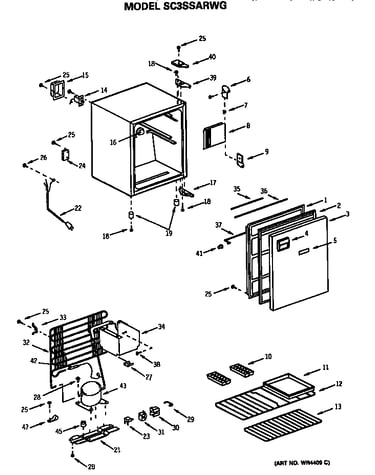

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Dryer Assembly WR86X86

#740

All parts diagram

Dryer assembly

Part #WR86X86

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X86. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Power Cord WR23X108

#626

All parts diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Water Tubing Clip WR1X5278

#626

All parts diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Technical Data Sheet 31-5866

#9999

All parts diagram

Technical data sheet

Part #31-5866

Replaced by #31-5800-99

?
Manufacturer substitution
This part replaces 31-5866. Substitute parts can look different from the original.
$51.99
In Stock
Refrigerator Compressor WR87X440

#43

All parts diagram

Refrigerator compressor

Part #WR87X440

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Wiring Cover WR2X8493

#20

All parts diagram

Refrigerator wiring cover

Part #WR2X8493

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Relay WR7X5149

#42

All parts diagram

Refrigerator relay

Part #WR7X5149

The manufacturer no longer makes this part, and there's no substitute part

Release Cover WR2X8492

#31

All parts diagram

Release cover

Part #WR2X8492

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Overload WR8X115

#48

All parts diagram

Refrigerator overload

Part #WR8X115

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Knob WR2X8289

#23

All parts diagram

Refrigerator knob

Part #WR2X8289

The manufacturer no longer makes this part, and there's no substitute part
