Model # 315111730 Official Craftsman 3/8" cordless drill

Here are the diagrams and repair parts for Official Craftsman 315111730 3/8" cordless drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

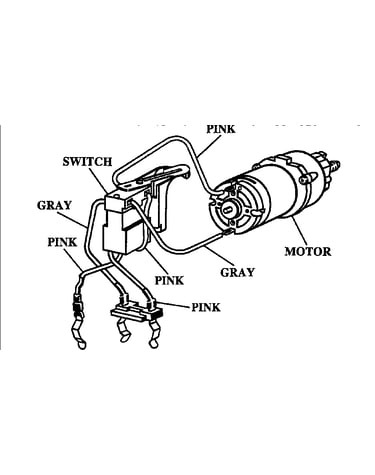

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Screw 970852-000
#3

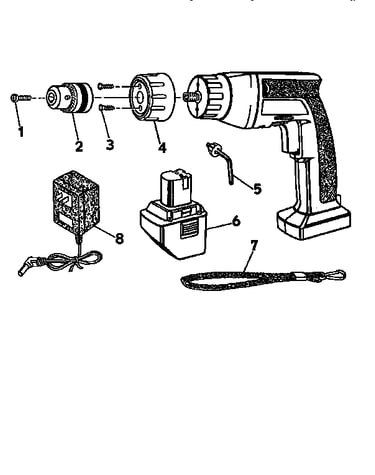

Battery pack diagram

Screw

Part #970852-000

The manufacturer no longer makes this part, and there's no substitute part

Wrist Strap 967215-001
#7

Battery pack diagram

Wrist strap

Part #967215-001

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 973572-001
#6

Battery pack diagram

Battery pack

Part #973572-001

The manufacturer no longer makes this part, and there's no substitute part

Key Holder 973573-000
#2

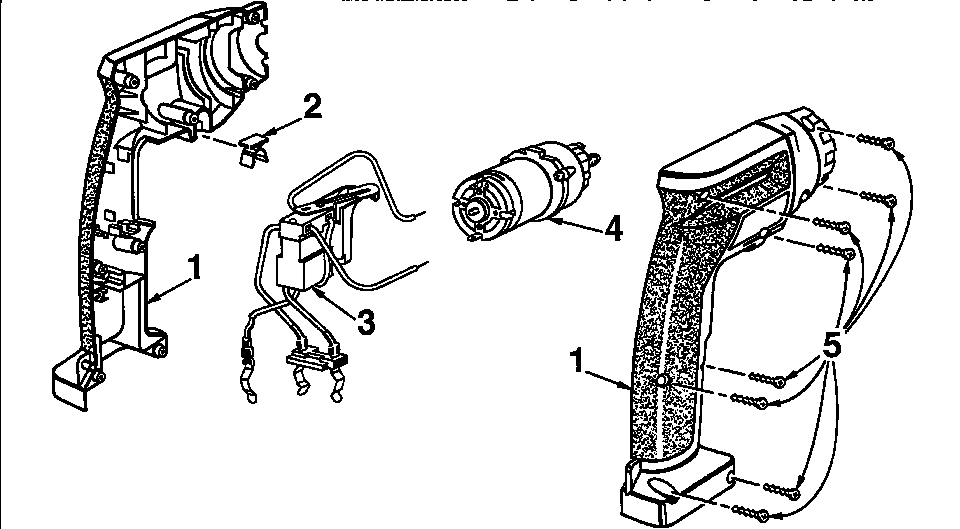

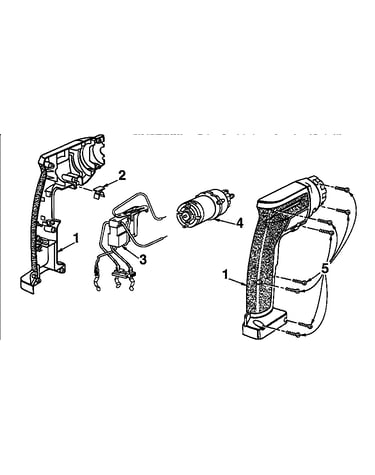

Housing assembly diagram

Key holder

Part #973573-000

The manufacturer no longer makes this part, and there's no substitute part

Drill Chuck Screw 616478-003
#1

Battery pack diagram

Drill chuck screw

Part #616478-003

The manufacturer no longer makes this part, and there's no substitute part

Chuck 973101-001
#2

Battery pack diagram

Chuck

Part #973101-001

The manufacturer no longer makes this part, and there's no substitute part

Cap 973570-000
#4

Battery pack diagram

Cap

Part #973570-000

The manufacturer no longer makes this part, and there's no substitute part

Mtr W/gt 999790-002
#4

Housing assembly diagram

Mtr w/gt

Part #999790-002

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 614984-001
#5

Battery pack diagram

Chuck key

Part #614984-001

The manufacturer no longer makes this part, and there's no substitute part

6 Charger 999555-007
#8

Battery pack diagram

6 charger

Part #999555-007

The manufacturer no longer makes this part, and there's no substitute part
