Model # 113234940 Official Craftsman 8-1/4" compound miter saw

Here are the diagrams and repair parts for Official Craftsman 113234940 8-1/4" compound miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Miter Saw Washer 820238-2
#41

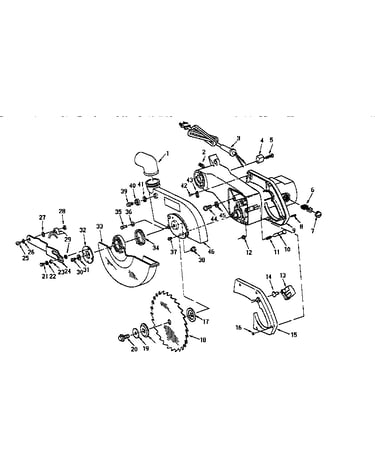

Figure 3 diagram

Miter saw washer

Part #820238-2

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Blade Collar Set 507759
#19

Figure 3 diagram

Miter saw blade collar set

Part #507759

The manufacturer no longer makes this part, and there's no substitute part

Nut 817449-1
#28

Figure 3 diagram

Nut

Part #817449-1

The manufacturer no longer makes this part, and there's no substitute part

Retainer Ring 820632-1
#12

Figure 3 diagram

Retainer ring

Part #820632-1

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Iron Bearing 824215
#40

Figure 3 diagram

Miter saw iron bearing

Part #824215

The manufacturer no longer makes this part, and there's no substitute part

Felt Washer 820663
#7

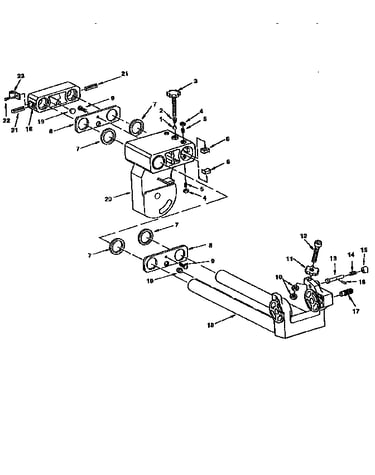

Figure 2 diagram

Felt washer

Part #820663

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw Bevel Lock Handle Assembly 820714-1
#41

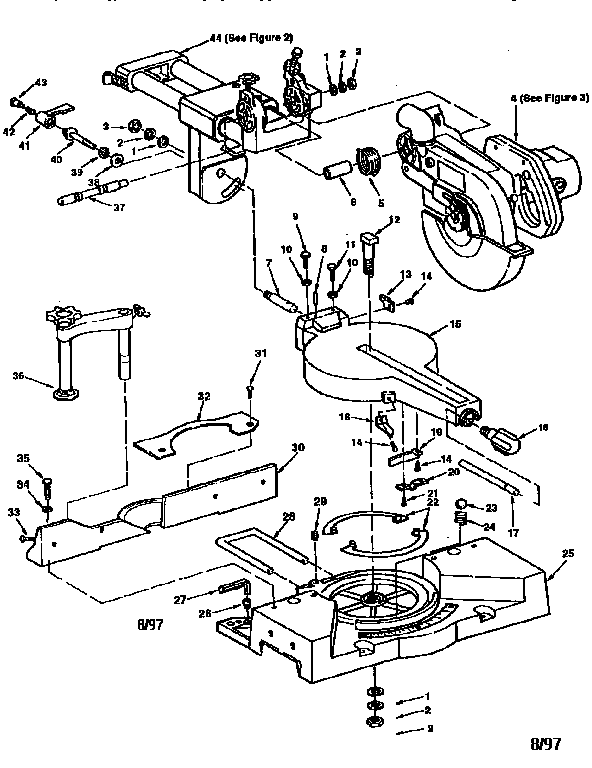

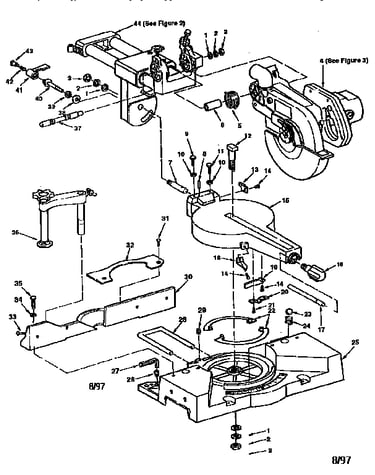

Figure 1 diagram

Miter saw bevel lock handle assembly

Part #820714-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 813313
Screw

Part #813313

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 813249-158
#21

Figure 2 diagram

Roll pin

Part #813249-158

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 818656
#3

Figure 1 diagram

Lock nut

Part #818656

The manufacturer no longer makes this part, and there's no substitute part
