Model # JD750SF1SS Official GE electric range

Here are the diagrams and repair parts for Official GE JD750SF1SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Wall Oven Temperature Sensor WB23T10015
#253

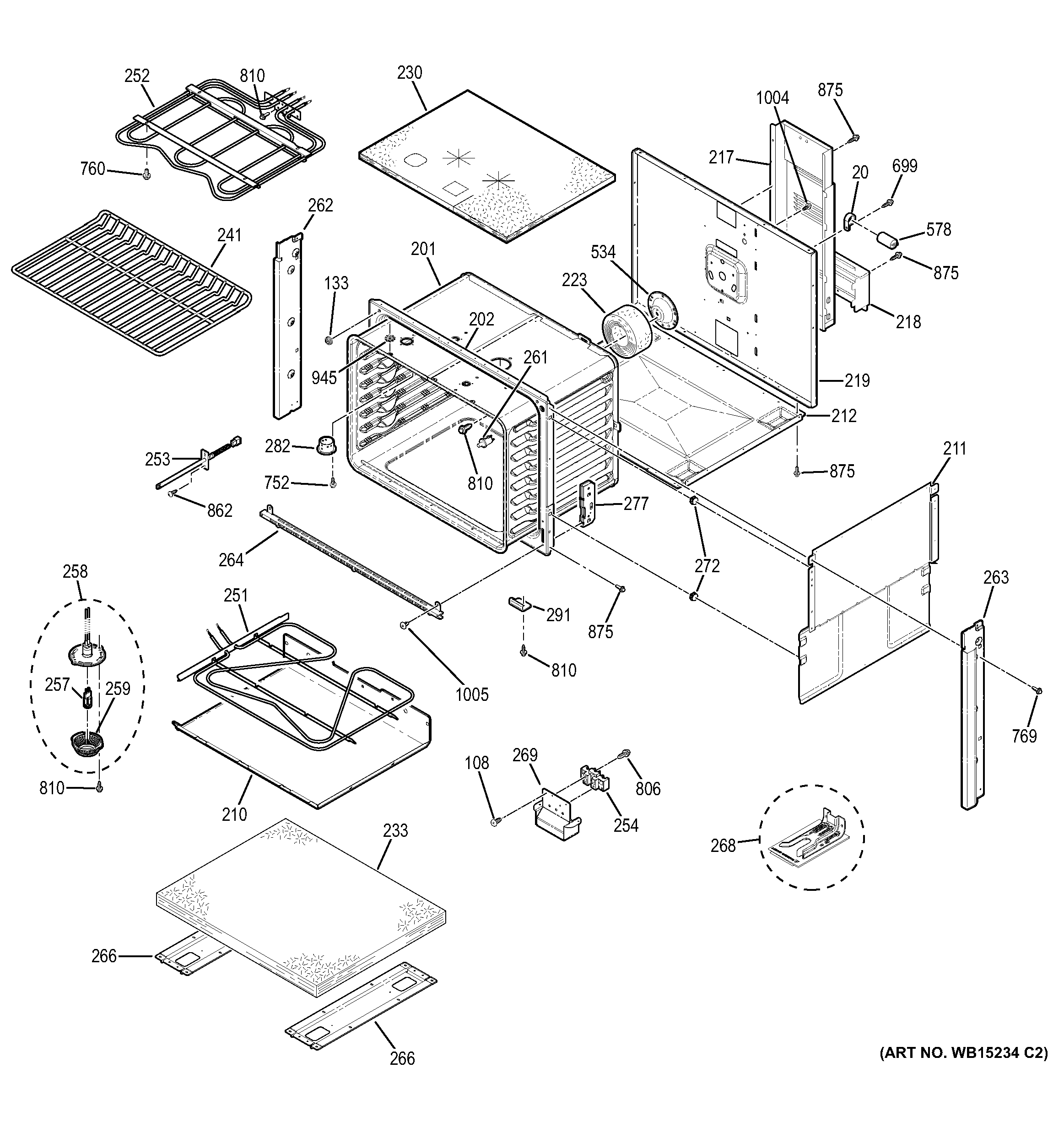

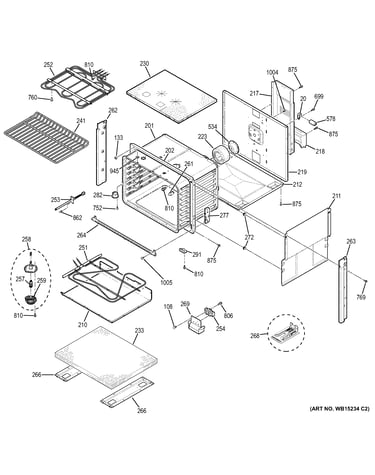

Body parts diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30t10128) WB30T10132
#57

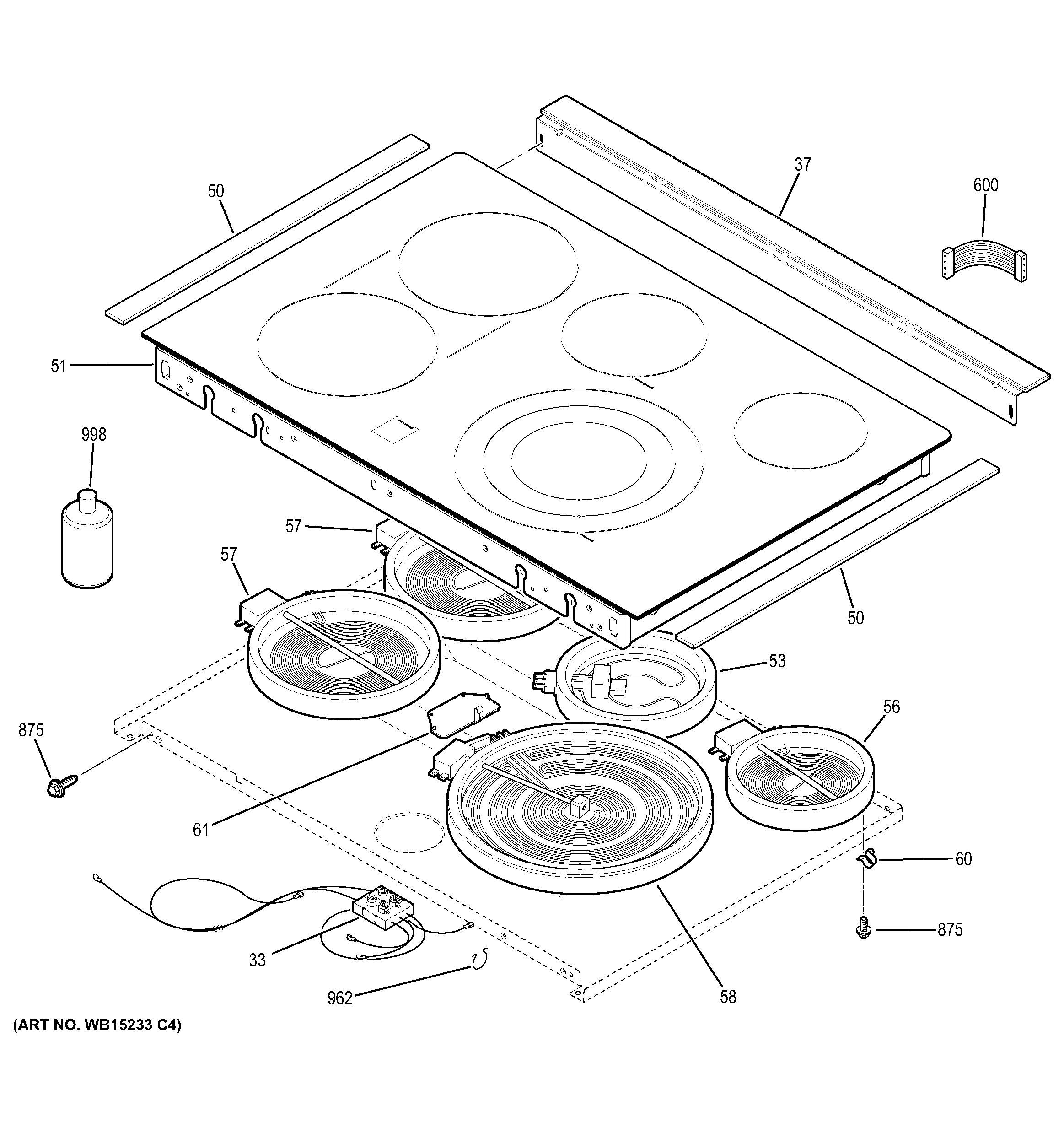

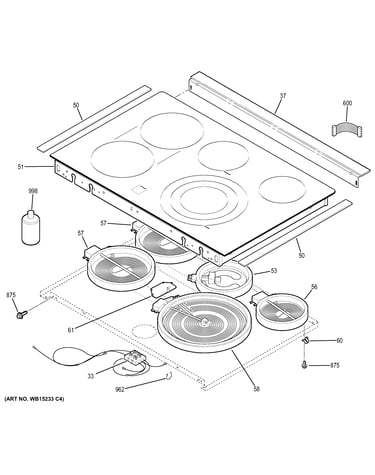

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30t10128)

Part #WB30T10132

BEST SELLER
$53.12 |
10% OFF Phone Price : $59.12
In Stock
Oven Door Glass WB55T10191
#338

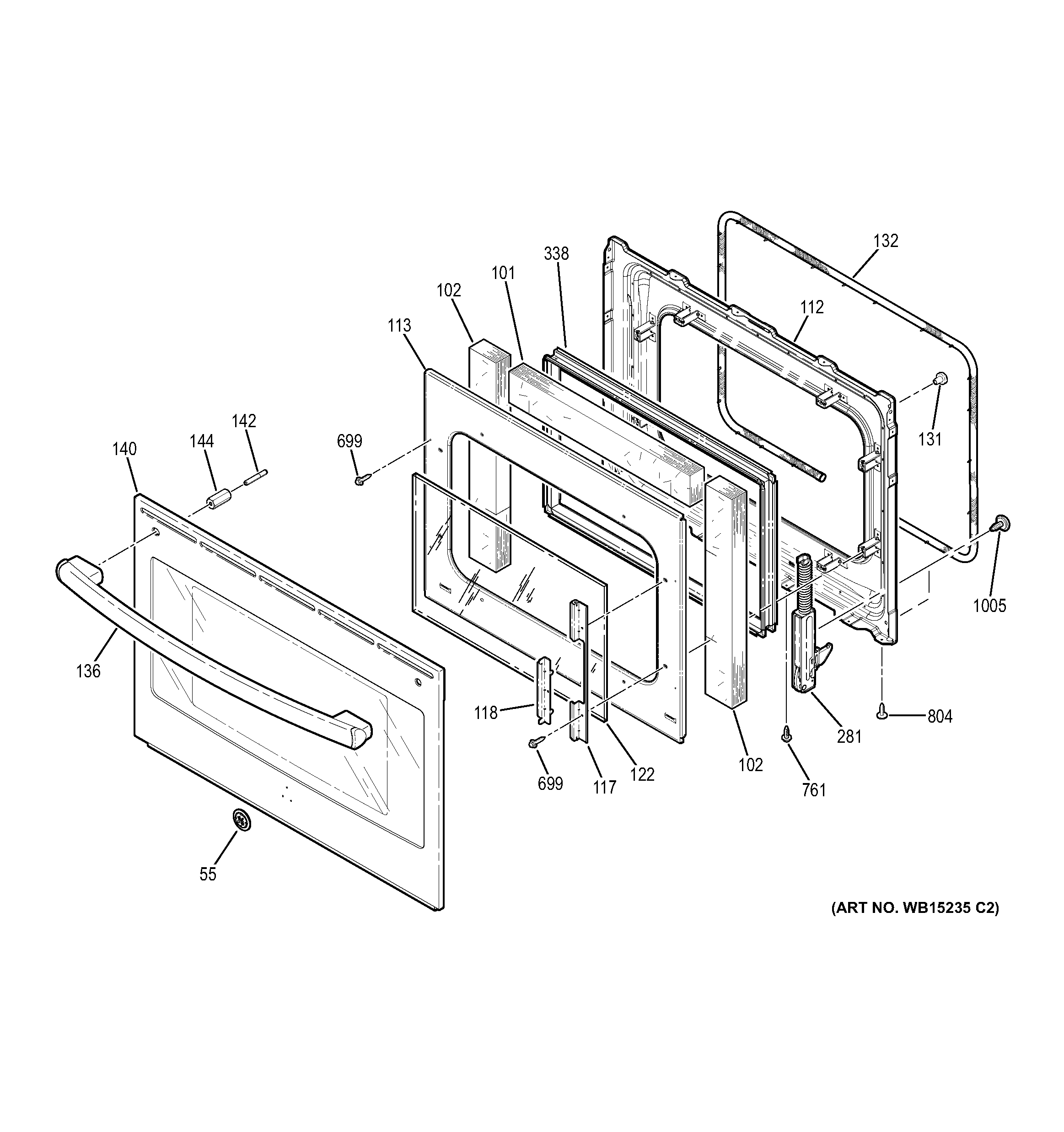

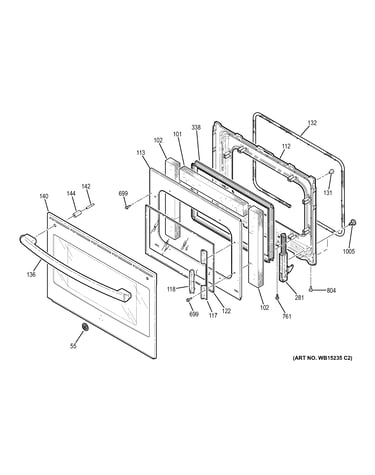

Door diagram

Oven door glass

Part #WB55T10191

Replaced by #WB56T10105

?
Manufacturer substitution
This part replaces WB55T10191. Substitute parts can look different from the original.
BEST SELLER
$98.87 |
11% OFF Phone Price : $110.87
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

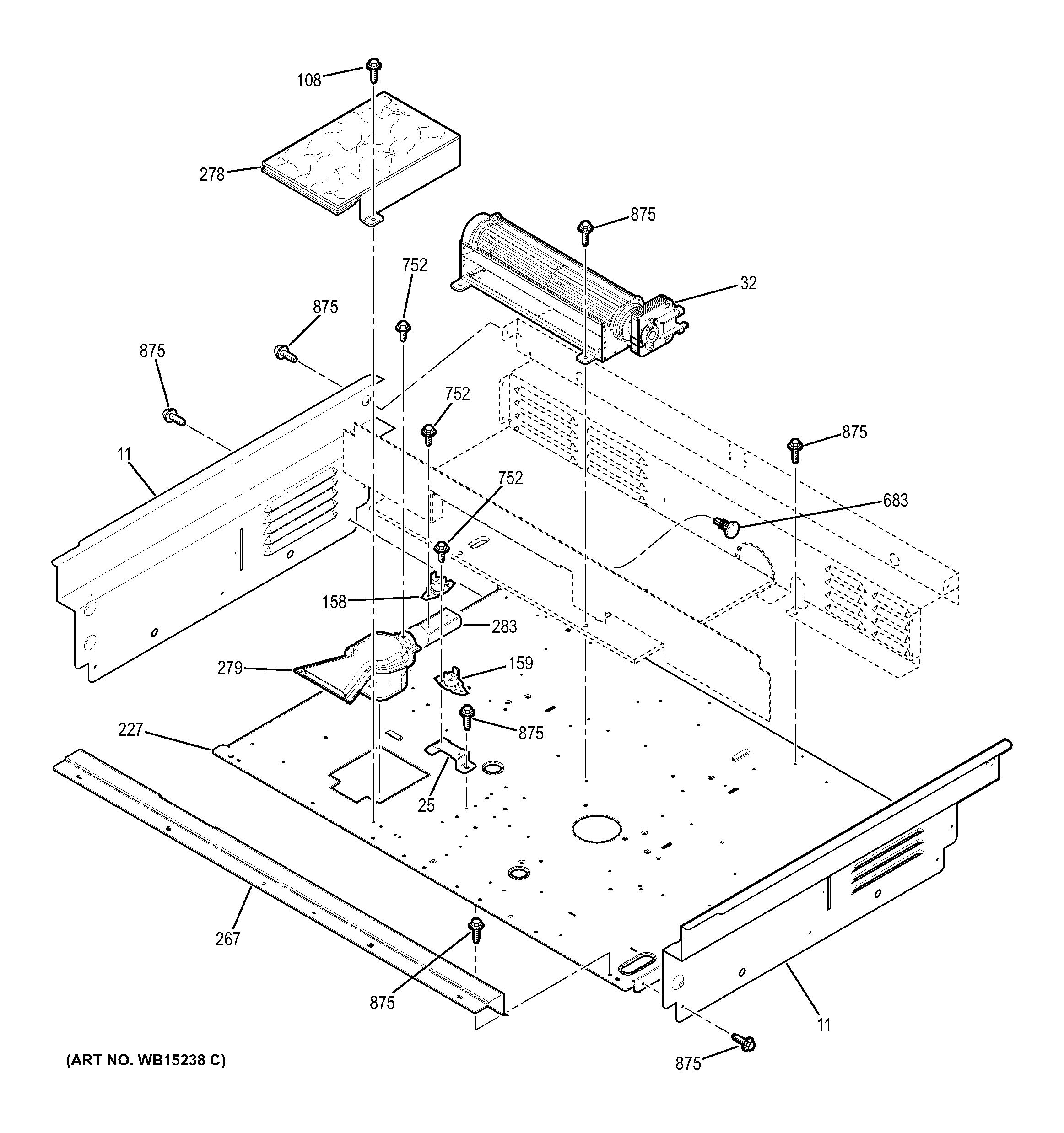

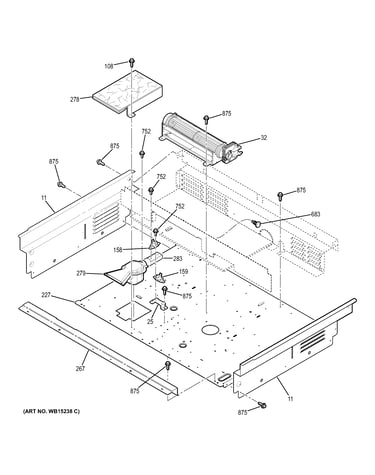

Cooling fan diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Nut WB02T10017
#977

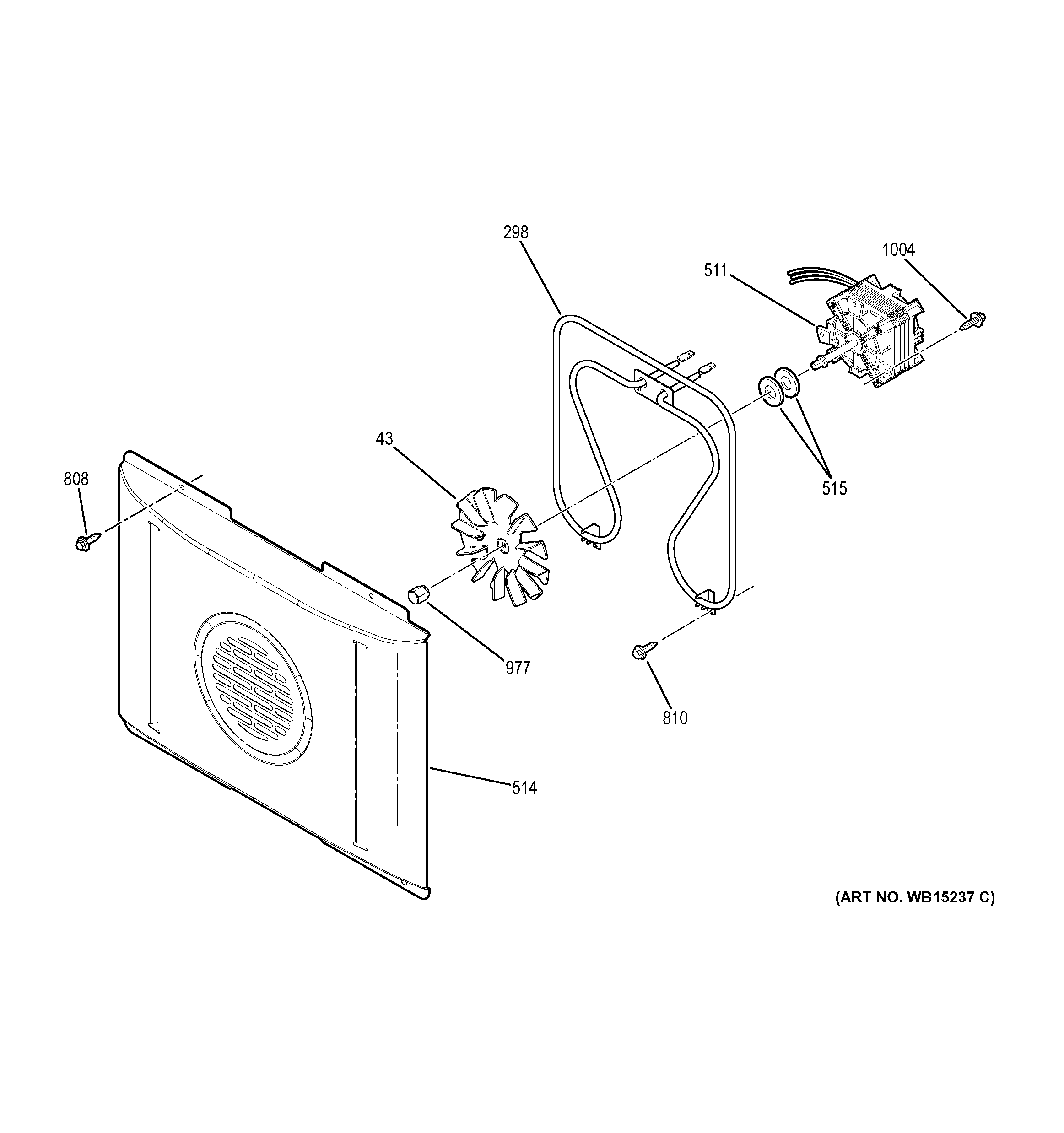

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Convection Fan Blade WB02T10289
#43

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Range Oven Door Inner Glass WB57K5230
#122

Door diagram

Range oven door inner glass

Part #WB57K5230

$121.80 |
9% OFF Phone Price : $133.80
In Stock
Range Surface Element Spring WB09T10013
#60

Cooktop diagram

Range surface element spring

Part #WB09T10013

Replaced by #WB09X40389

?
Manufacturer substitution
This part replaces WB09T10013. Substitute parts can look different from the original.
$9.54
In Stock
Range Oven Door Lock Assembly WB14T10069
#150

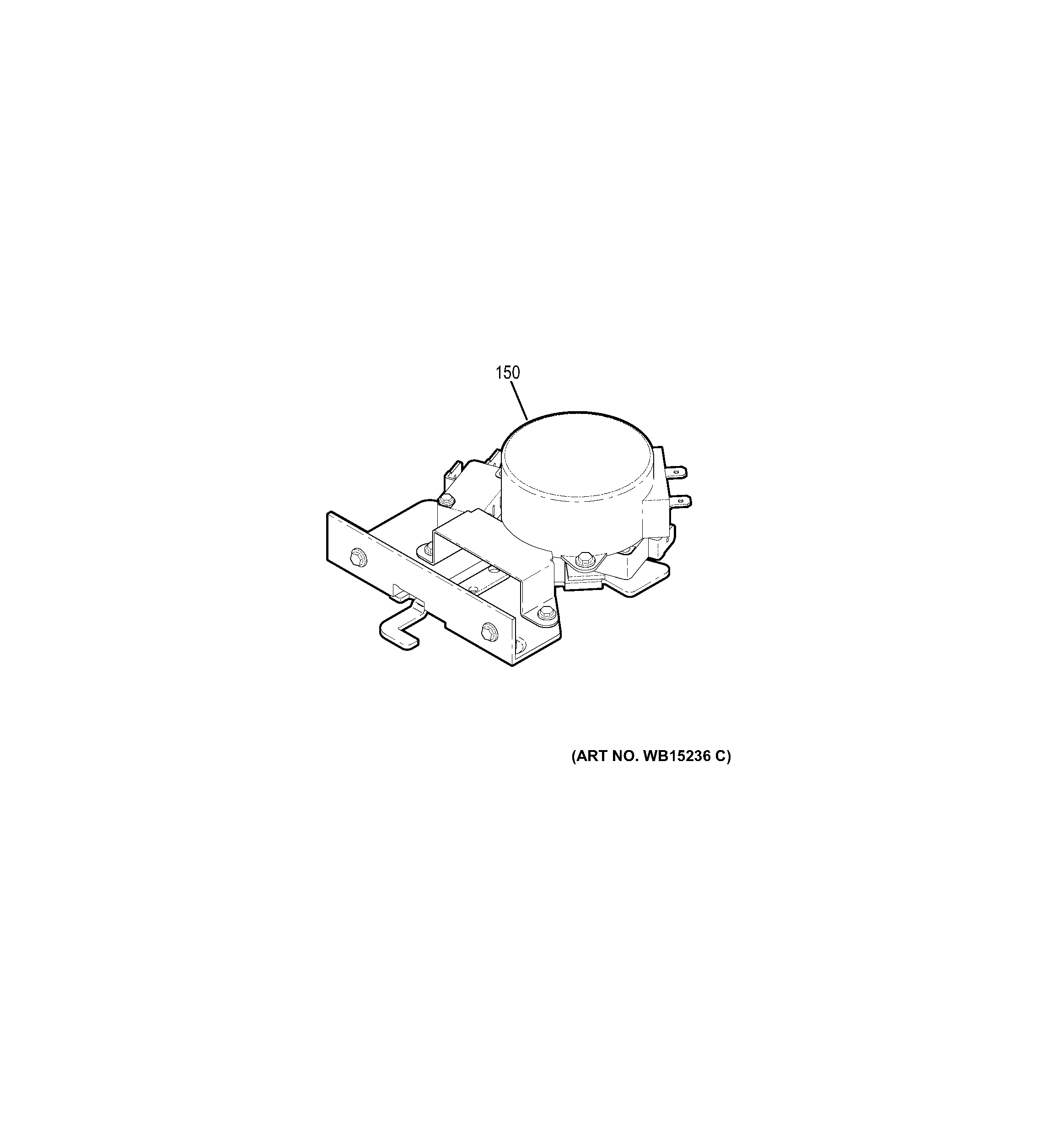

Door lock diagram

Range oven door lock assembly

Part #WB14T10069

$175.88 |
6% OFF Phone Price : $187.88
In Stock
Range Surface Element Control Switch (replaces Wb24t10126) WB24T10139
#21

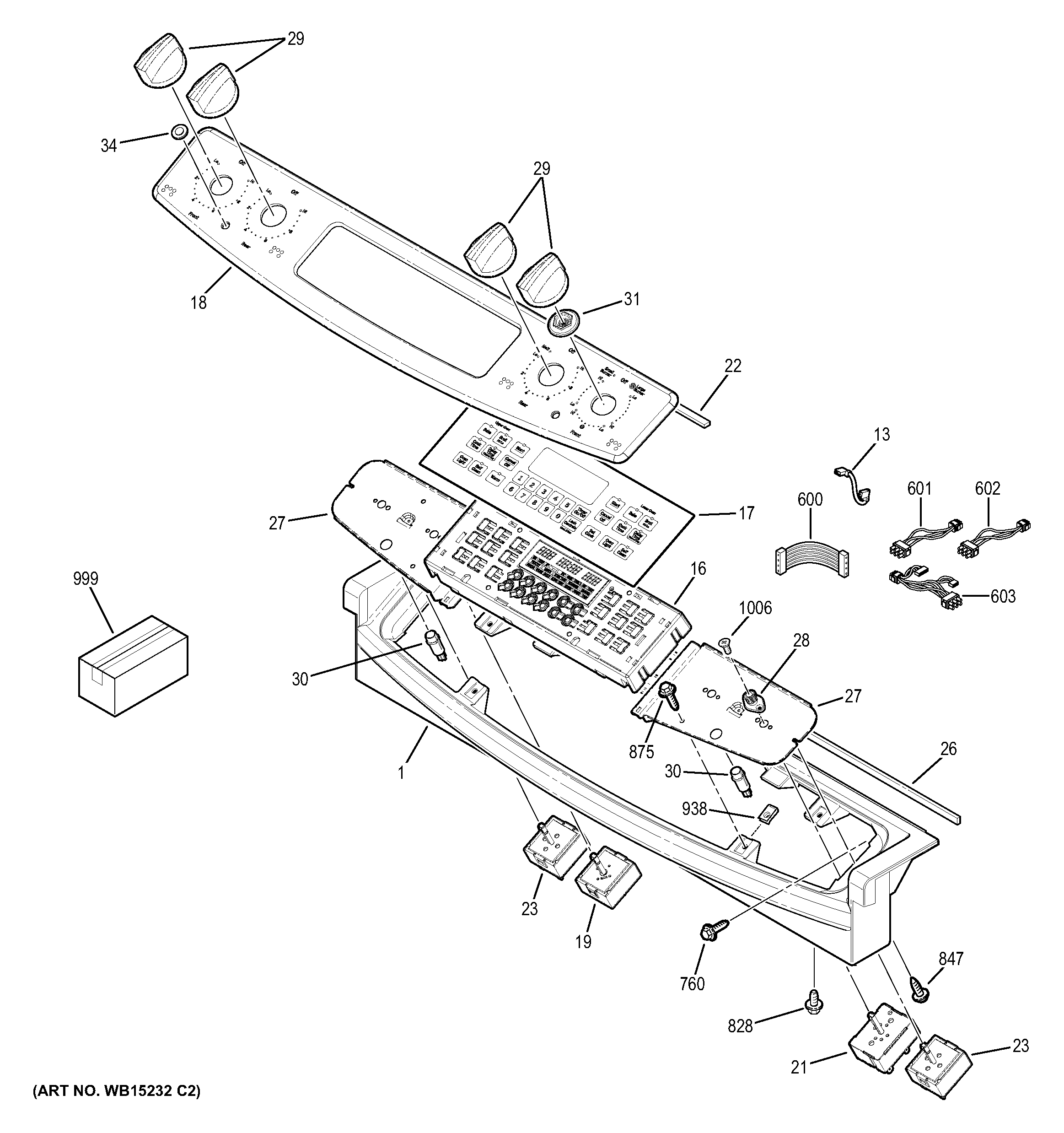

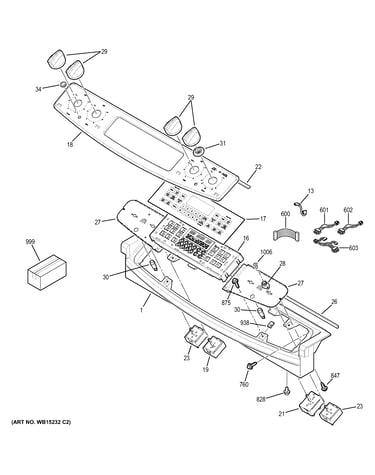

Control panel diagram

Range surface element control switch (replaces wb24t10126)

Part #WB24T10139

$121.76 |
9% OFF Phone Price : $133.76
In Stock
