Electric Range

Model # JCBP67CM2WW Official GE electric range

Here are the diagrams and repair parts for Official GE JCBP67CM2WW electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
JCBP67CM2WW Ranges
Range Oven Light Bulb WX12X1510
#257

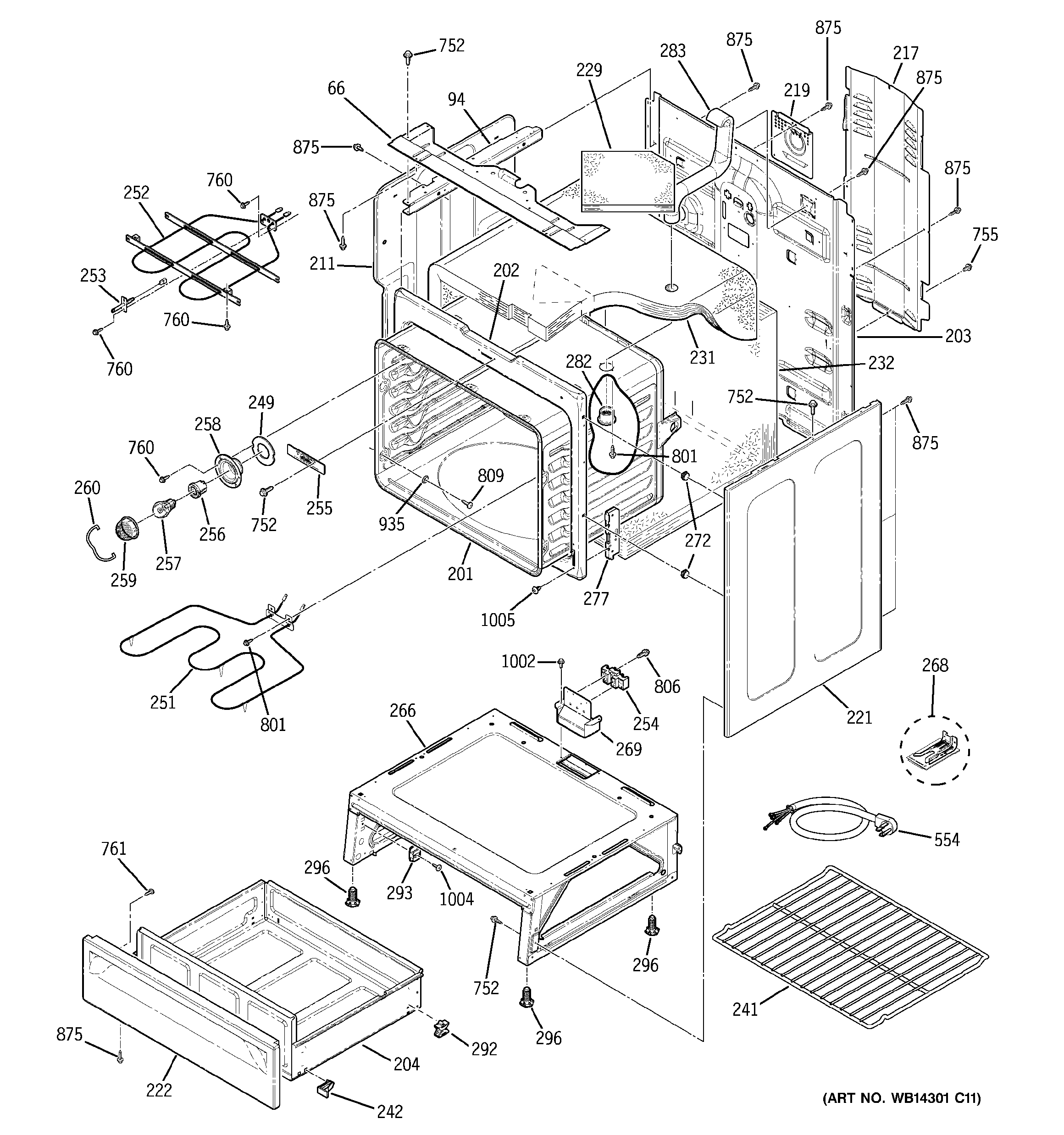

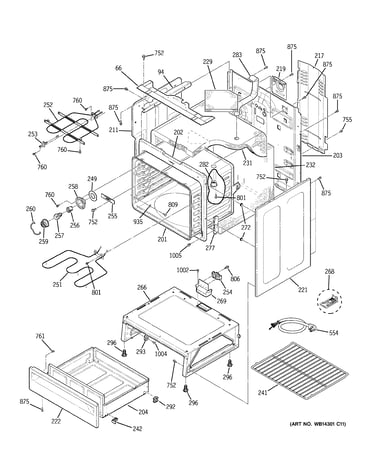

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Oven Control WB27T10816
#16

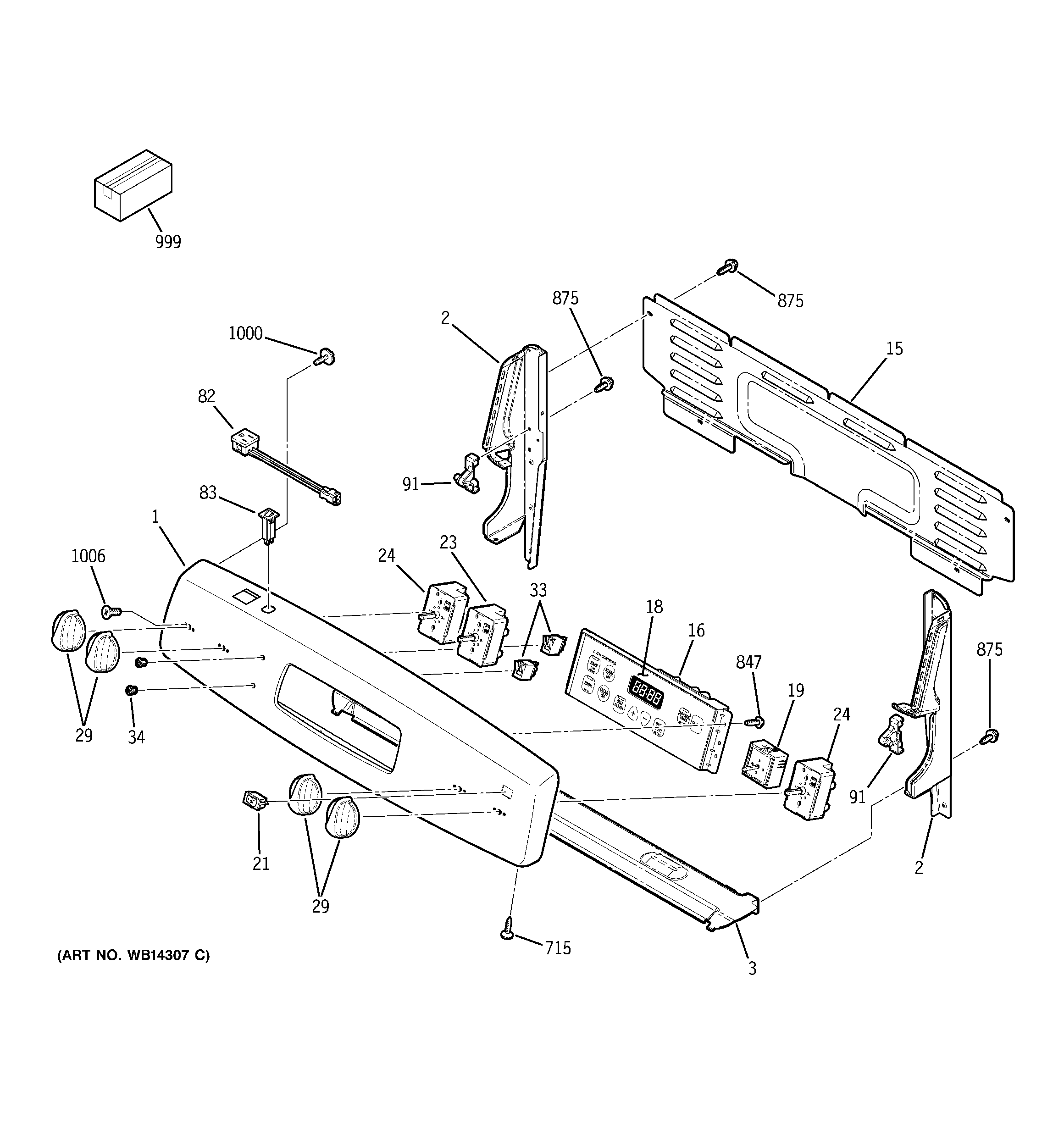

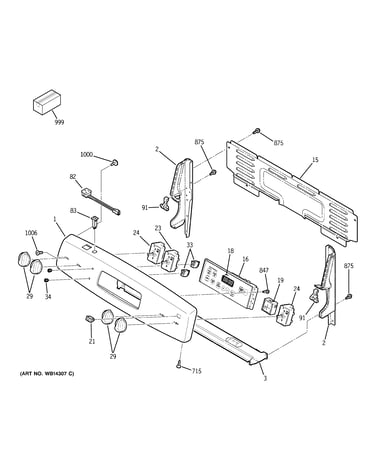

Control panel diagram

Oven control

Part #WB27T10816

The manufacturer no longer makes this part, and there's no substitute part

Wall Oven Temperature Sensor WB21T10007
#253

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
4 (3)
BEST SELLER
$22.74 |
21% OFF Phone Price : $28.74
In Stock
Range Bake Element (replaces Wb44t10059) WB44T10011
#251

Body parts diagram

Range bake element (replaces wb44t10059)

Part #WB44T10011

4.7 (23)
BEST SELLER
$87.36 |
6% OFF Phone Price : $93.36
In Stock
G.e. Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
#338

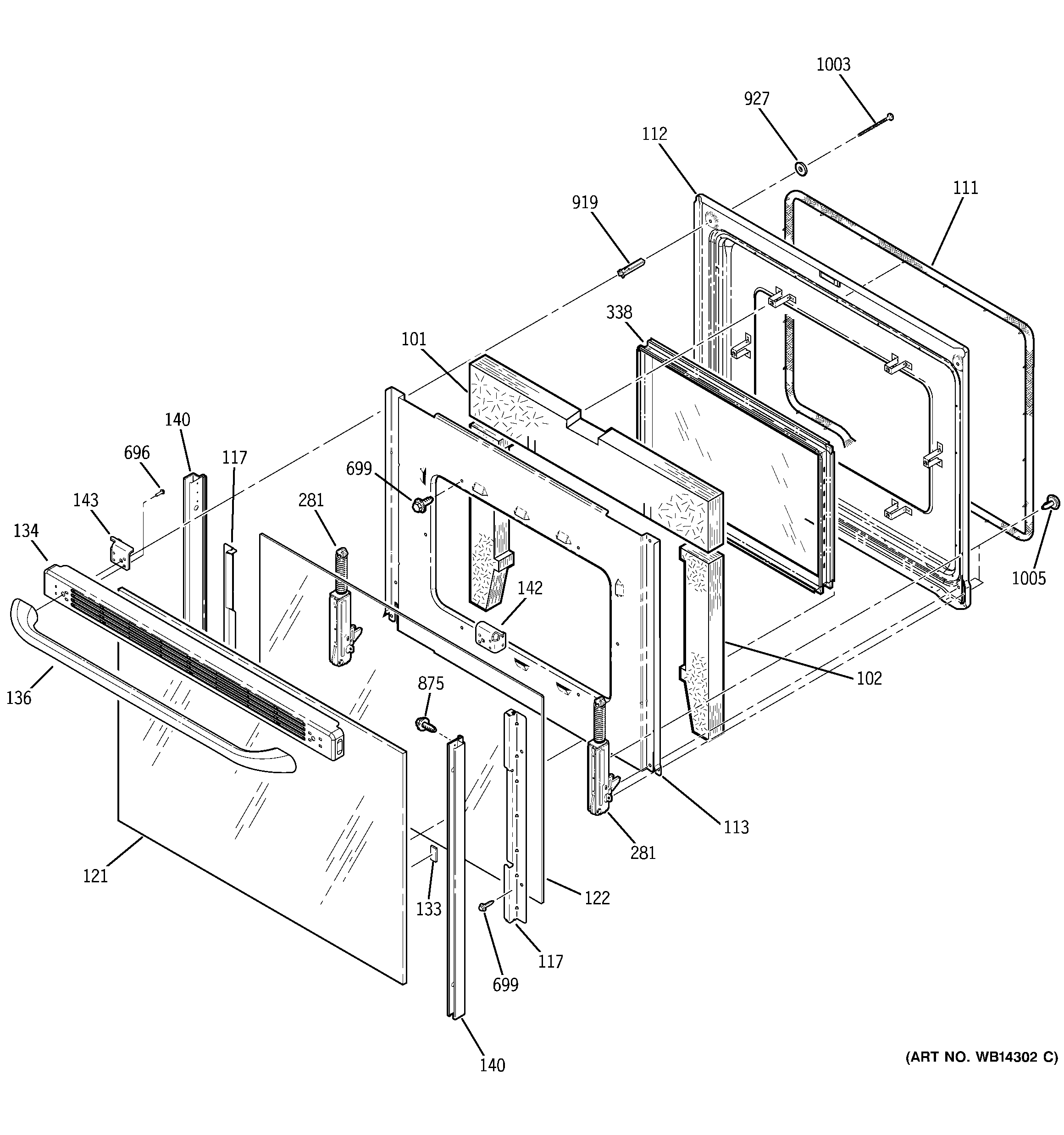

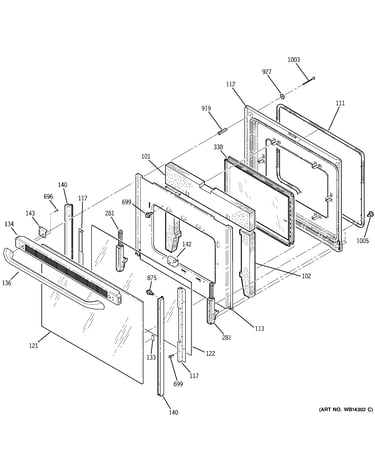

Door diagram

G.e. range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

4.8 (10)
BEST SELLER
$124.44 |
9% OFF Phone Price : $136.44
In Stock
Rocker Switch WB24T10049
#21

Control panel diagram

Rocker switch

Part #WB24T10049

Replaced by #WB24T10165

?
Manufacturer substitution
This part replaces WB24T10049. Substitute parts can look different from the original.
BEST SELLER
$52.26 |
10% OFF Phone Price : $58.26
In Stock
Terminal Block WB17T10012
#254

Body parts diagram

Terminal block

Part #WB17T10012

Replaced by #WB17T10011

?
Manufacturer substitution
This part replaces WB17T10012. Substitute parts can look different from the original.
5 (1)
BEST SELLER
$51.84 |
10% OFF Phone Price : $57.84
In Stock
Range Surface Element Control Switch, 1,500-watt WB24T10011
#19

Control panel diagram

Range surface element control switch, 1,500-watt

Part #WB24T10011

BEST SELLER
$65.25 |
8% OFF Phone Price : $71.25
In Stock
Range Dual Radiant Surface Element WB30T10135
#57

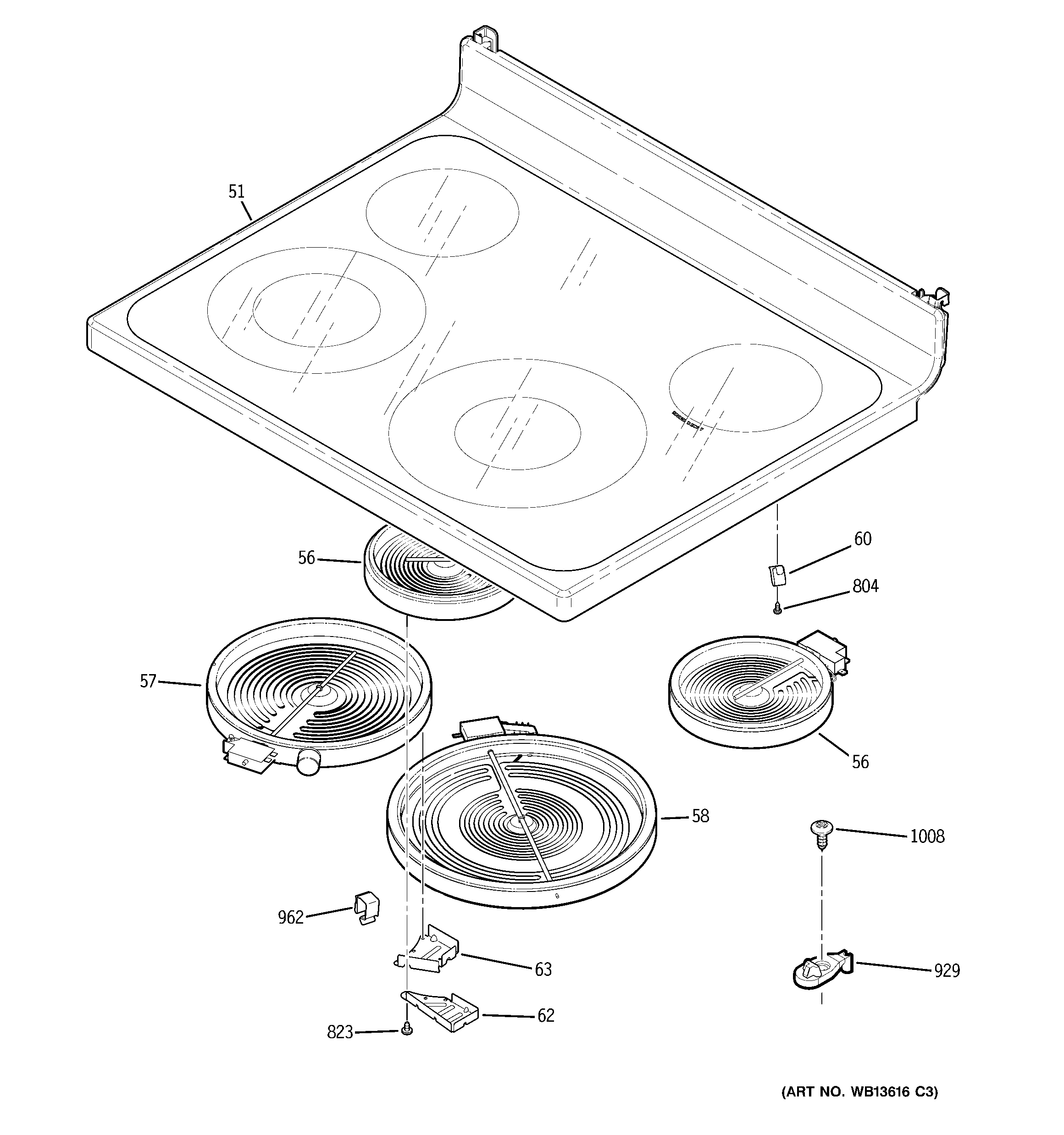

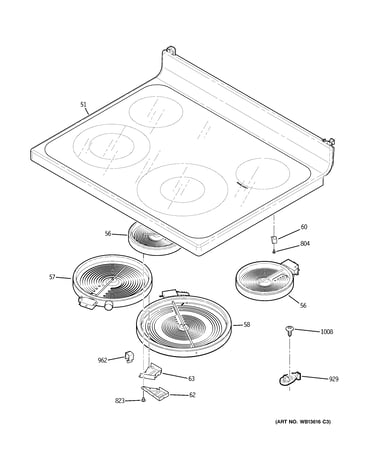

Cooktop diagram

Range dual radiant surface element

Part #WB30T10135

BEST SELLER
$112.27 |
10% OFF Phone Price : $124.27
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#256

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.53 |
12% OFF Phone Price : $8.53
In Stock
