Model # 7198772780 Official Kenmore microwave
Here are the diagrams and repair parts for Official Kenmore 7198772780 microwave, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
7198772780 Microwaves
#2

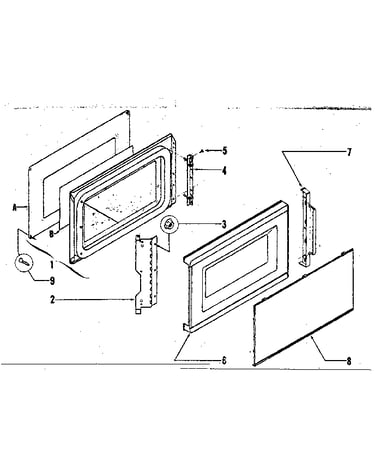

Door parts diagram
Door hinge
Part #302T044P02
Replaced by #302T044P02
?
Manufacturer substitution
This part replaces 302T044P02. Substitute parts can look different from the original.
$10.49
In Stock
#3

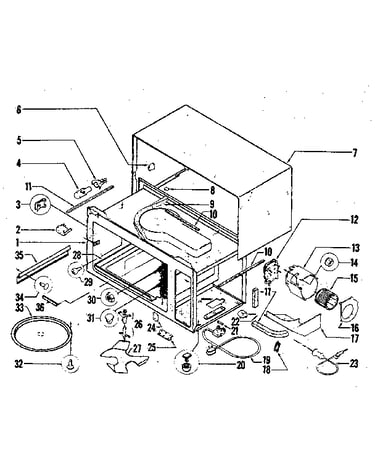

Body parts diagram
Fastener
Part #241T017P235
Replaced by #3203010
?
Manufacturer substitution
This part replaces 241T017P235. Substitute parts can look different from the original.
$17.23
In Stock
#3

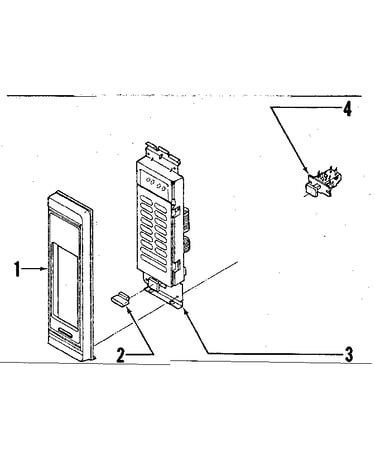

Control panel parts diagram
Control assembly
Part #521T145P02
Replaced by #5303210615
?
Manufacturer substitution
This part replaces 521T145P02. Substitute parts can look different from the original.
$115.88
In Stock
#5
Body parts diagram
Light socket
Part #662T043P02
Replaced by #5308037736
?
Manufacturer substitution
This part replaces 662T043P02. Substitute parts can look different from the original.
$12.06
In Stock
#1

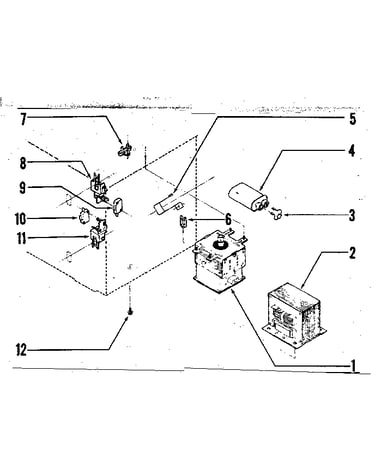

Power control parts diagram
Magnetron
Part #115T423P02
The manufacturer no longer makes this part, and there's no substitute part
#25
Body parts diagram
Bracket
Part #072T825F01
Replaced by #5303011555
?
Manufacturer substitution
This part replaces 072T825F01. Substitute parts can look different from the original.
This item is not returnable
$6.23
In Stock
#1
Door parts diagram
Door choke
Part #260T009S03
Replaced by #3206273
?
Manufacturer substitution
This part replaces 260T009S03. Substitute parts can look different from the original.
$52.49
In Stock
Screw
Part #636T090P54
Replaced by #5300807501
?
Manufacturer substitution
This part replaces 636T090P54. Substitute parts can look different from the original.
This item is not returnable
$3.80
In Stock
#24
Body parts diagram
Bezel
Part #045T067P01
Replaced by #394010301
?
Manufacturer substitution
This part replaces 045T067P01. Substitute parts can look different from the original.
This item is not returnable
$2.94
In Stock
#20
Body parts diagram
Foot kit
Part #355T583S01
Replaced by #5303018598
?
Manufacturer substitution
This part replaces 355T583S01. Substitute parts can look different from the original.
This item is not returnable
$4.71
In Stock
