Model # ECKMF83 Official Whirlpool ice maker kit
Here are the diagrams and repair parts for Official Whirlpool ECKMF83 ice maker kit, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
ECKMF83 Refrigerators
#57D

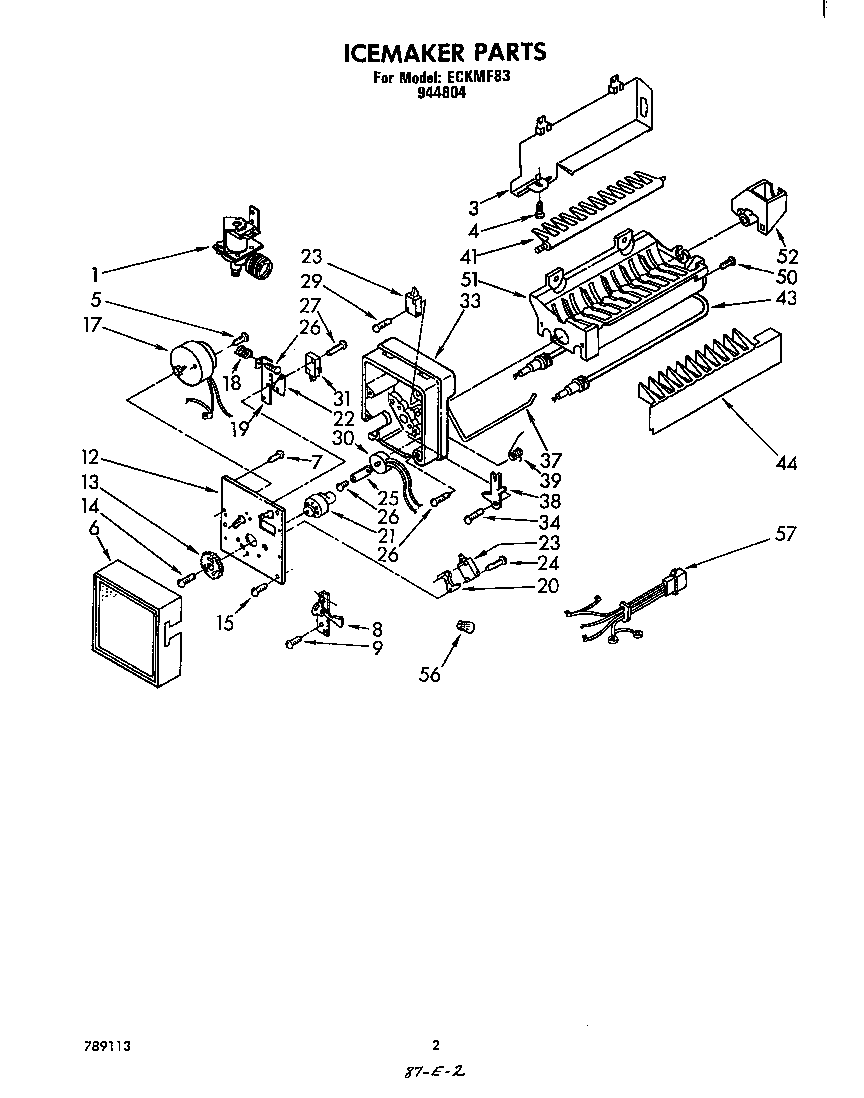

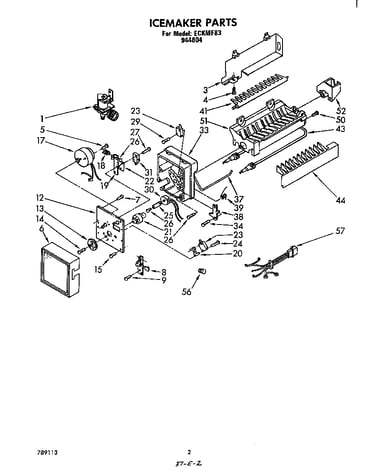

Icemaker assembly diagram
Refrigerator power cord clamp screw
Part #489069
Replaced by #WP489069
?
Manufacturer substitution
This part replaces 489069. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#56
Icemaker assembly diagram
Connector
Part #227991
Replaced by #STD375005
?
Manufacturer substitution
This part replaces 227991. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
#57A
Icemaker assembly diagram
Refrigerator ice bin
Part #939529
Replaced by #W10898951
?
Manufacturer substitution
This part replaces 939529. Substitute parts can look different from the original.
$118.09 |
9% OFF Phone Price : $130.09
In Stock
#1
Icemaker assembly diagram
Refrigerator valve
Part #627752
Replaced by #4318047
?
Manufacturer substitution
This part replaces 627752. Substitute parts can look different from the original.
$60.92 |
9% OFF Phone Price : $66.92
In Stock
#20
Icemaker assembly diagram
Spacer
Part #625834
The manufacturer no longer makes this part, and there's no substitute part
#57W
Icemaker assembly diagram
Refrigerator instruction booklet
Part #944808
The manufacturer no longer makes this part, and there's no substitute part
#30
Icemaker assembly diagram
Thermostat
Part #625844
The manufacturer no longer makes this part, and there's no substitute part
#57
Icemaker assembly diagram
Refrigerator harness
Part #627750
The manufacturer no longer makes this part, and there's no substitute part
#33
Icemaker assembly diagram
Ice maker housing
Part #625827
The manufacturer no longer makes this part, and there's no substitute part
#26
Icemaker assembly diagram
Screw
Part #488372
The manufacturer no longer makes this part, and there's no substitute part
