Model # 3-6771X1 Official Murray 24" women's 10-speed lightweight escapade bicycle

Here are the diagrams and repair parts for Official Murray 3-6771X1 24" women's 10-speed lightweight escapade bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Rim Strip 118X5
#13C

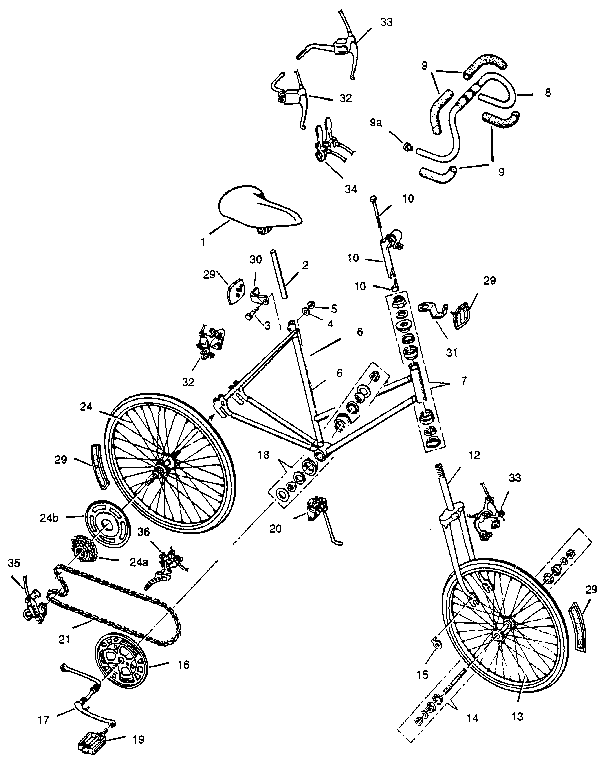

Ladies' 24" 10 speed lightweight "escapade" diagram

Rim strip

Part #118X5

The manufacturer no longer makes this part, and there's no substitute part

Kickstand As 302339
#20

Ladies' 24" 10 speed lightweight "escapade" diagram

Kickstand as

Part #302339

The manufacturer no longer makes this part, and there's no substitute part

24 In Tube 139X6
#13B

Ladies' 24" 10 speed lightweight "escapade" diagram

24 in tube

Part #139X6

The manufacturer no longer makes this part, and there's no substitute part

R Derailleur 44581
#35

Ladies' 24" 10 speed lightweight "escapade" diagram

R derailleur

Part #44581

The manufacturer no longer makes this part, and there's no substitute part

Cable Casing 308525
#34A

Ladies' 24" 10 speed lightweight "escapade" diagram

Cable casing

Part #308525

The manufacturer no longer makes this part, and there's no substitute part

Grip 40433
#9

Ladies' 24" 10 speed lightweight "escapade" diagram

Grip

Part #40433

The manufacturer no longer makes this part, and there's no substitute part

F Brk Lever 41647
#33

Ladies' 24" 10 speed lightweight "escapade" diagram

F brk lever

Part #41647

The manufacturer no longer makes this part, and there's no substitute part

Washer Brake 17X167Z
#33B

Ladies' 24" 10 speed lightweight "escapade" diagram

Washer brake

Part #17X167Z

The manufacturer no longer makes this part, and there's no substitute part

Shft Lvr Stm 44925PA
#34

Ladies' 24" 10 speed lightweight "escapade" diagram

Shft lvr stm

Part #44925PA

The manufacturer no longer makes this part, and there's no substitute part

R Brk Lever 41646
#32

Ladies' 24" 10 speed lightweight "escapade" diagram

R brk lever

Part #41646

The manufacturer no longer makes this part, and there's no substitute part
