Craftsman
Angle Grinder

Model # 135277001 Official Craftsman disc grinder/sander

Here are the diagrams and repair parts for Official Craftsman 135277001 disc grinder/sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Screw 318846
#36

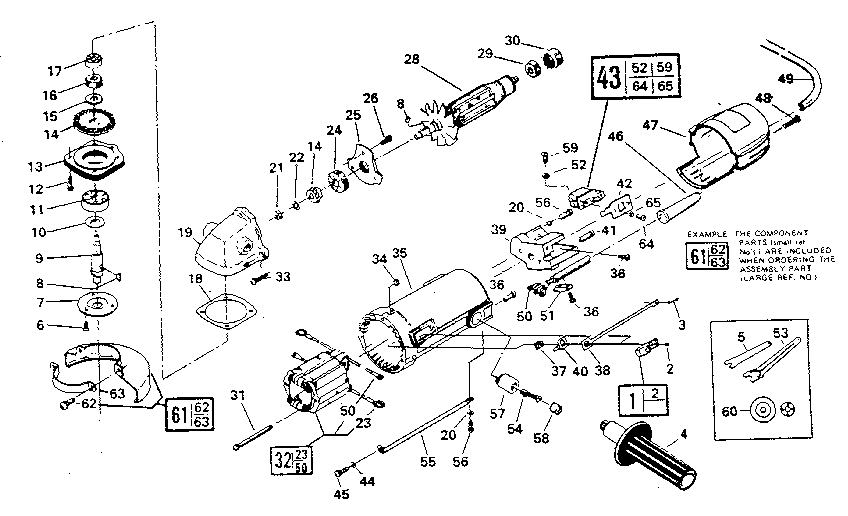

Unit parts diagram

Screw

Part #318846

The manufacturer no longer makes this part, and there's no substitute part

Screw 318836
#26

Unit parts diagram

Screw

Part #318836

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 318854
Lock washer

Part #318854

The manufacturer no longer makes this part, and there's no substitute part

Swtch Rd Lnk 326141
#3

Unit parts diagram

Swtch rd lnk

Part #326141

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 44575
#52A

Unit parts diagram

Lock washer

Part #44575

The manufacturer no longer makes this part, and there's no substitute part

Cap 318840
#30

Unit parts diagram

Cap

Part #318840

The manufacturer no longer makes this part, and there's no substitute part

Screw 318859
#48

Unit parts diagram

Screw

Part #318859

The manufacturer no longer makes this part, and there's no substitute part

Retainer 318807
#7

Unit parts diagram

Retainer

Part #318807

The manufacturer no longer makes this part, and there's no substitute part

Spdl Lck Wrh 72033
#5

Unit parts diagram

Spdl lck wrh

Part #72033

The manufacturer no longer makes this part, and there's no substitute part

Handle 318878
#4

Unit parts diagram

Handle

Part #318878

The manufacturer no longer makes this part, and there's no substitute part
