Model # 917257641 Official Craftsman lawn tractor
Here are the diagrams and repair parts for Official Craftsman 917257641 lawn tractor, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

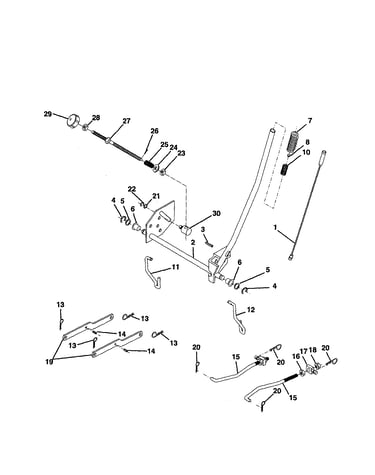

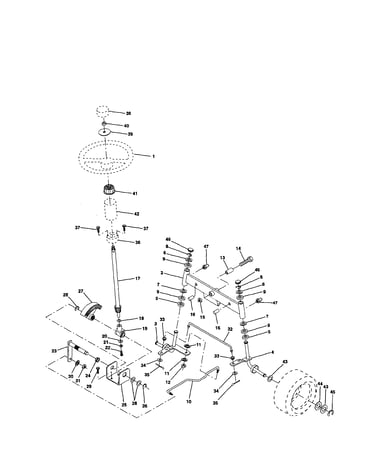

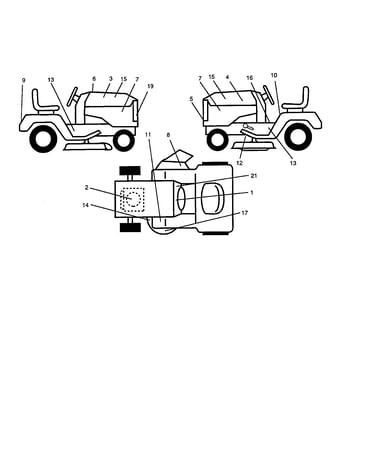

SELECT DIAGRAM
Browse Parts for917257641 Riding Mowers & Tractors
- #11

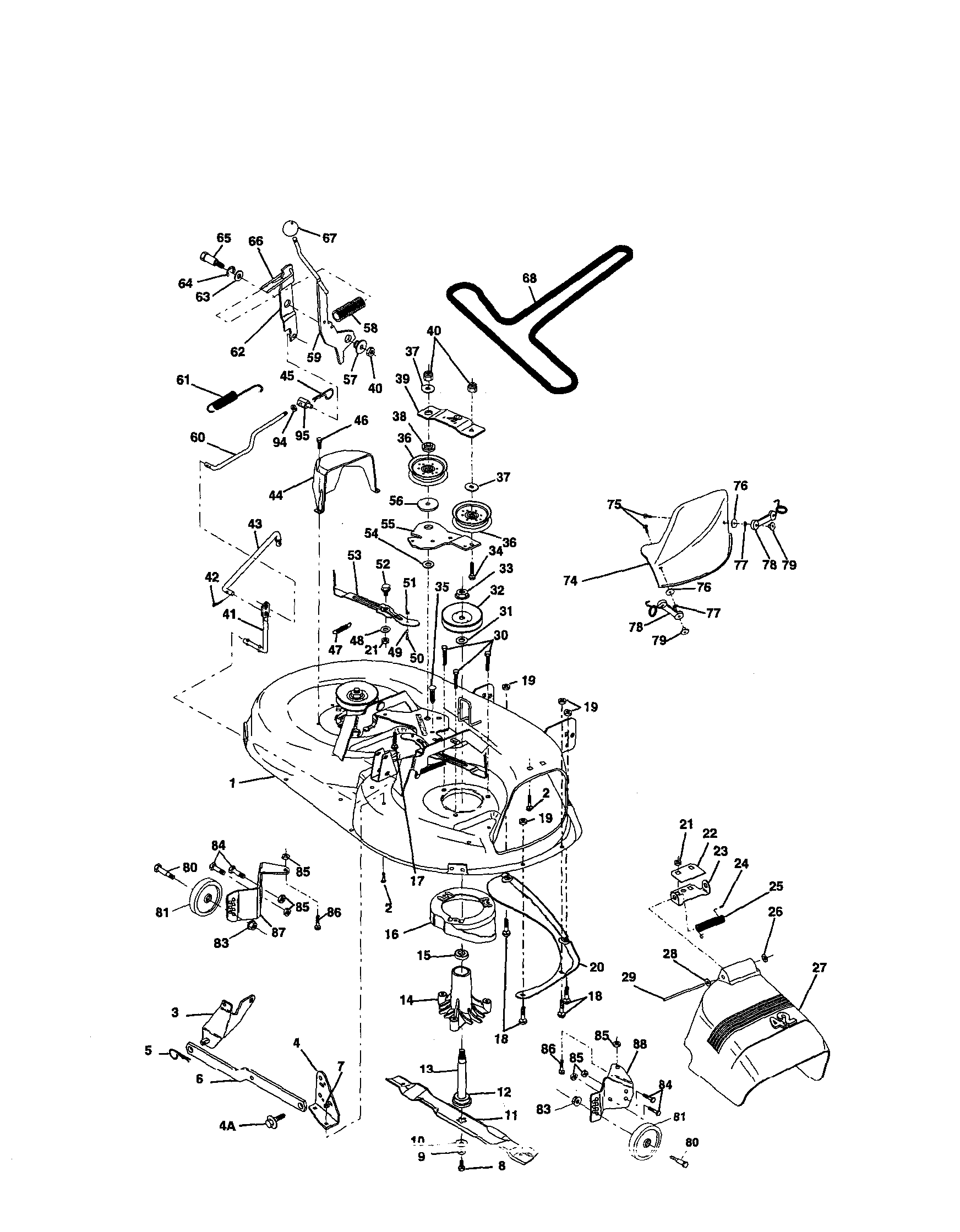

42" mower deck diagram
Husqvarna lawn tractor mulching blade, 21-inPart #134149
Replaced by #532134149
?Manufacturer substitutionThis part replaces 134149. Substitute parts can look different from the original.Get free shipping with Automatic Reorder
$26.64 |18% OFF Phone Price : $32.64In Stock - #11

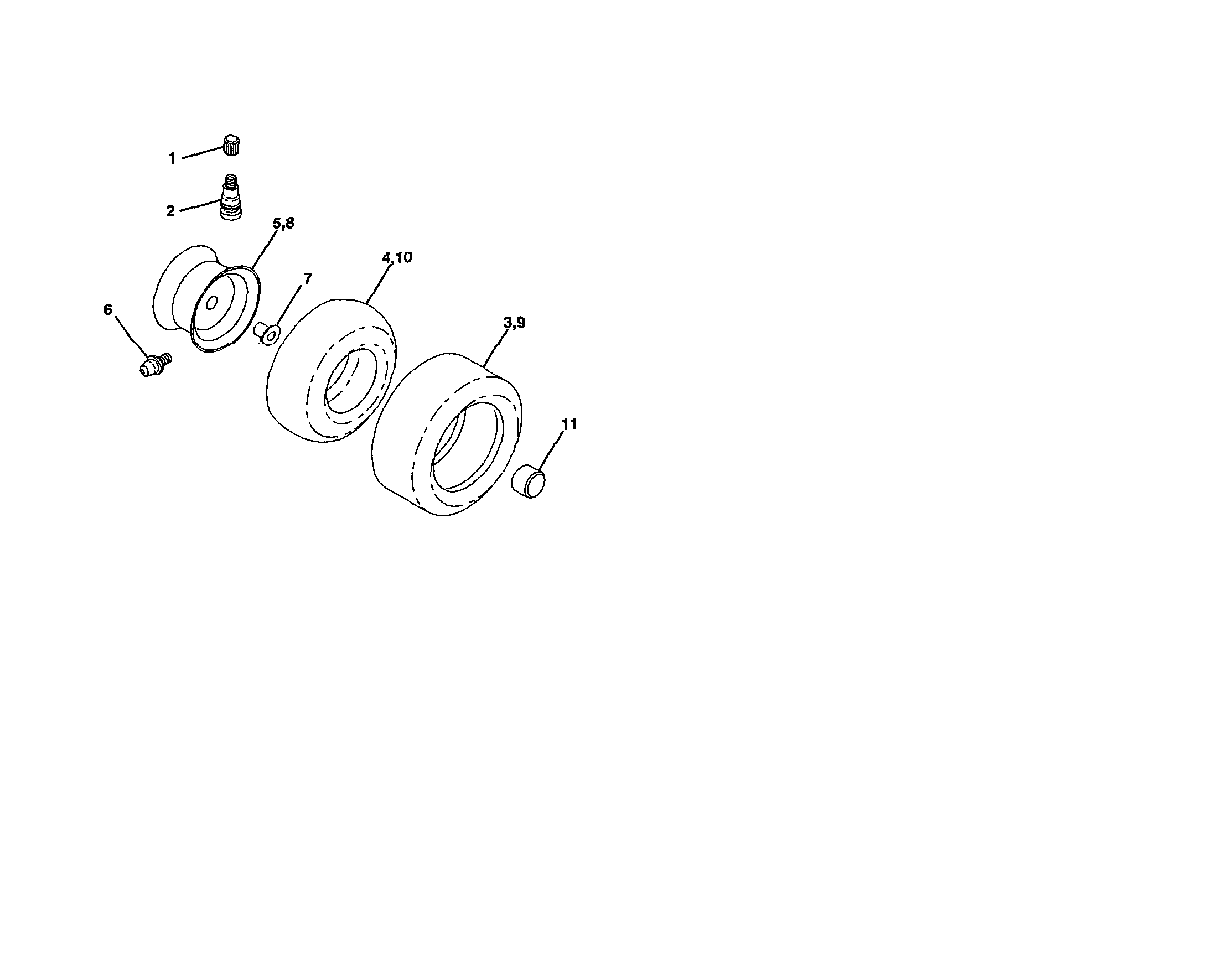

Wheels & tires diagram
Hub capPart #104757X
Replaced by #532104757
?Manufacturer substitutionThis part replaces 104757X. Substitute parts can look different from the original.This item is not returnable$4.57 |18% OFF Phone Price : $5.57In Stock - #57

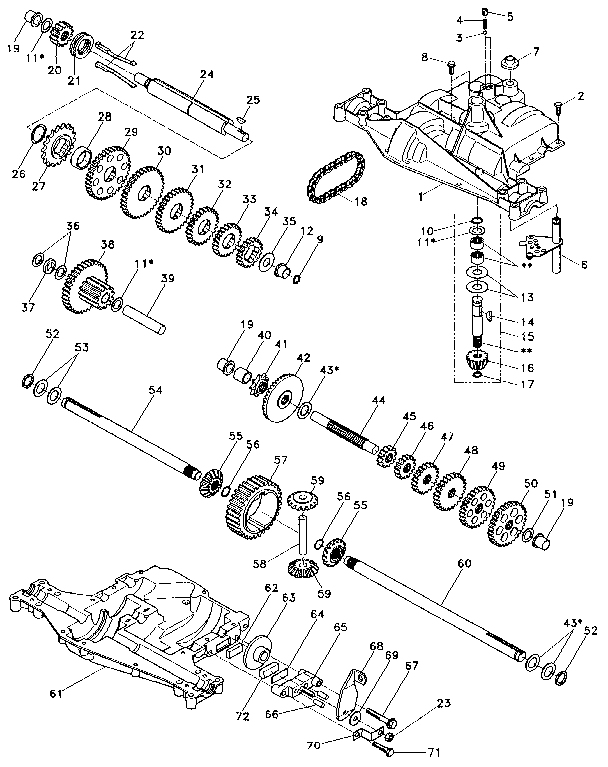

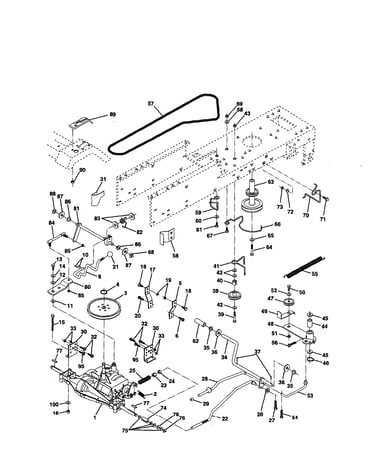

Drive diagram
V-beltPart #130801
Replaced by #532138255
?Manufacturer substitutionThis part replaces 130801. Substitute parts can look different from the original.Get free shipping with Automatic Reorder
$37.98 |14% OFF Phone Price : $43.98In Stock - #30
42" mower deck diagram
ScrewPart #138776
Replaced by #584953901
?Manufacturer substitutionThis part replaces 138776. Substitute parts can look different from the original.This item is not returnable$2.49 |42% OFF Was : $4.31In Stock - #78
42" mower deck diagram
Latch assemblyPart #130758
Replaced by #597000601
?Manufacturer substitutionThis part replaces 130758. Substitute parts can look different from the original.$8.64 |10% OFF Phone Price : $9.64In Stock - #43

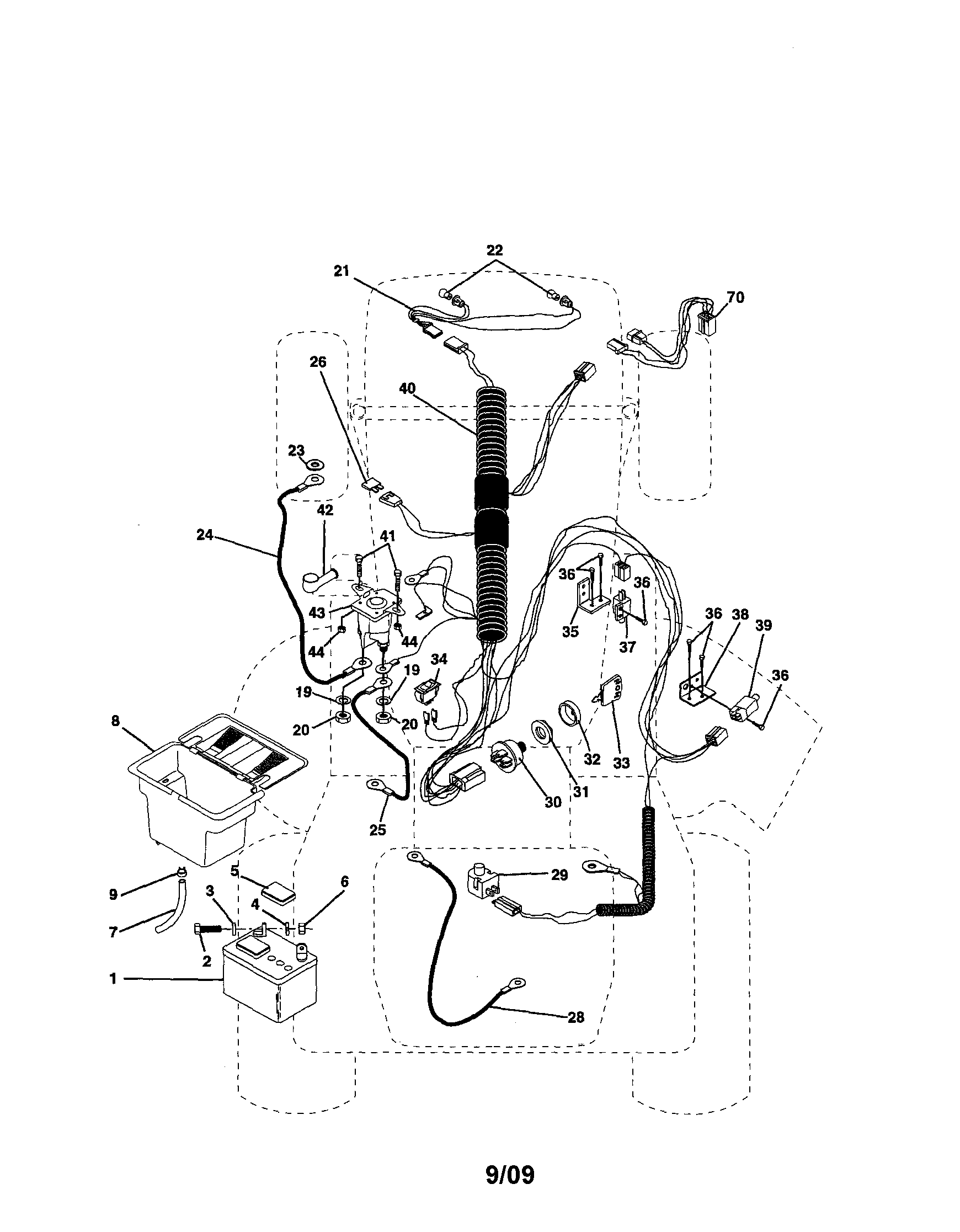

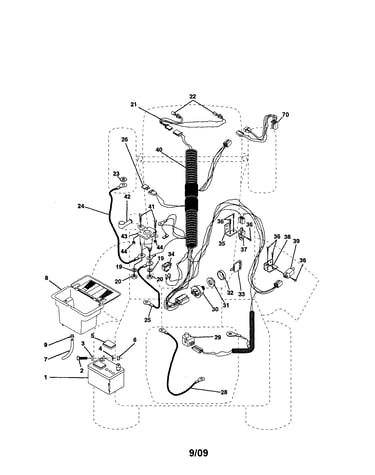

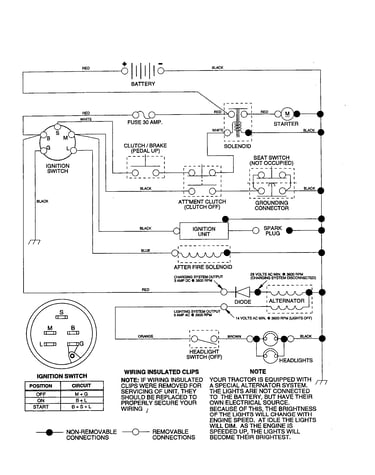

Electrical diagram
SolenoidPart #138406
Replaced by #532146154
?Manufacturer substitutionThis part replaces 138406. Substitute parts can look different from the original.$29.04 |17% OFF Phone Price : $35.04In Stock - Husqvarna lawn tractor ring clip
Part #12000029
Replaced by #812000029
?Manufacturer substitutionThis part replaces 12000029. Substitute parts can look different from the original.This item is not returnable$2.49 |29% OFF Phone Price : $3.49In Stock - #7
Wheels & tires diagram
Wizard lawn tractor axle flange bearingPart #9040H
Replaced by #532009040
?Manufacturer substitutionThis part replaces 9040H. Substitute parts can look different from the original.This item is not returnable$13.62 |13% OFF Phone Price : $15.62In Stock #NI04

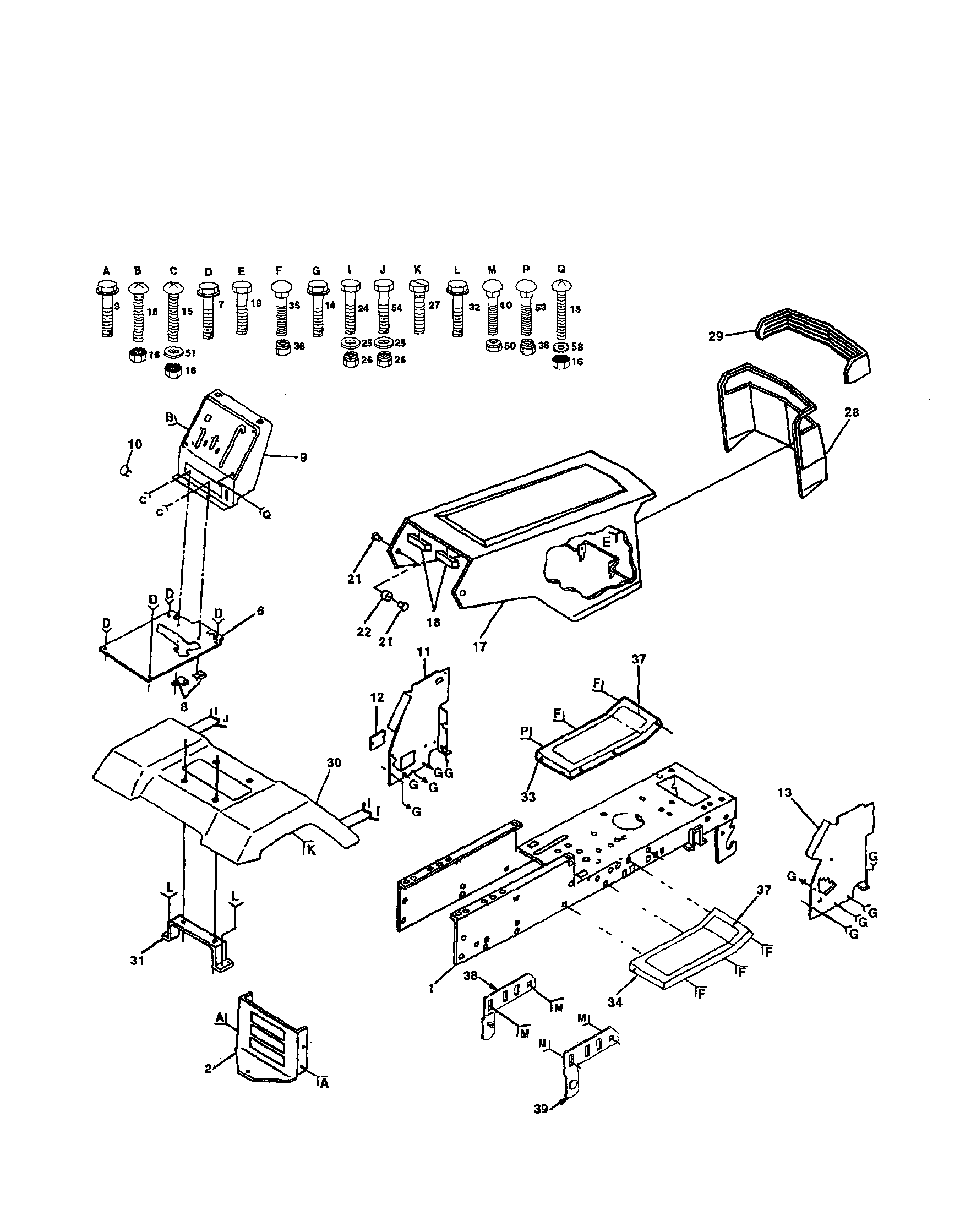

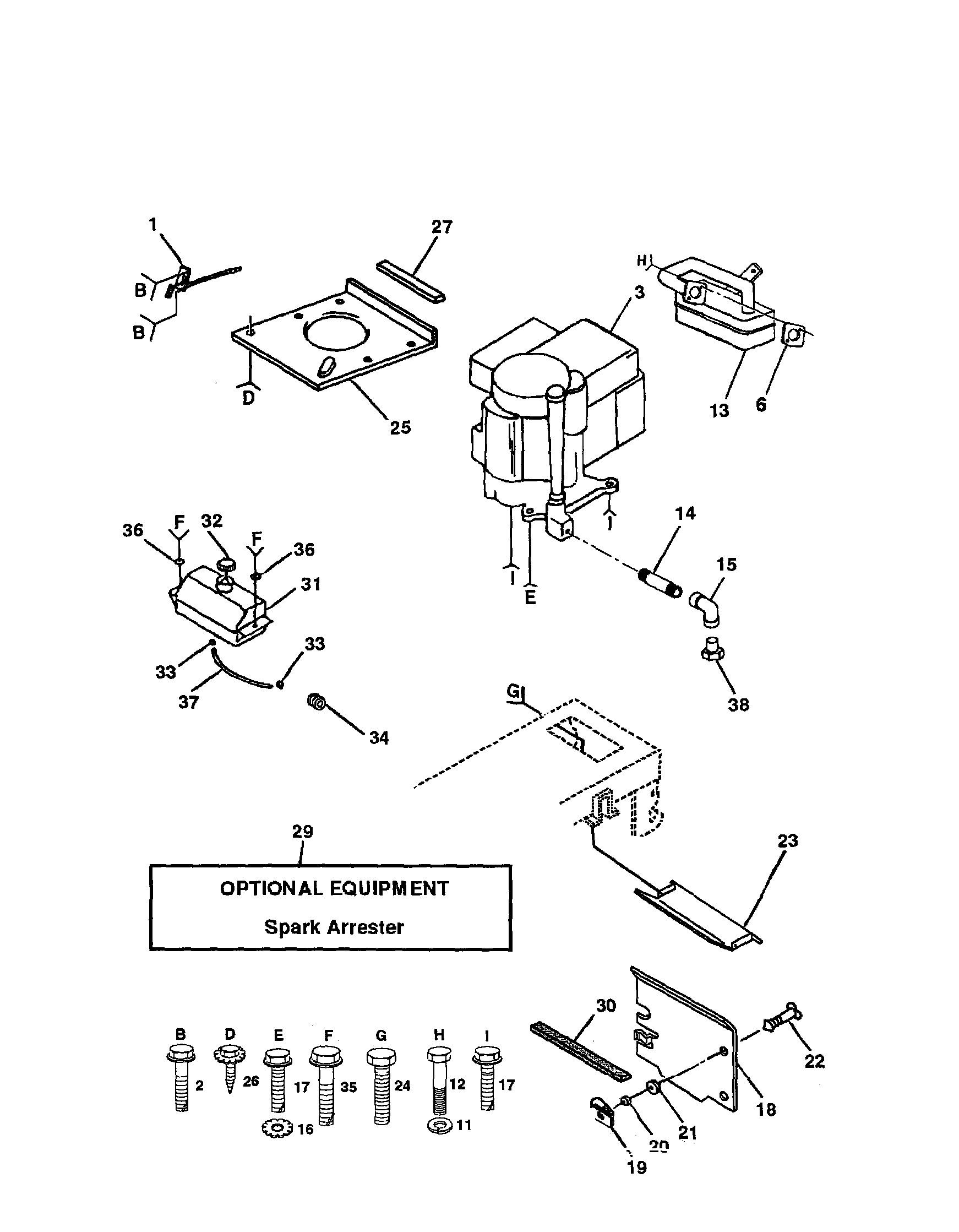

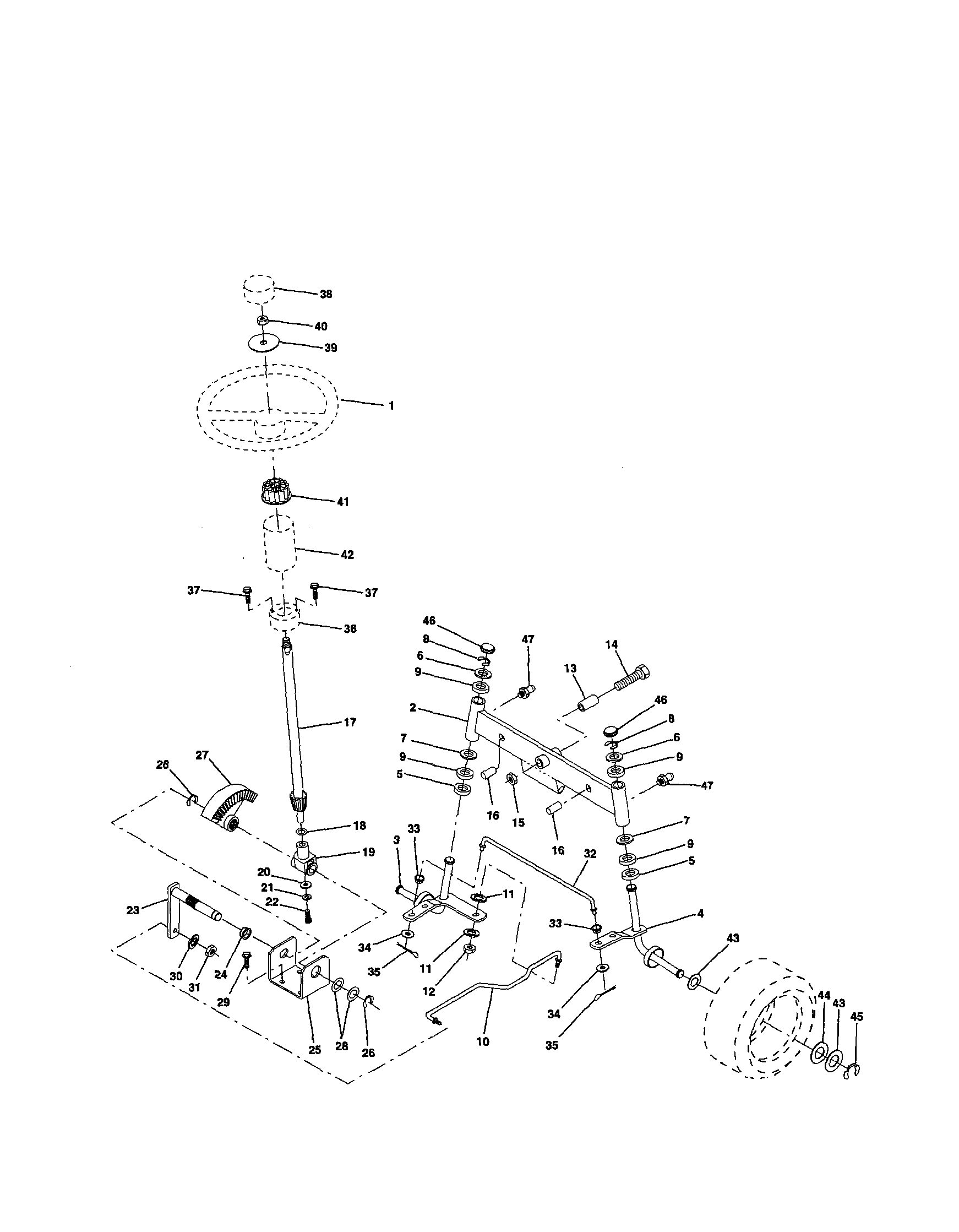

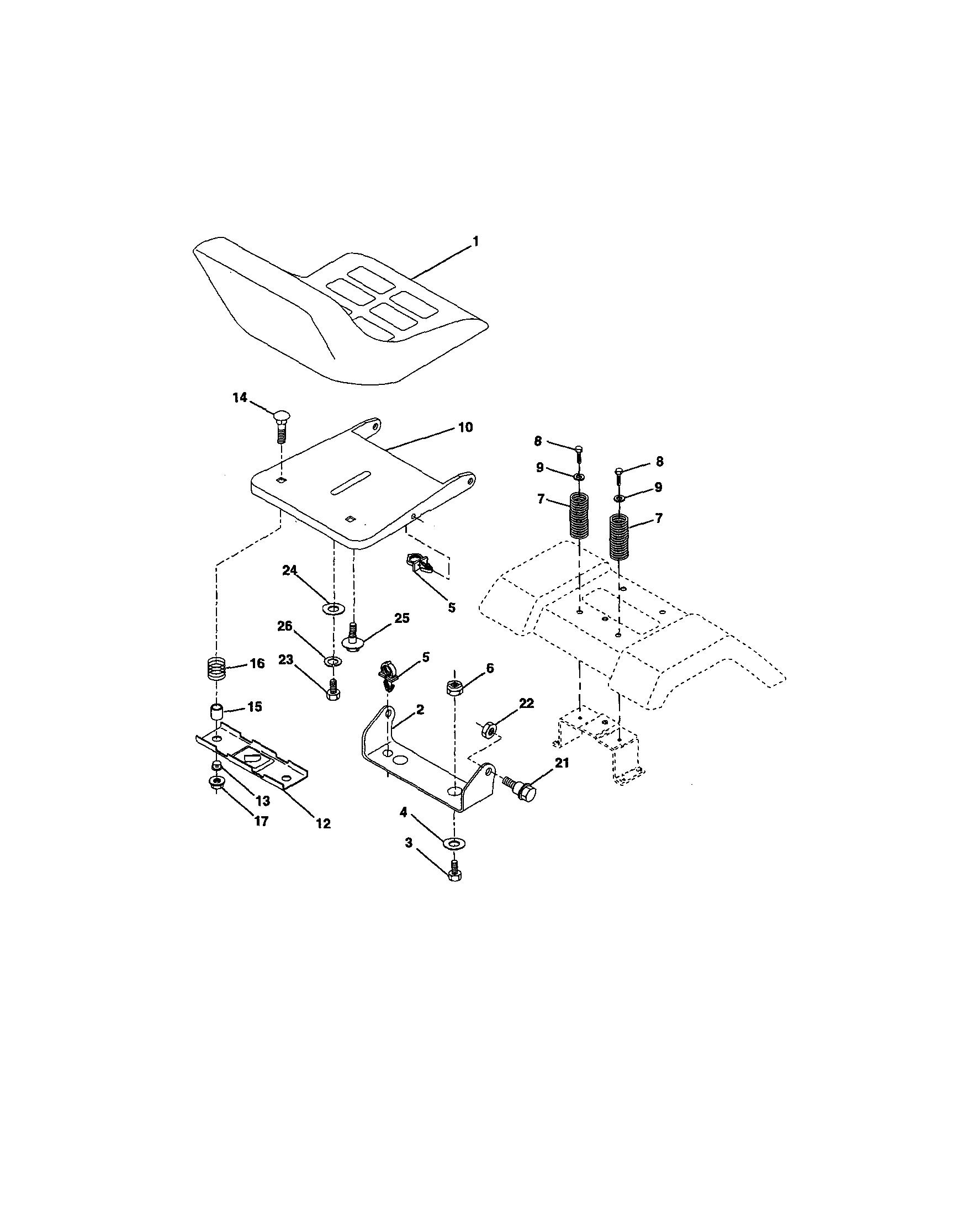

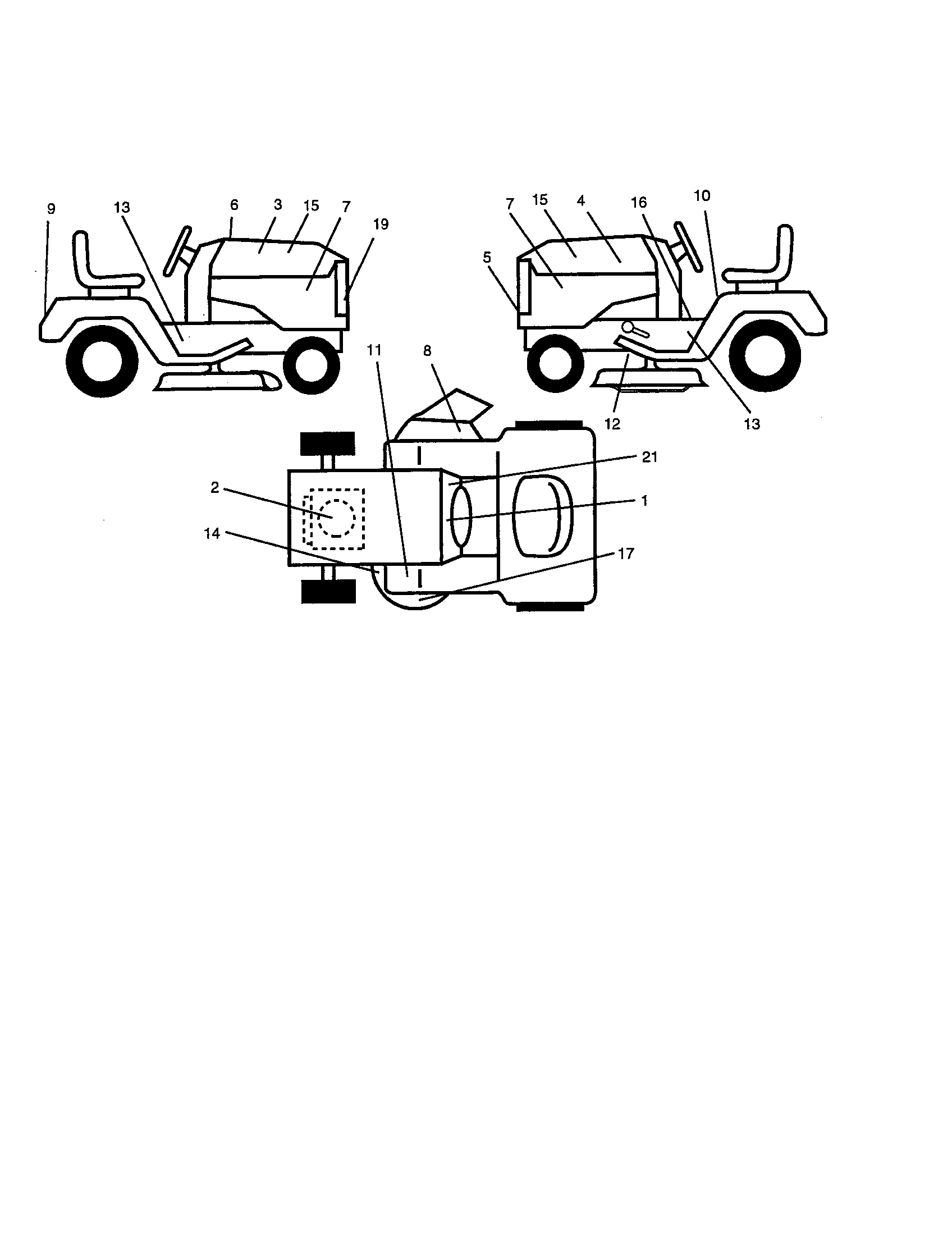

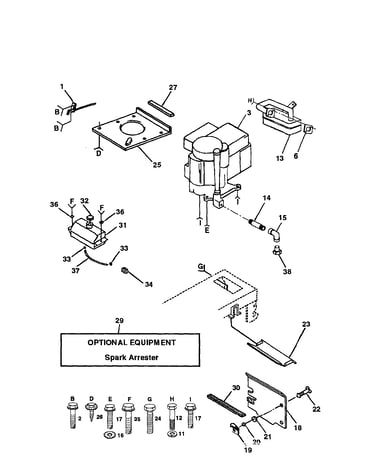

All parts diagram
Husqvarna lawn tractor mandrel assemblyPart #130794
Replaced by #532130794
?Manufacturer substitutionThis part replaces 130794. Substitute parts can look different from the original.$68.17 |8% OFF Phone Price : $74.17In Stock- #33
Electrical diagram
Molded ignition keyPart #140403
Replaced by #532140403
?Manufacturer substitutionThis part replaces 140403. Substitute parts can look different from the original.$8.64 |10% OFF Phone Price : $9.64In Stock
