Dishwasher

Model # GLC4400R40WW Official GE dishwasher

Here are the diagrams and repair parts for Official GE GLC4400R40WW dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
GLC4400R40WW Dishwasher
Water Valve WD15X10011
#744

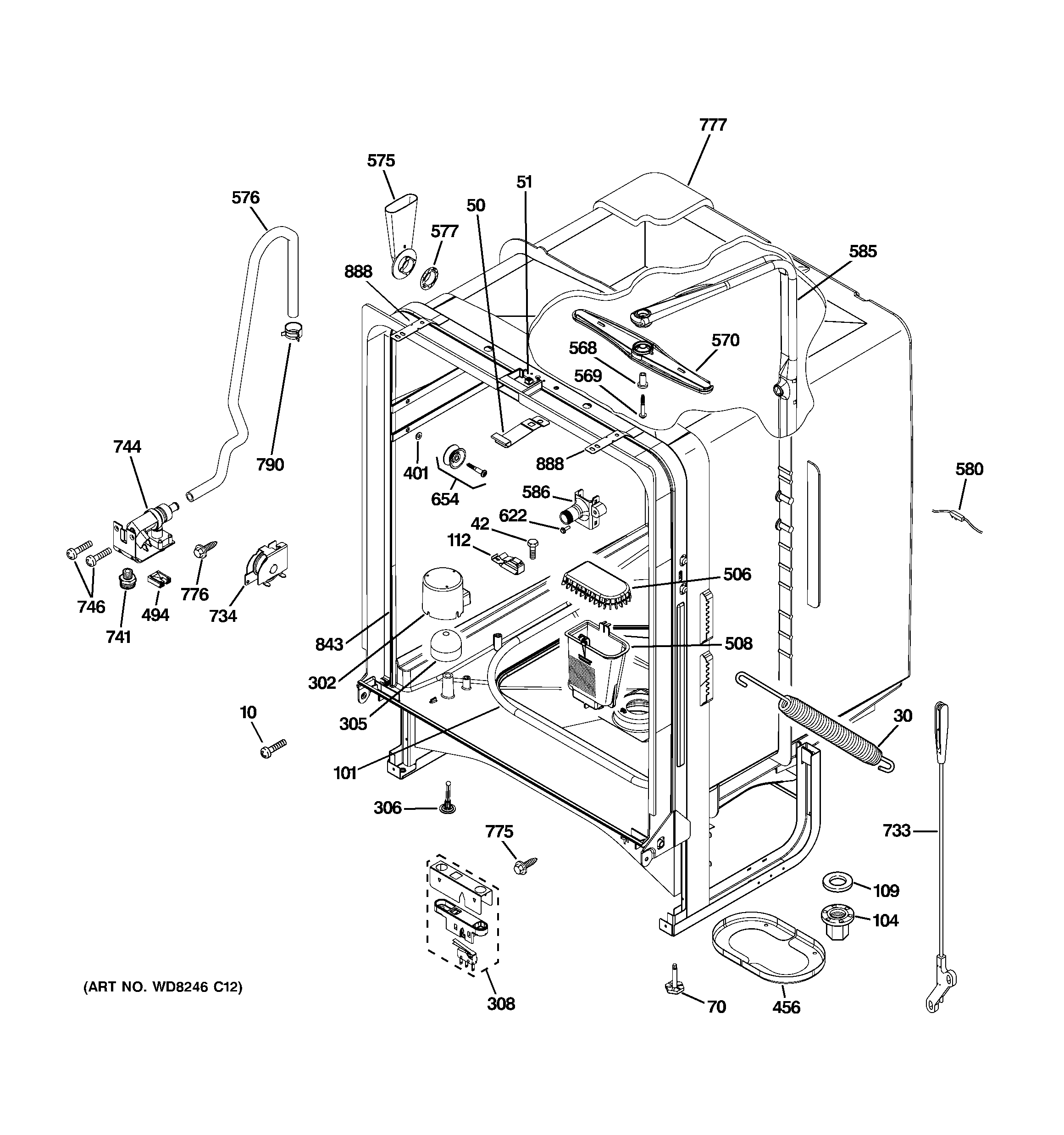

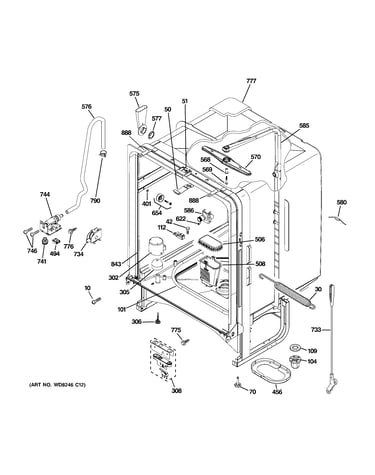

Body parts diagram

Water valve

Part #WD15X10011

Replaced by #WD15X10014

?
Manufacturer substitution
This part replaces WD15X10011. Substitute parts can look different from the original.
BEST SELLER
$34.91 |
15% OFF Phone Price : $40.91
In Stock
Dishwasher Tub Gasket WD08X10018
#843

Body parts diagram

Dishwasher tub gasket

Part #WD08X10018

BEST SELLER
$48.09 |
11% OFF Phone Price : $54.09
In Stock
Dishwasher Pump Impeller Kit WD19X10038
#430

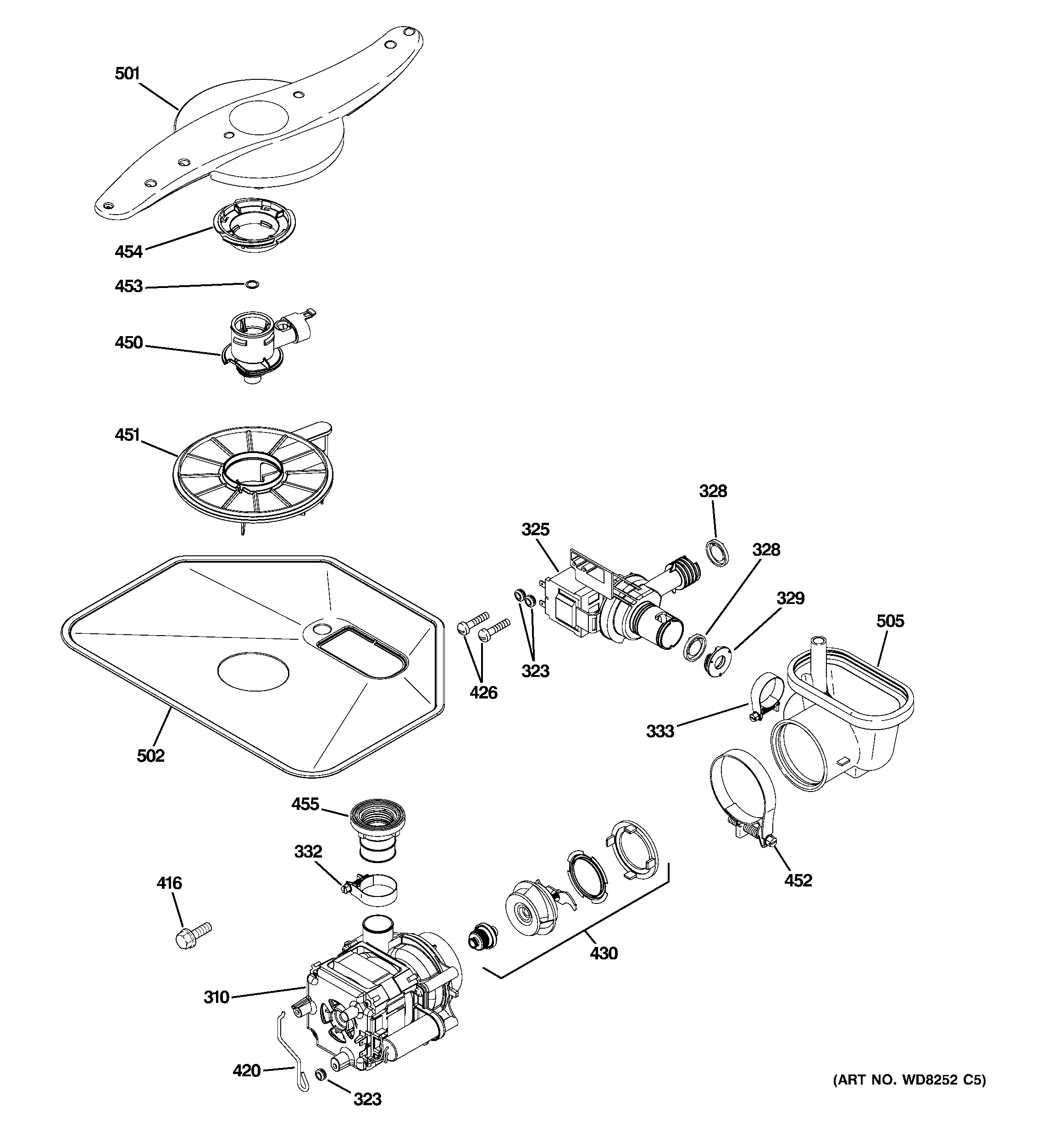

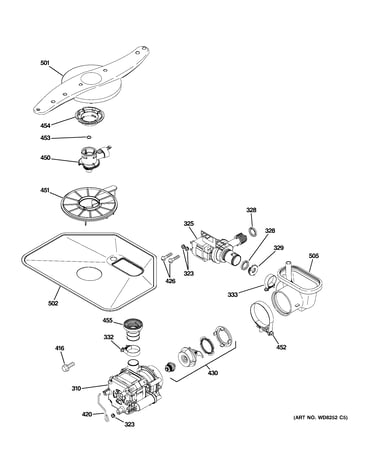

Motor-pump mechanism diagram

Dishwasher pump impeller kit

Part #WD19X10038

BEST SELLER
$49.75 |
11% OFF Phone Price : $55.75
In Stock
Dishwasher Door Handle Plunger Spring WD03X10026
#837

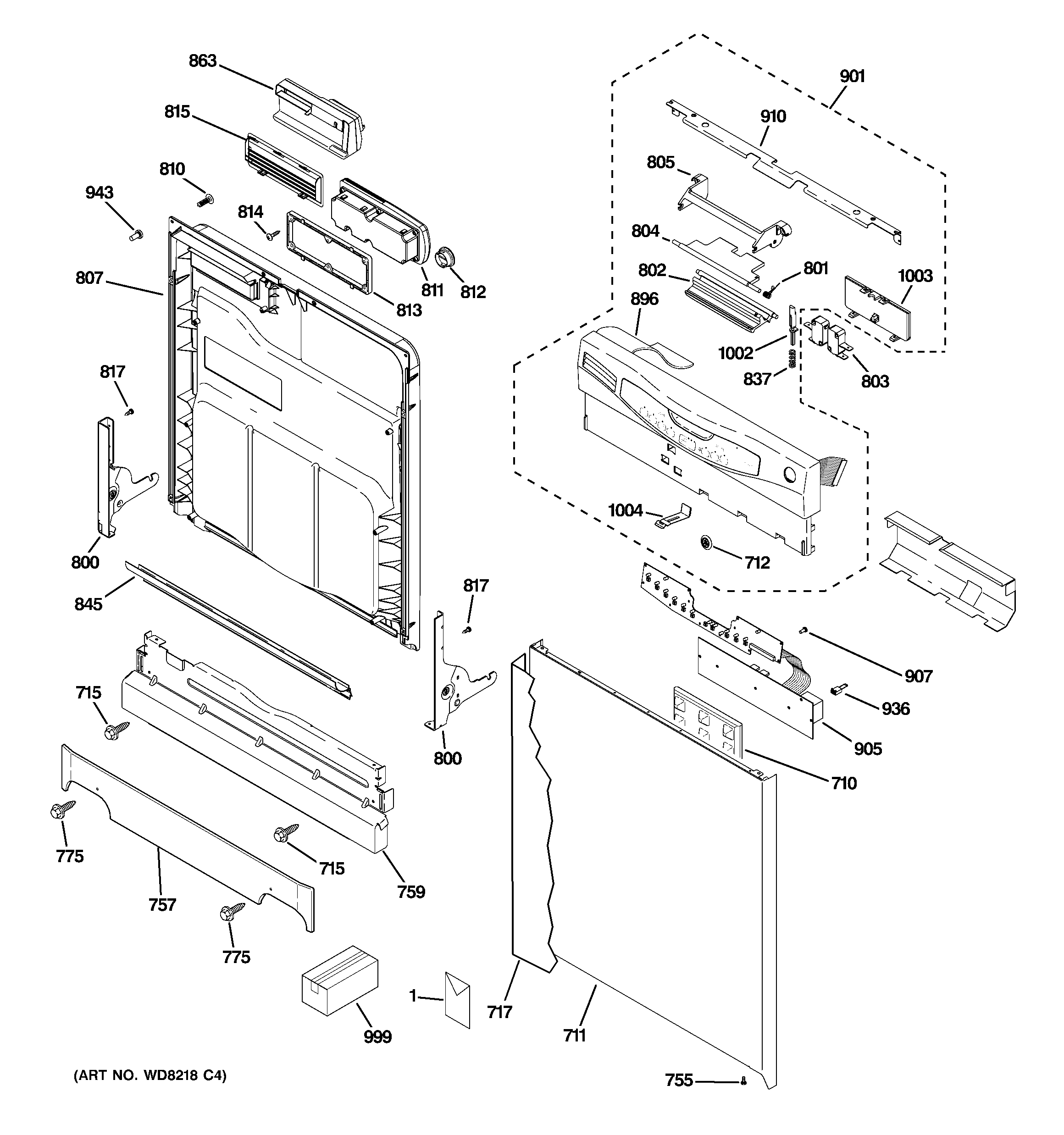

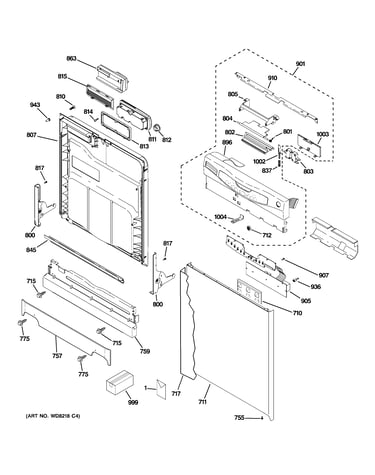

Escutcheon & door assembly diagram

Dishwasher door handle plunger spring

Part #WD03X10026

BEST SELLER
This item is not returnable
$10.15 |
16% OFF Phone Price : $12.15
In Stock
Sump Clamp WD01X1392
#452

Motor-pump mechanism diagram

Sump clamp

Part #WD01X1392

Replaced by #WD1X1392

?
Manufacturer substitution
This part replaces WD01X1392. Substitute parts can look different from the original.
$23.15 |
21% OFF Phone Price : $29.15
In Stock
Roller Stud WD12X10347
#700

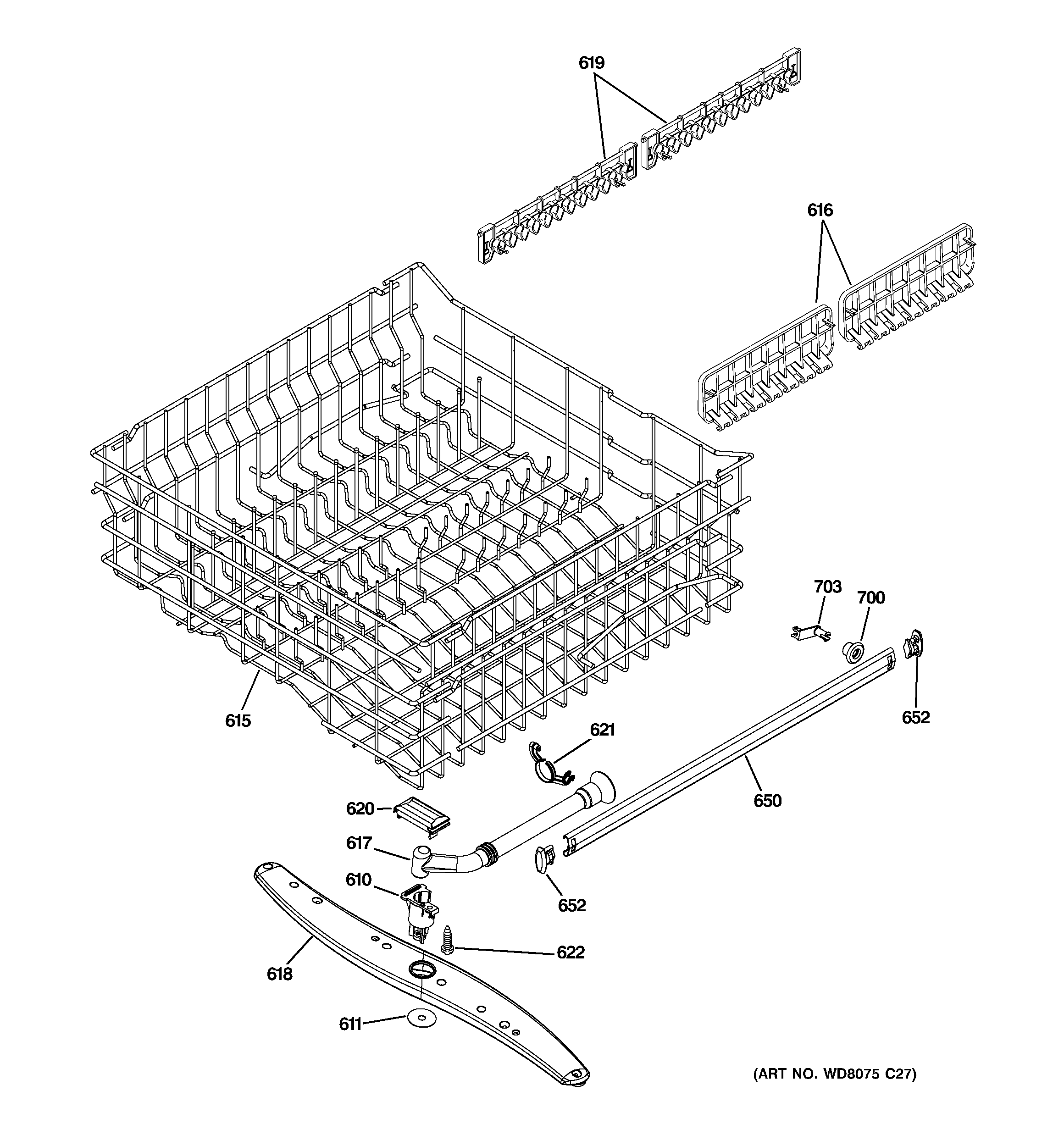

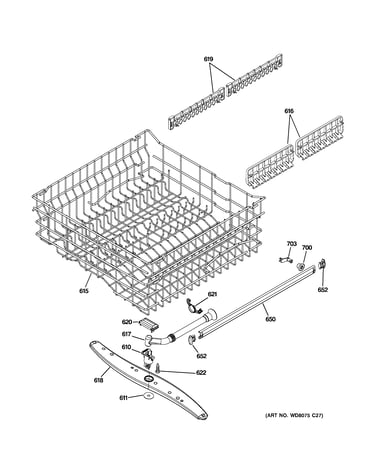

Upper rack assembly diagram

Roller stud

Part #WD12X10347

Replaced by #WD35X20994

?
Manufacturer substitution
This part replaces WD12X10347. Substitute parts can look different from the original.
$36.95 |
14% OFF Phone Price : $42.95
In Stock
Dishwasher Dishrack Roller, Upper WD12X10335
#700

Upper rack assembly diagram

Dishwasher dishrack roller, upper

Part #WD12X10335

Replaced by #WD35X20994

?
Manufacturer substitution
This part replaces WD12X10335. Substitute parts can look different from the original.
$36.95 |
14% OFF Phone Price : $42.95
In Stock
Dishwasher Upper Dishrack Roller Stud WD12X10186
#703

Upper rack assembly diagram

Dishwasher upper dishrack roller stud

Part #WD12X10186

Replaced by #WD35X20994

?
Manufacturer substitution
This part replaces WD12X10186. Substitute parts can look different from the original.
$36.95 |
14% OFF Phone Price : $42.95
In Stock
Dishwasher Screw WD02X10067
Dishwasher screw

Part #WD02X10067

This item is not returnable
$7.58 |
12% OFF Phone Price : $8.58
In Stock
Dishwasher Screw, B-16 X 1/2-in WD02X10169
#611

Upper rack assembly diagram

Dishwasher screw, b-16 x 1/2-in

Part #WD02X10169

This item is not returnable
$8.37 |
11% OFF Phone Price : $9.37
In Stock
