Magic Chef
Gas Range

Model # 82HN-1 Official Magic Chef gas range

Here are the diagrams and repair parts for Official Magic Chef 82HN-1 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Switch 7403P041-60
#14

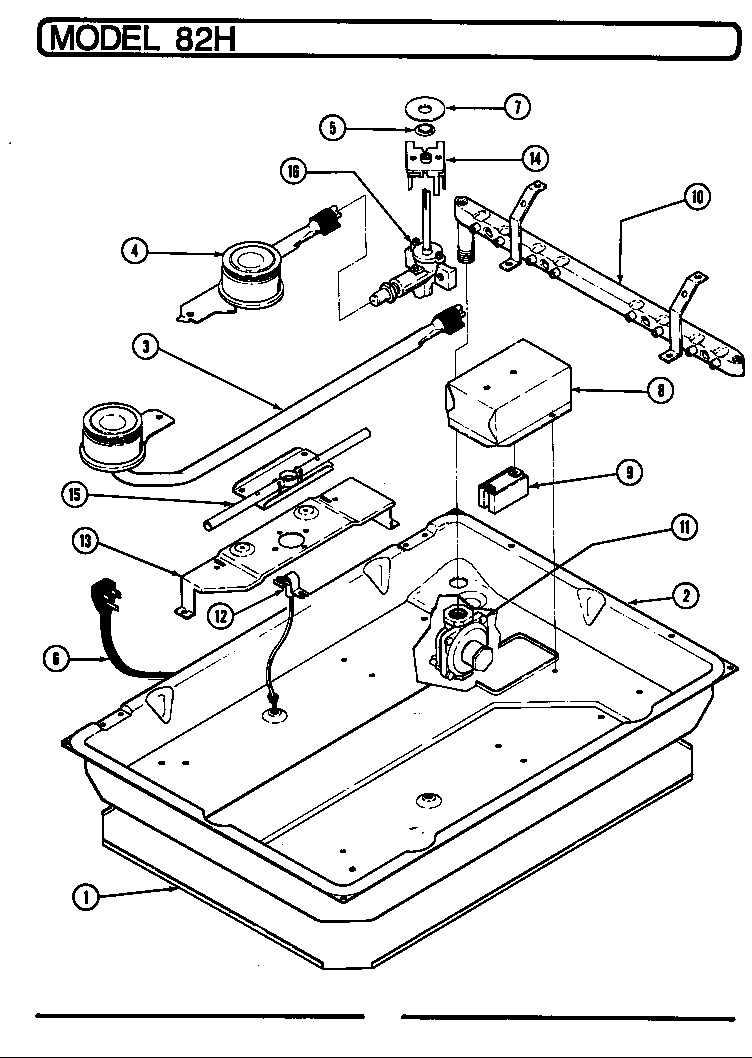

Controls (82h*-1k) (82ha-1k) diagram

Switch

Part #7403P041-60

Replaced by #WP7403P190-60

?
Manufacturer substitution
This part replaces 7403P041-60. Substitute parts can look different from the original.
$54.58 |
10% OFF Phone Price : $60.58
In Stock
Valve 7502P123-60
#5E

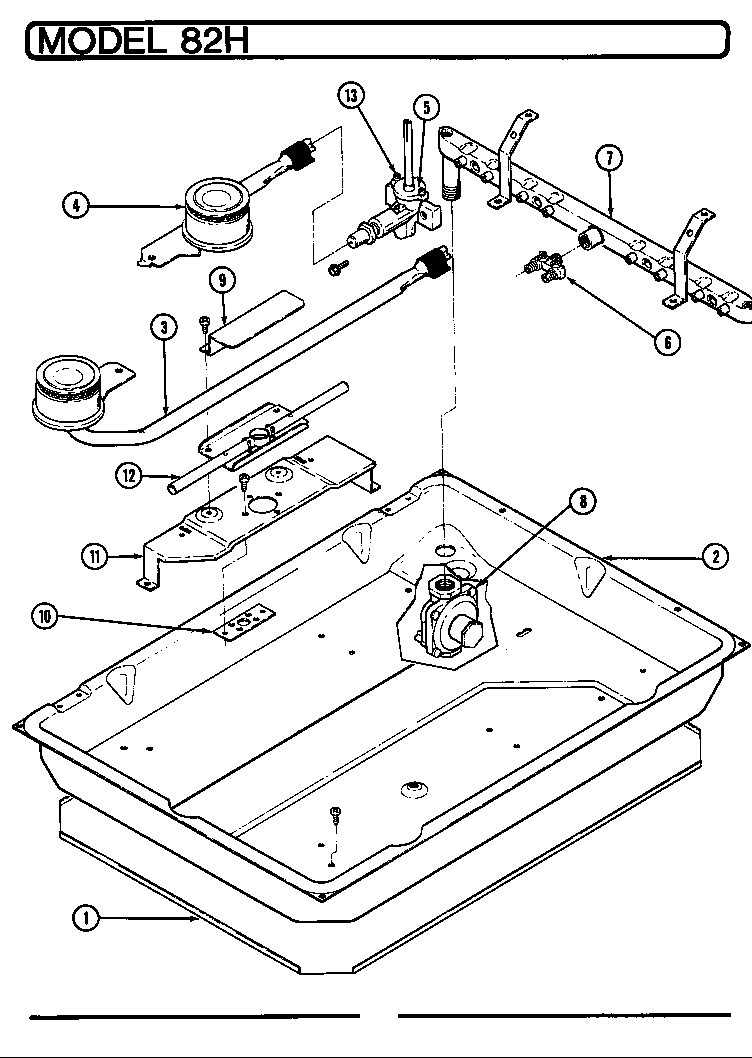

Controls (82h*-1 & 82h*-12) (82ha-1) (82ha-12) (82hn-1) diagram

Valve

Part #7502P123-60

The manufacturer no longer makes this part, and there's no substitute part

Top Burner Valve 7502P023-60
#16

Controls (82h*-1k) (82ha-1k) diagram

Top burner valve

Part #7502P023-60

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Manual 8110P009-60
#5B

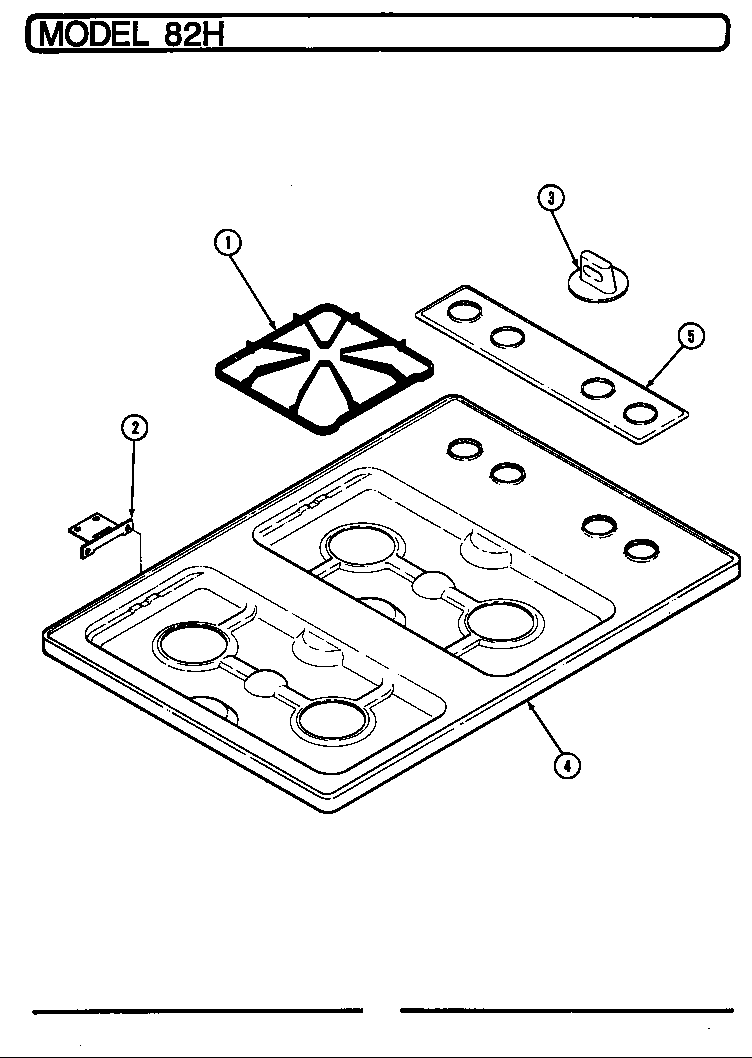

Top assembly diagram

Use and care manual

Part #8110P009-60

The manufacturer no longer makes this part, and there's no substitute part

Clip 7112P024-60
Clip

Part #7112P024-60

The manufacturer no longer makes this part, and there's no substitute part

Igniter 7432P010-60
#12

Controls (82h*-1k) (82ha-1k) diagram

Igniter

Part #7432P010-60

The manufacturer no longer makes this part, and there's no substitute part

Filter Pilot 7507P001-60
#6

Controls (82h*-1 & 82h*-12) (82ha-1) (82ha-12) (82hn-1) diagram

Filter pilot

Part #7507P001-60

The manufacturer no longer makes this part, and there's no substitute part

Valve, Std. 7502P013-60
#5

Controls (82h*-1 & 82h*-12) (82ha-1) (82ha-12) (82hn-1) diagram

Valve, std.

Part #7502P013-60

The manufacturer no longer makes this part, and there's no substitute part

Valve 7502P122-60
#5D

Controls (82h*-1 & 82h*-12) (82ha-1) (82ha-12) (82hn-1) diagram

Valve

Part #7502P122-60

The manufacturer no longer makes this part, and there's no substitute part

Control Trim 7720P132-60
#5A

Top assembly diagram

Control trim

Part #7720P132-60

The manufacturer no longer makes this part, and there's no substitute part
